VARMEC RCV

Concentric Helical Gear Reducer:

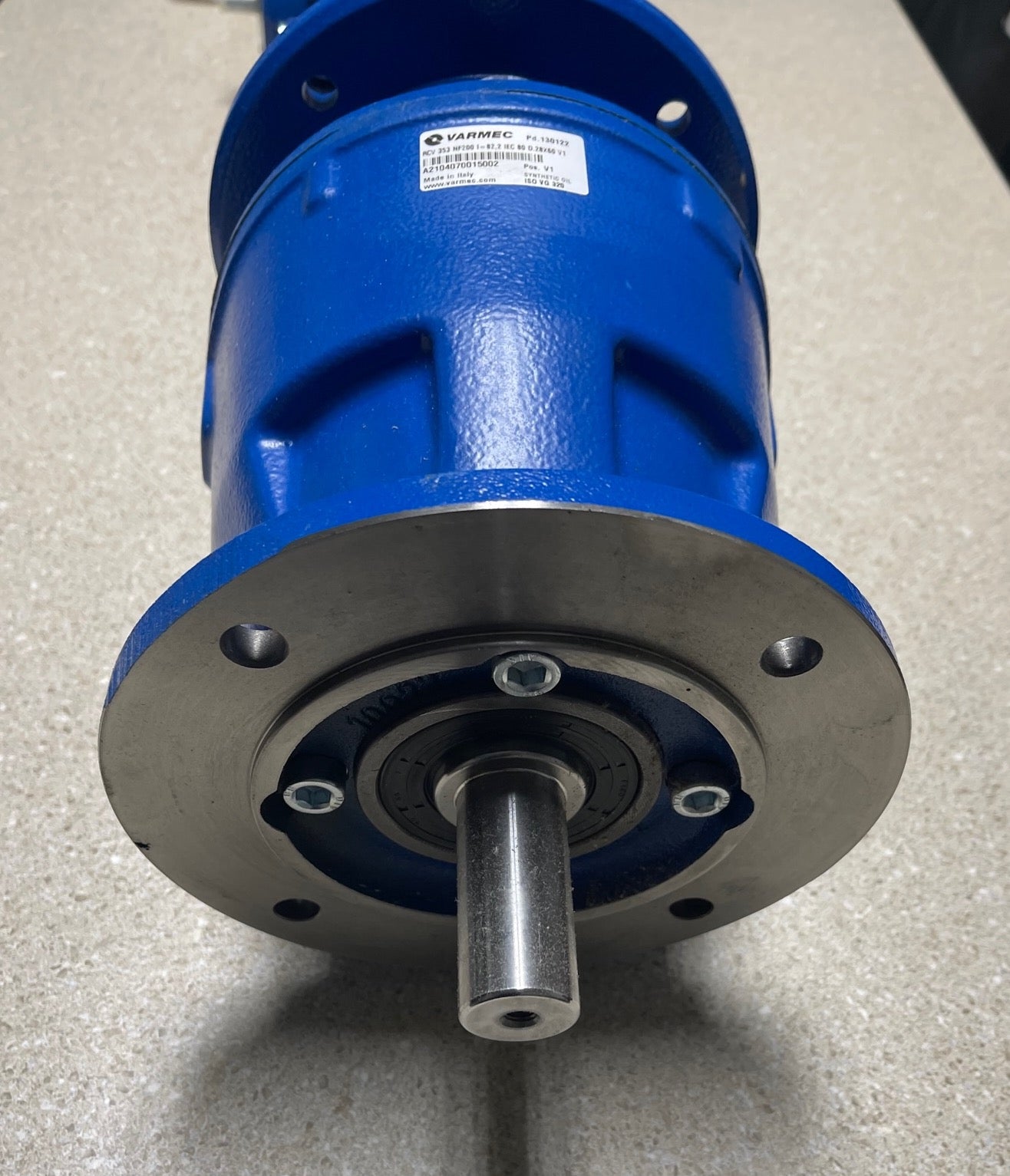

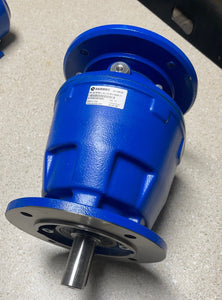

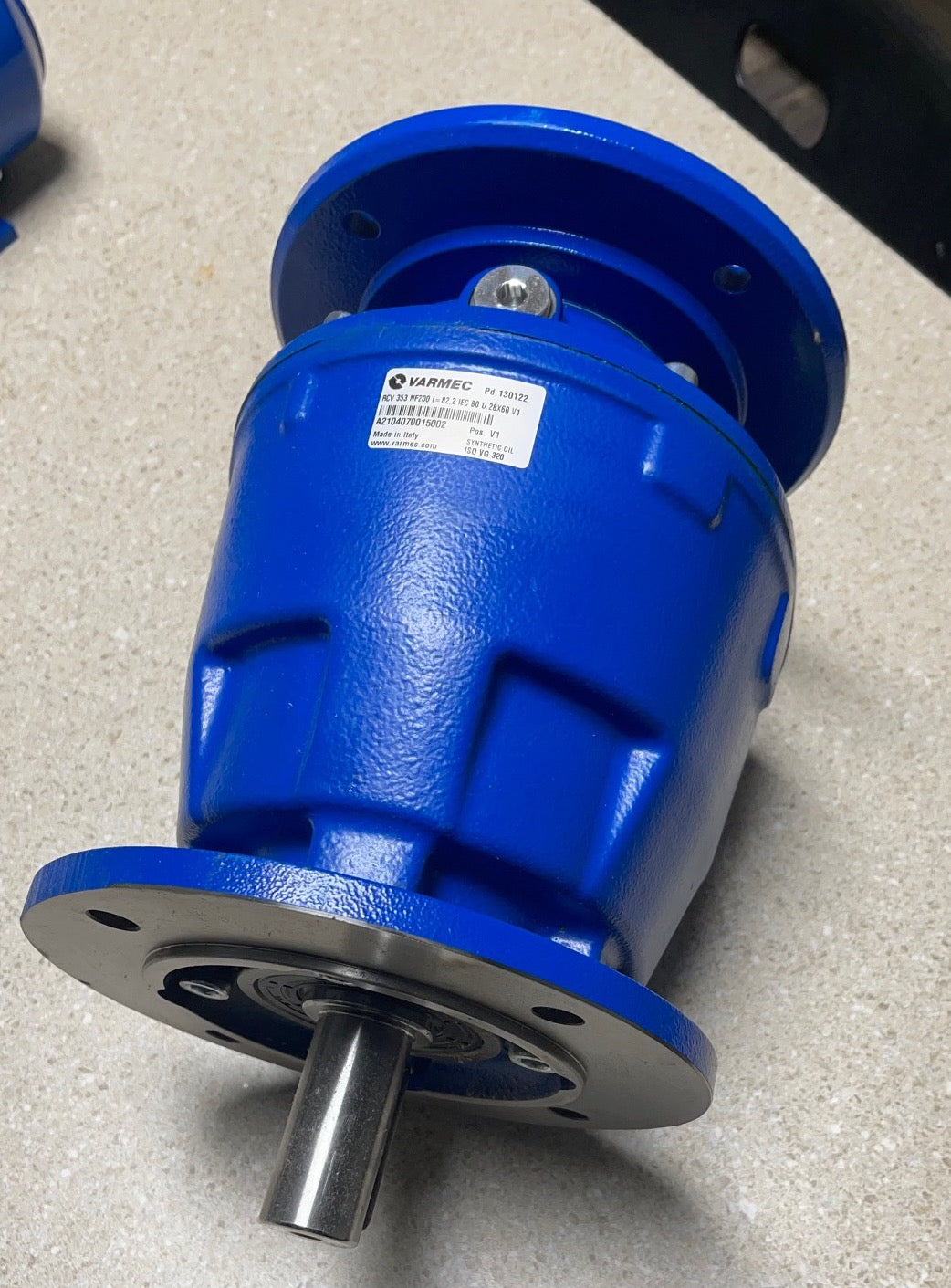

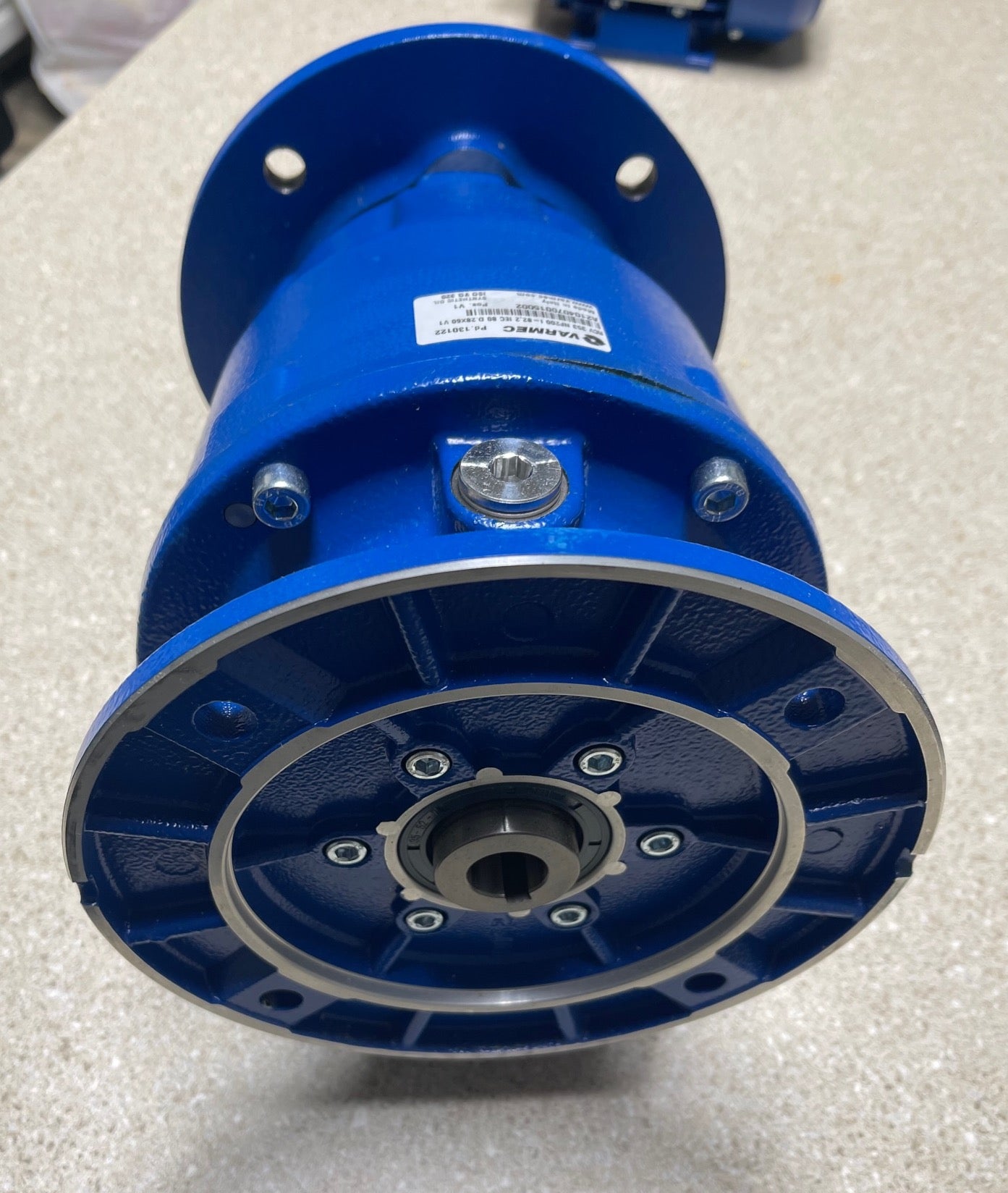

Size 35, 3 stages of reduction, 82.2:1 ratio, input IEC 80B5 (200mm flange 19mm input quill), 200mm flange mounting "NF200", output shaft 28mm x 60mm with 8mm x 50mm feather key and end of shaft drilled & tapped M8.  Engineering cast iron housing polyester epoxy powder painted before machining & assembly.   Synthetic lubricated for life Shell Omala S4 WE 320.  Mounting V1.

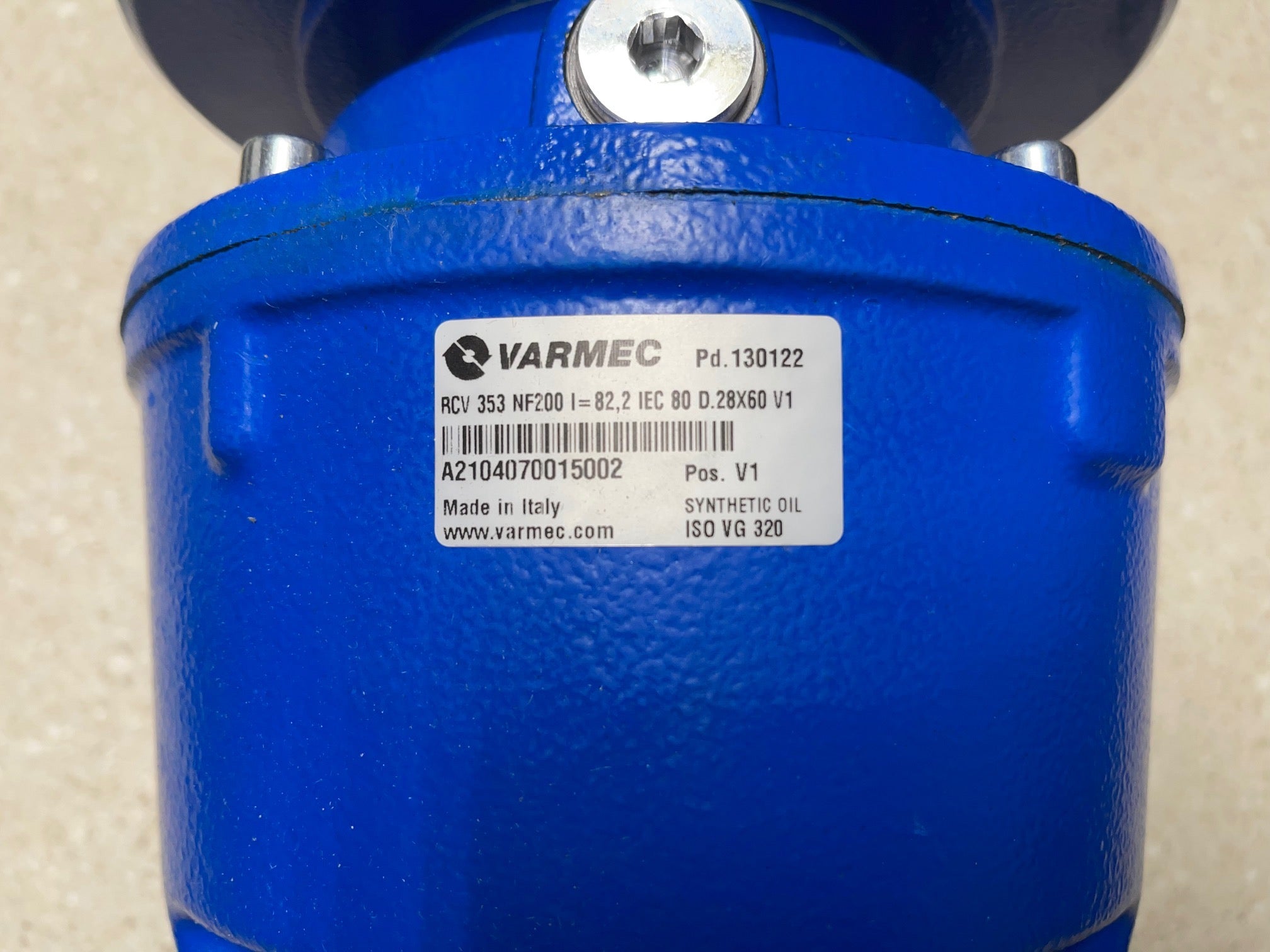

RCV 353 NF200 I=82.2 IEC 80 D.28x60 V1

100% Made in Italy
