What flange size do I need for my Electric Motor?

Electric motors are indispensable components in countless industrial applications, from manufacturing equipment to power transmission systems. One crucial aspect of motor selection that often perplexes engineers and procurement specialists is determining the appropriate flange size. The flange—that disc-like component that facilitates the mounting of the motor to driven equipment—comes in various standardized configurations denoted by codes such as B5, B3, B14, B35, and B34. Selecting the correct flange size ensures optimal performance, safety, and longevity of your motor installation.

Flange configurations directly impact how an electric motor integrates with your machinery. An improper selection can lead to misalignment, premature bearing failure, vibration issues, and ultimately, costly downtime. For distributors, maintenance engineers, and manufacturing companies dealing with power transmission systems, understanding these standardized mounting arrangements is not merely beneficial—it's essential for operational excellence.

The interface between your electric motor and the driven equipment represents a critical juncture in any power transmission system. This connection must withstand operational stresses while maintaining perfect alignment. A correctly specified flange ensures that torque is transmitted efficiently while minimizing mechanical losses and wear. For machine builders and maintenance professionals, this translates to enhanced reliability, reduced maintenance intervals, and prolonged equipment lifespan.

Beyond the mechanical considerations, appropriate flange selection also impacts installation flexibility. Certain mounting configurations facilitate easier access for maintenance, while others prioritize space efficiency or structural support. Understanding the nuances of flange designations empowers you to make informed decisions that optimize both performance and practicality in your specific application context.

The International Electrotechnical Commission (IEC) has established standardized designations for motor mounting arrangements. These alphanumeric codes—B3, B5, B14, B34, and B35—represent specific configurations that dictate how a motor interfaces with its mounting surface and driven equipment. Each designation provides critical information about the motor's mounting features, including the presence of flanges, feet, and mounting hole patterns.

These IEC designations have been widely adopted globally, creating a universal language for motor mounting specifications. This standardization streamlines the procurement process and ensures interchangeability across manufacturers, which is particularly valuable for maintenance departments and equipment designers seeking replacement motors or planning new installations.

The IEC flange and mounting standards represent a comprehensive system for categorizing how motors can be physically integrated into machinery. Each designation provides specific information about the motor's mounting interfaces:

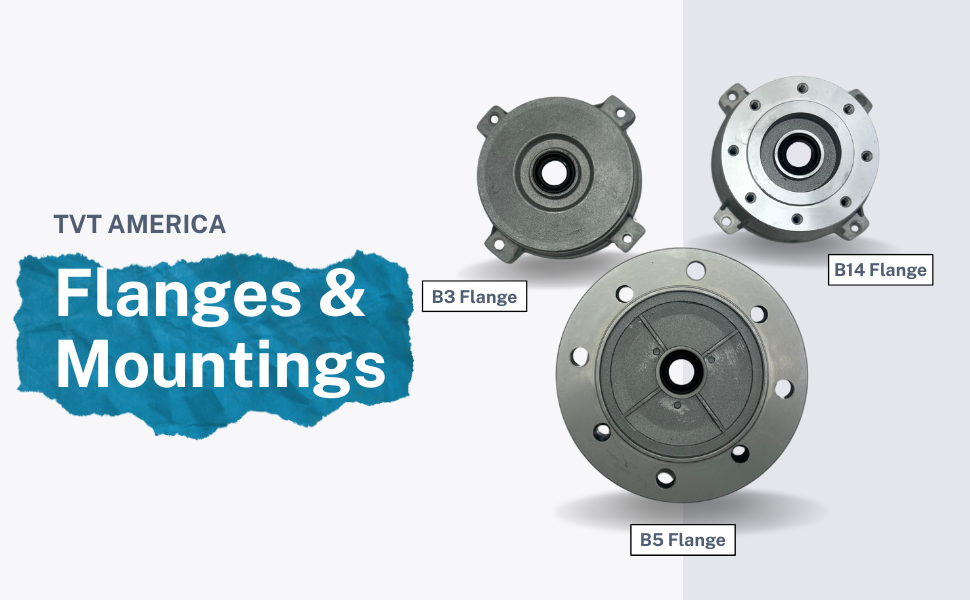

• B3: Foot-mounted without flange
• B5: Flange-mounted with through holes
• B14: Face-mounted with threaded holes
• B35: Combined foot and flange mounting (B3 + B5)
• B34: Combined foot and face mounting (B3 + B14)

Understanding these distinctions is vital for specifying the correct motor for your application requirements. The mounting arrangement directly affects how forces are distributed between the motor and the driven equipment, which can significantly impact operational performance and mechanical stability.

The B3 mounting configuration represents the traditional and perhaps most recognizable mounting arrangement for electric motors. In this configuration, the motor is supported by feet at its base, which are bolted directly to a foundation or mounting surface. This approach provides robust support for the motor's weight and operational forces while allowing for straightforward installation and alignment procedures.

B3 motors are particularly prevalent in applications where the motor drives equipment through belt transmissions, couplings, or similar power transfer mechanisms. The foot mounting provides stability and accommodates the lateral forces often associated with these drive arrangements. Additionally, the B3 configuration facilitates easier motor replacement and maintenance access compared to some flange-mounted alternatives.

Foot-mounted B3 motors offer several distinct advantages that make them ideal for specific applications. The foot mounting provides excellent stability for handling the motor's weight and operational torque, particularly in larger motor sizes. This configuration also allows for relatively simple installation and alignment adjustments through the use of shims underneath the mounting feet.

B3 motors excel in applications requiring belt drives, chain drives, or flexible couplings. They're commonly deployed in conveyors, pumps, fans, and general machinery where the motor is positioned adjacent to—rather than directly attached to—the driven equipment. For maintenance personnel, the B3 configuration typically offers superior access for servicing components such as bearings and cooling systems.

"The B3 foot-mounted configuration represents the foundation of industrial motor installations, offering unparalleled versatility and maintainability for a wide range of power transmission applications. When properly aligned and secured, these motors provide decades of reliable service with minimal intervention."

The B5 flange configuration features a large circular flange with through holes located at the drive end of the motor. This arrangement enables direct mounting to equipment using bolts that pass through these holes into threaded receptacles on the driven machinery. The centered shaft and concentric flange create a self-aligning connection that ensures proper shaft alignment—a critical factor for coupling longevity and operational efficiency.

B5 flange motors are extensively utilized in applications requiring direct coupling to gearboxes, pumps, and other equipment where precise alignment is paramount. The rigid mounting interface eliminates many alignment challenges associated with foot-mounted configurations, resulting in reduced vibration and enhanced power transmission efficiency.

When specifying a B5 flange motor, several critical dimensions must be considered to ensure proper integration with your equipment. These include:

• Flange diameter (FF): The overall diameter of the mounting flange
• Pilot diameter (FE): The centering diameter that ensures concentric alignment
• Bolt circle diameter (M): The diameter of the circle on which mounting bolts are positioned
• Number and size of mounting holes: Typically specified as quantity and diameter

B5 flanges are available in standardized sizes designated by FF dimensions (e.g., FF100, FF130, FF165, FF215, etc.). The appropriate selection depends on your motor's power rating, physical dimensions, and the interface requirements of the driven equipment. Consulting dimensional charts specific to your motor manufacturer is essential for ensuring compatibility.

The B14 configuration represents a face-mounting arrangement where the motor features a small flange with threaded holes. Unlike the B5 configuration with its through holes, B14 motors have tapped holes in the flange itself, allowing for direct bolting from the driven equipment side. This configuration is particularly prevalent in smaller motor sizes and compact applications where space efficiency is paramount.

B14 motors are categorized further into subtypes based on flange dimensions and hole patterns. The most common variants are B14A (small flange) and B14B (large flange), each with standardized dimensional specifications that facilitate interchangeability across manufacturers. This standardization is particularly valuable for equipment designers and maintenance departments managing diverse motor inventories.

For applications requiring additional mounting flexibility or enhanced support, the combined configurations B35 and B34 offer dual mounting interfaces that integrate the features of multiple standard configurations. These hybrid arrangements provide installation versatility while ensuring robust mechanical support for the motor assembly.

The B35 configuration combines the foot mounting of B3 with the flange mounting of B5, featuring both mounting feet and a circular flange with through holes.

Similarly, the B34 configuration merges the foot mounting of B3 with the face mounting of B14, incorporating both mounting feet and a face flange with threaded holes.

Combined mounting configurations deliver exceptional versatility for complex installation scenarios. The B35 and B34 arrangements are particularly advantageous in applications where:

• The mounting orientation may change during equipment lifecycle
• Additional support is required beyond what a single mounting interface provides
• Equipment design accommodates multiple mounting methodologies
• Redundancy in mounting is desired for critical applications
• Retrofit installations must adapt to existing mounting provisions

The dual mounting interfaces typically add marginally to the motor's cost but provide significant installation flexibility that can prove invaluable throughout the equipment's operational life. For maintenance engineers and equipment designers, these combined configurations offer insurance against future mounting requirements and facilitate easier adaptation to equipment modifications.

Determining the appropriate flange size requires consideration of multiple factors beyond mere mechanical compatibility. Load characteristics, operational environment, maintenance accessibility, and system design must all inform your selection process. The flange must withstand the mechanical forces generated during operation while maintaining proper alignment between the motor and driven equipment.

Begin your selection process by identifying the mounting interface requirements of your driven equipment. Gearboxes, pumps, and other components typically specify their compatible motor mounting configurations. From there, consider the operational parameters including torque requirements, radial and axial loads, and vibration characteristics. These factors influence not only the flange selection but also the necessary mounting hardware and installation procedures.

When selecting the appropriate flange configuration and size for your electric motor application, consider these critical factors:

1. Load characteristics: Assess the torque requirements, starting conditions, and operational cycle
2. Spatial constraints: Evaluate available mounting space and clearance requirements
3. Alignment precision: Determine the alignment tolerance necessary for your application
4. Environmental factors: Consider exposure to moisture, dust, chemicals, and temperature extremes
5. Maintenance accessibility: Evaluate how the mounting affects access for servicing
6. Vibration considerations: Assess potential vibration sources and damping requirements
7. Future flexibility: Consider potential equipment modifications or reconfigurations

For applications with specialized requirements, consulting with power transmission experts can provide valuable insights into optimizing your flange selection. The correct choice ensures not only proper mechanical integration but also maximizes system efficiency and component longevity.

Even with standardized flange designations, practitioners frequently encounter challenges when selecting and implementing motor mounting solutions. Dimensional discrepancies between manufacturers, legacy equipment compatibility, and special application requirements can complicate what might otherwise seem a straightforward selection process.

One prevalent challenge involves retrofit applications where existing equipment may not perfectly align with current standardized dimensions. In such scenarios, adapter plates or custom mounting solutions may be necessary to bridge dimensional disparities while maintaining proper alignment. Similarly, international standards variations can introduce compatibility issues when sourcing motors from diverse global suppliers.

When confronting flange compatibility challenges, several practical approaches can facilitate successful implementation:

• Utilize adapter plates to reconcile dimensional differences between motor and equipment
• Employ adjustable motor bases to accommodate alignment variations
• Consider flexible coupling designs that tolerate minor misalignment
• Consult with manufacturer engineering departments for specialized solutions
• Document successful mounting configurations for future reference

For power transmission specialists and maintenance engineers, developing a systematic approach to flange selection—including comprehensive documentation of existing installations—creates valuable institutional knowledge that streamlines future motor replacements and system upgrades.

Identifying your motor's flange configuration typically involves visual inspection and measurement. Look for the presence of mounting feet (indicating B3, B34, or B35), a large circular flange with through holes (indicating B5 or B35), or a face flange with threaded holes (indicating B14 or B34). Measure key dimensions including flange diameter, mounting hole pattern, and shaft height to determine the specific flange size.

Most motors also have identification plates that may specify the mounting configuration using the IEC designation (B3, B5, B14, etc.). If this information isn't readily available, consulting the original motor documentation or manufacturer's catalog can provide definitive identification.

Converting between different flange configurations is possible in many instances through the use of adapter plates or mounting brackets. However, these solutions introduce additional components and potential alignment challenges that must be carefully managed. The feasibility and practicality of conversion depend on several factors:

• The specific configurations involved (some conversions are more straightforward than others)
• Space constraints within your application
• Load characteristics and mechanical stresses
• Alignment requirements of the driven equipment
• Cost considerations relative to replacing the motor entirely

For critical applications, consulting with power transmission specialists regarding the viability and implementation of flange conversions can prevent costly operational issues and ensure optimal system performance.

While IEC standards establish baseline specifications for flange dimensions and configurations, subtle variations can exist between manufacturers. These differences typically fall within acceptable tolerance ranges but can occasionally present challenges in precise applications. Reputable motor manufacturers adhere closely to IEC standards to ensure interchangeability, but prudent engineers always verify critical dimensions rather than relying solely on designation codes.

For international applications, it's important to note that different regions may prioritize different standards. North American equipment often references NEMA standards rather than IEC designations, which can introduce additional compatibility considerations when sourcing motors globally.

Selecting the appropriate flange size for your electric motor represents a consequential decision that impacts installation ease, operational performance, and maintenance requirements. By

Selecting the appropriate flange size for your electric motor represents a consequential decision that impacts installation ease, operational performance, and maintenance requirements. By understanding the standardized mounting configurations—B3, B5, B14, B35, and B34—and their respective applications, power transmission professionals can make informed selections that optimize system performance and reliability.

For distributors, maintenance engineers, and equipment designers, developing proficiency in flange selection constitutes an essential technical competency. This knowledge facilitates more efficient procurement processes, minimizes installation complications, and ensures compatibility between motors and driven equipment. In an industrial landscape where downtime carries significant financial implications, proper flange selection represents a small but crucial element in maintaining operational excellence.

To streamline future flange selection processes, consider implementing these proven best practices:

• Maintain comprehensive documentation of existing motor installations, including flange configurations and key dimensions
• Develop standardized specification templates that capture all essential flange and mounting data
• Build relationships with motor suppliers who demonstrate thorough understanding of mounting standards
• Create a reference library of adapter solutions for common conversion scenarios
• Invest in precise measurement tools for verifying critical flange dimensions

By approaching flange selection methodically and maintaining detailed records, organizations can minimize compatibility issues, reduce procurement cycles, and ensure optimal performance from their power transmission systems. This systematic approach transforms what can be a challenging technical decision into a streamlined, reliable process.

Different industrial sectors encounter unique challenges and requirements regarding motor mounting configurations. Understanding these sector-specific considerations can further refine your flange selection process and ensure optimal outcomes for your particular application context.

In the material handling industry, for instance, B3 foot-mounted configurations predominate due to their compatibility with belt drives and ease of maintenance access. Conversely, precision machinery often favors B5 or B14 flange mountings for their superior alignment characteristics and compact integration capabilities. The food and pharmaceutical sectors frequently utilize stainless steel motors with specialized flange configurations that facilitate regular cleaning and sanitation procedures.

Consider these specialized recommendations for common industrial applications:

These industry-specific guidelines provide valuable starting points, but each application should ultimately receive individualized evaluation to determine the optimal flange configuration based on its unique operational parameters and environmental conditions.

While often overlooked in discussions of motor efficiency, mounting configuration plays a substantive role in overall system performance. Improper flange selection can introduce misalignment that increases mechanical losses, accelerates bearing wear, and elevates operational temperatures—all factors that diminish efficiency and reliability.

Proper flange selection contributes to system efficiency through several mechanisms. First, it ensures optimal alignment between motor and driven equipment, minimizing mechanical losses in couplings and connections. Second, it provides appropriate support for the motor, preventing deflection under load that could compromise air gap consistency and electromagnetic efficiency. Finally, proper mounting facilitates effective heat dissipation, maintaining optimal operating temperatures that preserve insulation integrity and electrical efficiency.

The implications of flange selection extend beyond immediate compatibility concerns to influence the total cost of ownership throughout the motor's operational life. Consider these long-term impacts:

• Energy consumption: Proper alignment minimizes mechanical losses that would otherwise increase energy consumption
• Maintenance frequency: Correct mounting reduces bearing loads and vibration, extending service intervals
• Component longevity: Appropriate support and alignment extend the useful life of both motor and driven equipment
• Downtime risk: Secure, properly-specified mounting reduces the risk of catastrophic failures
• Future flexibility: Standardized mounting configurations facilitate easier upgrades and replacements

For procurement specialists and facility managers, recognizing these long-term implications elevates flange selection from a mere technical specification to a strategic decision affecting operational economics. The marginal cost differential between mounting configurations becomes insignificant when weighed against their potential impact on lifecycle expenses and reliability metrics.

In conclusion, understanding flange sizes and configurations represents an essential competency for anyone involved in electric motor specification, procurement, or maintenance. By considering both immediate compatibility requirements and long-term operational implications, professionals can make informed decisions that optimize system performance, minimize maintenance requirements, and enhance overall equipment reliability.
