Regular price
$542.00
Sale price
$195.15
Shipping calculated at checkout.
Quantity must be 1 or more

  • L118145160010004

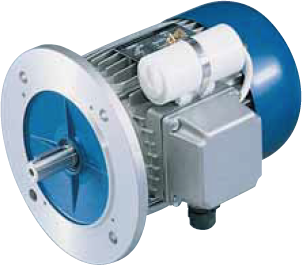

  • Carpanelli 1ph AC IEC (metric) motor
  • Model: MM63a4 115/230V/60Hz
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor

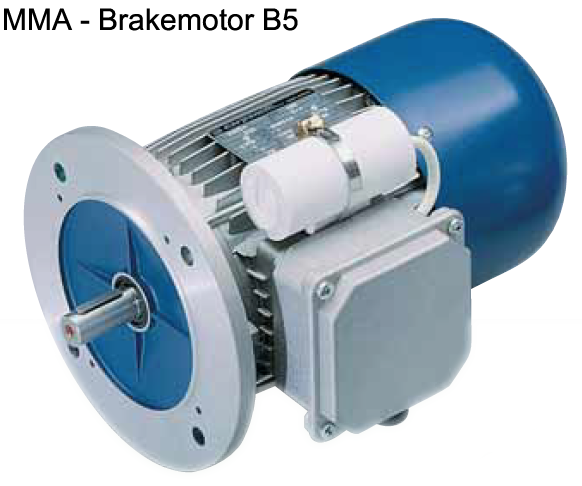

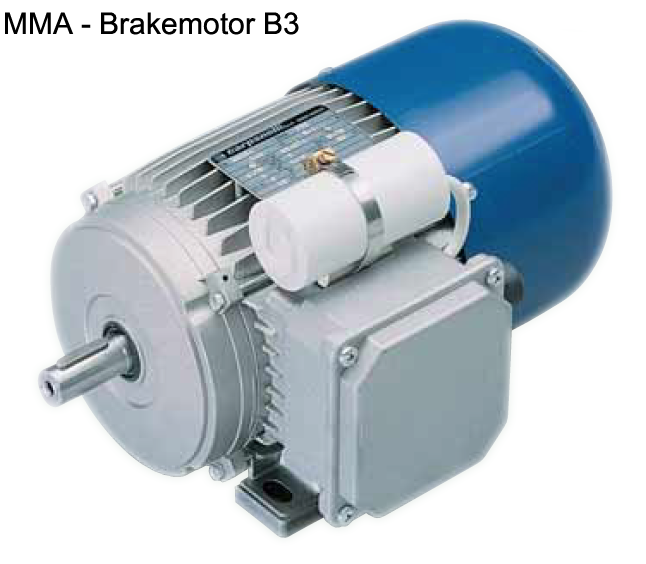

  • Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in U.S.A.
  • Standard Delivery time 2-3 working days (<4 pieces).
  • Expedited Delivery Available.
Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V

0.187 0.25 0.000175 61

0.86

3.1

1.7

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp



Cap.

Weight

Kg

Weight

Lbs

0.61 0.73 X 4.3 16 4.6 10.12



Dimensions B3

 A B C D E F G G1 H
100 80 42 11 23 25 178 125 63
K I L L1 L2 M N O P
7 175 216 193 61 92 92 138 M4
Q R U U1 V X Z
34 58 105 120 10 12 115 123

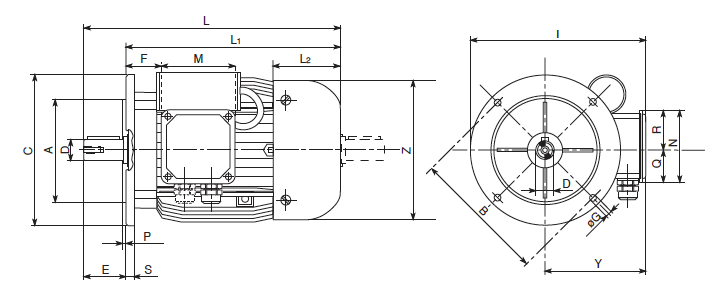

Dimensions B5 (see illustration)

 A B C D E F G I L1
95 115 140 11 23 25 10 185 216
L2 M N P Q R S Y Z
61 92 92 3 34 58 10 115 123



Dimensions B14 (see illustration)

 A B C D E F G I L1

60

75 90 11 23 25 M5 176 216
L2 M N P Q R S Y Z
193 92 92 2 34 58 9 115 123

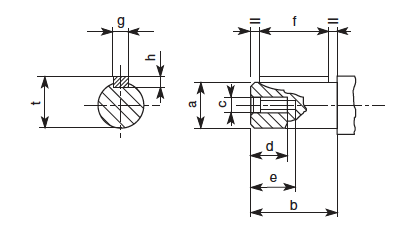

Dimensions Shaft (see illustration)

a b c d e f g h t

11

23 M4 10 14 15 4 4 12.5
