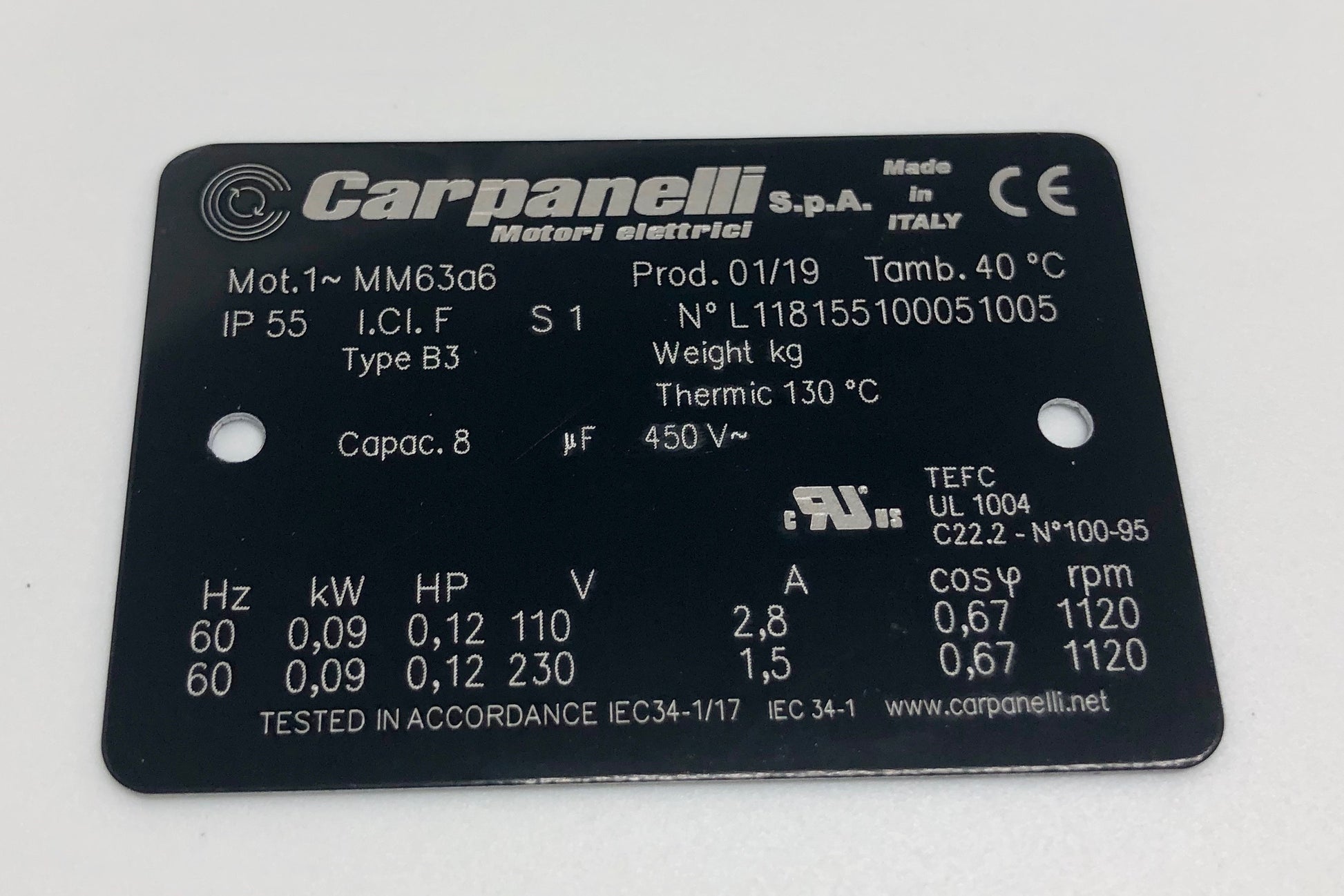

- Carpanelli 1ph AC IEC (metric) motor
- Model: MM63a6 115/230V/60Hz
- MM63a 6pole 0.09Kw/0.12hp 110/230V 1ph
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
- Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
| Kw | Hp | J Kgm2 | Eff % |
Power Factor |
Amp@ 110V |
Amp@ 230V |
| 0.09 | .12 | 0.000757 | 43 |
.67 |
2.8 |
1.5 |
|
Nom. Torq Nm. |
MAX Torq Nm |
Max Amp |
RPM |
Cap. µF |
Weight Kg |
Weight Lbs |
| 1.09 | 1.6 | x1.7 | 1120 | 8 | 4.5 | 9.9 |
Dimensions B3
| A | B | C | D | E | F | G | G1 | H |
| 100 | 80 | 42 | 11 | 23 | 25 | 178 | 125 | 63 |
| K | I | L | L1 | L2 | M | N | O | P |
| 7 | 175 | 216 | 193 | 61 | 92 | 92 | 138 | M4 |
| Q | R | U | U1 | V | X | Y | Z | |
| 34 | 58 | 105 | 120 | 10 | 12 | 115 | 123 |

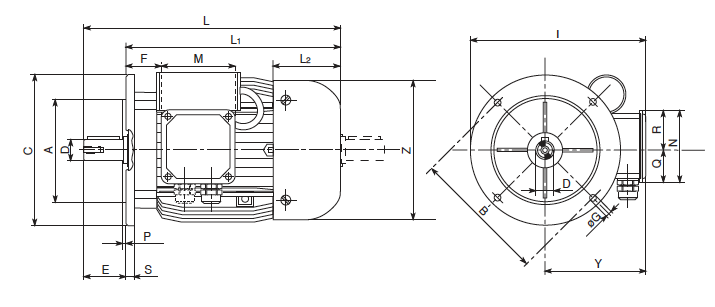

Dimensions B5 (see illustration)
| A | B | C | D | E | F | G | I | L1 |
| 95 | 115 | 140 | 11 | 23 | 25 | 10 | 185 | 216 |
| L2 | M | N | P | Q | R | S | Y | Z |
| 61 | 92 | 92 | 3 | 34 | 58 | 10 | 115 | 123 |
Dimensions B14 (see illustration)
| A | B | C | D | E | F | G | I | L1 |
|
60 |
75 | 90 | 11 | 23 | 25 | M5 | 176 | 216 |
| L2 | M | N | P | Q | R | S | Y | Z |
| 193 | 92 | 92 | 2 | 34 | 58 | 9 | 115 | 123 |
Dimensions Shaft (see illustration)
| a | b | c | d | e | f | g | h | t |
|
11 |
23 | M4 | 10 | 14 | 15 | 4 | 4 | 12.5 |
