Berges® Spring tension Pulley with torque control  type D210b

Berges® D210b Spring tension Pulley with torque control

Regular price
$3,852.00
Sale price
$1,698.00
Shipping calculated at checkout.
Quantity must be 1 or more

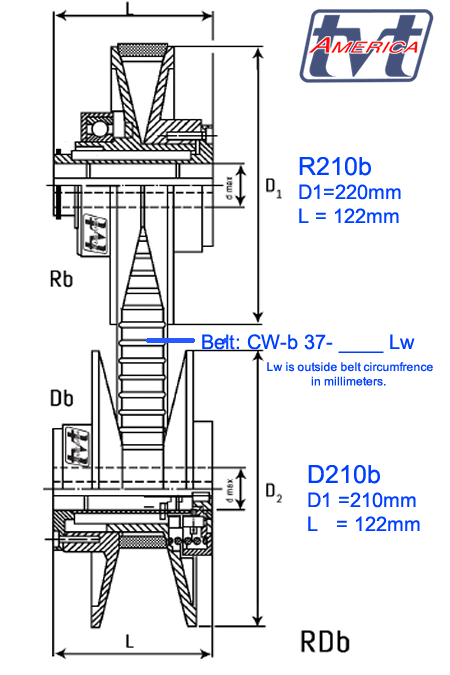

Berges® Spring tension Pulley with torque control  type D210b for use with wide belts type CW-b 37 and adjusting pulley R210b.  Diameter of 220 mm with length through bore 135mm, die cast aluminum sheave faces with steel slide hub.  Identified by casting numbers x and x, one spring; castings used on other series of pulleys..

Maximum shaft diameter 38mm with standard bores listed for sale, alternative bores are available in 6-8 weeks ARO by purchasing "Custom" and a TVT Sales Engineer will contact you to define your required bore & keyway.

* Also available through TVT Authorized Distributors -

* OEM Volume Discounts Available - Contact sales@tvtamerica.com

TVT Berges Catalog (PDF link).



Items may not be in stock. Non-Stock lead time is 6-8 weeks.
