TVT America

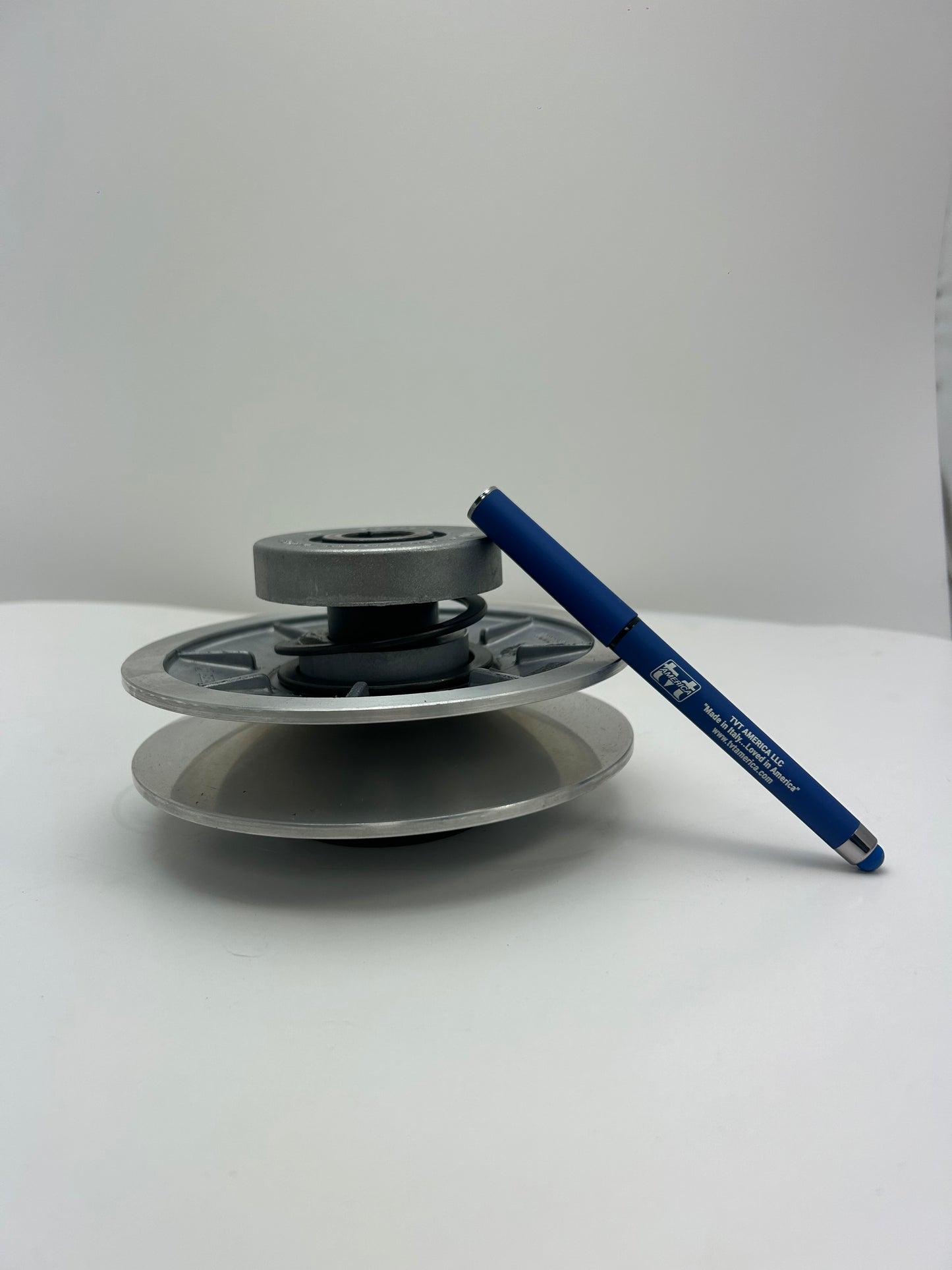

Berges® F150b Tension Pulley

Berges® F150b Tension Pulley

Regular price $655.00 USD
Regular price $1,143.00 USD Sale price $655.00 USD
Sale Sold out
Shipping calculated at checkout.
Bore
Berges® Spring tension Pulley type F150b for use with wide belts type CW-b 28 and adjusting pulley R150b.  Diameter of 159mm with length through bore 90mm, die cast aluminum sheave faces with steel slide hub.  Identified by casting numbers 1100314 and 1100315, one spring; castings used on other series of pulleys..   Maximum shaft diameter 28mm with standard bores listed for sale, alternative bores are available contact TVT for non-standard bore quotation.

      Maximum shaft diameter 28mm, with stocked bores listed.  To order a bore not listed, please select CUSTOM, add to your cart, and checkout.  A TVT Representative will contact to finalize the desired bore selection and send to production; please allow 6-8 weeks for made to order bores.  MTO are not returnable, measure carefully please.

INTERCHANGE: Suggested replacement for Discontinued parts # 11.213.16, 11.218.16 Lenze Part# description page.Please note:

1.   When interchanging Lenze to Berges we recommend replacing BOTH the Control  (Bearing pulley) and the Tensioning (Spring pulley).

2.  Lenze length through bore is 110mm, Berges 90mm.

3.  Lenze Diameter 160mm, Berges Diameter 169mm (1mm greater diameter, 0.5mm in radius).

4.  Lenze 11.213.16 and 11.218.16 and Berges RF150b use 28mm wide 28º Variable Speed Belt.  CW-b 28.  Lenze belt lengths are measured by inside diameter "Li" in millimeter, Berges belt lengths are measured by outside diameter "Lw".  Thickness of belt is not relevant to interchange or performance, these may vary with production lot and are not critical measure.

TVT Berges Complete Catalog opens in new window.

Hydmech S-20 Series II uses R150b-1.125" Mechanical Pulley #21 on S-20 Series II Manual.


F150b-0.875" tension pulley is used on Hydmech S-20 Series II. Item #22 in manual.



Items may not be in stock. Non-Stock lead time is 6-8 weeks.

11.213.16.920

11.213.16.921

11.213.16.926

11.213.16.928

11.218.16.920

11.218.16.921

11.218.16.926

11.218.16.928
