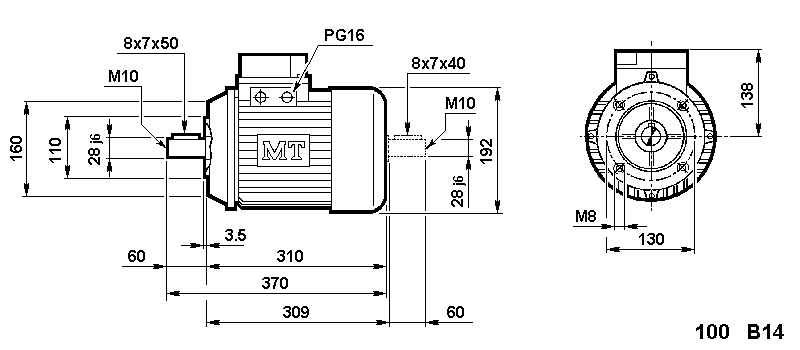

Motori Elettrici MT® 3ph AC IEC Metric Motor

Series TN, Size 100A, 6 pole, 1.5Kw 230/400V/50hz, 1.8kW 280/480V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN100A/6 EU

To select & download Cad Files for this motor, (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in new window.

B34 and B35 mounting forms will have re-positionable B3 feet with B14 or B5 flange.
