Motori Elettrici MT® 3ph AC IEC Metric Motor

Series TN, Size 90S, 4 pole, 1.1Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN90S/4

To select & download Cad Files for this motor (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in a new window.

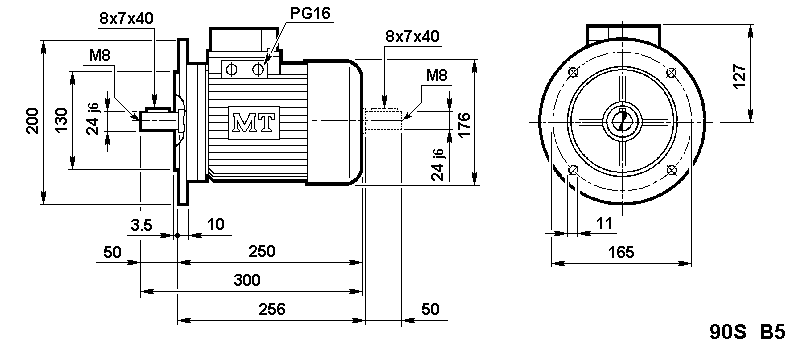

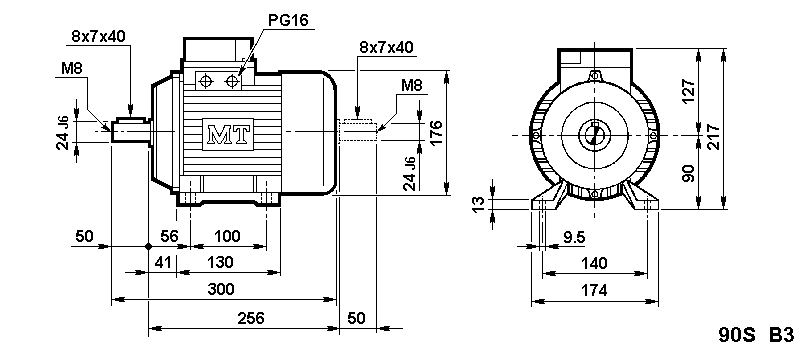

B34 and B35 will include re-positionable B3 feet as well as B14 or B5 flange.
