Carpanelli

1.5hp 4pole 3ph NEMA 56C AC, Brake, & Vector Motors

1.5hp 4pole 3ph NEMA 56C AC, Brake, & Vector Motors

Regular price $313.99 USD
Regular price $969.00 USD Sale price $313.99 USD
Sale Sold out
Shipping calculated at checkout.

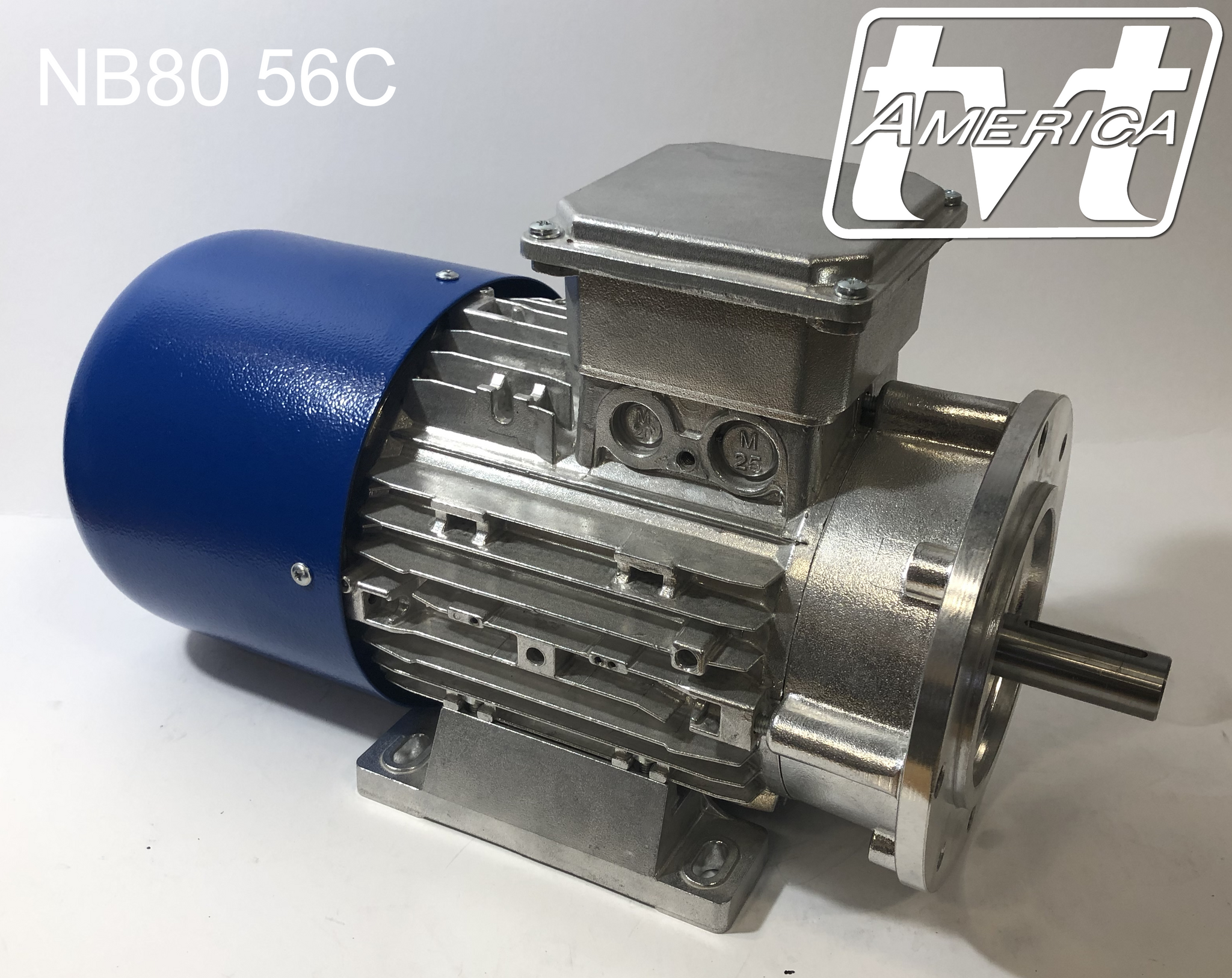

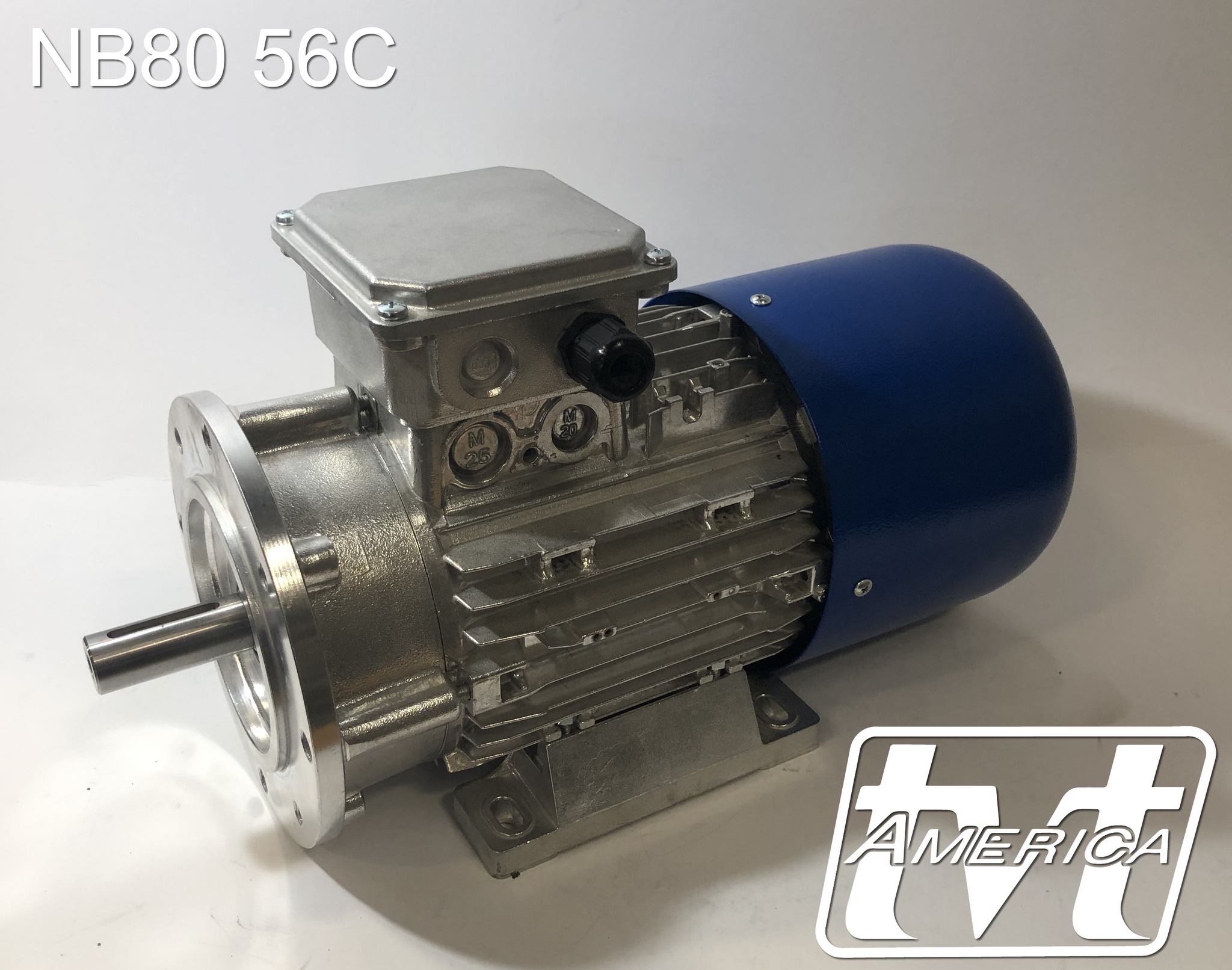

Self Braking
Encoder
Forced Cooling

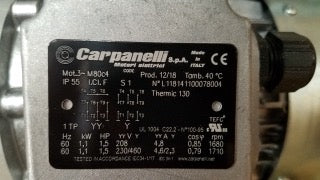

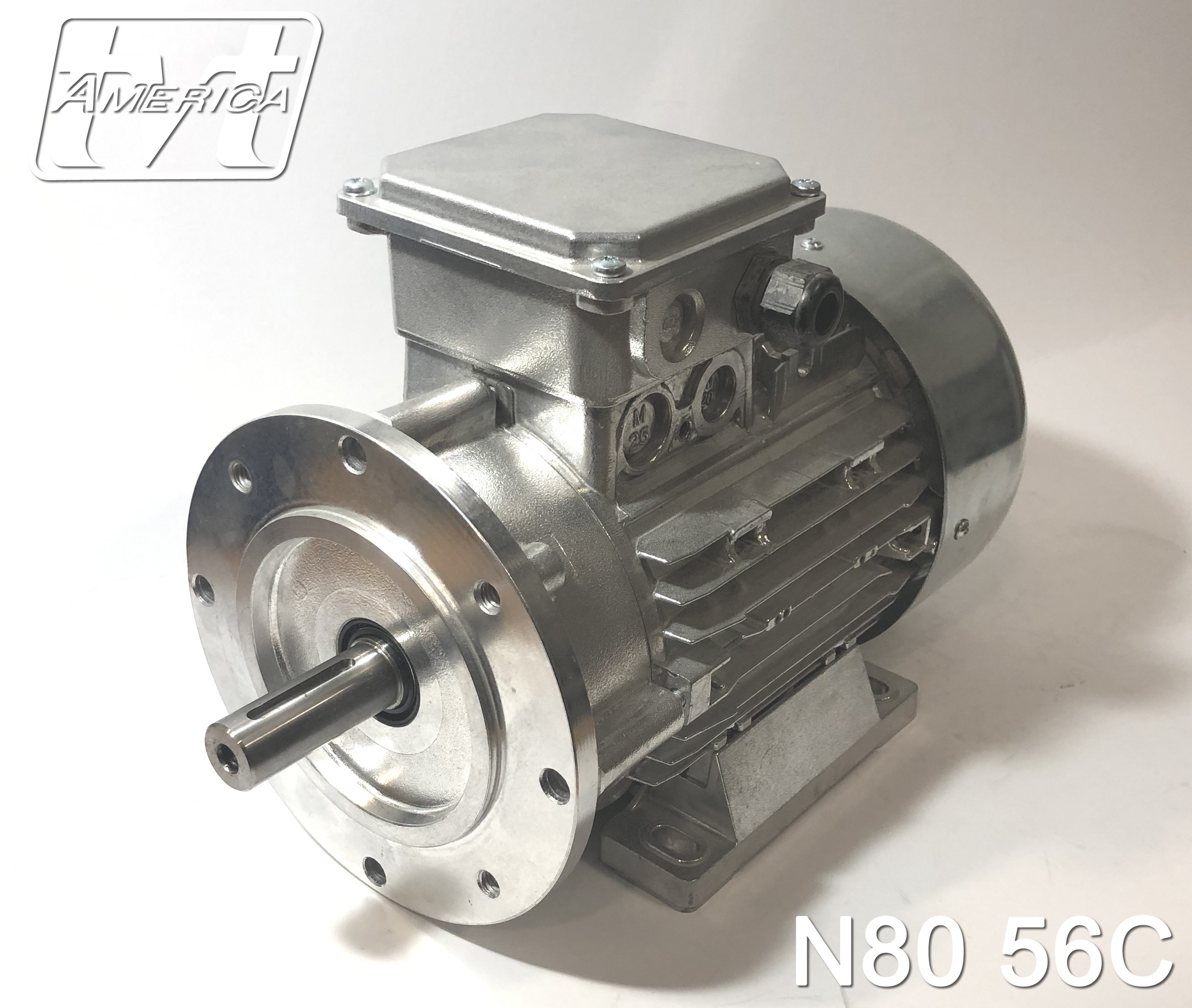

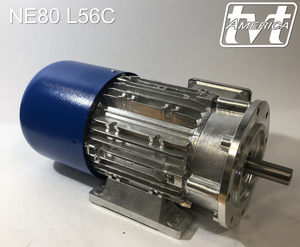

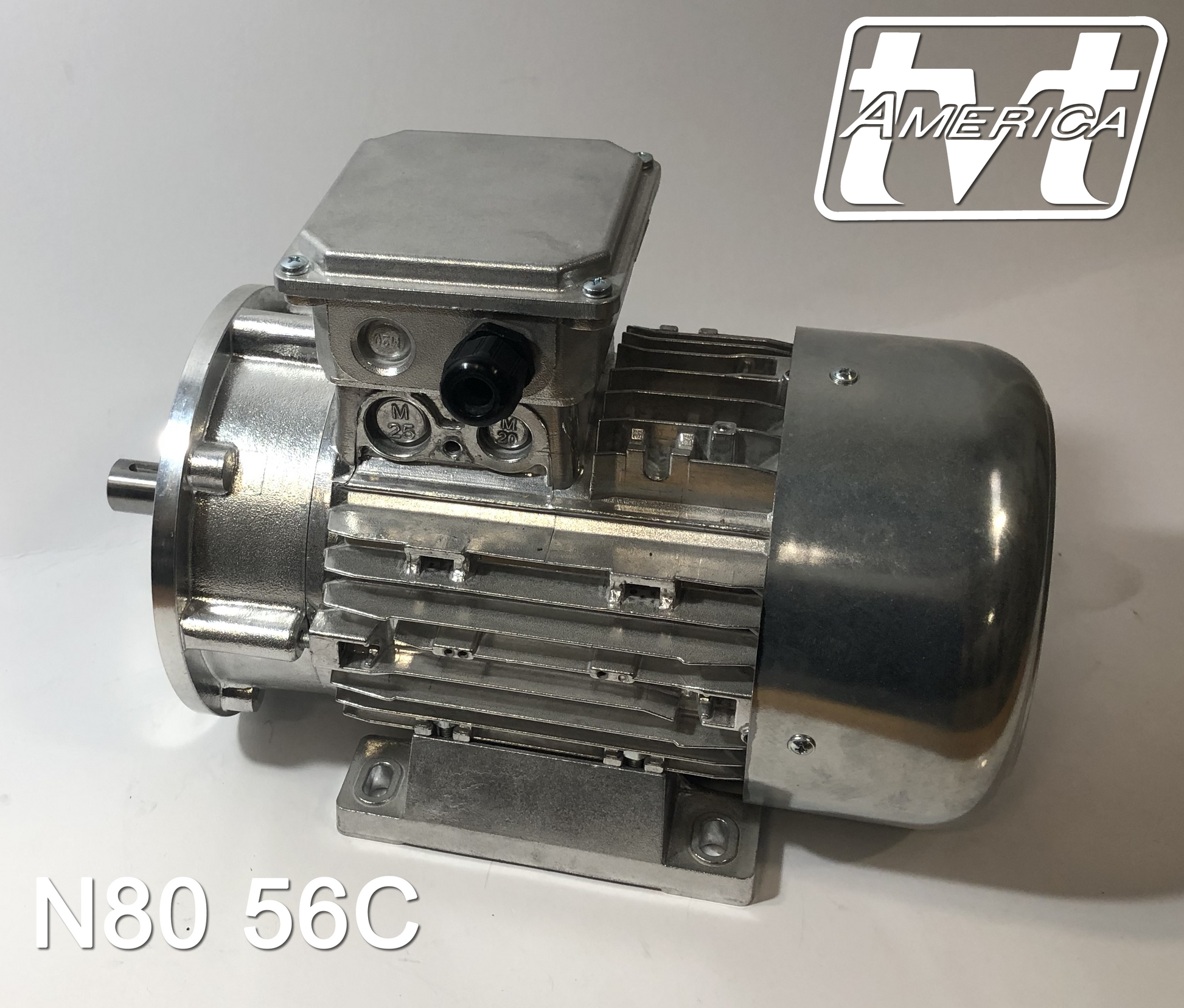

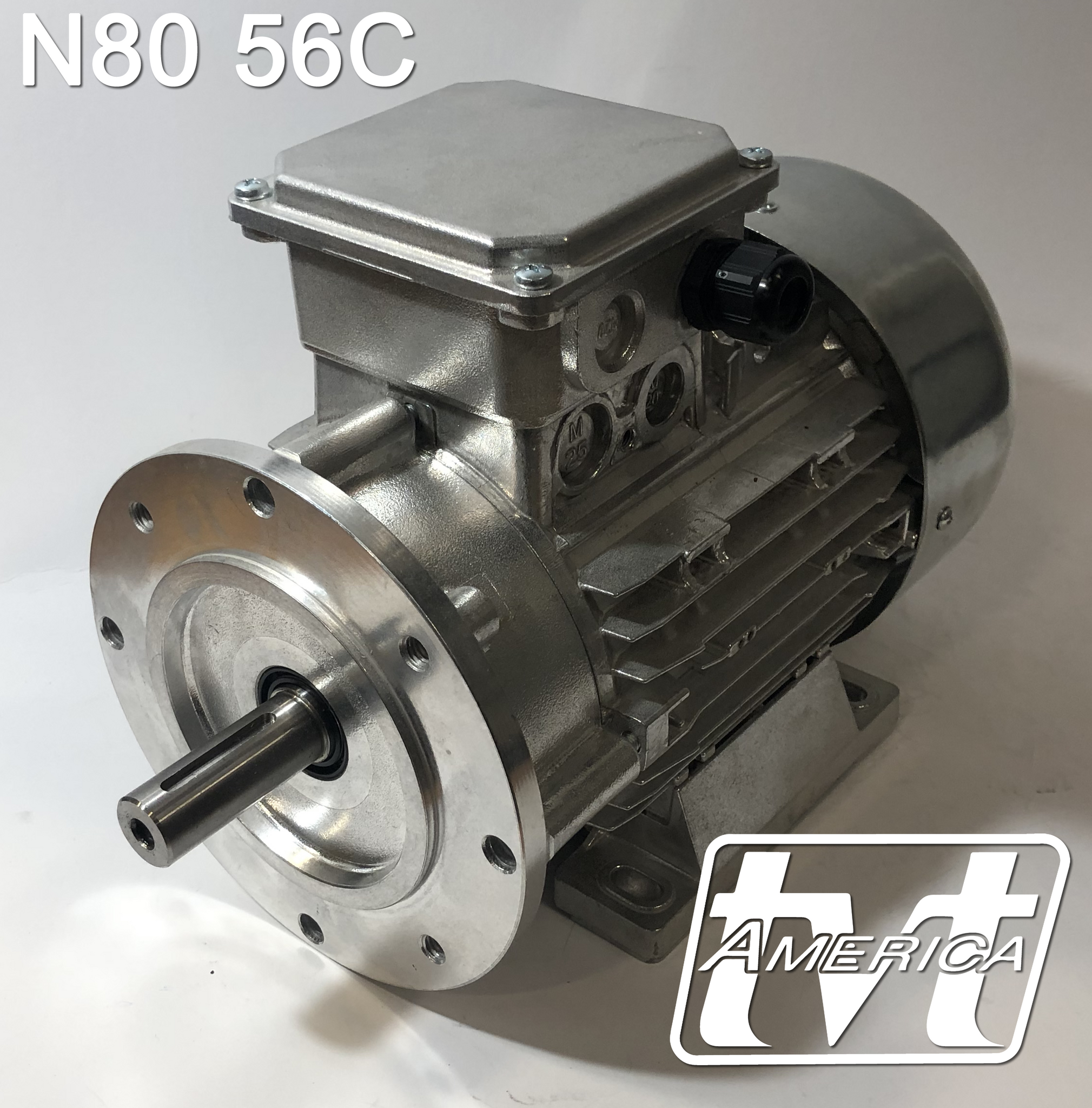

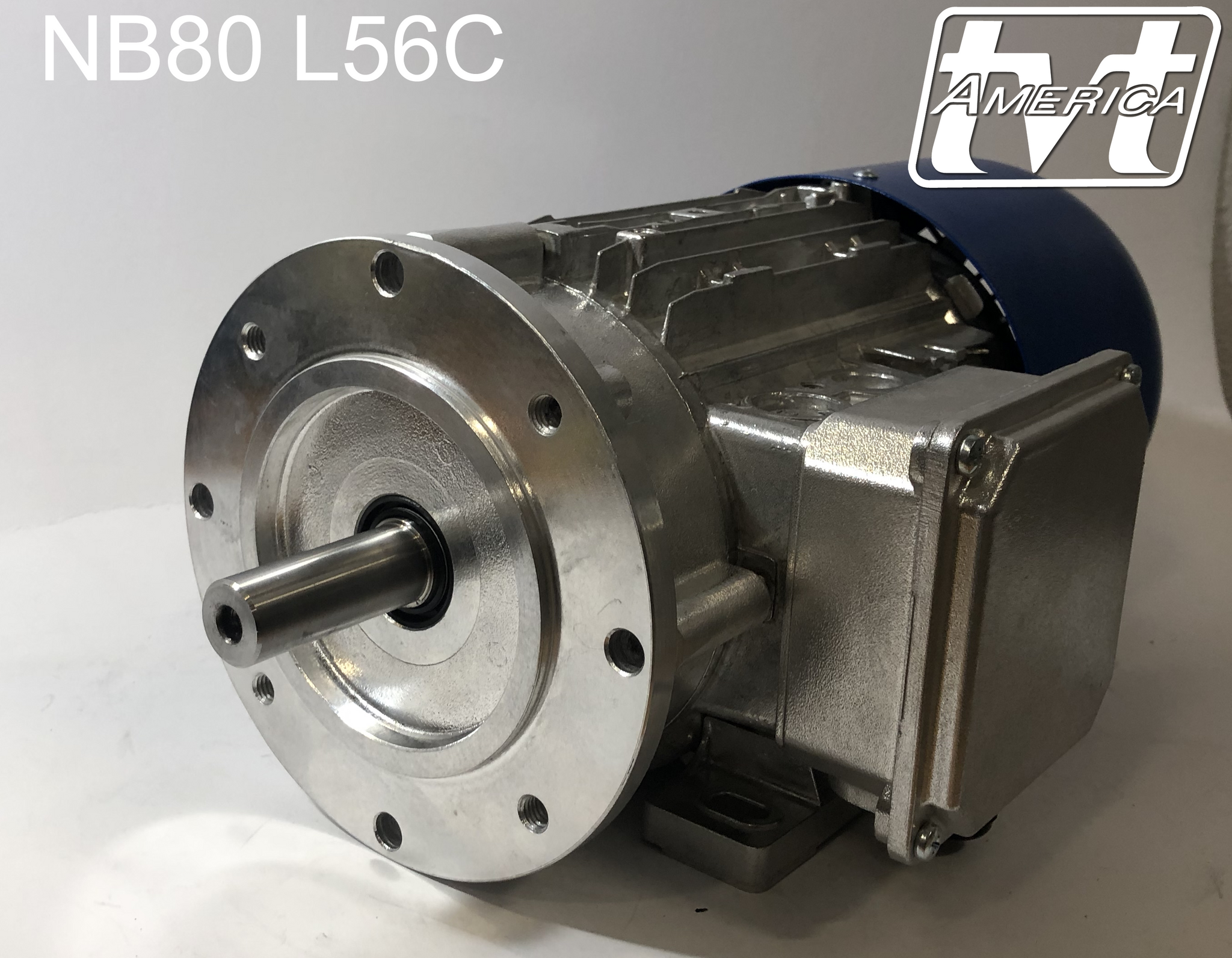

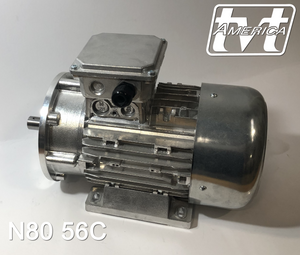

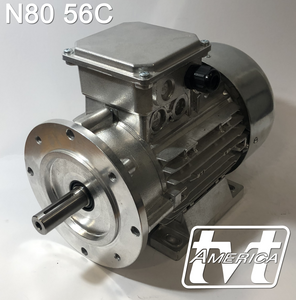

  • Carpanelli® M80c4 56C

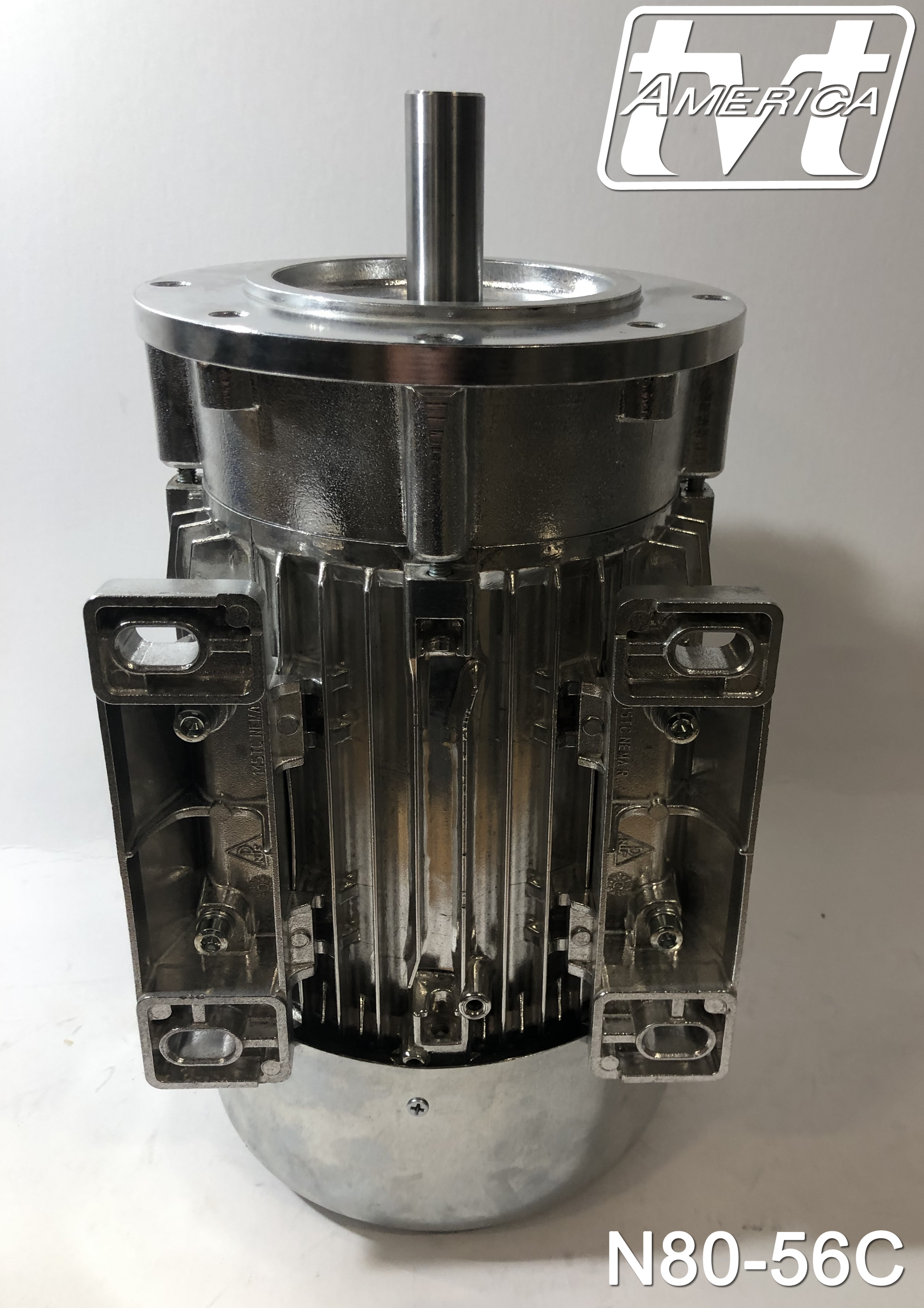

  • NEMA 56C Flange & 3 position Movable/Removable Feet
  • 1.5hp/1.1Kw Output Power
  • 4-pole 1680rpm 208V/60Hz
  • 4-pole 1710 rpm 230/460V/60Hz

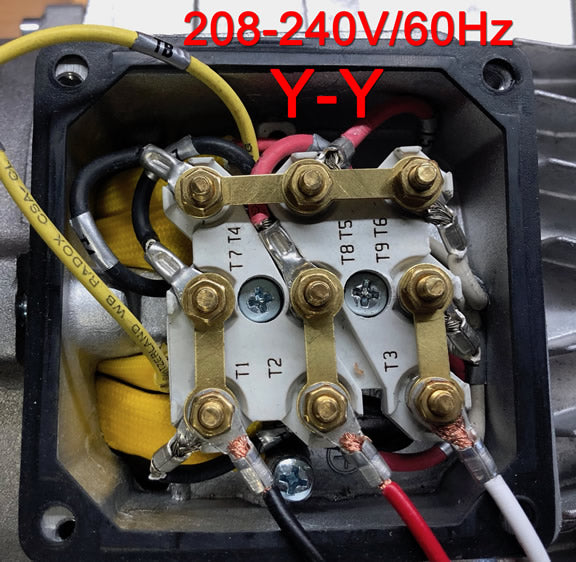

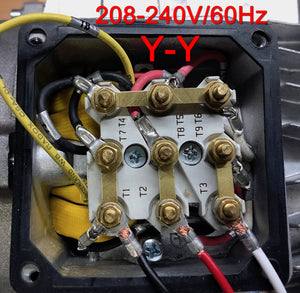

  • 208V 4.8A Y-Y 3 phase AC
  • 230V 4.6A Y-Y 3 phase AC

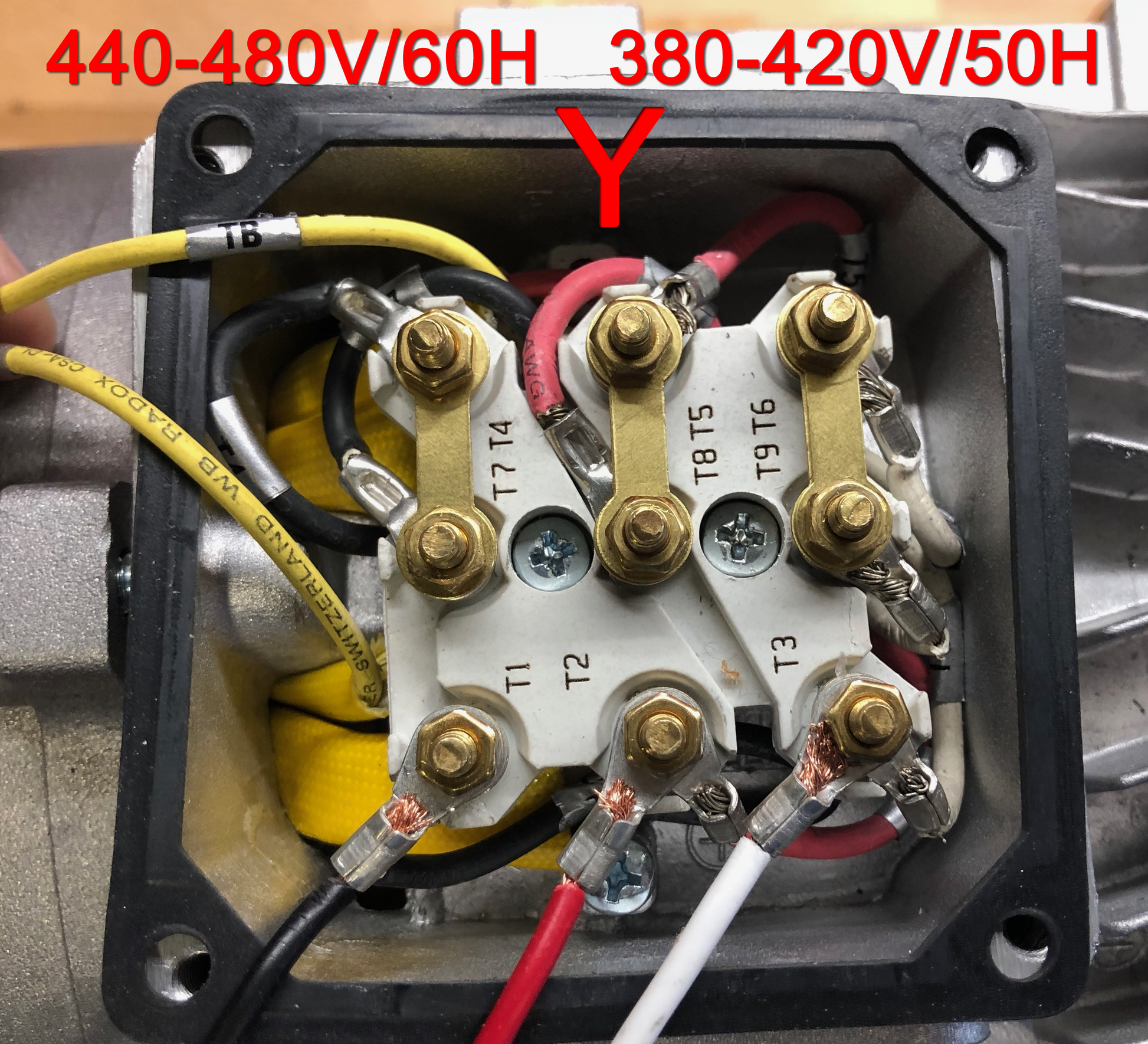

  • 460V 2.3A Y 3 Phase AC
  • Power Factor 0.85 @208V/60Hz
  • Power Factor 0.79 230/460V/60hz.
  • IP55 - Ingress Protection Rating
  • Class F Insulation System
  • 2RS Sealed ABEC 5 Electric Motor Bearings
  • Service Class S1 (1.2 Service Factor 230 & 460V/60Hz)
  • NC 130ºC Thermostat Circuit in Windings.
  • UL CSA and CE Listed & Approved
  • TEFC - Totally Enclosed Fan Cooled
  • 9-lug terminal block for solid & clean terminations.
  • Reposition-able in 90º turns IP65 Terminal box.
  • Compact & Lightweight due to high strength die-cast aluminum alloy housing.

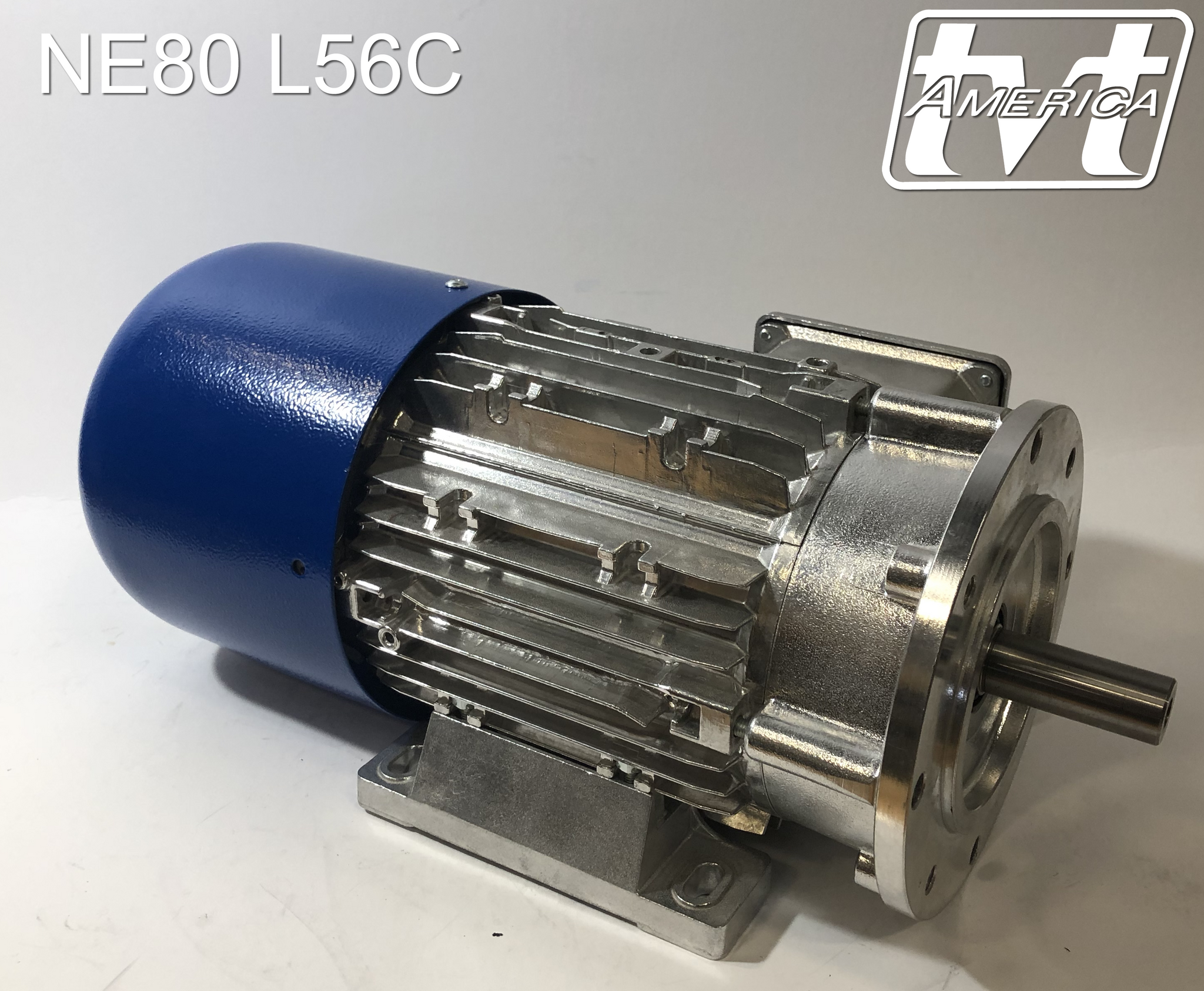

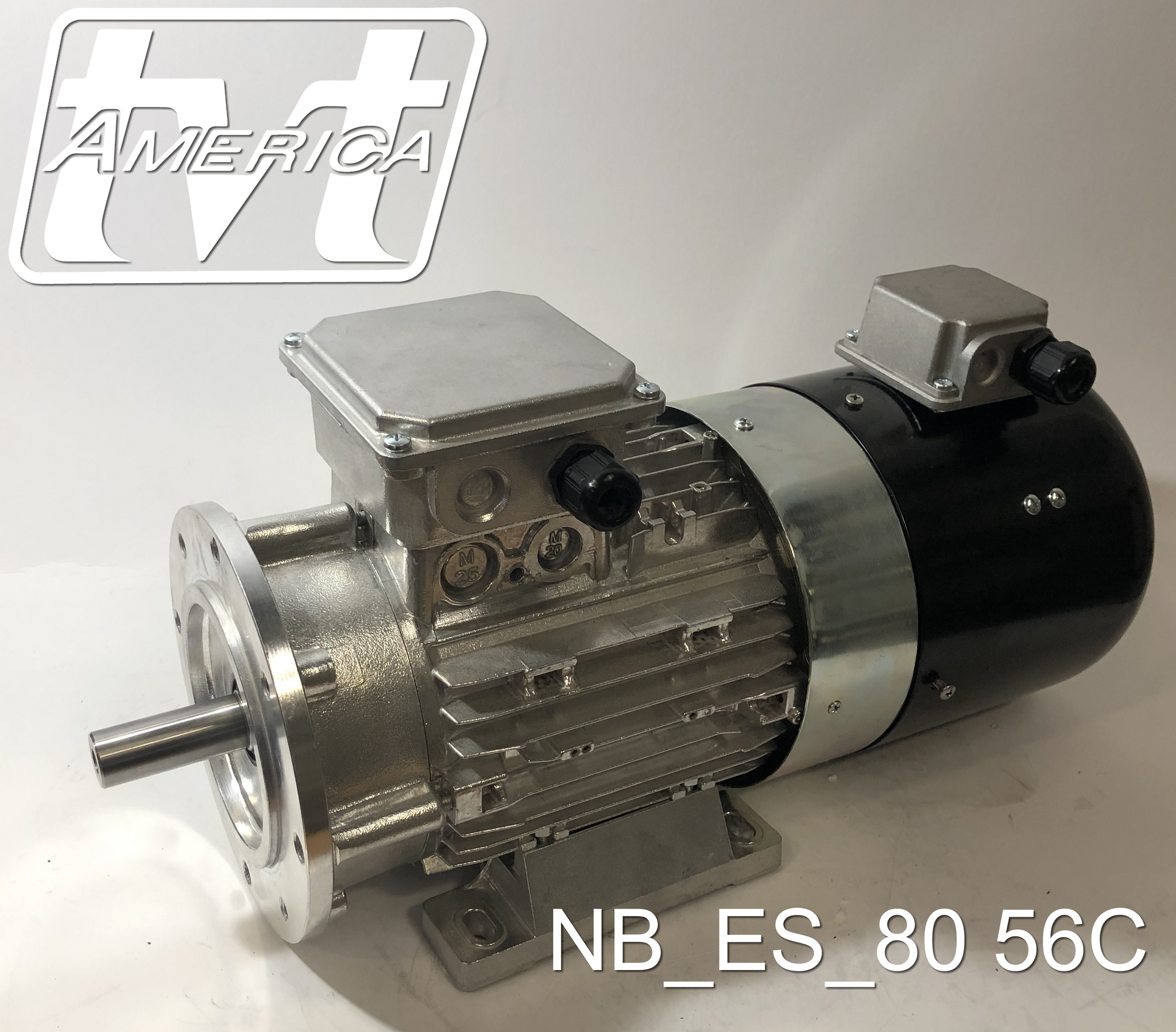

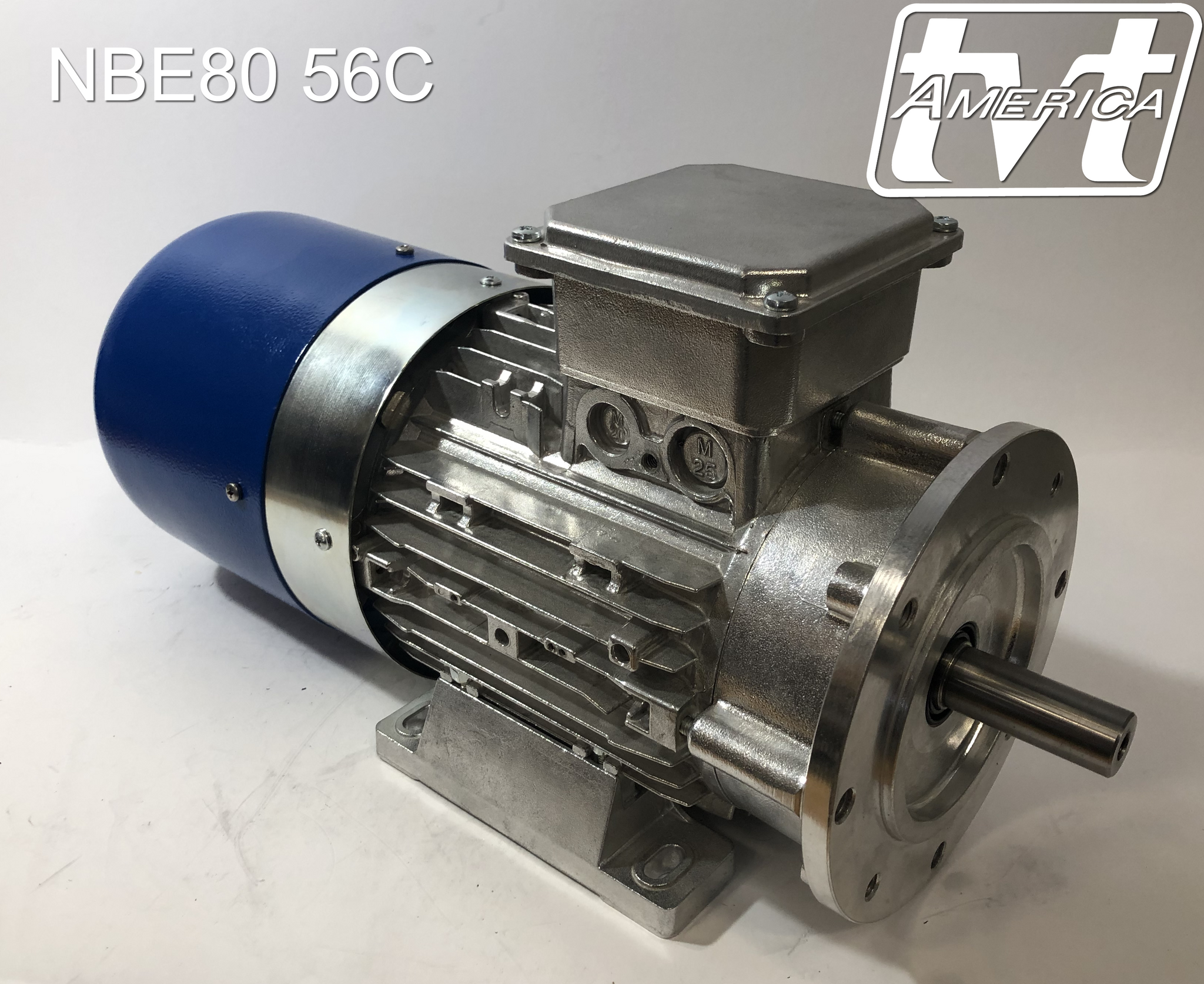

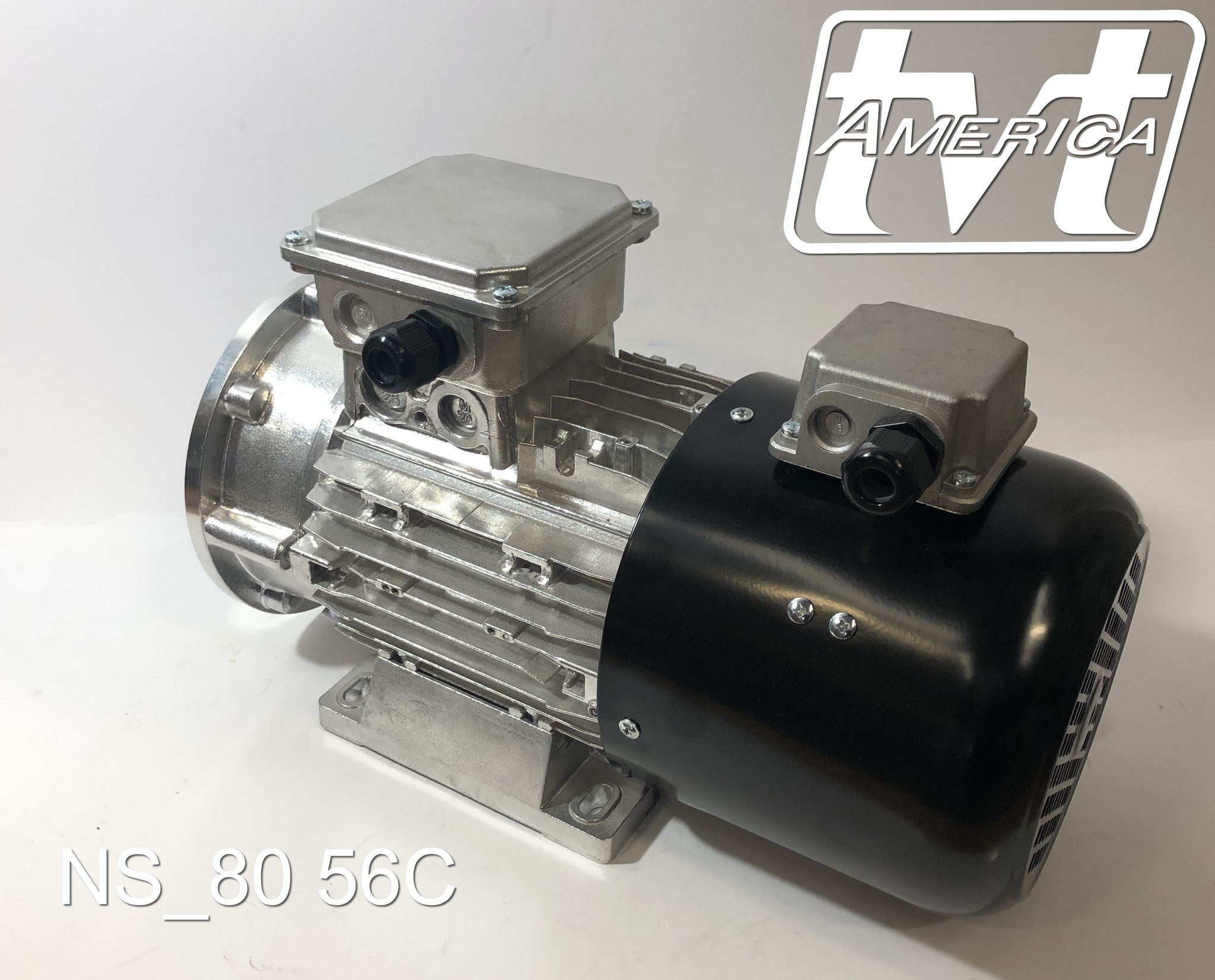

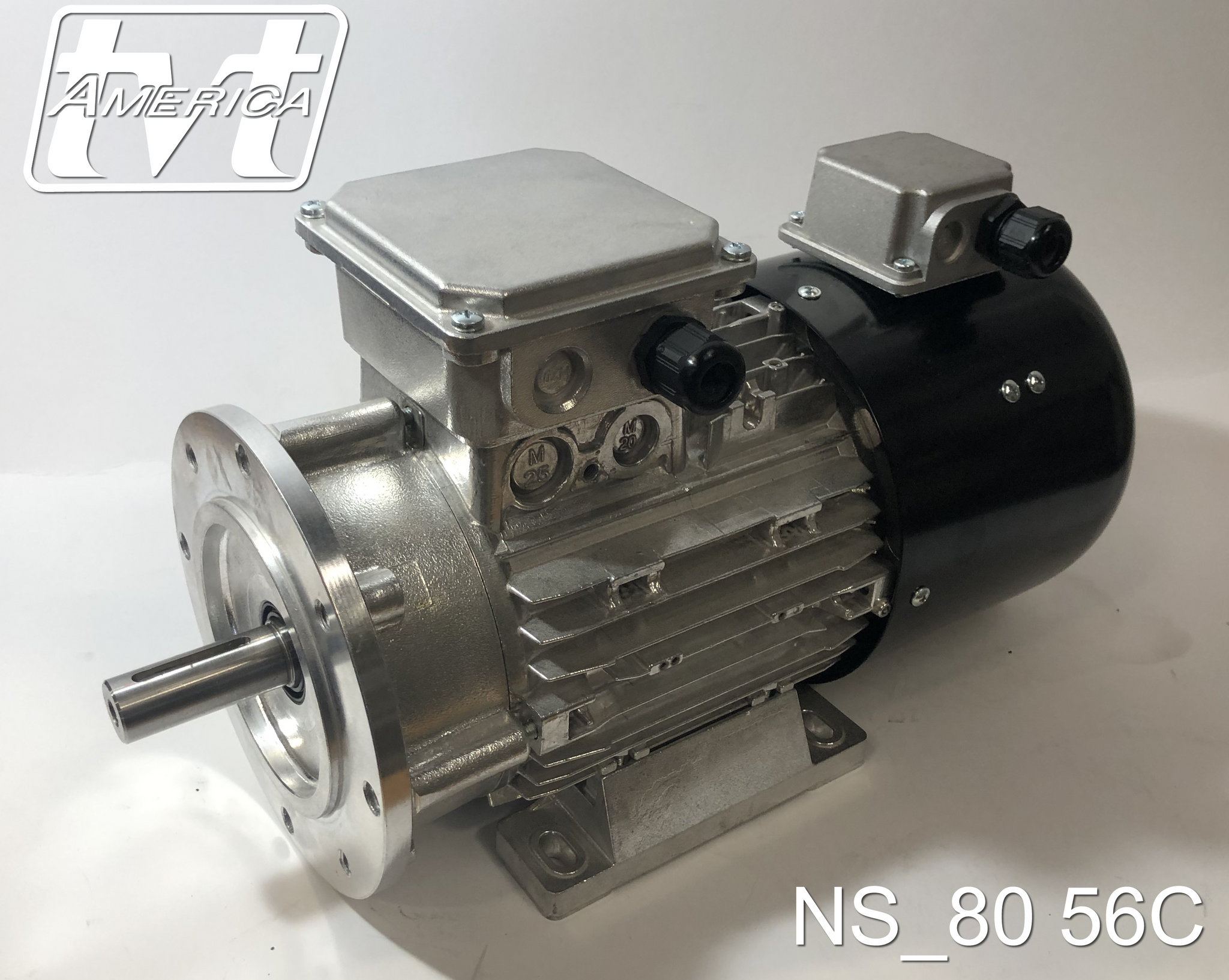

  • OPTIONAL - Self Braking, Programable Encoder, Force Ventilation Systems. Configure/Price/Order On-line.
  • Superior cooling to Iron or Inexpensive wrapped steel motors.
  • Made in USA from 100% Designed & Manufactured from Italian Components.
  • Standard Shipping 1-3 days ARO ≤5 pieces (5> inquire).
  • Expedited Production & Shipping Available (SAME DAY) inquire to sales@tvtamerica.com
