Carpanelli
1hp 4pole 3ph NEMA 56C AC, Brake, & Vector Motors
1hp 4pole 3ph NEMA 56C AC, Brake, & Vector Motors
Regular price
$290.67 USD
Regular price
$897.00 USD
Sale price
$290.67 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

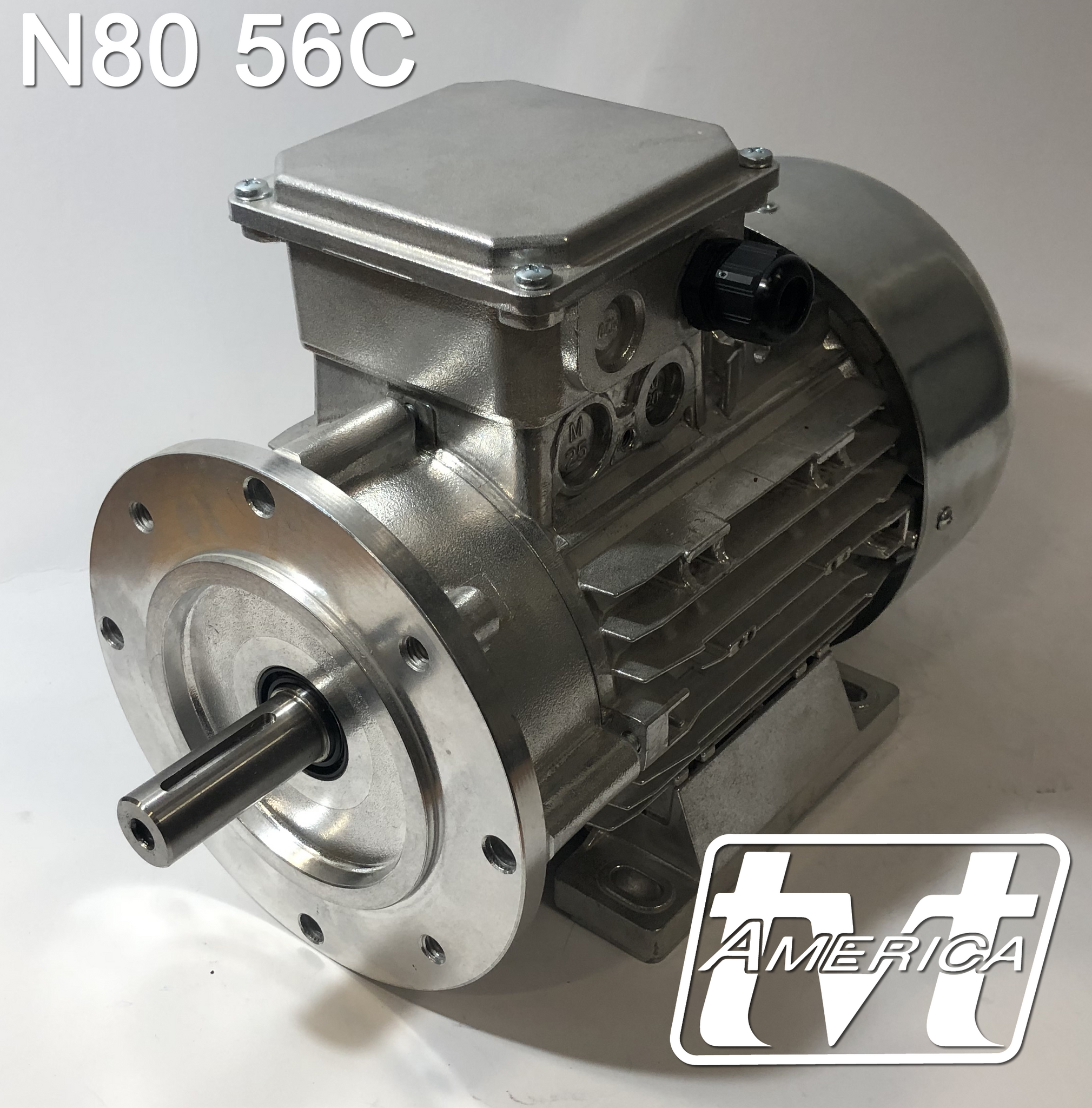

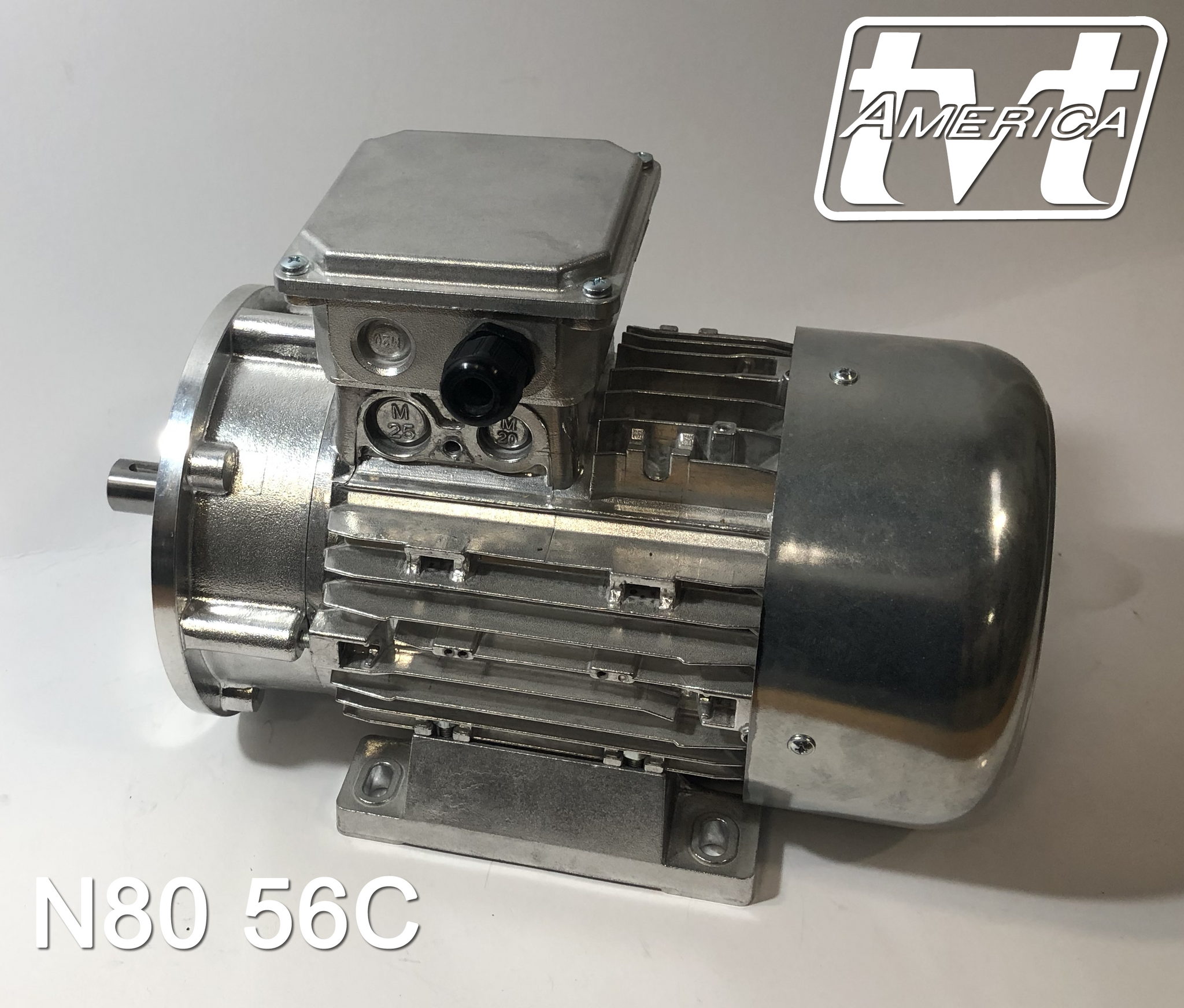

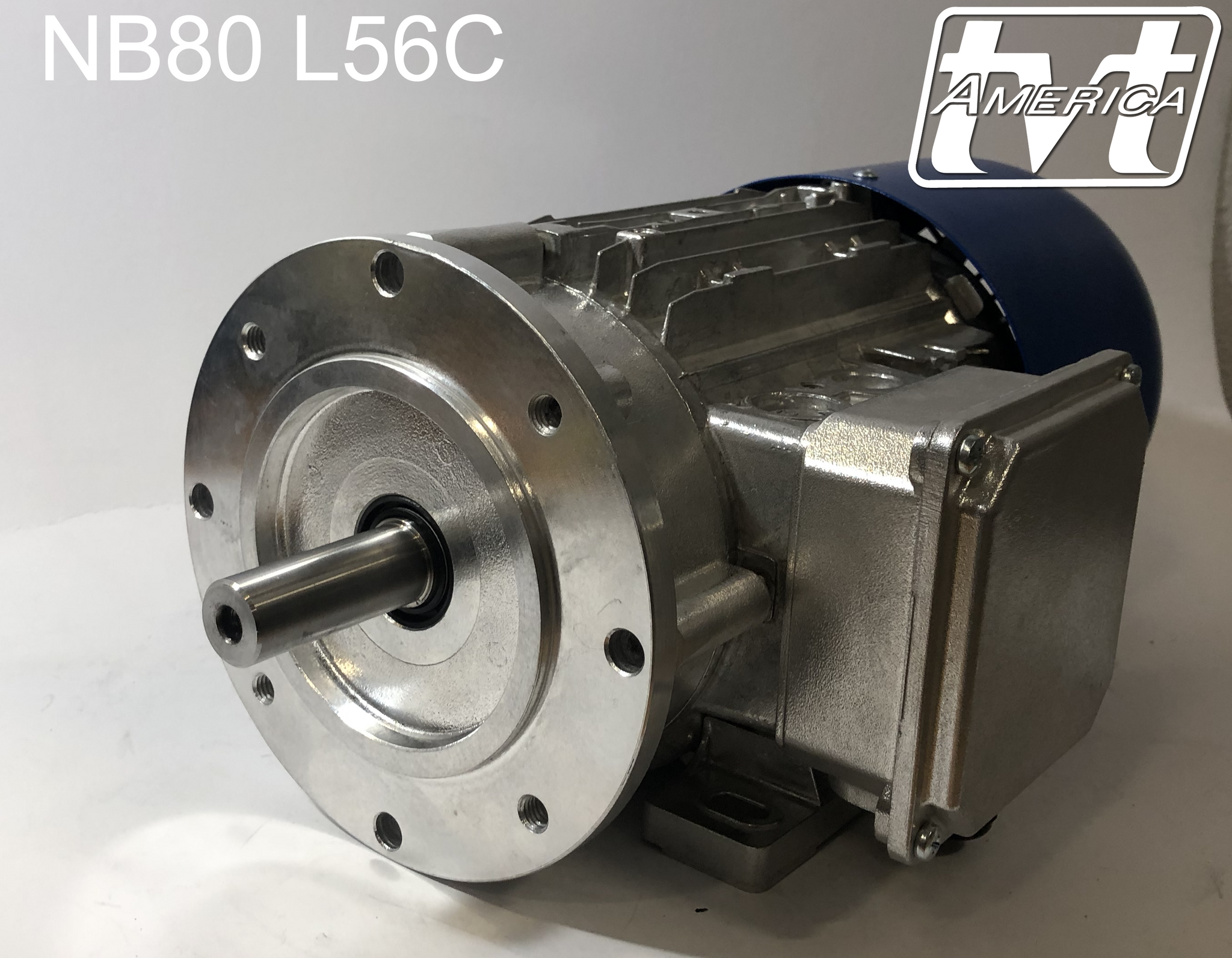

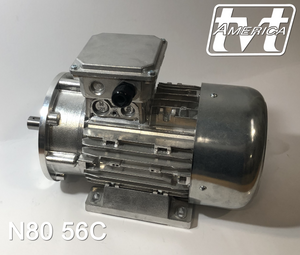

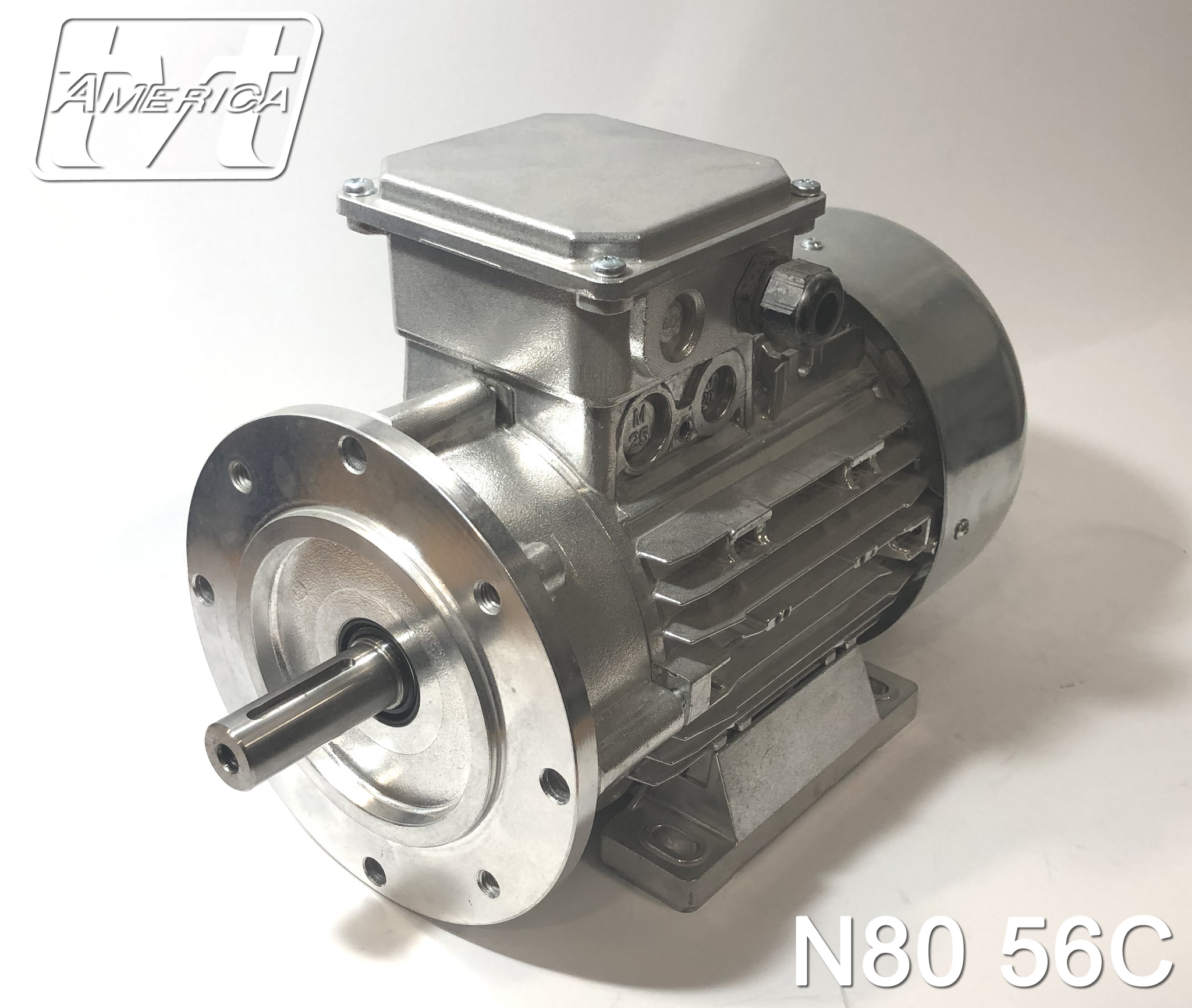

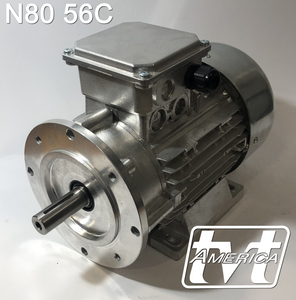

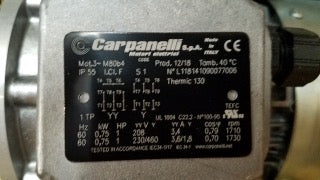

- Carpanelli® M80b4 56C

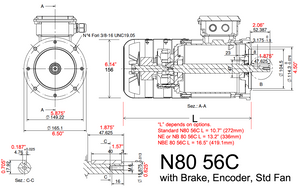

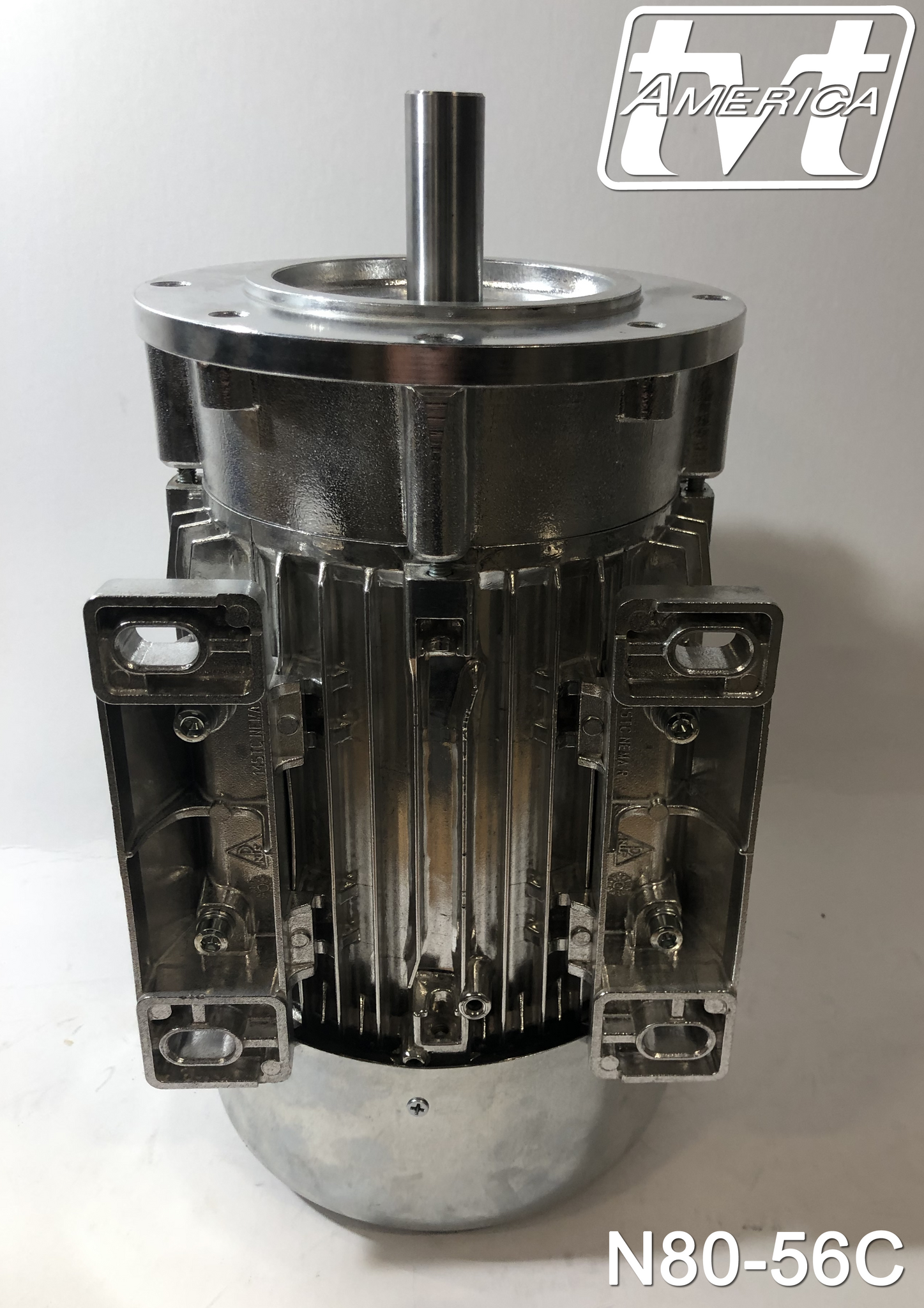

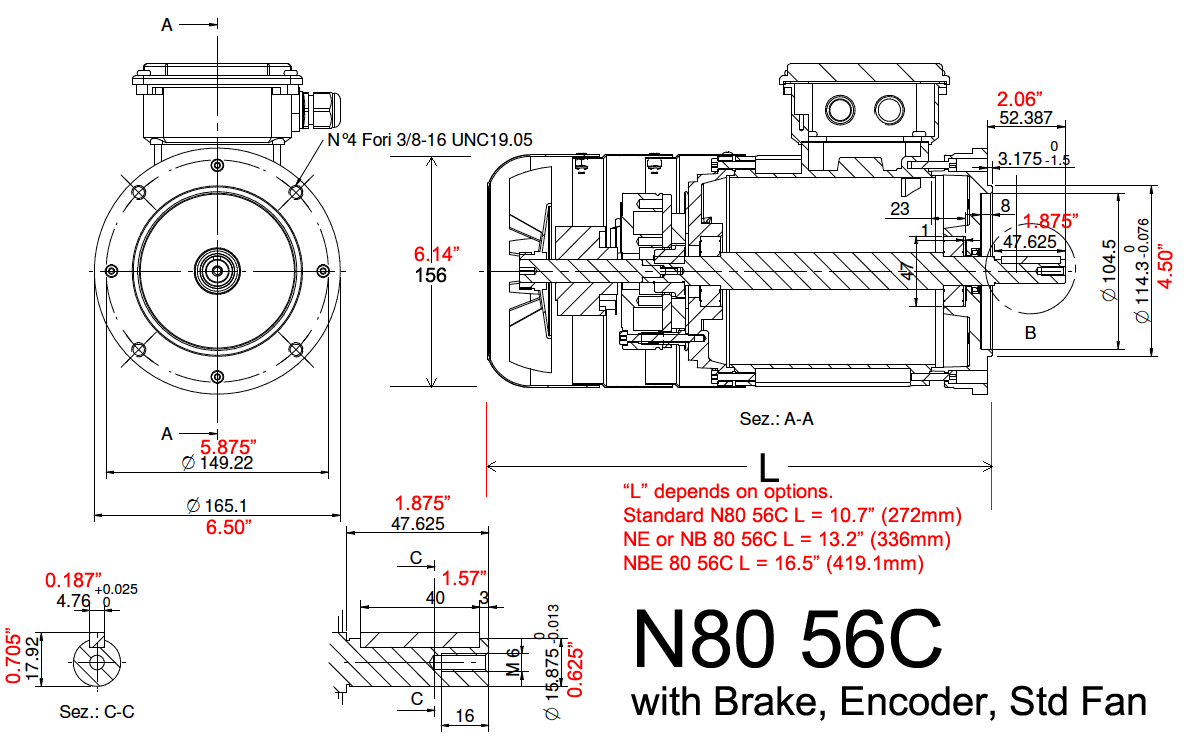

- NEMA 56C Flange & 3 position Movable/Removable Feet
- 1.0hp/0.75Kw Output Power
- 4-pole 1710rpm 208V/60Hz
- 4-pole 1730 rpm 230/460V/60Hz

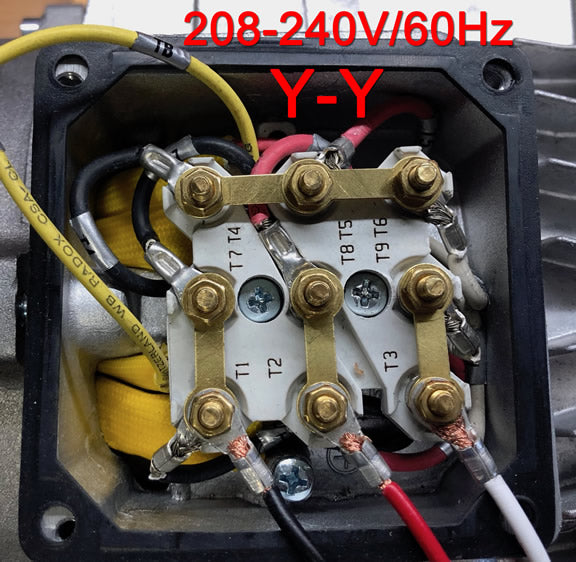

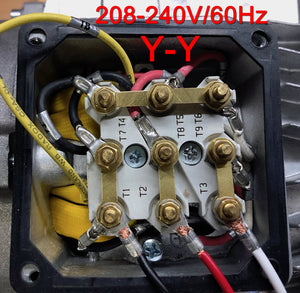

- 208V 3.4A Y-Y 3 phase AC
- 230V 3.6A Y-Y 3 phase AC

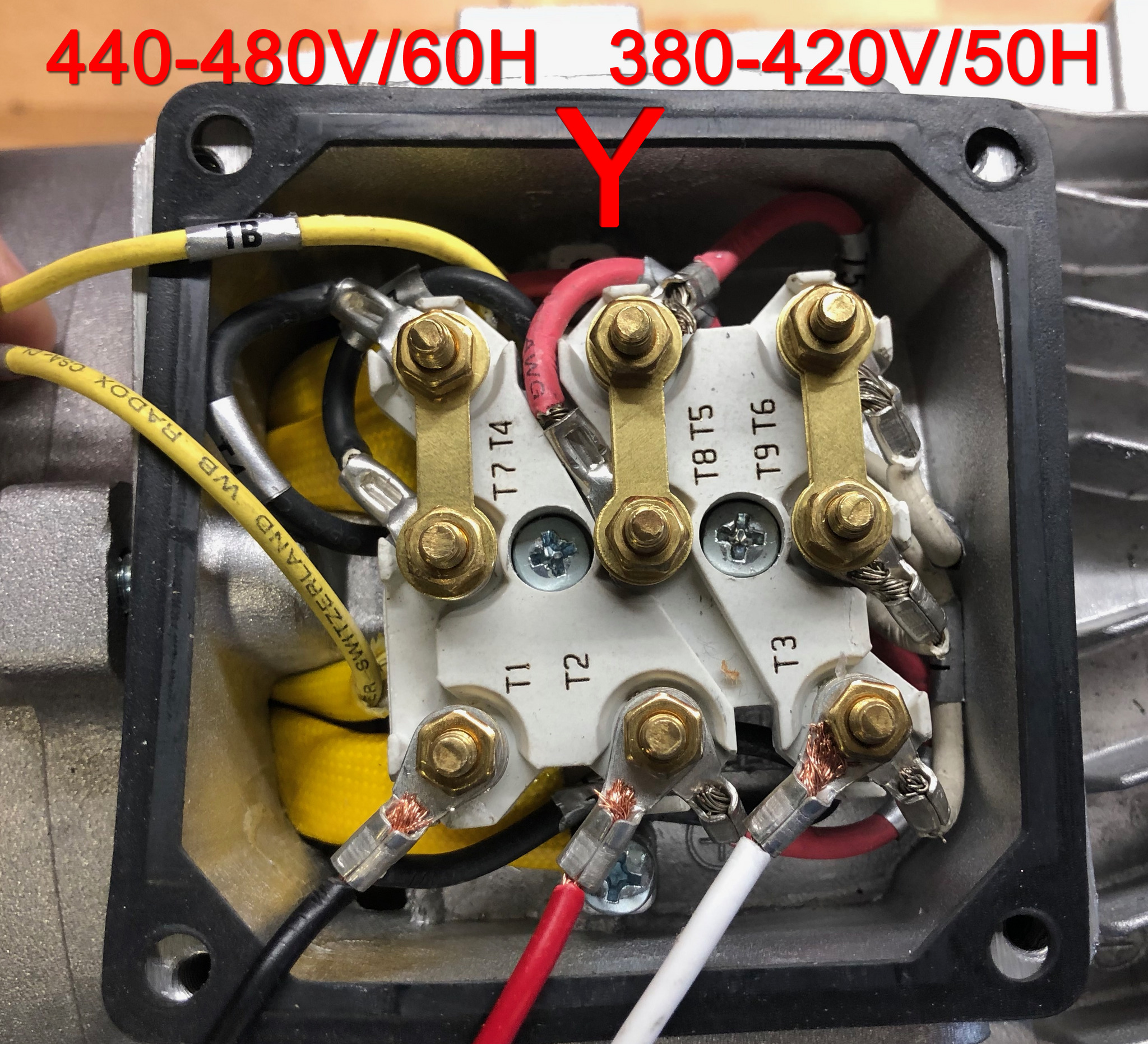

- 460V 1.8A Y 3 Phase AC
- Power Factor 0.79 @208V/60Hz
- Power Factor 0.70 230/460V/60hz.
- IP55 - Ingress Protection Rating
- Class F Insulation System
- 2RS Sealed ABEC 5 Electric Motor Bearings
- Service Class S1 (1.2 Service Factor 230 & 460V/60Hz)
- NC 130ºC Thermostat Circuit in Windings.
- UL CSA and CE Listed & Approved
- TEFC - Totally Enclosed Fan Cooled
- 9-lug terminal block for solid & clean terminations.
- Reposition-able in 90º turns IP65 Terminal box.
- Compact & Lightweight due to high strength die-cast aluminum alloy housing.

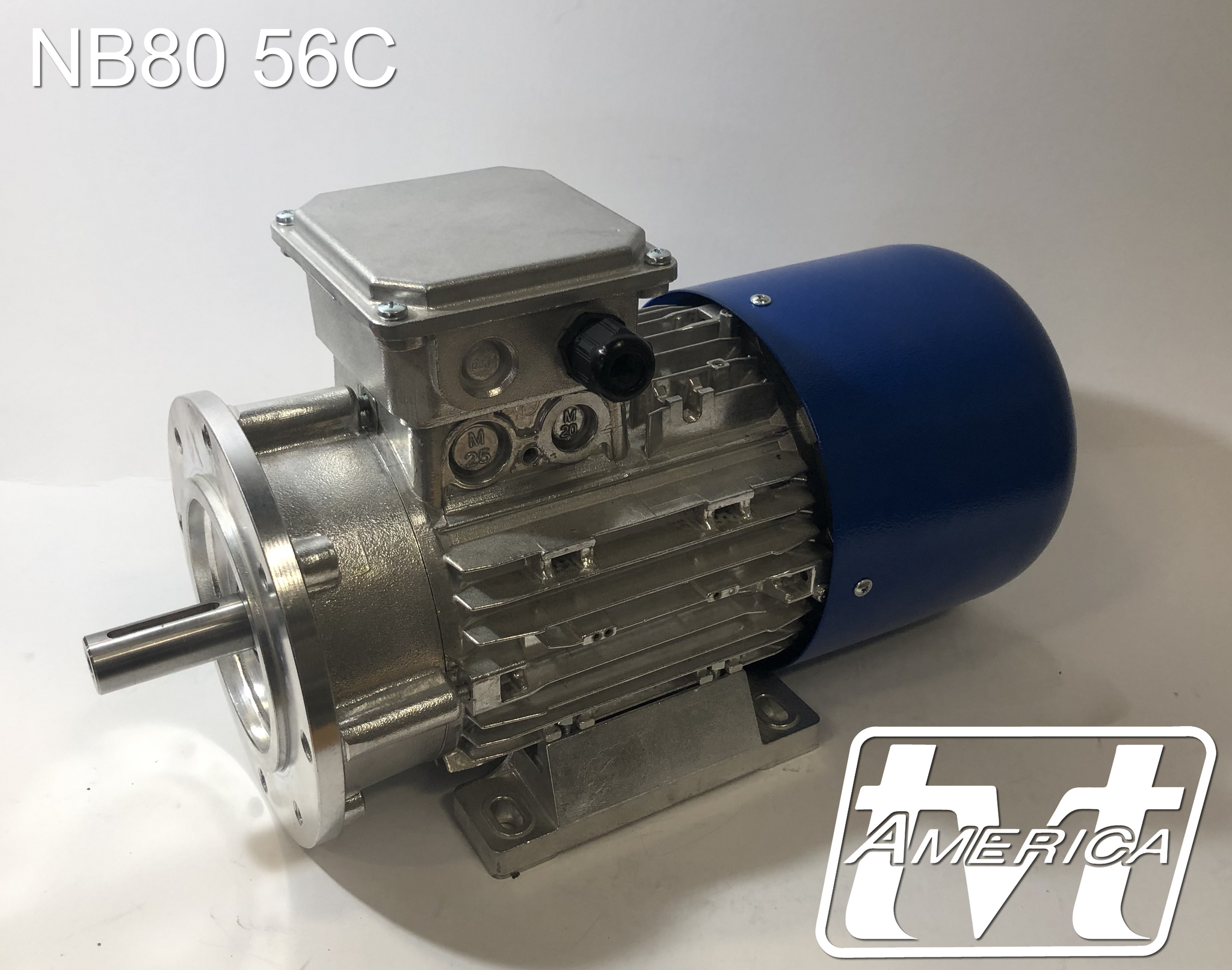

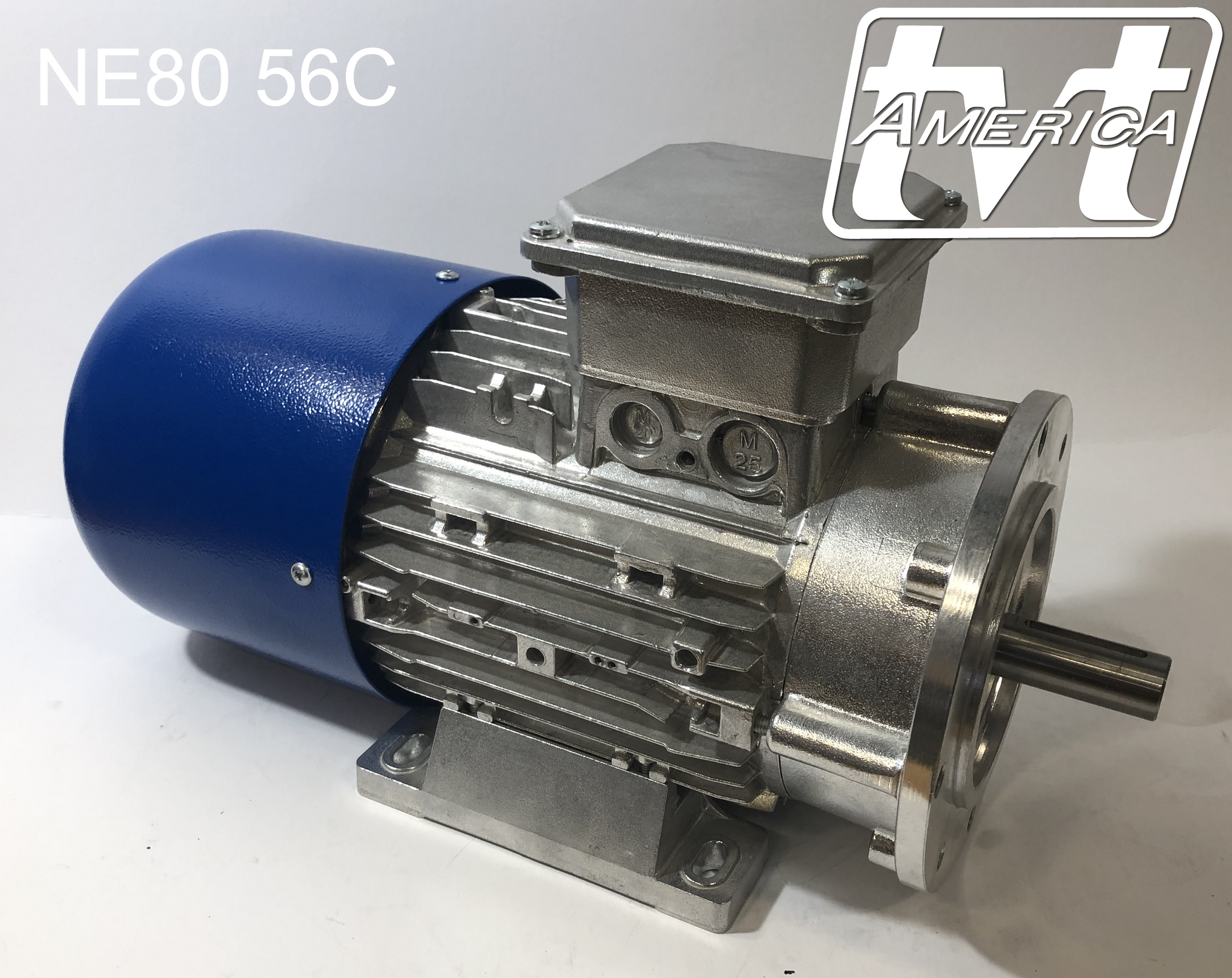

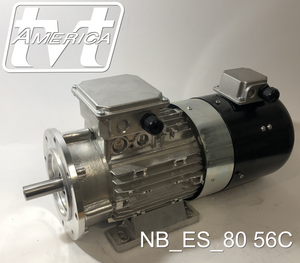

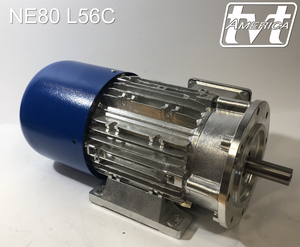

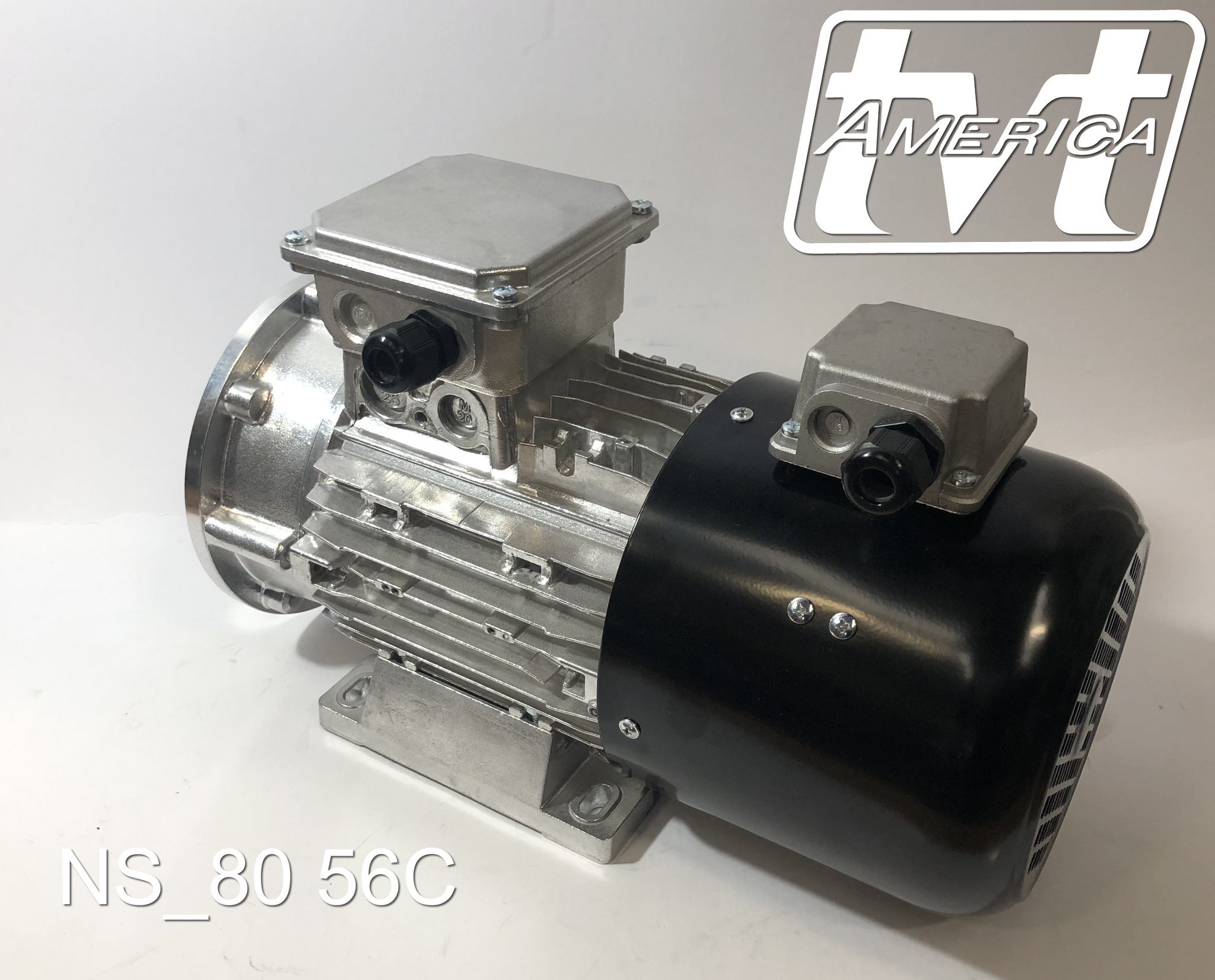

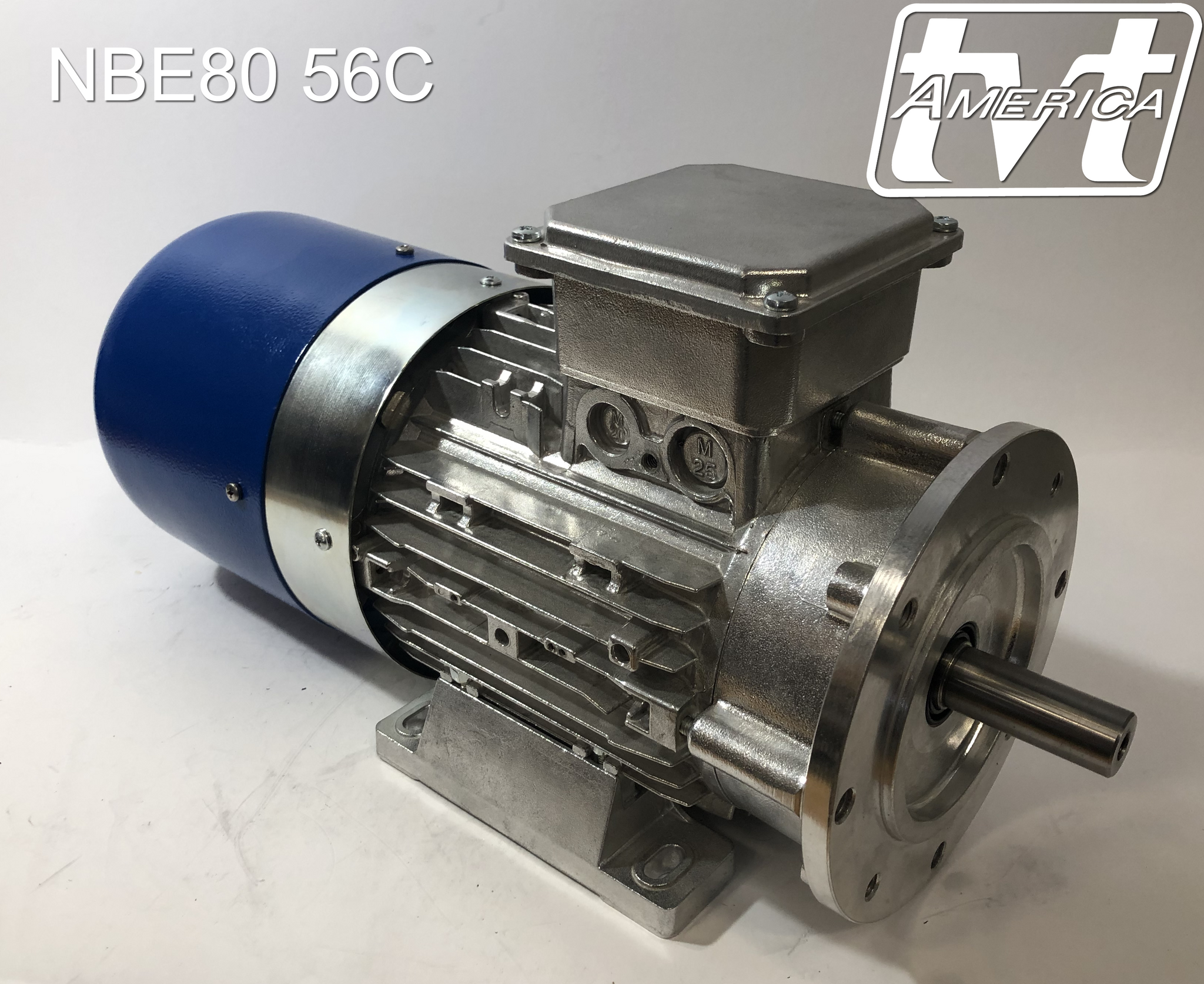

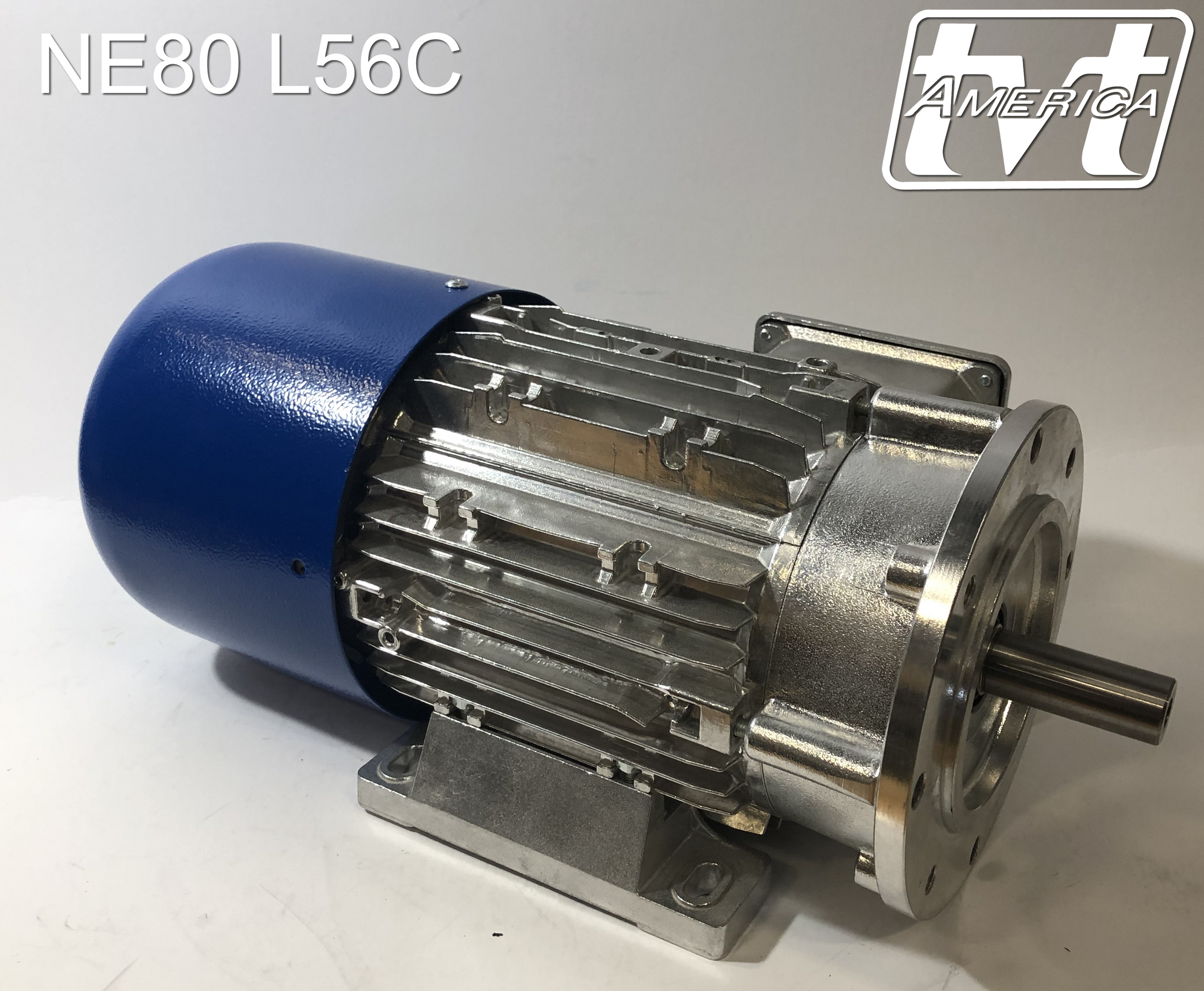

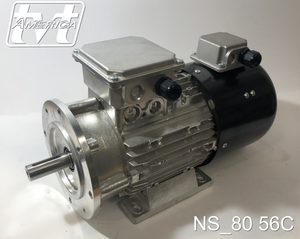

- OPTIONAL - Self Braking, Programable Encoder, Force Ventilation Systems. Configure/Price/Order On-line.
- Superior cooling to Iron or Inexpensive wrapped steel motors.
- Made in USA from 100% Designed & Manufactured from Italian Components.
- Standard Shipping 1-3 days ARO ≤5 pieces (5> inquire).
- Expedited Production & Shipping Available (SAME DAY) inquire to sales@tvtamerica.com
