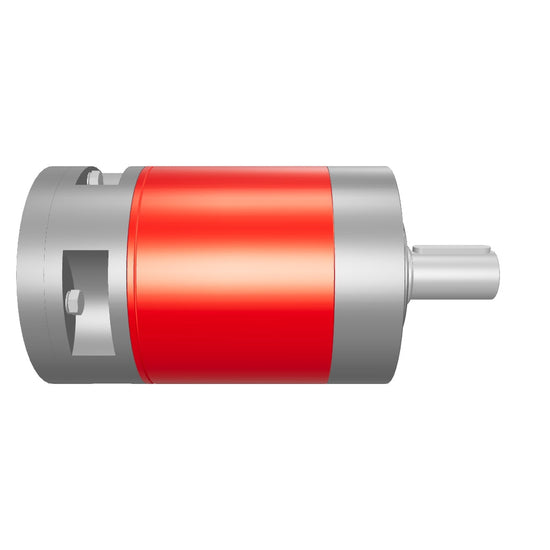

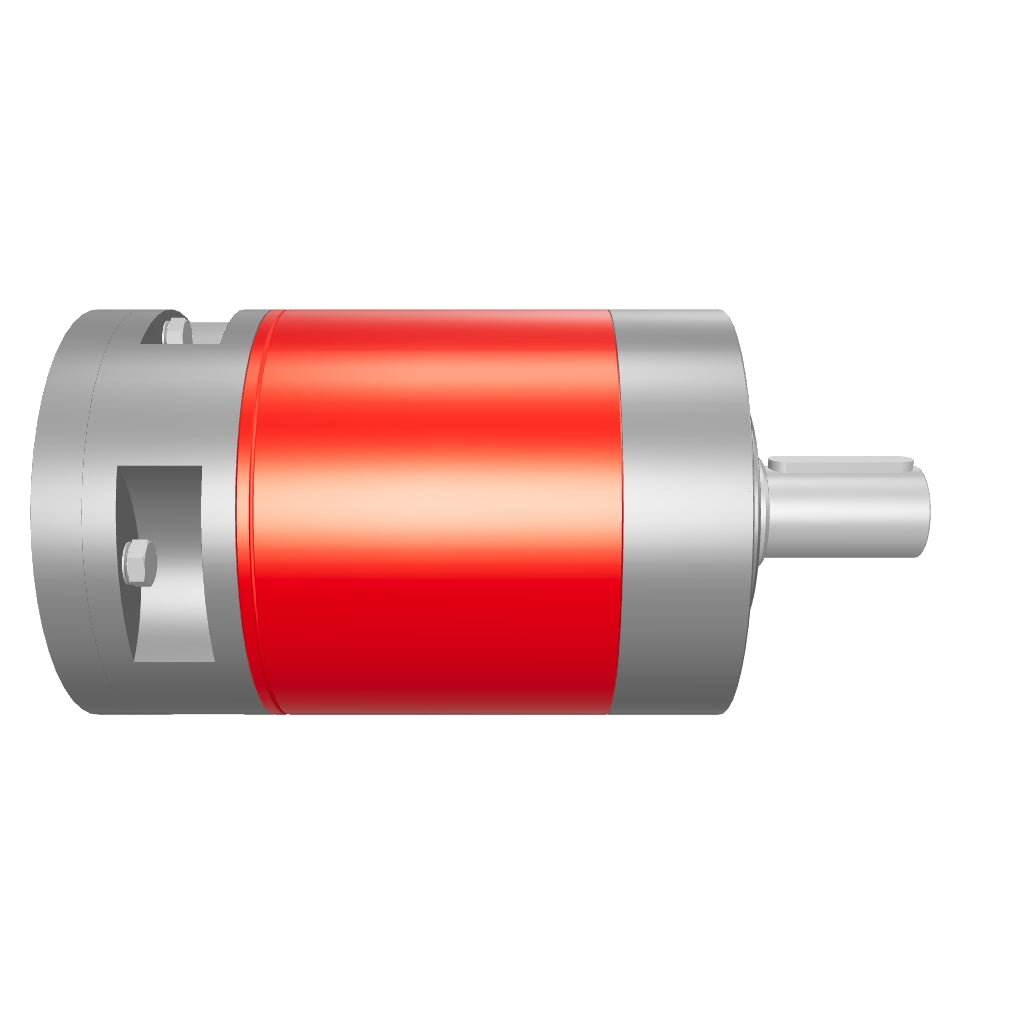

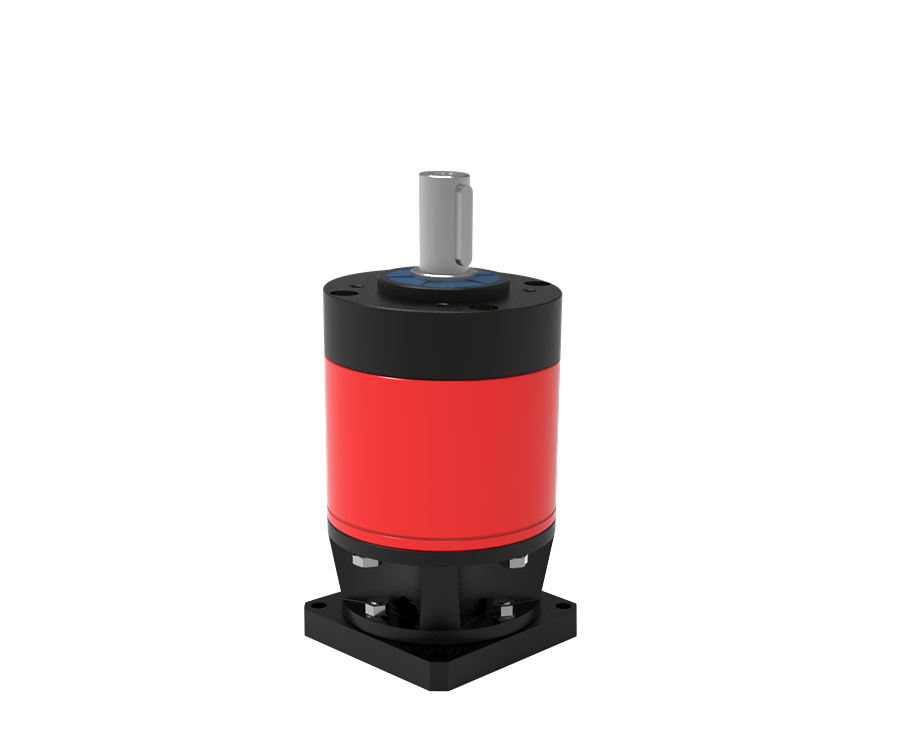

Planetary gearboxes EP series are the results pf the outstanding combination competitive price/precision guaranteed about operating features. They are manufactured for prevailing utilization in the following applications: machine tools, machines for woodworking, transfer machines, printing machines, automatic machines for packaging, automation, mechanical hands, silk-screen process machines, linear guides. The EP series is available in 5 sizes with 1 or 2 reduction stages.
EP PRODUCT RANGE DETAILS

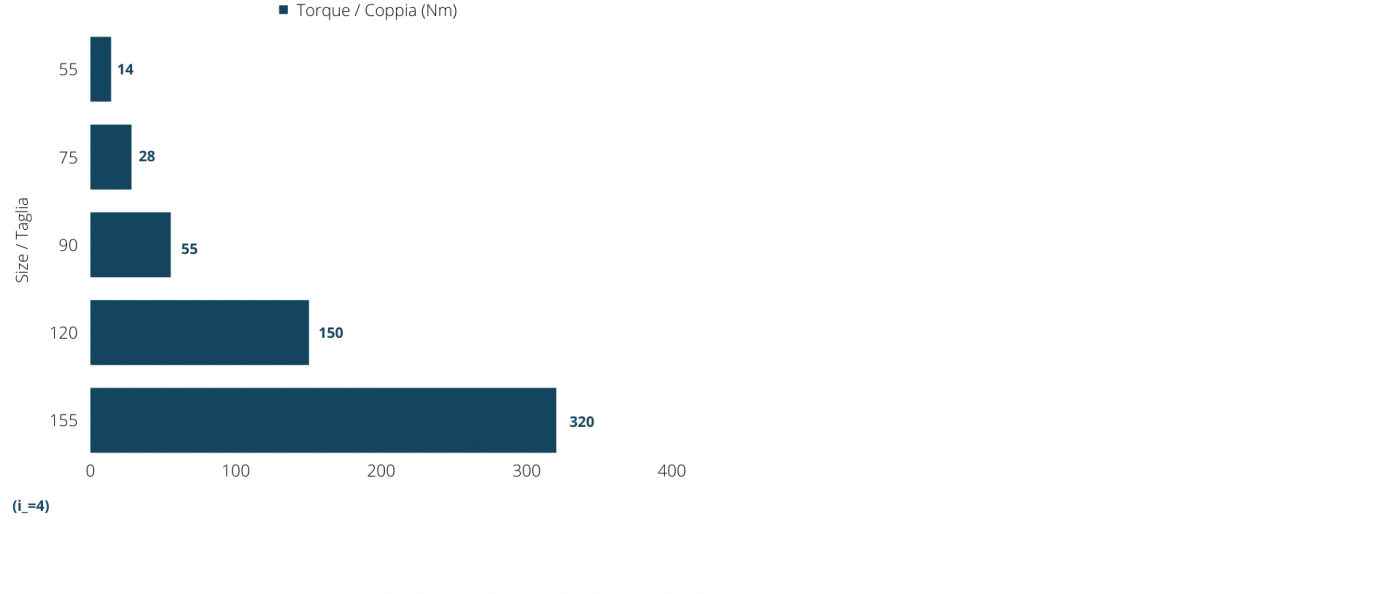

• Torque range T2M = 10 - 500 Nm • Reduction range 3 to 100
• The housing is made of special nitride steel to assure strength, high reliability, and long life.
• Input and output flanges are made of aluminium and available types A, T, Q.
• Shafts are made of hardened and tempered alloy steel. Two types of output shaft are available.
• Gears are made of casehardened and tempered alloy steel, with ground toothing.
• Bearings are high quality and suitably sized to assure long life and noiseless working.
MADE TO ORDER: 4-5 WEEKS ARO FOB Hollister, Missouri Distribution Center.
Urgent Options: Put item in shopping cart and choose UPS Ground when checking out, we will refund the ground shipping option back to your payment method.
Urgent Care: 9 working days + airfreight to destination.
Critical Care: 5 working days + airfreight to destination.
