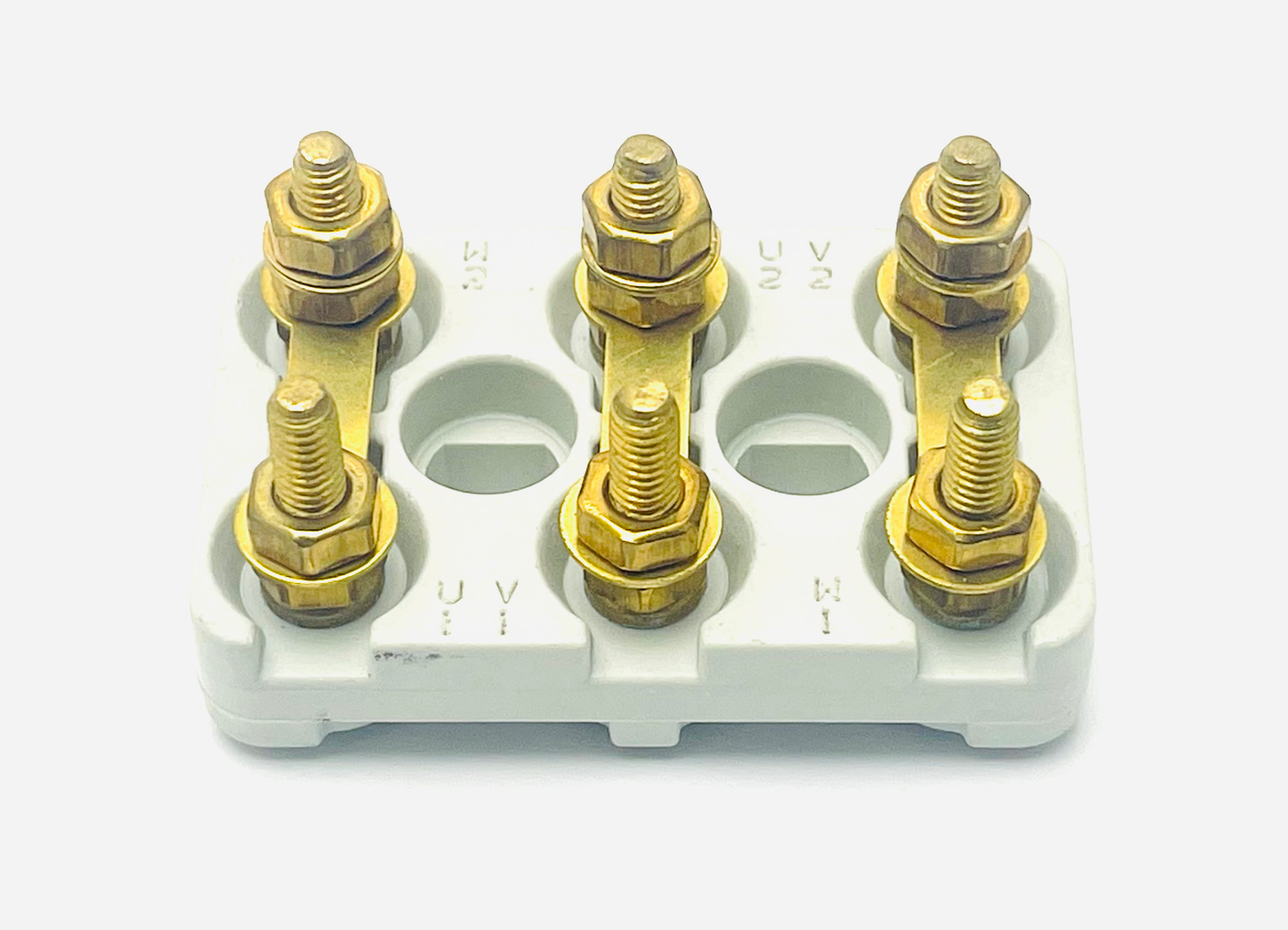

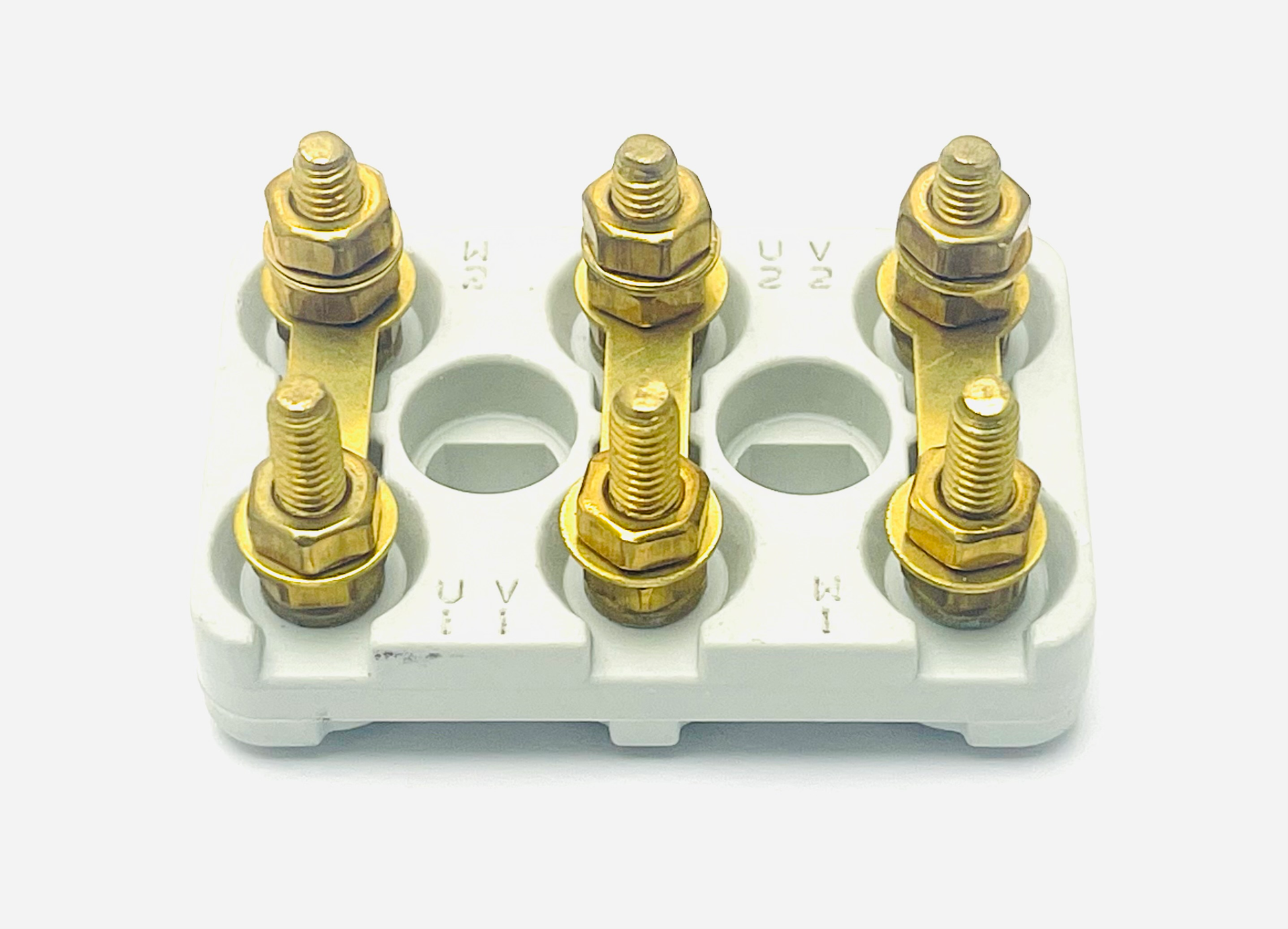

50x32 six lug terminal block kit

TVT Service part for IEC Electric motors

• Common for 80 and 90 frame IEC motors
• ∆/Y connections using.
  • (3) M4 x18mm brass bars
  • (15) M4 brass nuts.
  • (6) M4 brass washers
  • (6) M4 brass studs molded into terminal block.
• Embossed marks for U1, V1, W1, W2, U2, V2 terminals.

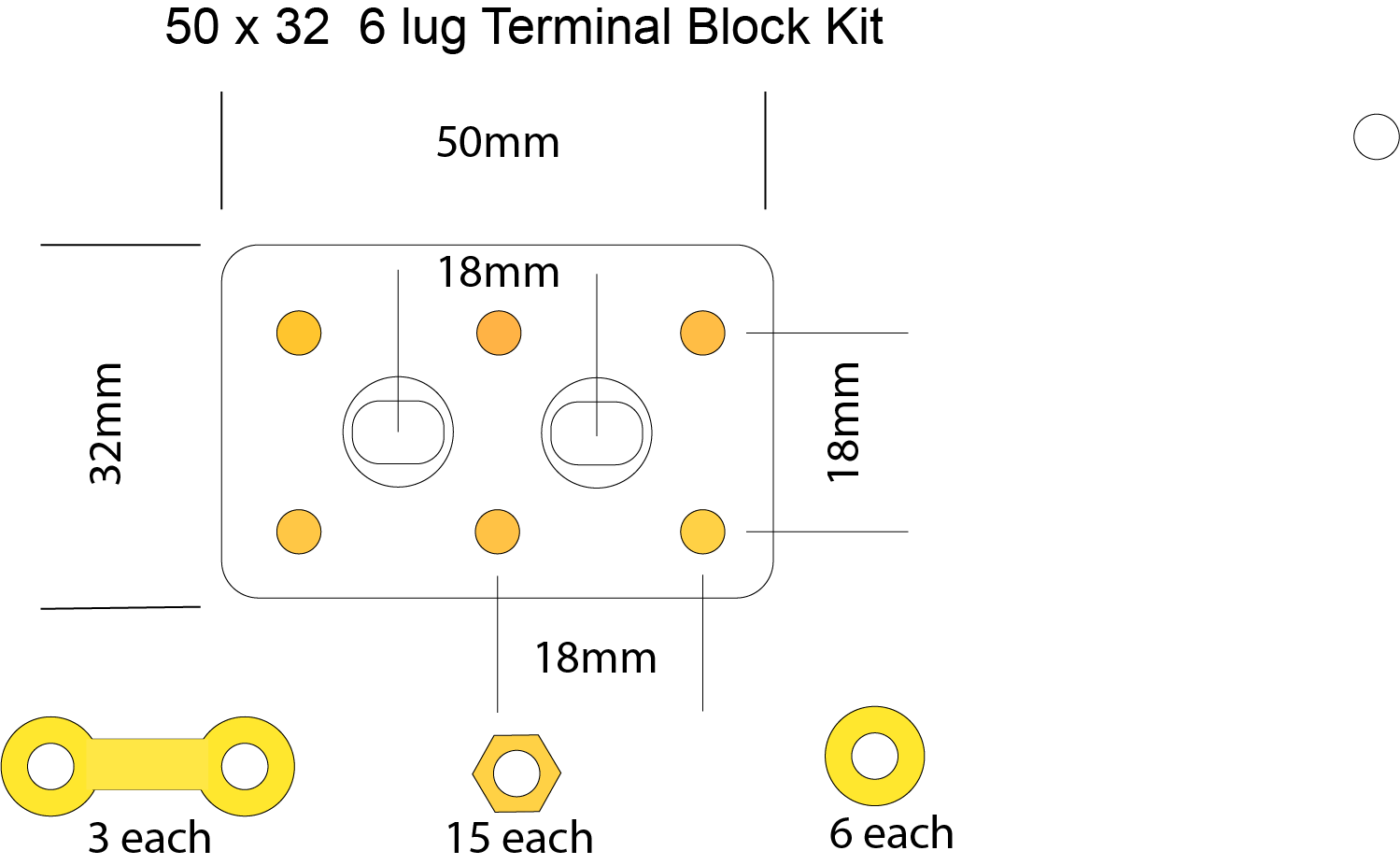

• 50x32mm external dimension with 5mm radius corners of rectanglular shape.
• 23mm base to top of brass studs height.
• Meets UL/CSA/CE approvals.
• Two 18mm center to center slotted mounting holes
• Designed & Manufactured in Italy.
