6T3-90S4 EU

6T3Series 3ph AC motor IE1 Standard Efficiency

Size: IEC 90S

Pole: 4 - 1800rpm at synchronous speed

Rated Power: 1.1kW 1.5HP 50Hz, 1.32kW 1.8Hp 60Hz

Winding Form: EU  230∆/400Y at 50Hz, 275∆/480Y at 60Hz.

Output RPM at Rated Hz: 1430RPM @ 50Hz, 1710rpm @ 60Hz. 28.5RPM/Hz ratio.

Bearings: 6205-ZZ C3 Drive End, and Non-Drive (fan) side.

Cooling: Totally Enclosed Fan Cooled.

Insulation: Class F, 155ºC total temperature at hottest spot in winding.

Temperature rise: 40ºC above ambient, by resistance 105K, by thermometer 100K.  as defined by IEC 60034-1 and NEMA MG-1 standards

Ingress Protection: IP55 to IEC 60529 standard.  For dust, solid particle protection, not entirely prevented by dust does not enter in sufficient quantity to inferrer with satisfactory operation or impair safety.  No harmful dust deposits.  For Liquids, Protection against water jets by nozzle 6.3mm from any direction with no harmful effects.

Certifications: CE Listed

Construction: Die-Cast Aluminum housing, 2 piece IP65 type terminal box including 1 M20 cable gland, Zinc Plated Formed Steel Fan Cover, non-metallic non-sparking fan.

Product of Italy, Elvem S.r.l.  Via Delle Industry 42, Cartigliano, Italy.  www.elvem.it

Specification Sheet: PDF file will open in new window.

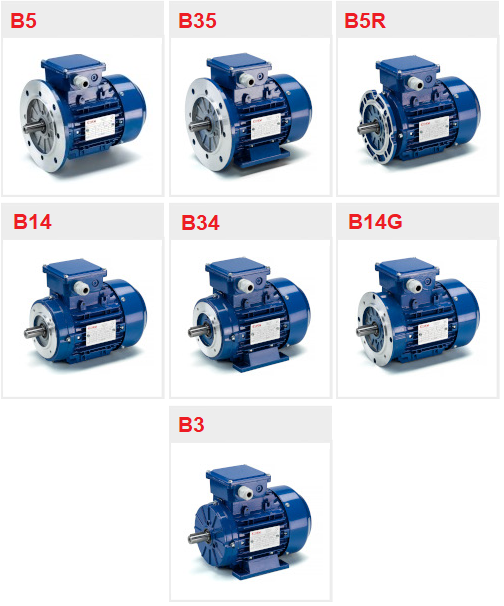

Cad Files: B3, B14, B5, B34, B35, B14R, B5R

For B14R or B5R, please contact sales@tvtamerica.com for delivery estimate.
