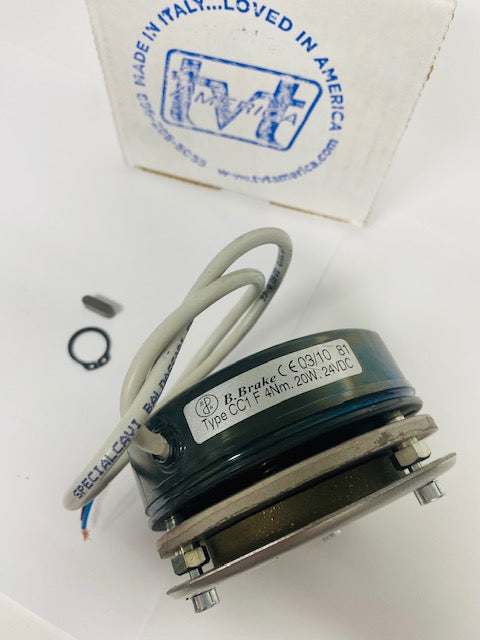

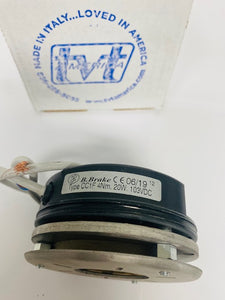

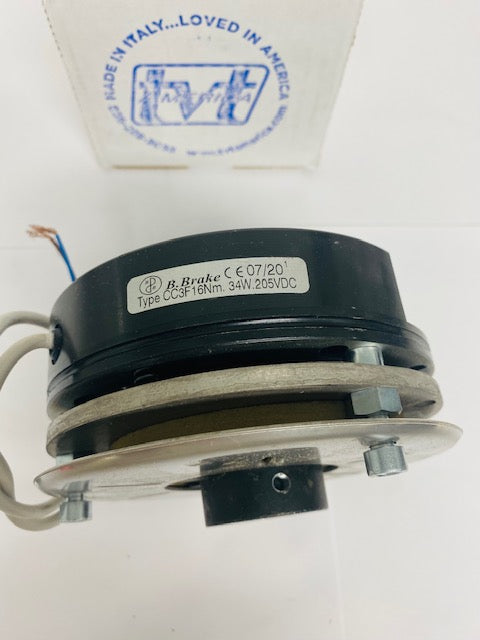

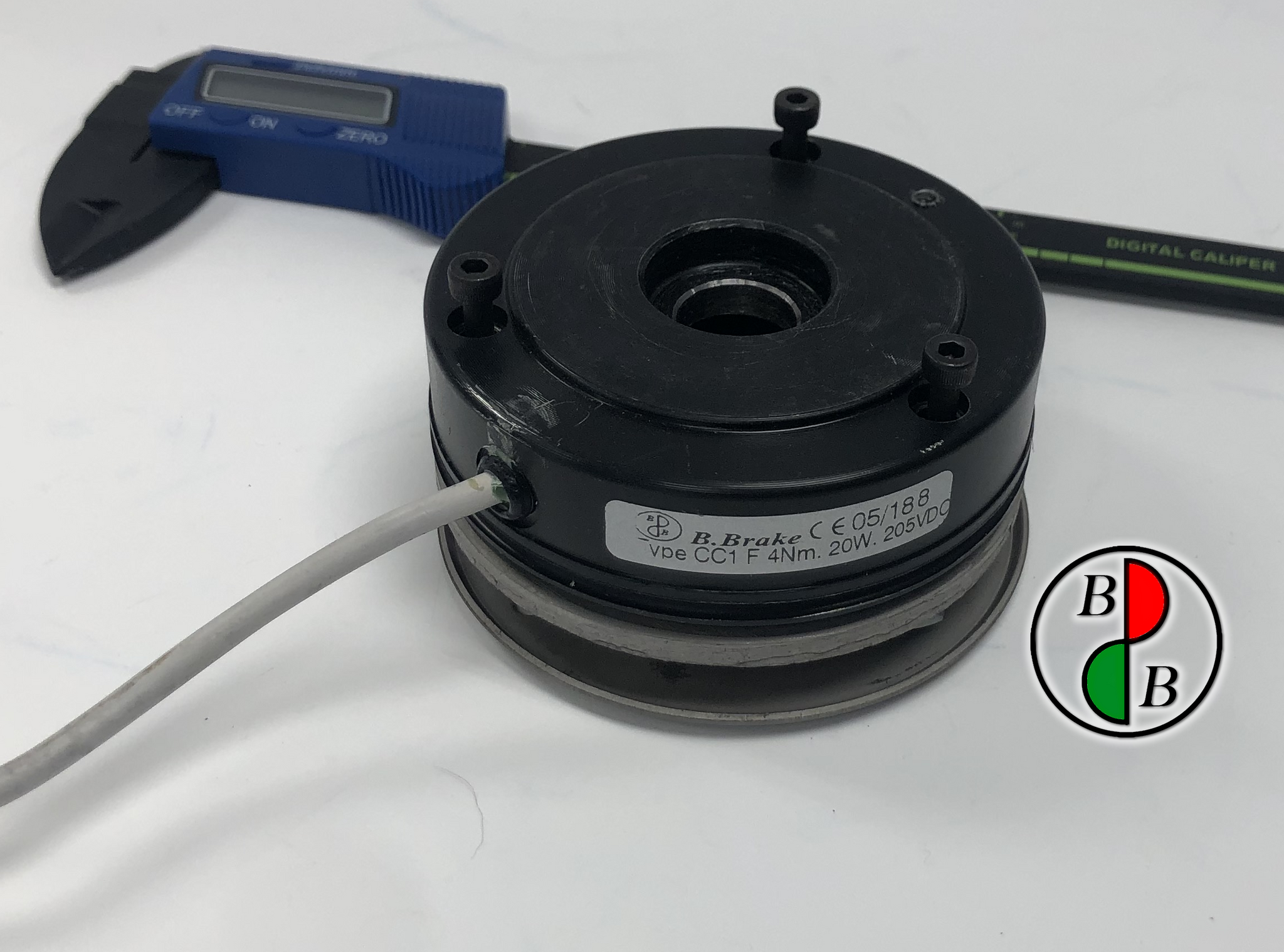

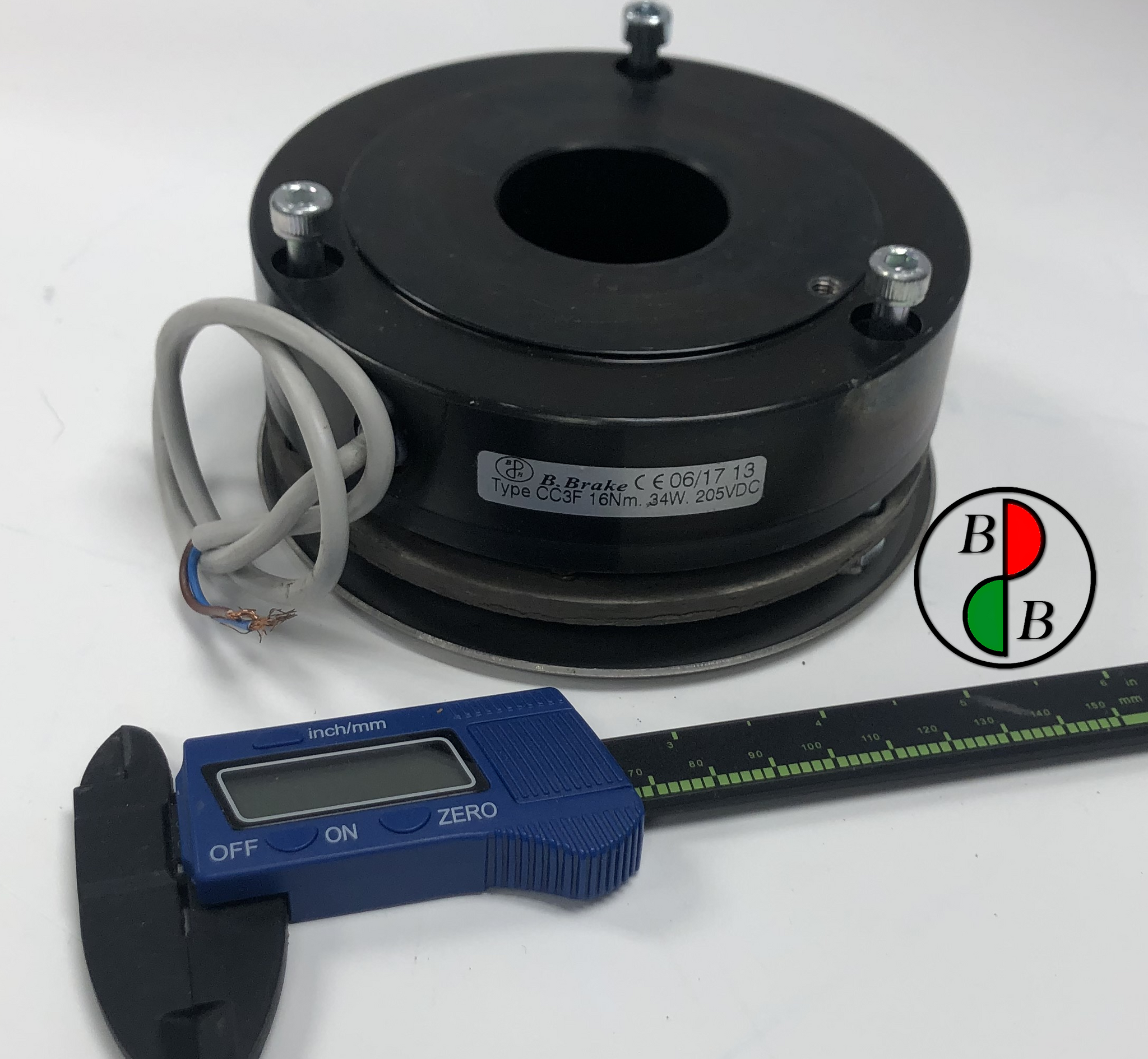

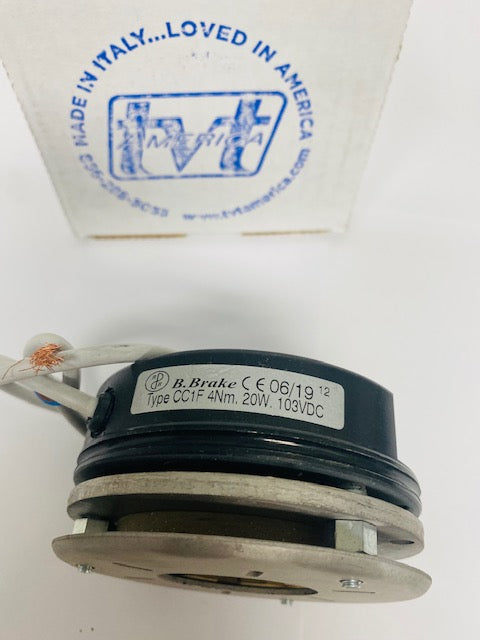

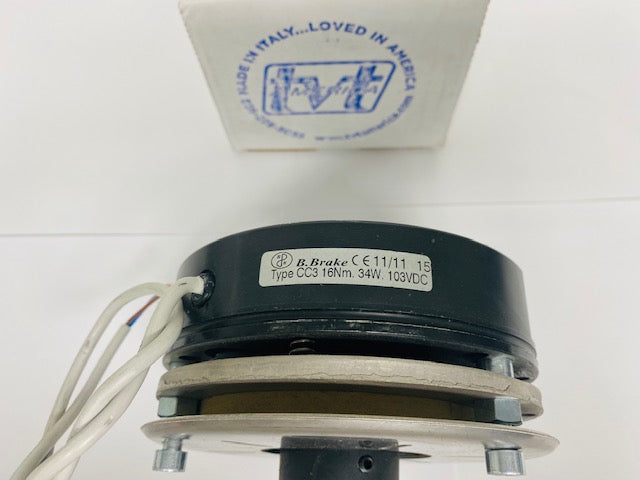

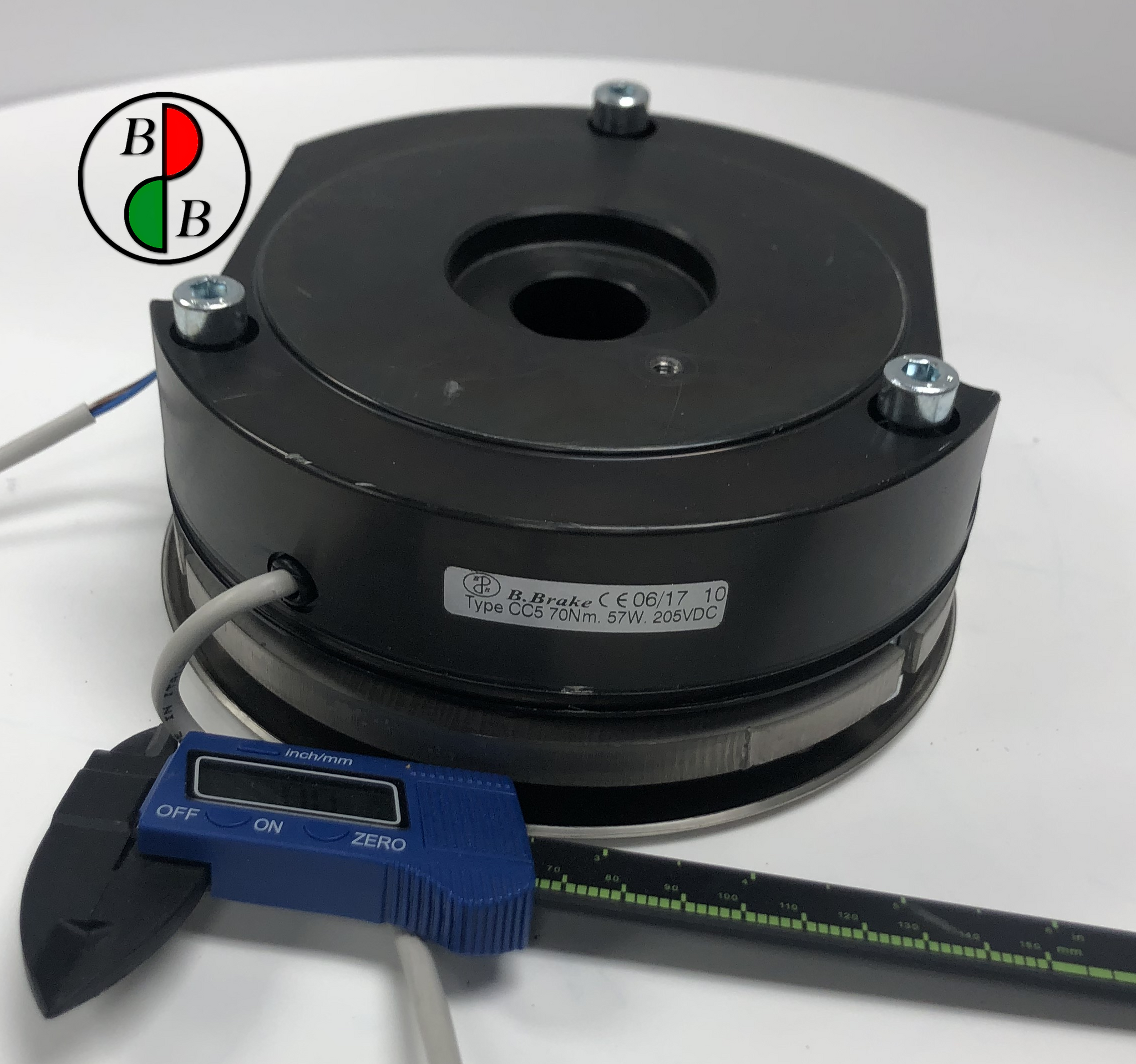

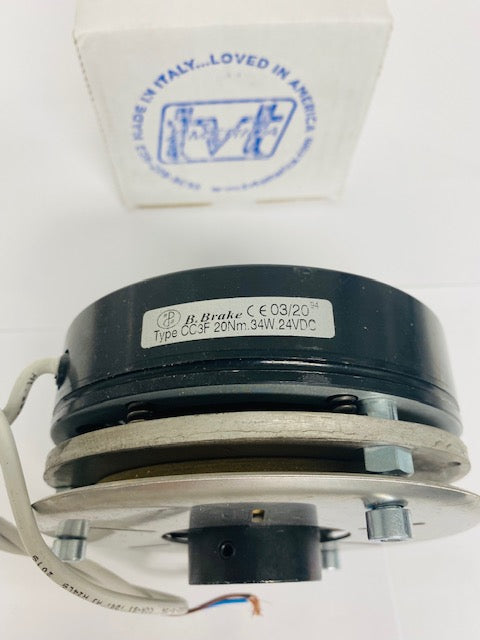

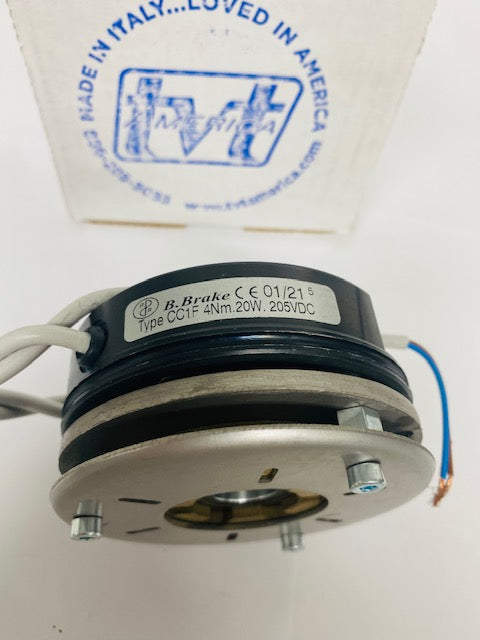

B.Brake FRENO SAB Motor Brakes

B.Brake FRENO SAB Motor Brakes

$189.20 USD
$473.00 USD $189.20 USD
Sale Sold out
Shipping calculated at checkout.
Size
Voltage

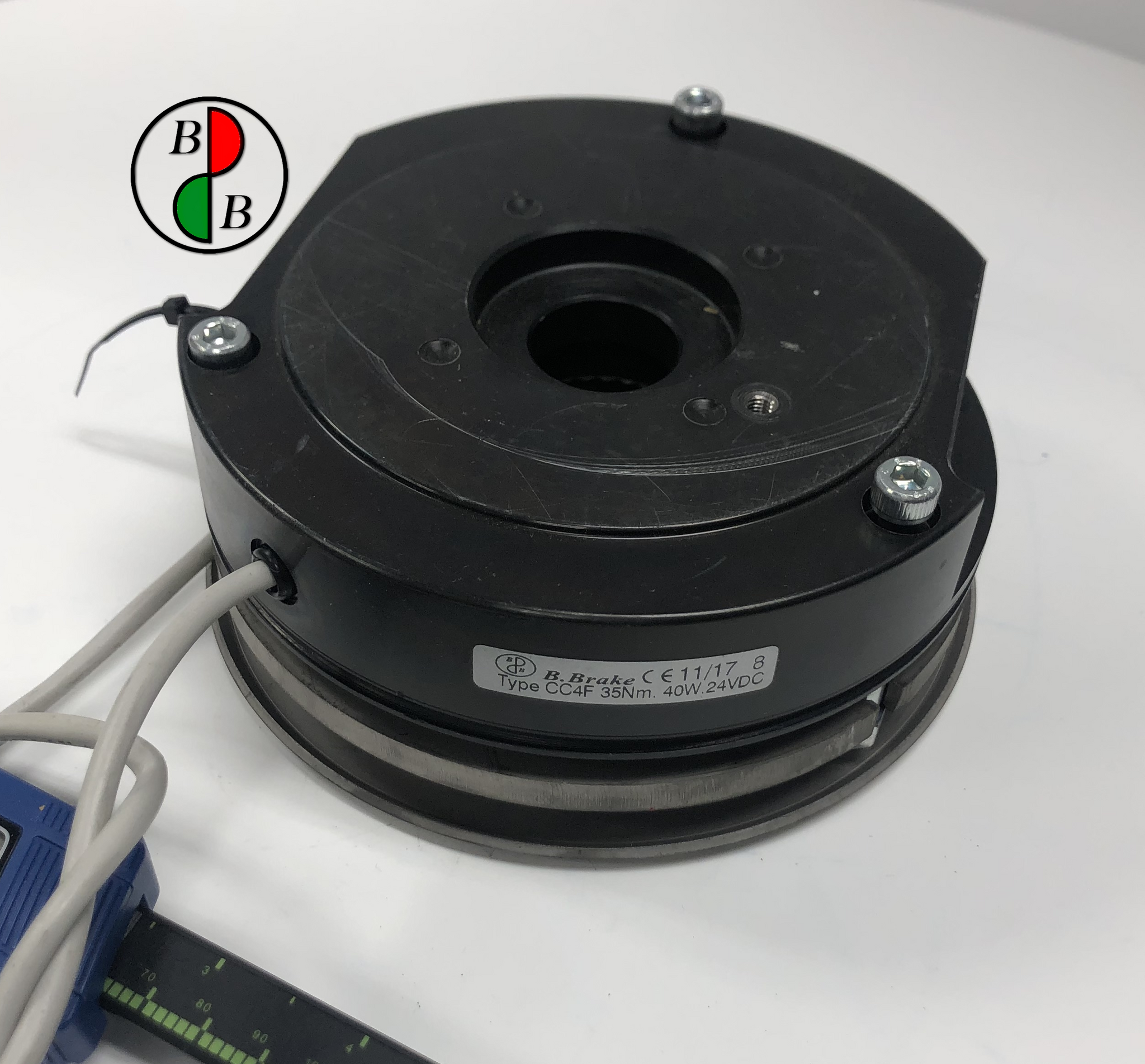

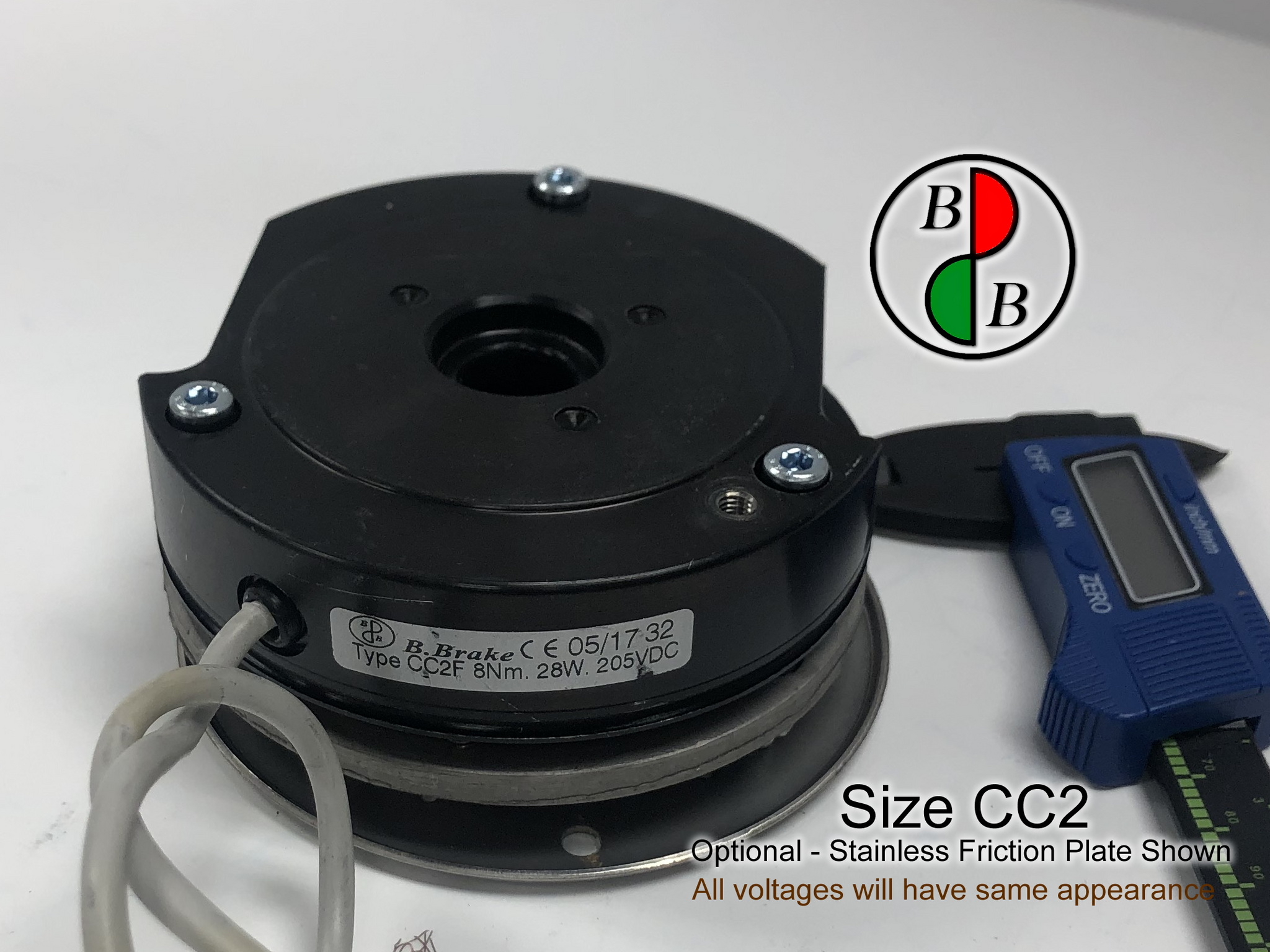

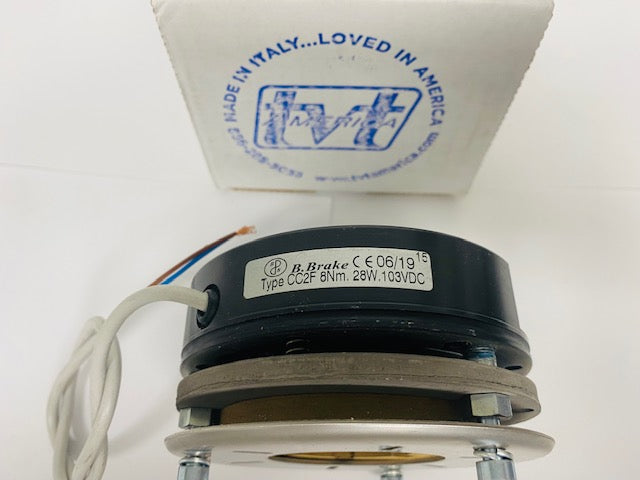

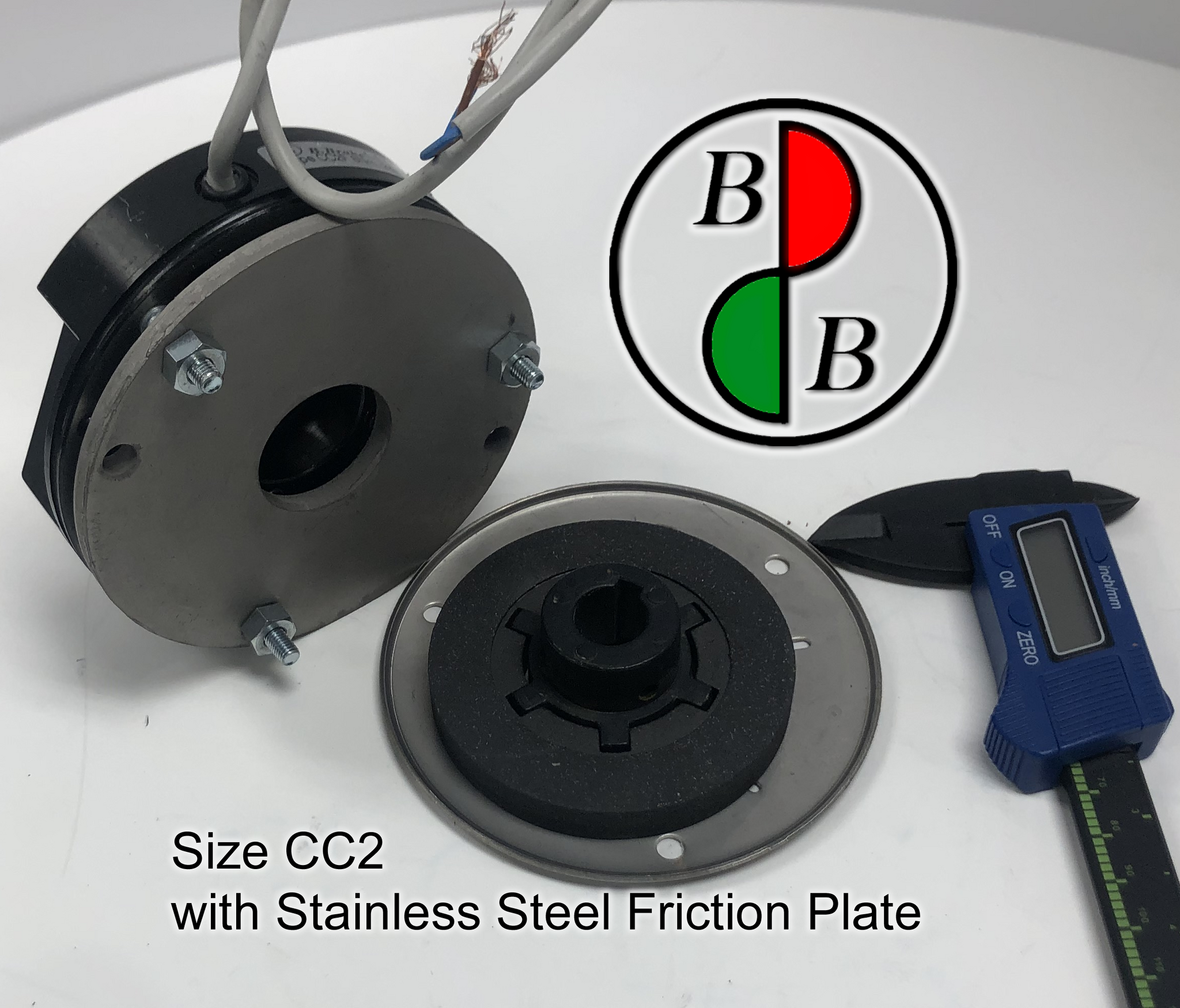

DC Coil Spring Applied Brakes

  • Sizes 1 to 9
  • Available from stock in 24, 105, 150, and 205Vdc
  • IP54 standard and IP55 kits available from stock.
  • 100% Designed & Manufactured in Italy.
  • Hand Release Kits Available.
  • Steel mounting plates available by order.
  • OEM Volume Discounts Available by request.
  • Inquire for Distribution Program
 Size
Torque
Watts

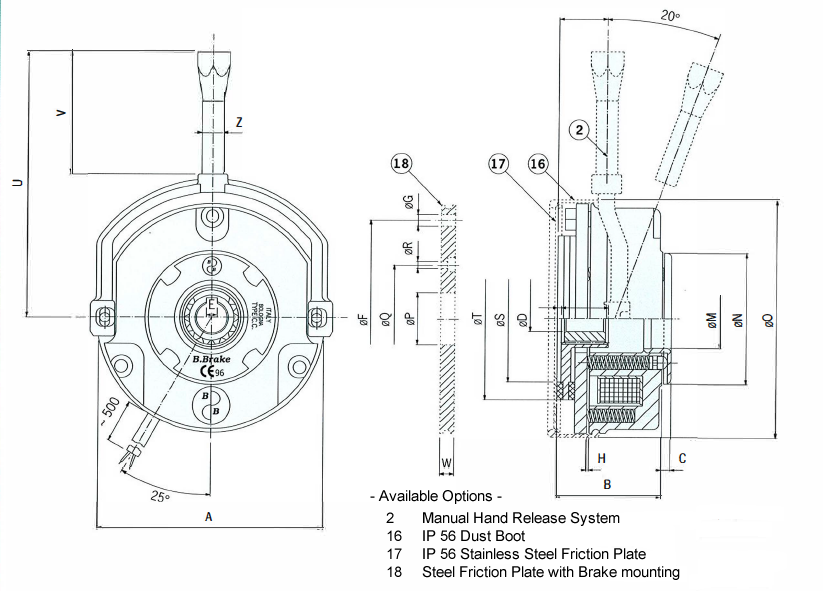

A
B
C
D
F
G
H
I
K
L
1
5 Nm
22
86.5
 35 3-4.5 11 72 M4 .2 1.75 18 17
2
8 Nm
28
104.5
 43 3-4.5 14 90 M5 .2 2.9 20 18
3
16 Nm
34
127
 48 4-7.5 20 112 M6 .2 3.25 20 25
4
40 Nm
40
147
 55 4-9.5 25 132 M6 .3 3.50 25 22
5
75 Nm
52
162
 64 5-11 30 145 M8 .3 3 30 29
6
100 Nm
57
188
 71 5-10 38 170 M8 .3 3 30 25
7
200 Nm
75
215
 83 6-15 45 196 M8 .4 4 35 29
8
350 Nm
90
252
 97 7-17 45 230 M10 .4 5 40 36
9
500 Nm
130
302
 107 9-19 60 278 M10 .5 6 50 45

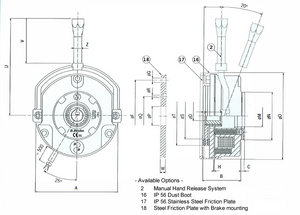

Size M N O P Q R S T U V W Z
1 19 49 88 20 30 3x4.5 47 60 97.5 45 6 8
2 24 54 106 30 45 3x4.5 60 76 113 45 7 8
3 35 70 132 40 56 3x5.5 66 95 132 57 9 10
4 40 82 153 45 62 3x5.5 80 115 139 53 9 10
5 48 92 167 55 74 3x6.6 90 125 161 67 11 12
6 56 102 194 65 84 3x9 104 150 186 76 11 12
7 64 116 221 75 100 3x9 129 177 242 102 11 14
8 73 135 257 90 120 6x11 148 204 276 124 11 14
9 93 165 308 120 150 6x11 199 257 331 151 12.5 16
