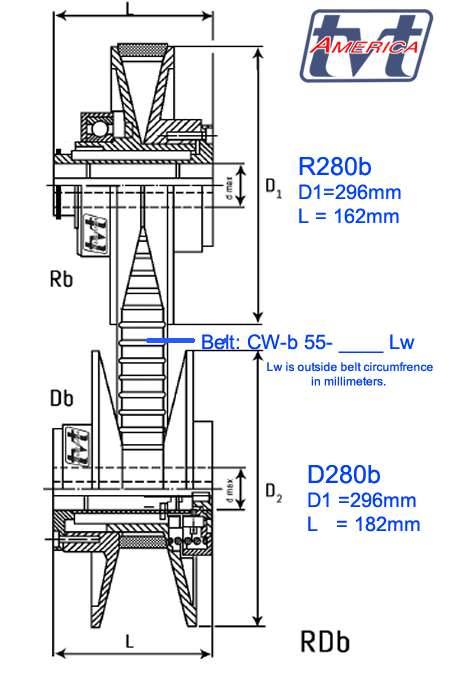

Berges® D280b Spring tension Pulley with torque control

Berges® Spring tension Pulley with torque control  type D280b for use with wide belts type CW-b 55 and adjusting pulley R280b.  Diameter of 296mm with length through bore 182mm, die cast aluminum sheave faces with steel slide hub.  Identified by casting numbers x and x, one spring; castings used on other series of pulleys..

Maximum shaft diameter42mm with standard bores listed for sale, alternative bores are available by purchasing Custom. A TVT sales engineer will reach out to you to complete your order by defining the required bore.  MTO pulleys are not returnable and will require 6-8 weeks production & shipping.

TVT-Berges Catalog (.pdf )

*  Also available from a TVT Distributor near you.

*  OEM Volume discounts available, inquire with sales@tvtamerica.com

Items may not be in stock. Non-Stock lead time is 6-8 weeks.
