Berges® R400b Control Pulley

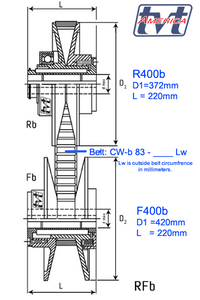

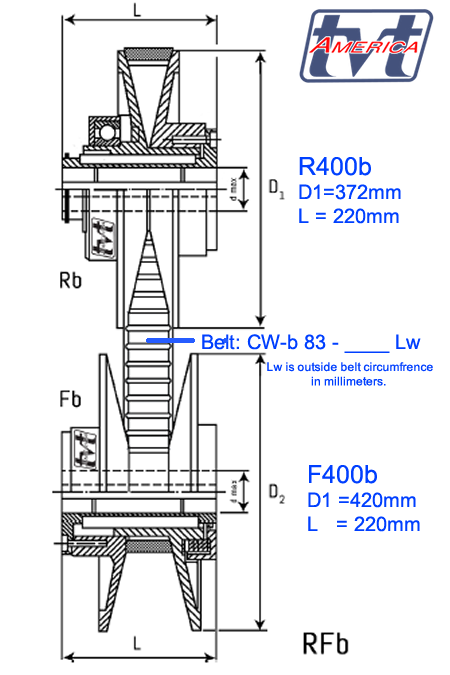

Berges® Control Pulley type R400b for use with wide belts type CW-b 83 and spring tensioning pulley F400b or D400b  Diameter of 372mm with length trough the bore 220mm.  Die-cast aluminum pulley faces with steel slide hub with thrust bearing on one side.  Casting numbers ; castings maybe used on other series of pulleys.    Maximum shaft diameter 65mm with standard bores listed for sale, alternative bores are available Contact TVT for non-standard bore quotation.

Items may not be in stock. Non-Stock lead time is 6-8 weeks.
