Berges® F130b Tension Pulley

Regular price
Sale price
Shipping calculated at checkout.
Quantity must be 1 or more

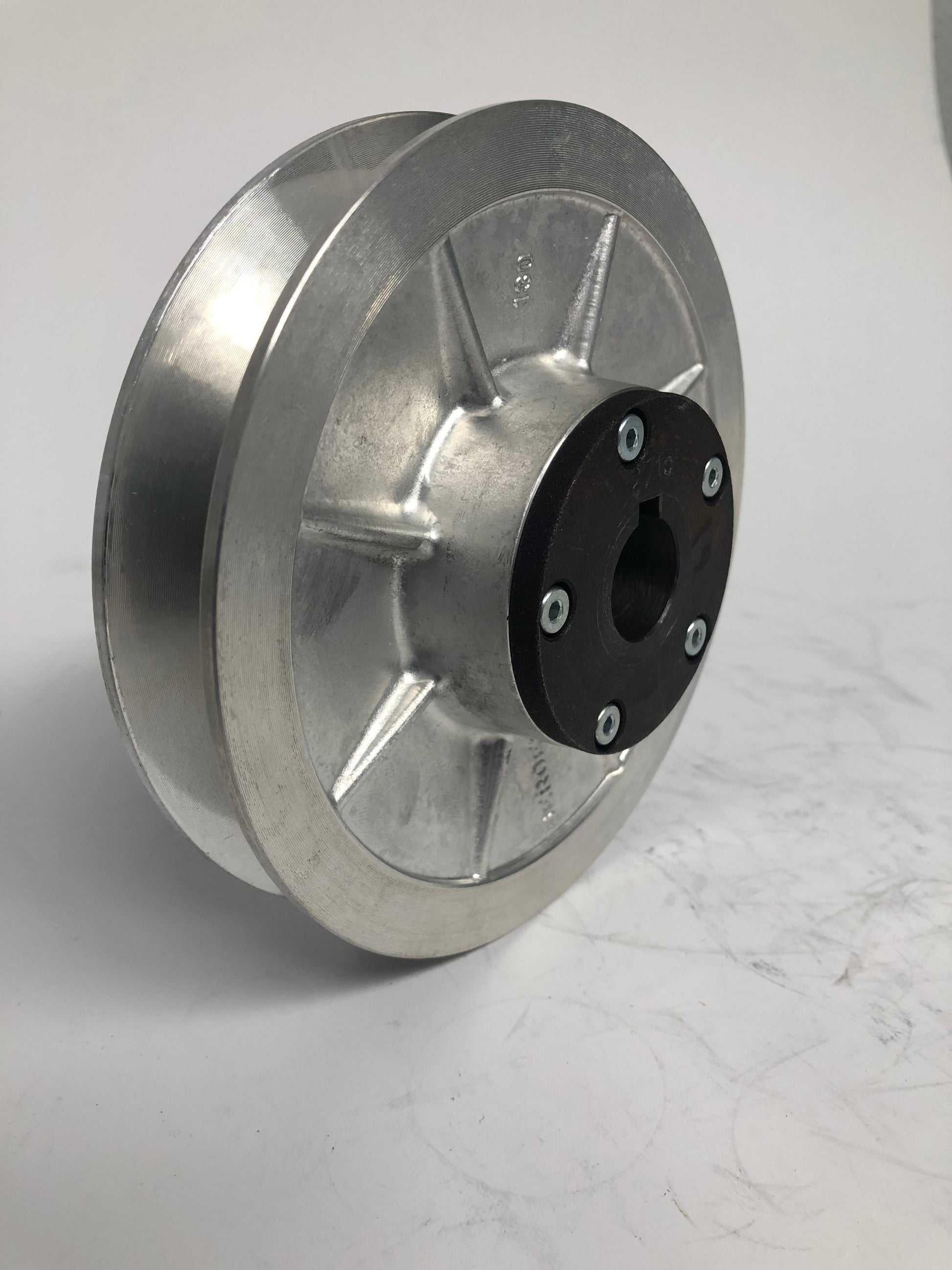

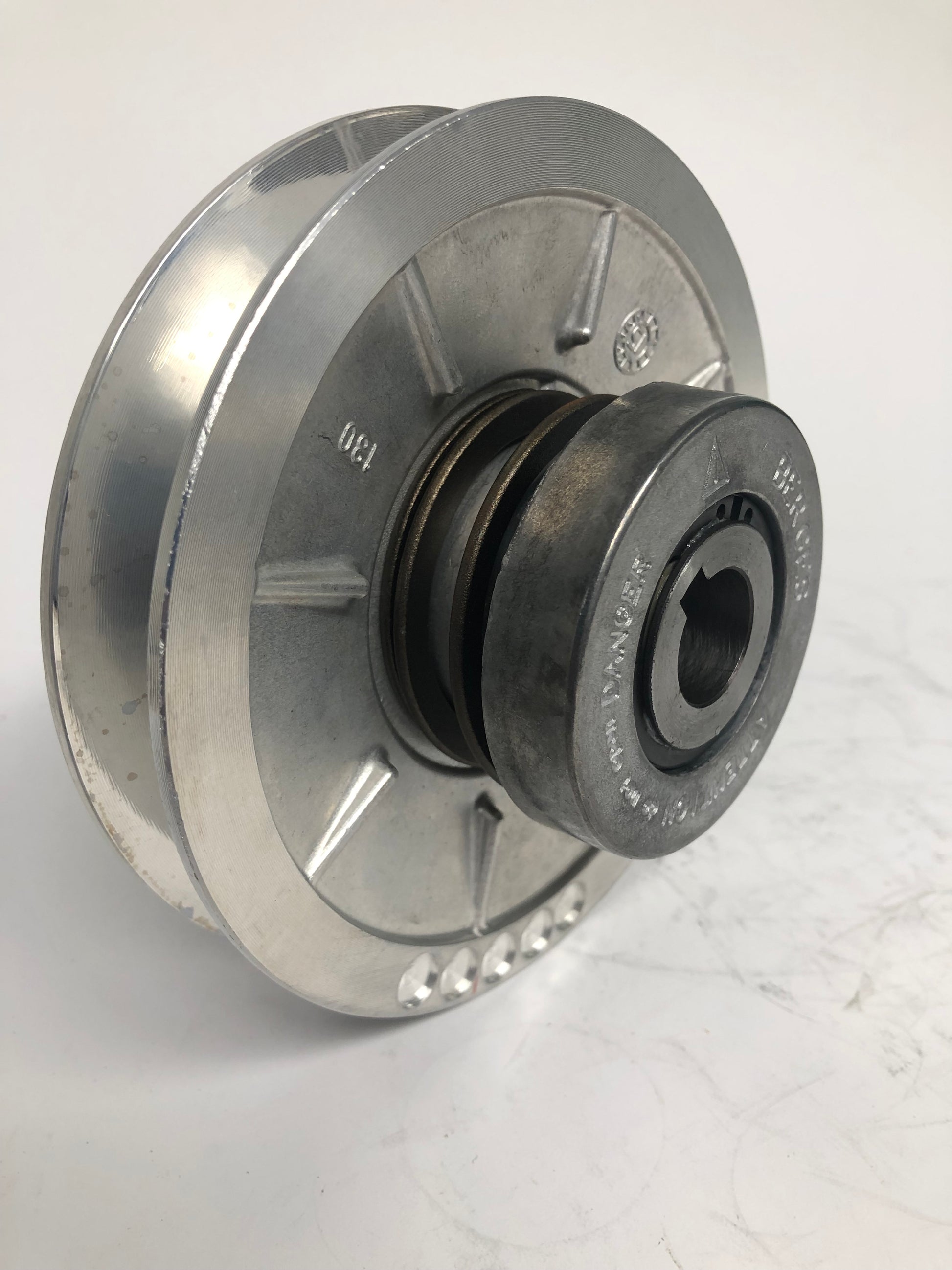

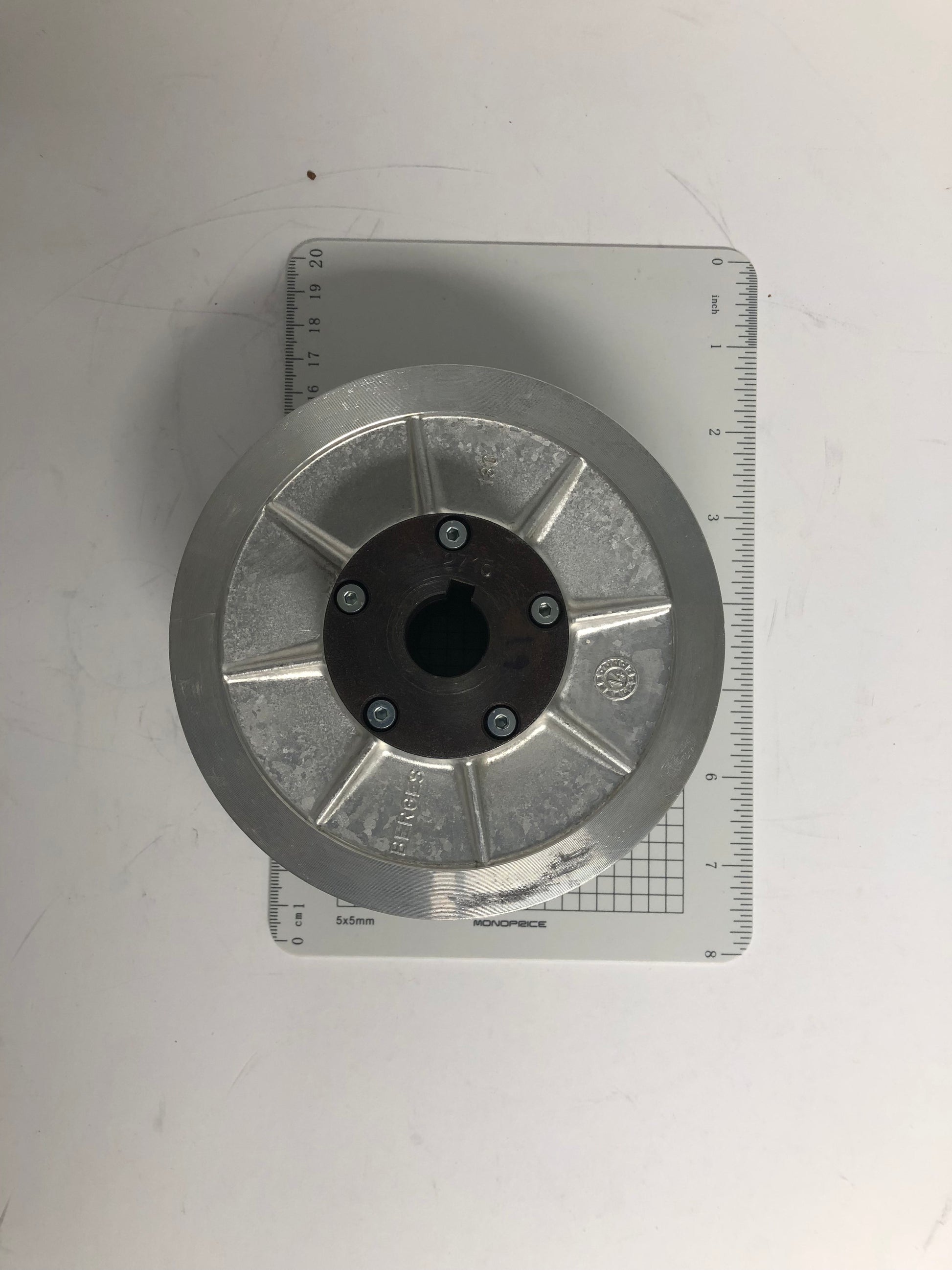

Berges® Spring tension Pulley type F130b for use with wide belts type CW-b 22 and adjusting pulley R130b.  Diameter of 135mm with length through bore 72mm. Die-cast aluminum pulley faces with steel slide hub with thrust bearing on one side.  Casting numbers maybe found on, but are not the part# as castings are used on other series of pulleys.    Maximum shaft diameter 24mm with standard bores listed for sale. To order a bore not listed, please select CUSTOM, add to your cart, and checkout.  A TVT Representative will contact to finalize the desired bore selection and send to production; please allow 6-8 weeks for made to order bores.

INTERCHANGE: Suggested replacement for Discontinued,, and,  Lenze Part# description page.Please note:

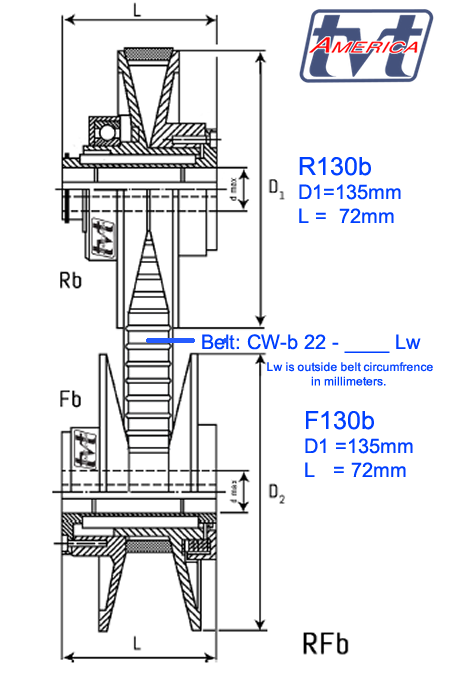

1.   When interchanging Lenze to Berges we recommend replacing BOTH the Control  (Bearing pulley) and the Tensioning (Spring pulley).

2.  Lenze length through bore is 95mm, Berges 72mm.

3.  Lenze Diameter 130mm, Berges Diameter 135mm (5mm greater diameter, 2.5mm in radius).

4.  Lenze 11.213.13 and Berges RF130b use 22mm wide 28º Variable Speed Belt.  CW-b 22.  Lenze belt lengths are measured by inside diameter "Li" in millimeter, Berges belt lengths are measured by outside diameter "Lw".  Thickness of belt is not relevant to interchange or performance, these may vary with production lot and are not critical measure.

Items may not be in stock. Non-Stock lead time is 6-8 weeks.
