Berges® F190b Tension Pulley
Berges® F190b Tension Pulley
Couldn't load pickup availability

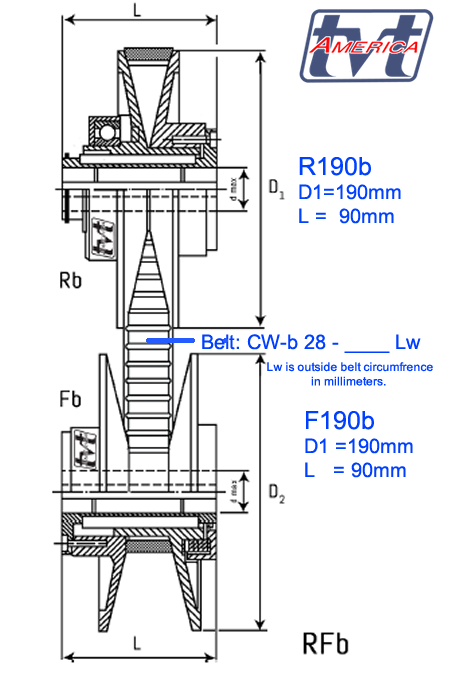

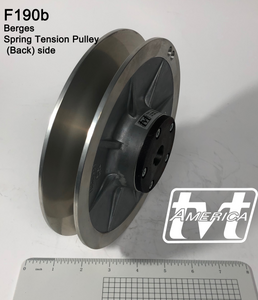

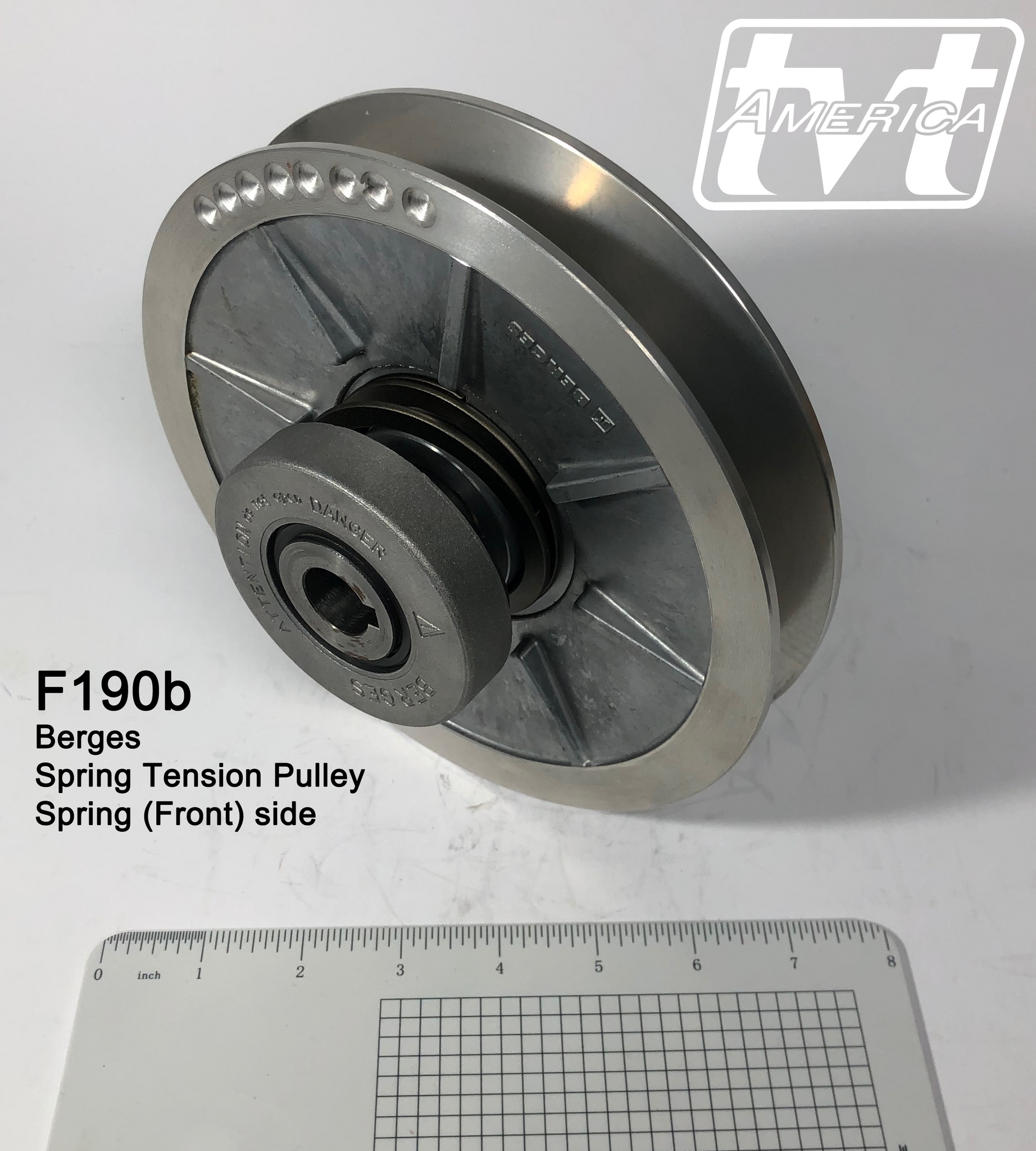

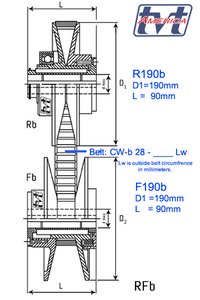

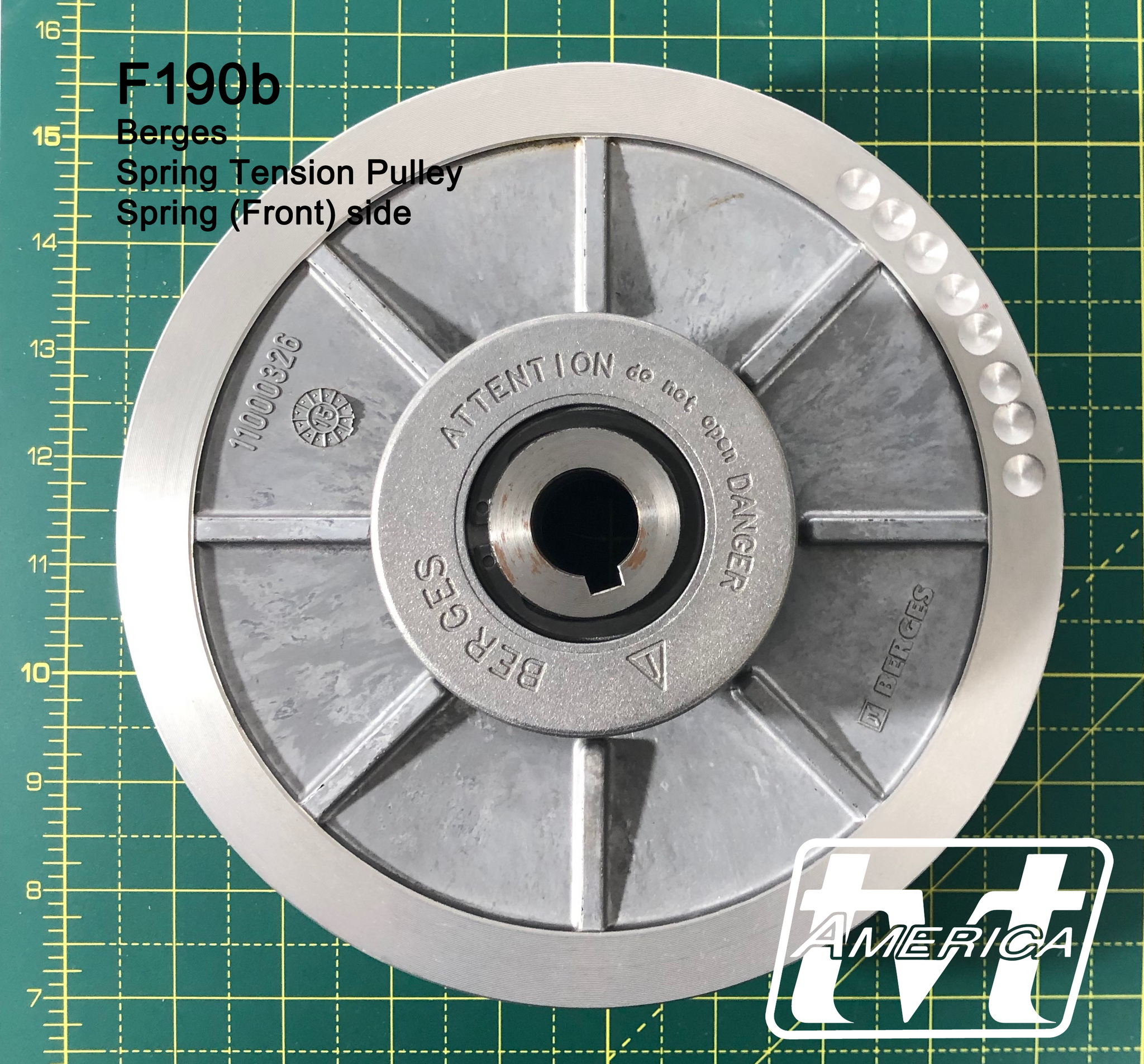

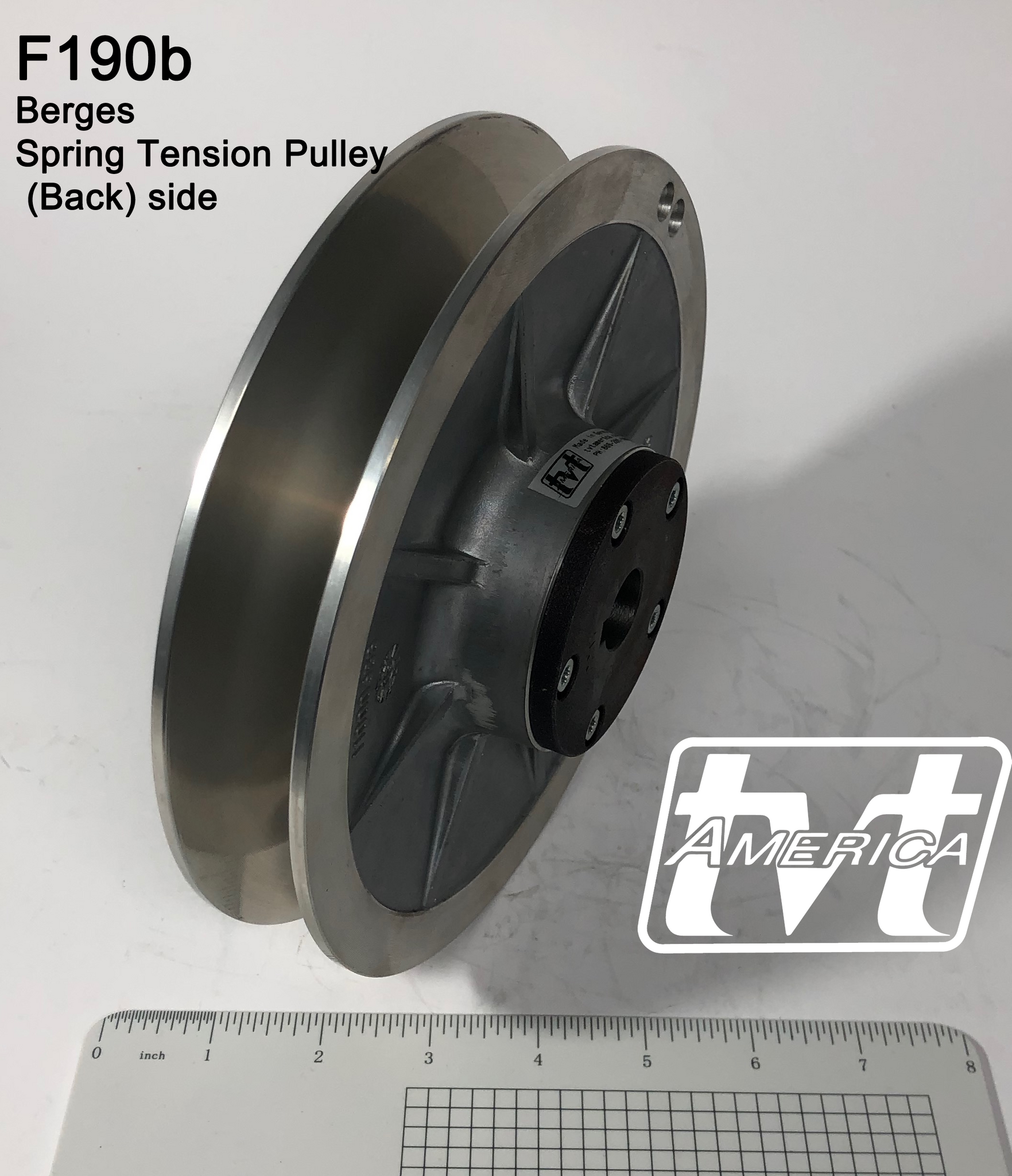

Berges® Spring tension Pulley type F190b for use with wide belts type CW-b 28 and adjusting pulley R190b. Diameter of 190mm with length through bore 90mm, die cast aluminum sheave faces with steel slide hub. Identified by casting numbers 11000326 and 11000586, one spring; castings used on other series of pulleys.. Maximum shaft diameter 28mm with standard bores listed for sale, alternative bores are available contact TVT for non-standard bore quotation.
Berges® Spring tension Pulley type F80b for use with wide belts type CW-b 17 and adjusting pulley R80b. Diameter of 91.4mm with length through bore 50mm, die cast aluminum sheave faces with steel slide hub. One spring; Maximum shaft diameter 14mm with standard bores listed for sale, alternative bores are available. Contact TVT for non-standard bore quotation.
Items may not be in stock. Non-Stock lead time is 6-8 weeks.
