Berges® R196b Control Pulley

Berges® R196b Control Pulley

Regular price $933.00 USD
Regular price $1,359.00 USD Sale price $933.00 USD
Sale Sold out
Shipping calculated at checkout.
Bore Size

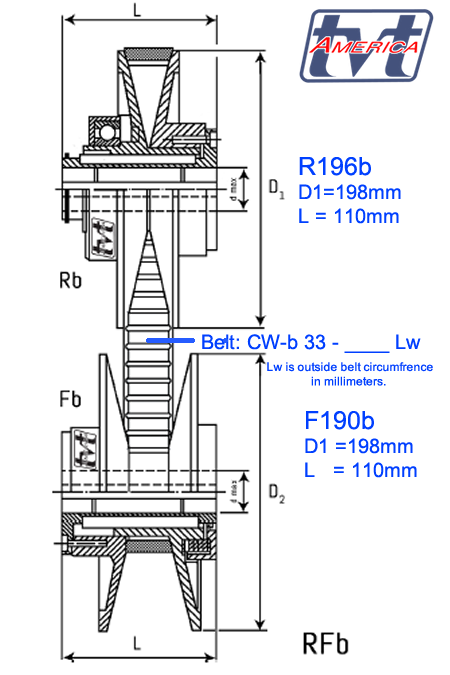

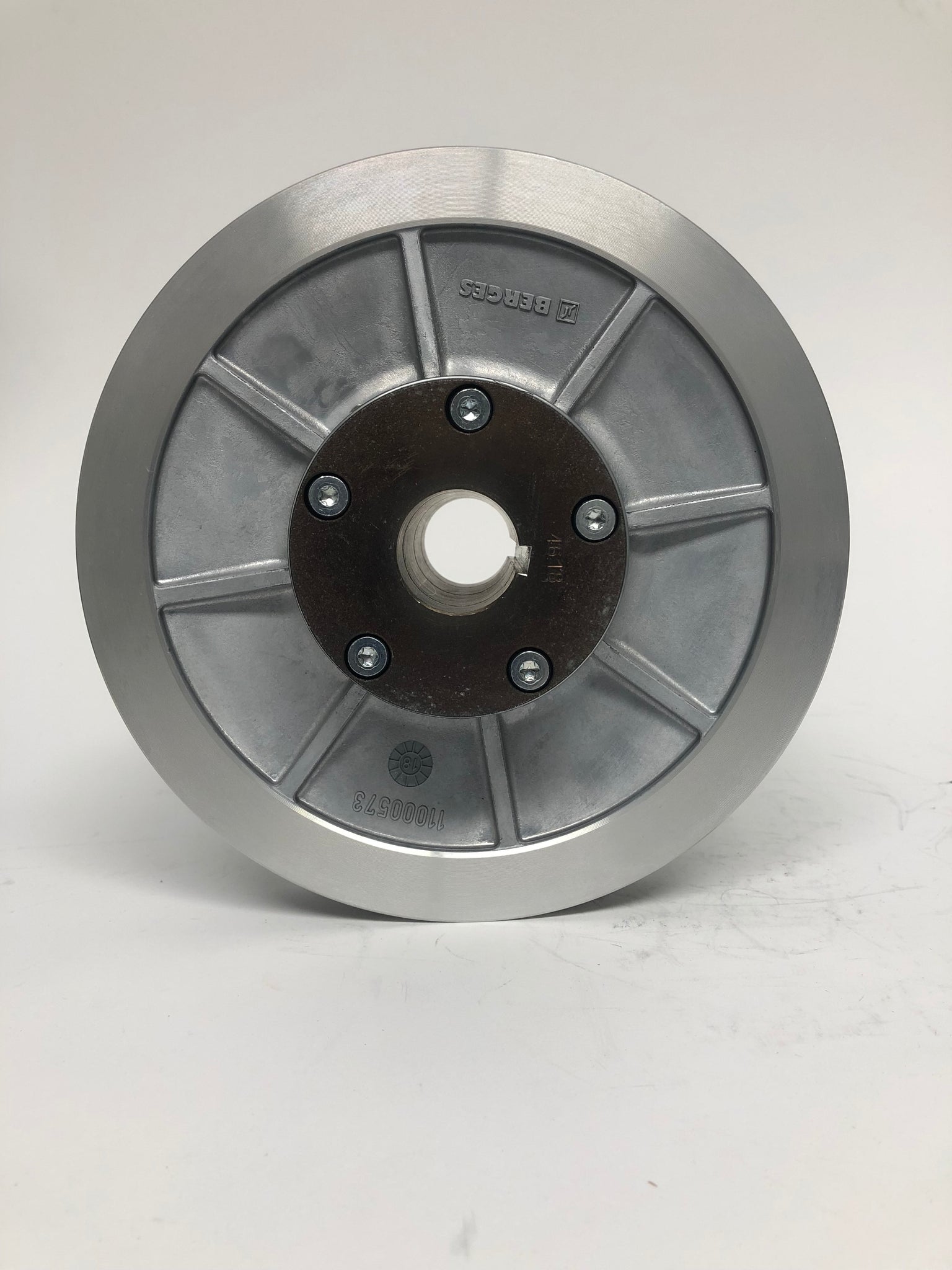

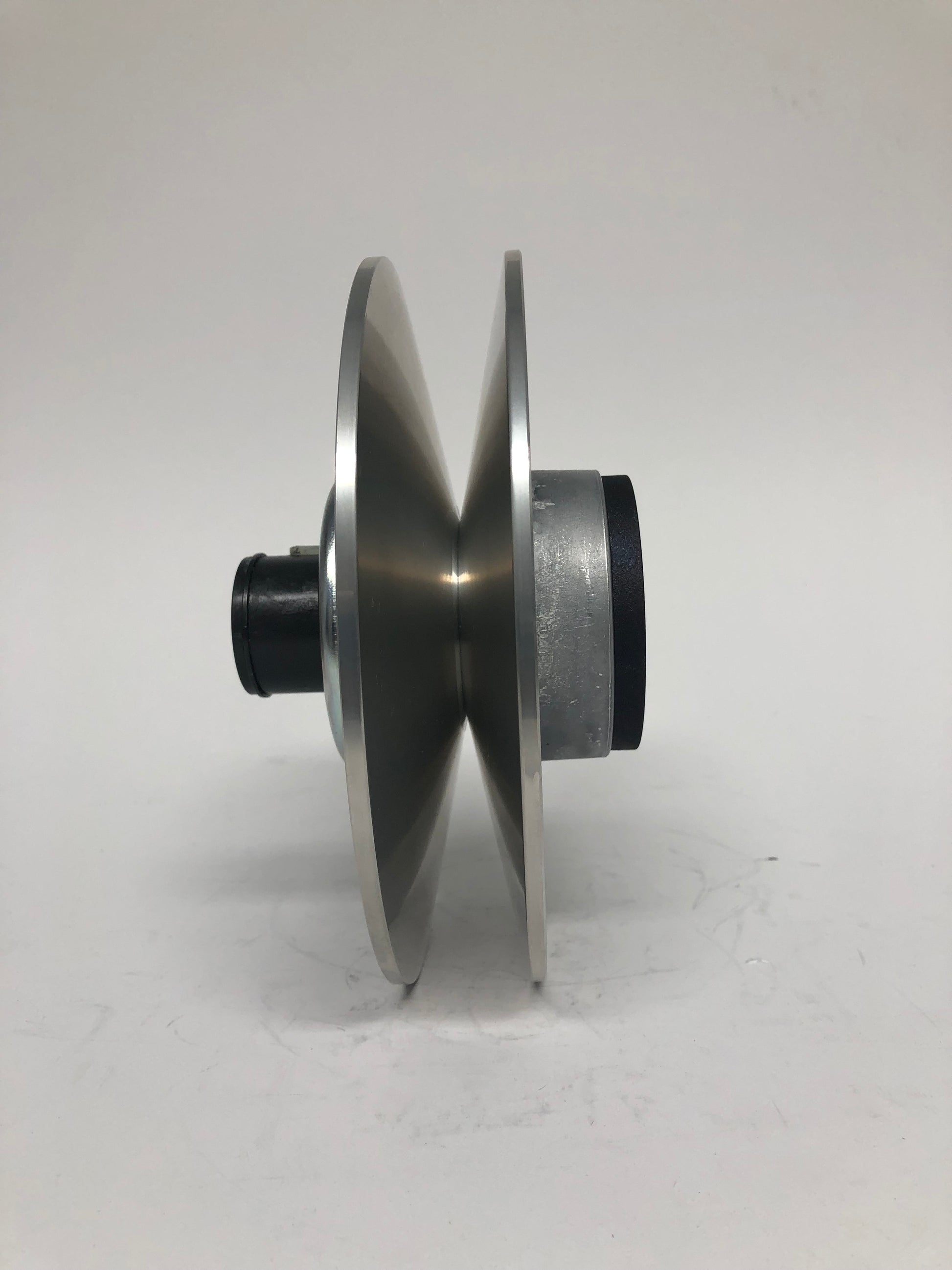

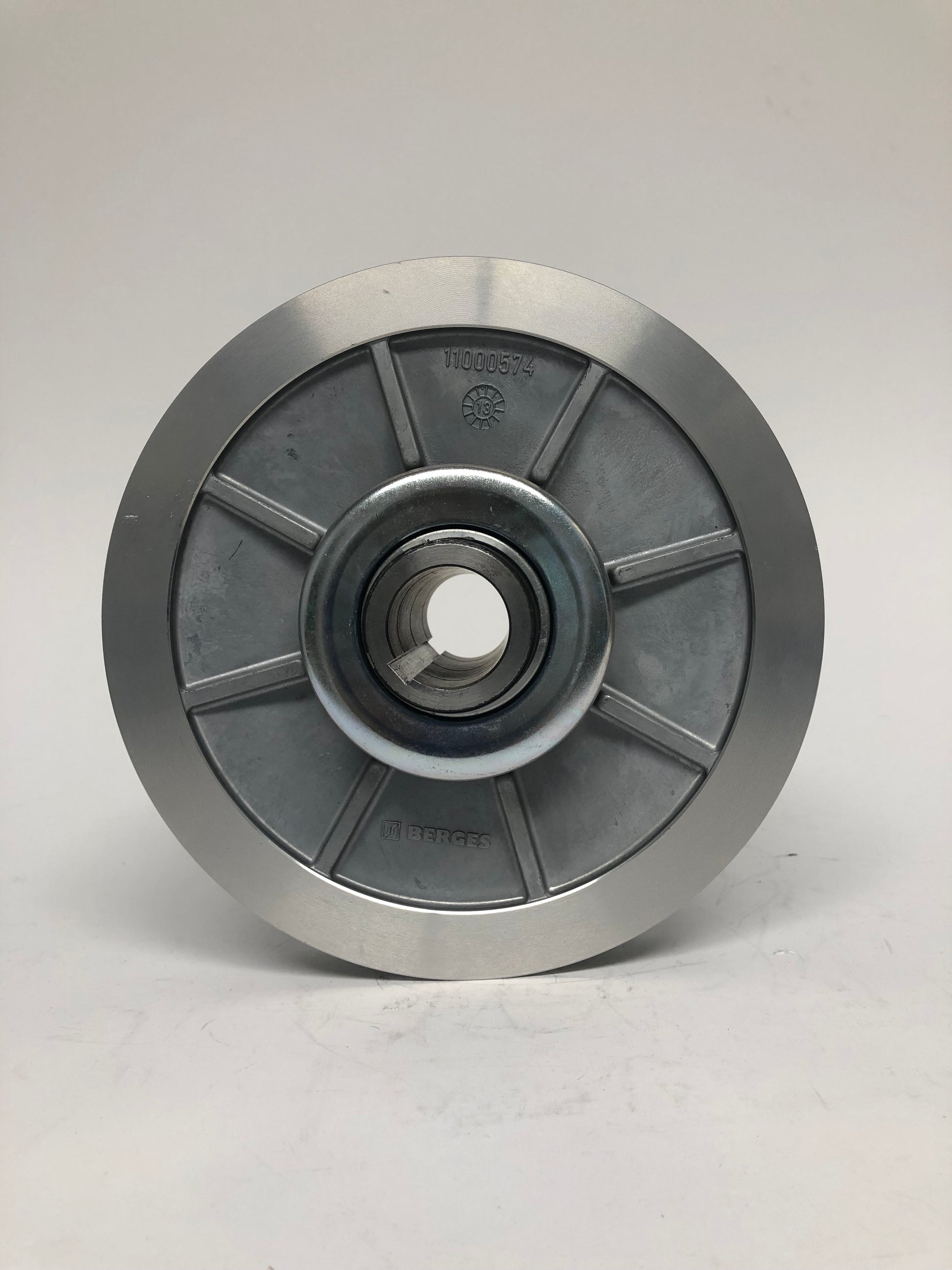

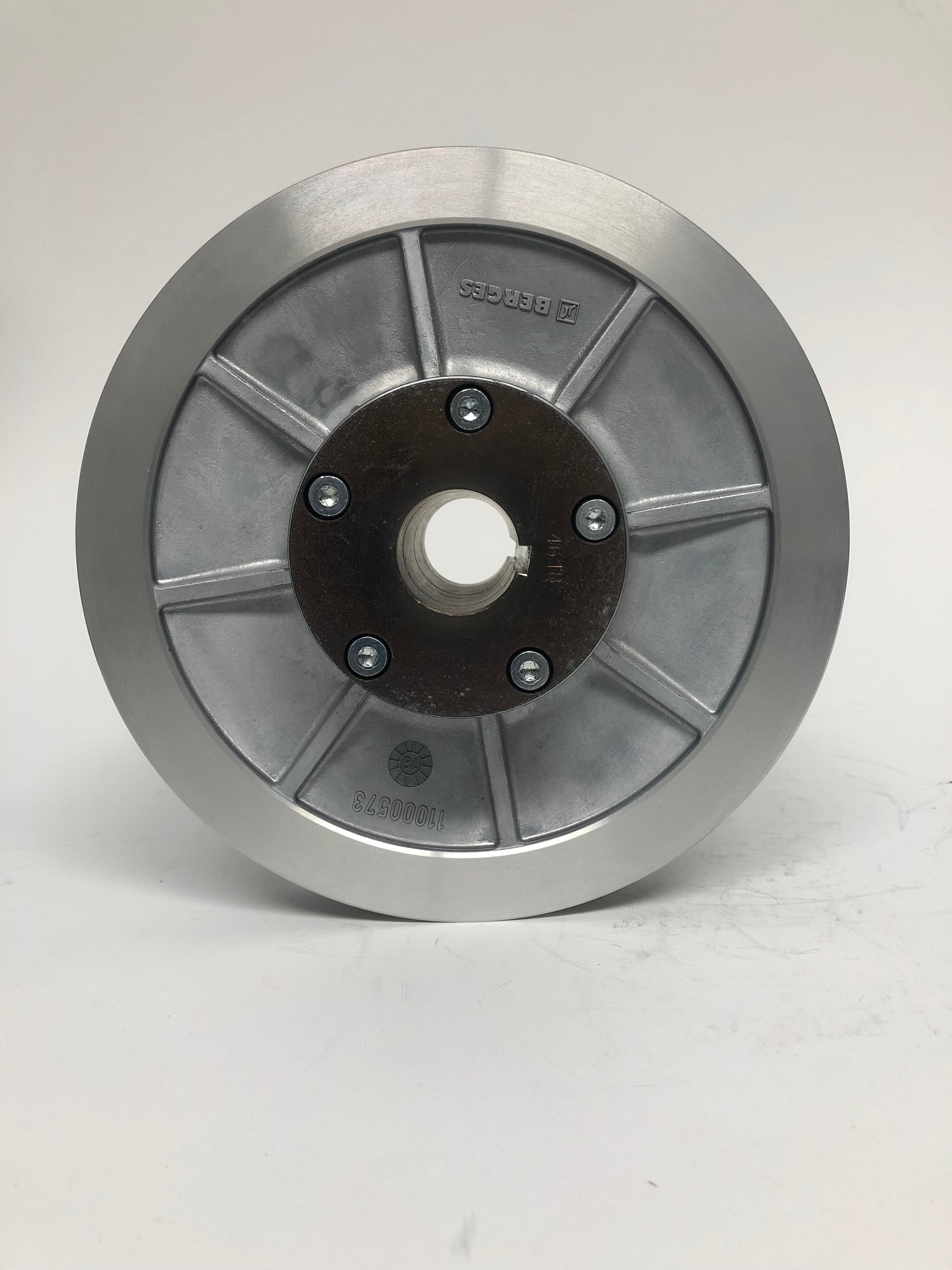

Berges® Control Pulley type R196b for use with wide belts type CW-b 33 and spring tensioning pulley F196b.  Diameter of 198mm with length through the bore 110mm.  Die-cast aluminum pulley faces with steel slide hub with thrust bearing on one side.  Casting numbers 11000574 and 11000573 ; castings maybe used on other series of pulleys.    Maximum shaft diameter 28mm with standard bores listed for sale, alternative bores are available

Items may not be in stock. Non-Stock lead time is 6-8 weeks.



Contact TVT for non-standard bore quotation.
