Carpanelli® 8BRG01A Full-Bridge Rectifier
Carpanelli® 8BRG01A Full-Bridge Rectifier
Carpanelli® 8BRG01A Full-Bridge Rectifier

Carpanelli® 8BRG01A Full-Bridge Rectifier

Regular price
$103.00
Sale price
$40.00
Shipping calculated at checkout.
Quantity must be 1 or more

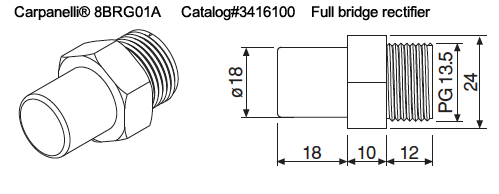

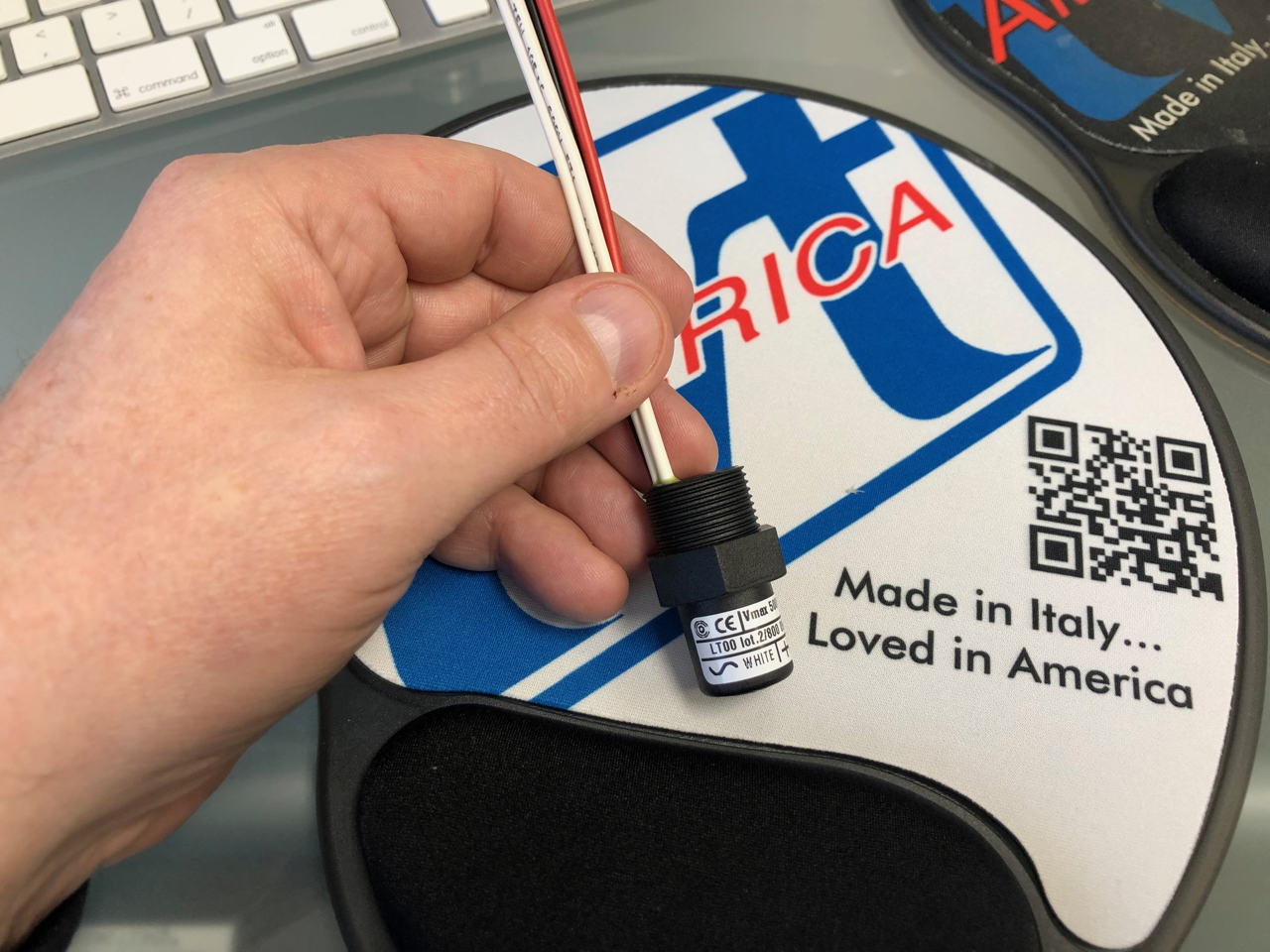

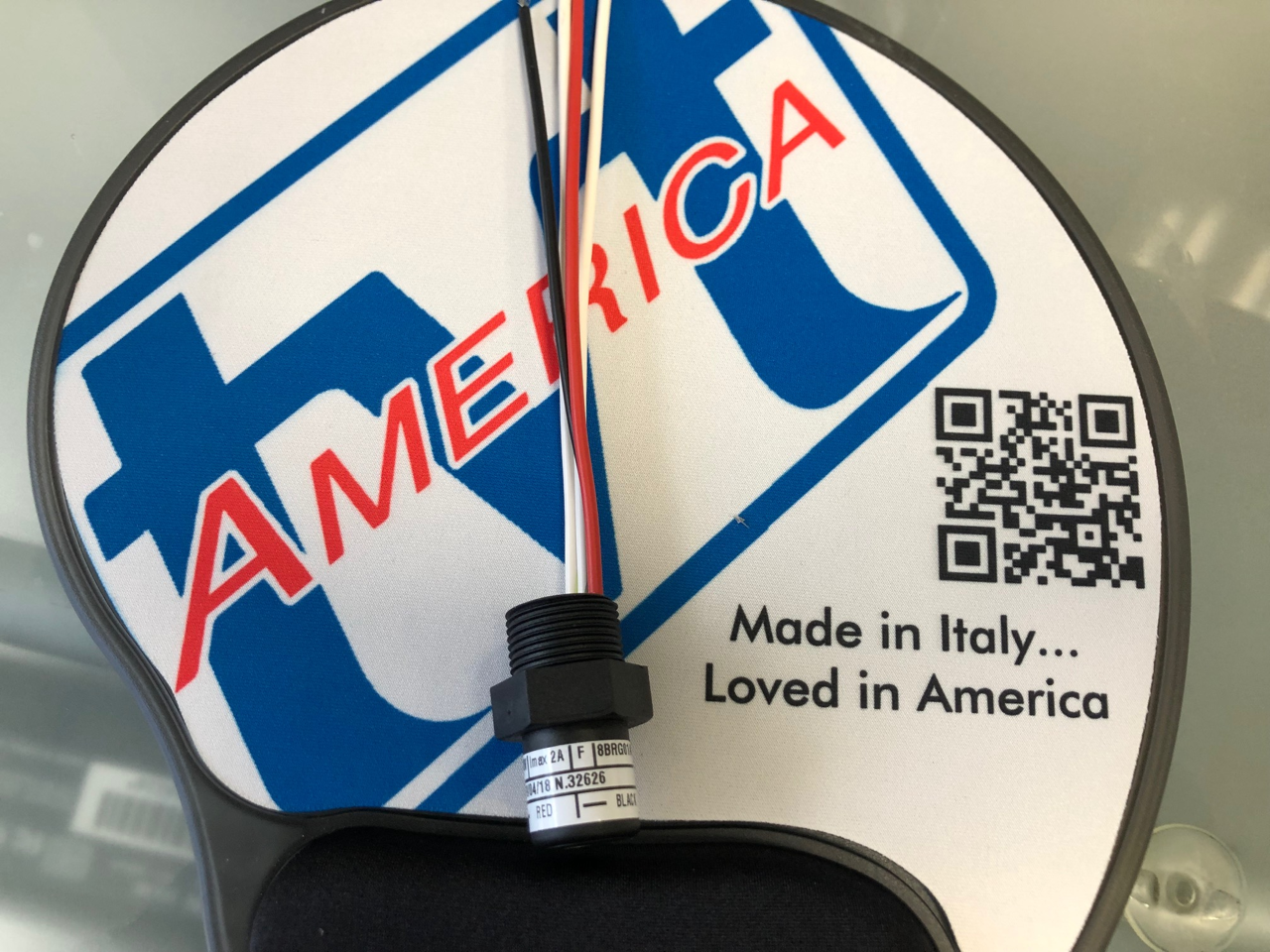

Carpanelli® 8BRG01A full-bridge rectifier, catalog number 3416100, 13.5mm screw in, no filter.  Features AC input with DC output of 88% of AC voltage.  I.E. 230Vac = 202Vdc. For use with DC brakes used on motors.  Rated 500Vac Max 2Amps.   Black with 13.5mm thread, white AC supply wires with black/red DC power feed wires
