Carpanelli® 8BRG01B 1/2-Bridge Rectifier
Carpanelli® 8BRG01B 1/2-Bridge Rectifier
Carpanelli® 8BRG01B 1/2-Bridge Rectifier

Carpanelli® 8BRG01B 1/2-Bridge Rectifier

Regular price
$80.00
Sale price
$40.00
Shipping calculated at checkout.
Quantity must be 1 or more

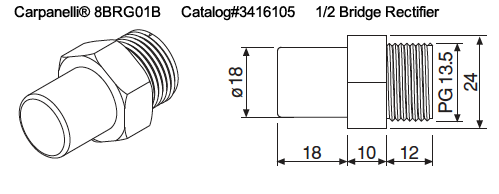

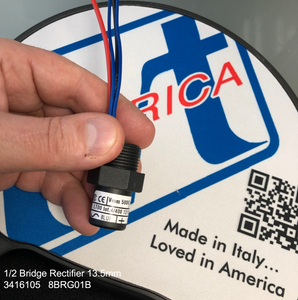

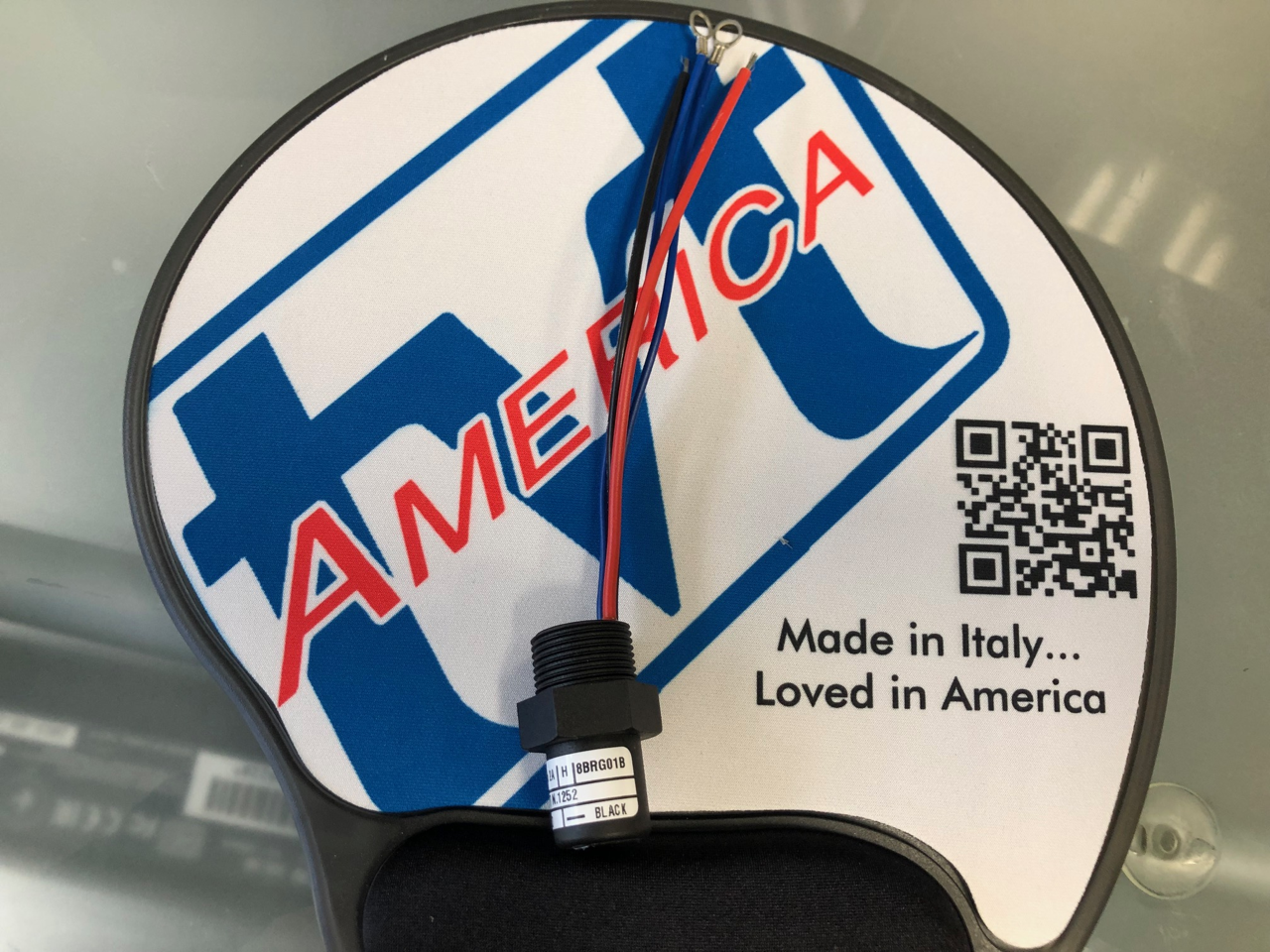

Carpanelli® 8BRG01B half-bridge rectifier, catalog number 3416105, 13.5mm screw in, no filter.  Features AC input with DC output of 44.5% of AC voltage.  I.E. 230Vac = 103Vdc. For use with DC brakes used on motors.  Rated 500Vac Max 2Amps.   Black with 13.5mm thread, blue AC supply wires with black/red Dc power feed wires.
