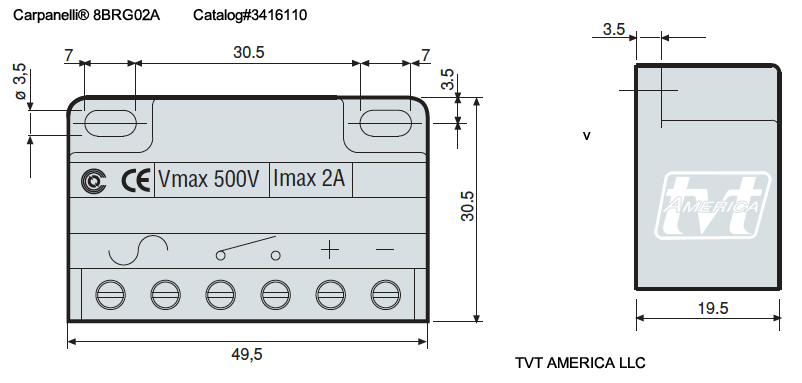

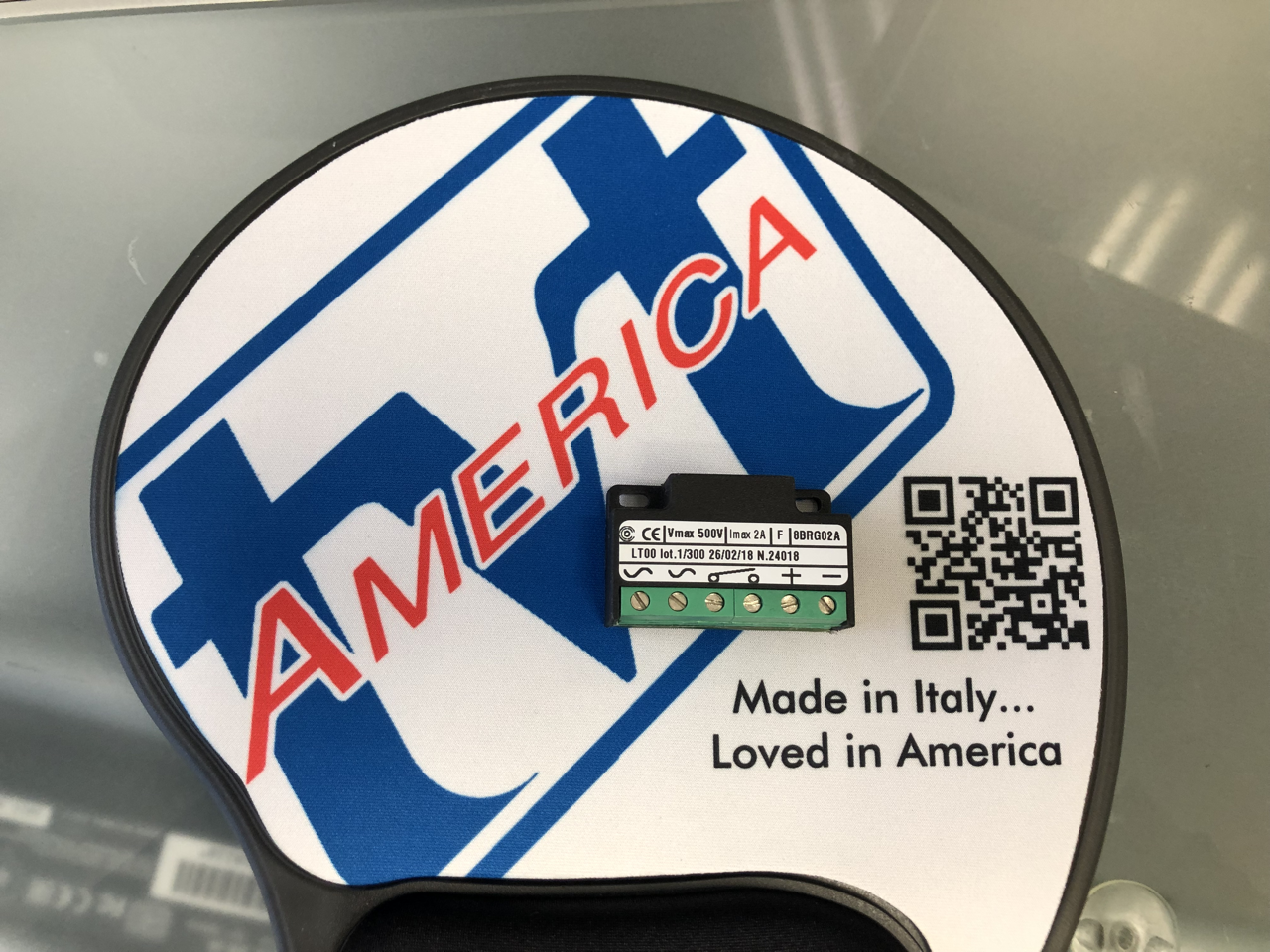

Carpanelli® 8BRG02A full-bridge rectifier, catalog number 341611,0 Box type with 6 terminals, no filter. Features AC input with DC output of 88% of AC voltage. I.E. 230Vac = 202Vdc. For use with DC brakes used on motors. Rated 500Vac Max 2Amps. Typically Black in color.
