Carpanelli MM100b6 1.5Kw/2.0Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor
Carpanelli MM100b6 1.5Kw/2.0Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor
Regular price
$596.65 USD
Regular price
$1,657.00 USD
Sale price
$596.65 USD
Unit price
/
per
- L
- Carpanelli 1ph AC IEC (metric) motor
- Model: MM100b6 110/230V/60Hz
- 1.5Kw/2.0Hp
- 1050 rpm 110V , 1056 rpm 230V
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
- Optional Spring Applied Safety Brake 104Vdc (110/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
- USA Production time 2-4 days <5pcs (standard) 5≥ contact TVT for quote.
- Urgent Production Same Day (contact TVT sales@tvtamerica.com) OPTION
- WIRING DIAGRAM
Kw | Hp | J Kgm2 | Eff % |
Power Factor |
Amp@ 110V |
Amp@ 230V |
1.5 | 2.0 | .00947 | 73 | 0.94 | 26 | 13 |
Nom. Torq Nm. |
MAX Torq Nm |
Max Amp |
RPM |
Cap. µF |
Weight* Kg |
Weight* Lbs |
17.6 | 35.2 | x2.8 | 1050 | 50 | 20.0 | 44 |
* Weight for standard motor, no brake or starting cap option.
Dimensions B3
A | B | C | D | E | F | G | G1 | H |
180 | 215 | 250 | 28 | 60 | 40 | 257 | 196 | 100 |
K | I | L | L1 | L2 | M | N | O | P |
11.2 | 253 | 365 | 305 | 95 | 108 | 110 | 210 | M6 |
Q | R | U | U1 | V | X | Y | Z | |
57 | 57 | 175 | 192 | 14 | 21.2 | 157 | 194 |

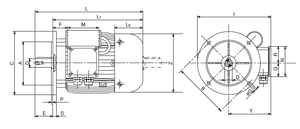

Dimensions B5 (see illustration)
A | B | C | D | E | F | G | I | L1 |
180 | 215 | 250 | 28 | 60 | 40 | 14.5 | 282 | 250 |
L2 | M | N | P | Q | R | S | Y | Z |
95 | 110 | 110 | 4 | 57 | 57 | 15 | 157 | 194 |
Dimensions B14 (see illustration)
A | B | C | D | E | F | G | I | L1 |
110 | 130 | 160 | 28 | 60 | 40 | M8 | 253 | 305 |
L2 | M | N | P | Q | R | S | Y | Z |
95 | 110 | 110 | 3.5 | 57 | 57 | 16.5 | 157 | 194 |
Dimensions Shaft (see illustration)
a | b | c | d | e | f | g | h | t |
28 | 60 | M10 | 25 | 35 | 45 | 8 | 7 | 31 |
