- L118145170011007

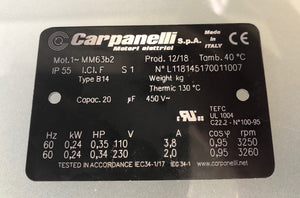

- Carpanelli 1ph AC IEC (metric) motor
- Model: MM63b2 110/230V/60Hz
- 0.24Kw/0.35hp
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
- Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
- WIRING DIAGRAM
| Kw |
Hp |
J Kgm2 |
Eff % |
Power
Factor
|
Amp@
110V
|
Amp@
230V
|
| 0.24 |
.35 |
0.000192 |
50 |
0.95
|
3.8
|
2.0
|
|
|
|
|
|
|
|
|
Nom.
Torq Nm.
|
MAX
Torq Nm
|
Max
Amp
|
|
Cap.
mƒ
|
Weight
Kg
|
Weight
Lbs
|
| 0.85 |
1.79 |
x3.0 |
|
20 |
5 |
10.4 |
Dimensions B3
| A |
B |
C |
D |
E |
F |
G |
G1 |
H |
| 100 |
80 |
42 |
11 |
23 |
25 |
178 |
125 |
63 |
| K |
I |
L |
L1 |
L2 |
M |
N |
O |
P |
| 7 |
175 |
216 |
193 |
61 |
92 |
92 |
138 |
M4 |
| Q |
R |
U |
U1 |
V |
X |
Y |
Z |
|
| 34 |
58 |
105 |
120 |
10 |
12 |
115 |
123 |
|

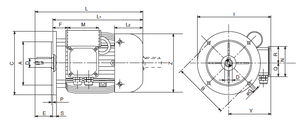

Dimensions B5 (see illustration)
| A |
B |
C |
D |
E |
F |
G |
I |
L1 |
| 95 |
115 |
140 |
11 |
23 |
25 |
10 |
185 |
216 |
| L2 |
M |
N |
P |
Q |
R |
S |
Y |
Z |
| 61 |
92 |
92 |
3 |
34 |
58 |
10 |
115 |
123 |
Dimensions B14 (see illustration)
| A |
B |
C |
D |
E |
F |
G |
I |
L1 |
|
60
|
75 |
90 |
11 |
23 |
25 |
M5 |
176 |
216 |
| L2 |
M |
N |
P |
Q |
R |
S |
Y |
Z |
| 193 |
92 |
92 |
2 |
34 |
58 |
9 |
115 |
123 |
Dimensions Shaft (see illustration)
| a |
b |
c |
d |
e |
f |
g |
h |
t |
|
11
|
23 |
M4 |
10 |
14 |
15 |
4 |
4 |
12.5 |
