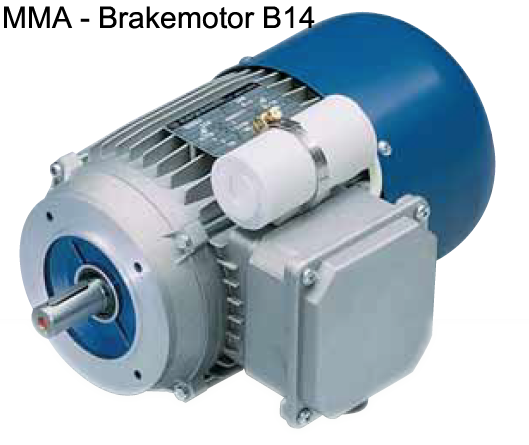

Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor
Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor
Regular price
$406.99 USD
Regular price
$808.00 USD
Sale price
$406.99 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- L118157630076009
- Carpanelli 1ph AC IEC (metric) motor

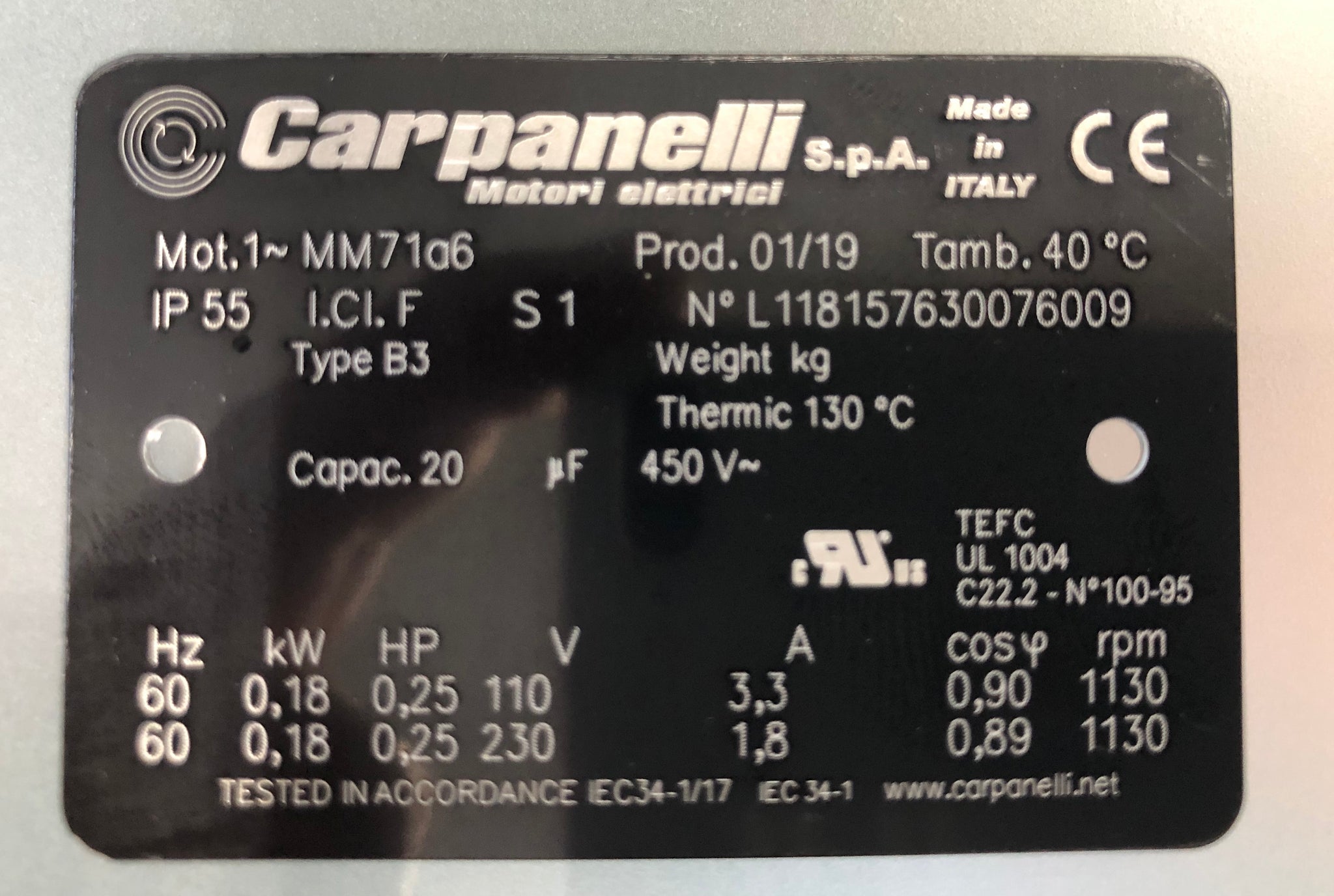

- Model: MM71a6 115/230V/60H
- 71 frame, 0.18Kw/0.25Hp 1130rpm@60Hz 115 or 230V/60Hz.
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
- Optional Spring Applied Safety Brake 104Vdc (115/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
- Wiring Diagram
Kw | Hp | J Kgm2 | Eff % |
Power Factor |
Amp@ 110V |
Amp@ 230V |
.18 | .25 | .000757 | 56 |
.90/.89 |
3.3 |
1.8 |
Nom. Torq Nm. |
MAX Torq Nm |
Max Amp |
RPM |
Cap. µF |
Weight Kg |
Weight Lbs |
2.0 | 3.8 | x2.6 | 1130 | 20 | 6.6 | 14.5 |

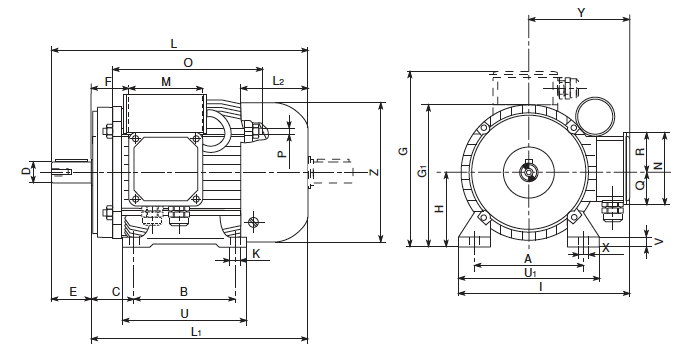

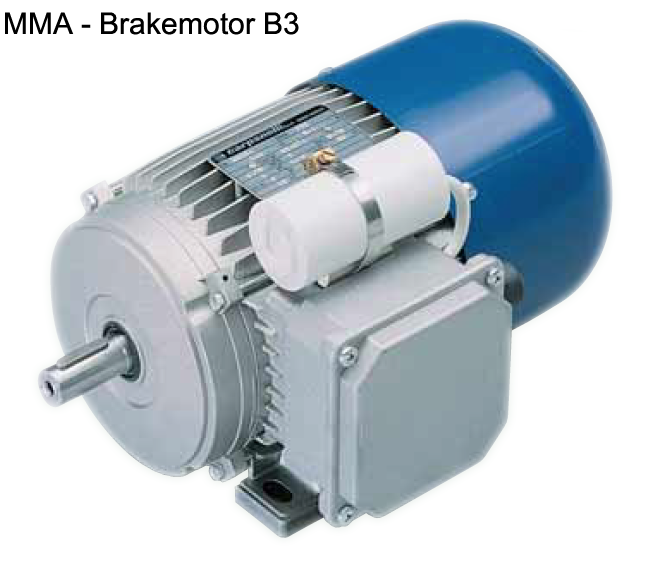

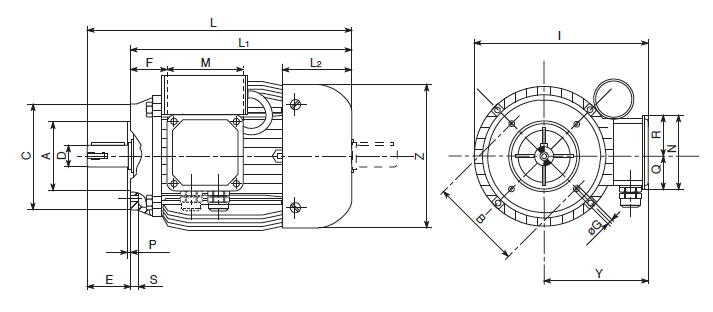

Dimensions B3
A | B | C | D | E | F | G | G1 | H |
112 | 90 | 45 | 14 | 30 | 25 | 195 | 139 | 71 |
K | I | L | L1 | L2 | M | N | O | P |
7 | 192 | 245 | 215 | 71 | 92 | 92 | 138 | M4 |
Q | R | U | U1 | V | X | Y | Z | |
40 | 52 | 108 | 136 | 11 | 12 | 124 | 138 |

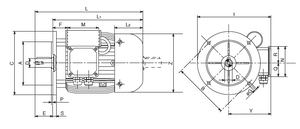

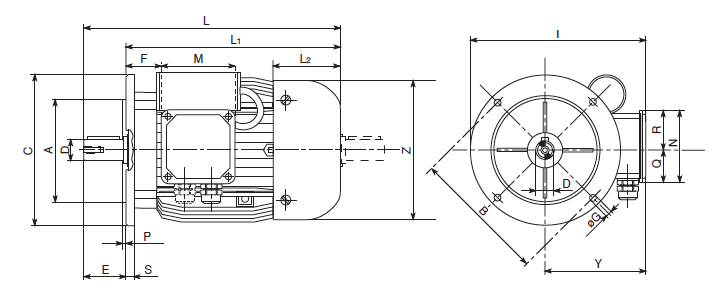

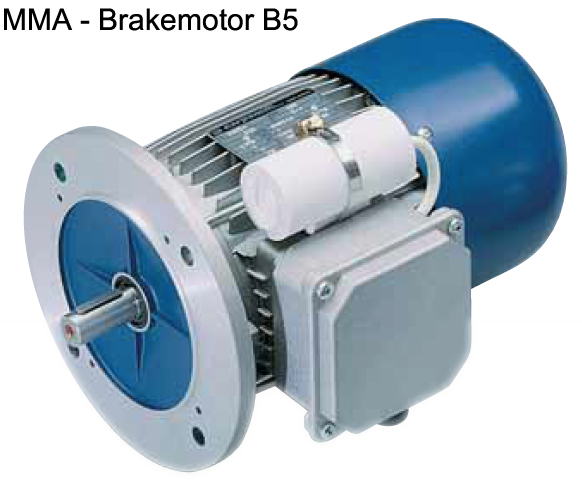

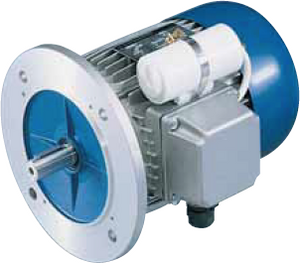

Dimensions B5 (see illustration)
A | B | C | D | E | F | G | I | L1 |
110 | 130 | 160 | 14 | 30 | 25 | 10 | 204 | 215 |
L2 | M | N | P | Q | R | S | Y | Z |
71 | 92 | 92 | 3.5 | 40 | 52 | 10 | 124 | 138 |

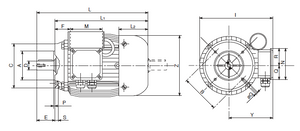

Dimensions B14 (see illustration)
A | B | C | D | E | F | G | I | L1 |
70 |
85 | 105 | 14 | 30 | 25 | M6 | 192 | 215 |
L2 | M | N | P | Q | R | S | Y | Z |
71 | 90 | 90 | 2.5 | 40 | 52 | 12 | 124 | 138 |

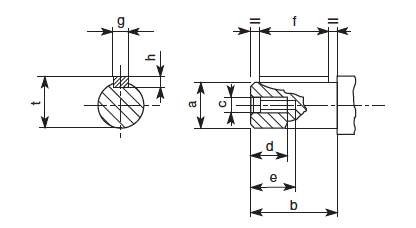

Dimensions Shaft (see illustration)
a | b | c | d | e | f | g | h | t |
14 |
30 | M5 | 13 | 18 | 20 | 5 | 5 | 16 |
Share
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-b3_eb11627e-242b-4d26-ae8e-a84d7abfa9cc.png?v=1560960457&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-B14_a0a33456-e7a3-4757-89e0-36e0d902b5f2.png?v=1560960457&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-B5_26b5c65b-1ed5-47ff-a592-015235fd7b55.png?v=1560960457&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-shaft_a6cfc340-8b26-4ff4-a766-d4dc92c3f351.png?v=1560960457&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-B3-ill_d4f801be-233a-46e8-8f42-c1ae1230618b.png?v=1560960457&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-B14-ill_9498a09b-9a5d-4e70-832c-f0ad289c9920.png?v=1560960457&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM-B5-ill_1d61a5de-9f28-4931-98c8-98ffed60a403.png?v=1560960458&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MM71a6.jpg?v=1561065185&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MMA-B5_afae8809-5994-48e6-b576-63720f183838.png?v=1561158483&width=1445)
![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MMA-B3-Carpanelli_adc6c34c-e7bb-4b5f-8710-7c89b035d637.png?v=1561158485&width=1445)

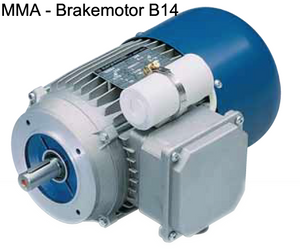

![Carpanelli MM71a 0.18Kw/0.25hp 6-pole 110/230V 1ph AC Metric Motor or Brake Motor](http://www.tvtamerica.net/cdn/shop/products/MMA-b14_5d19339c-173f-45ca-af32-bf22a8543f76.png?v=1561158487&width=1445)
