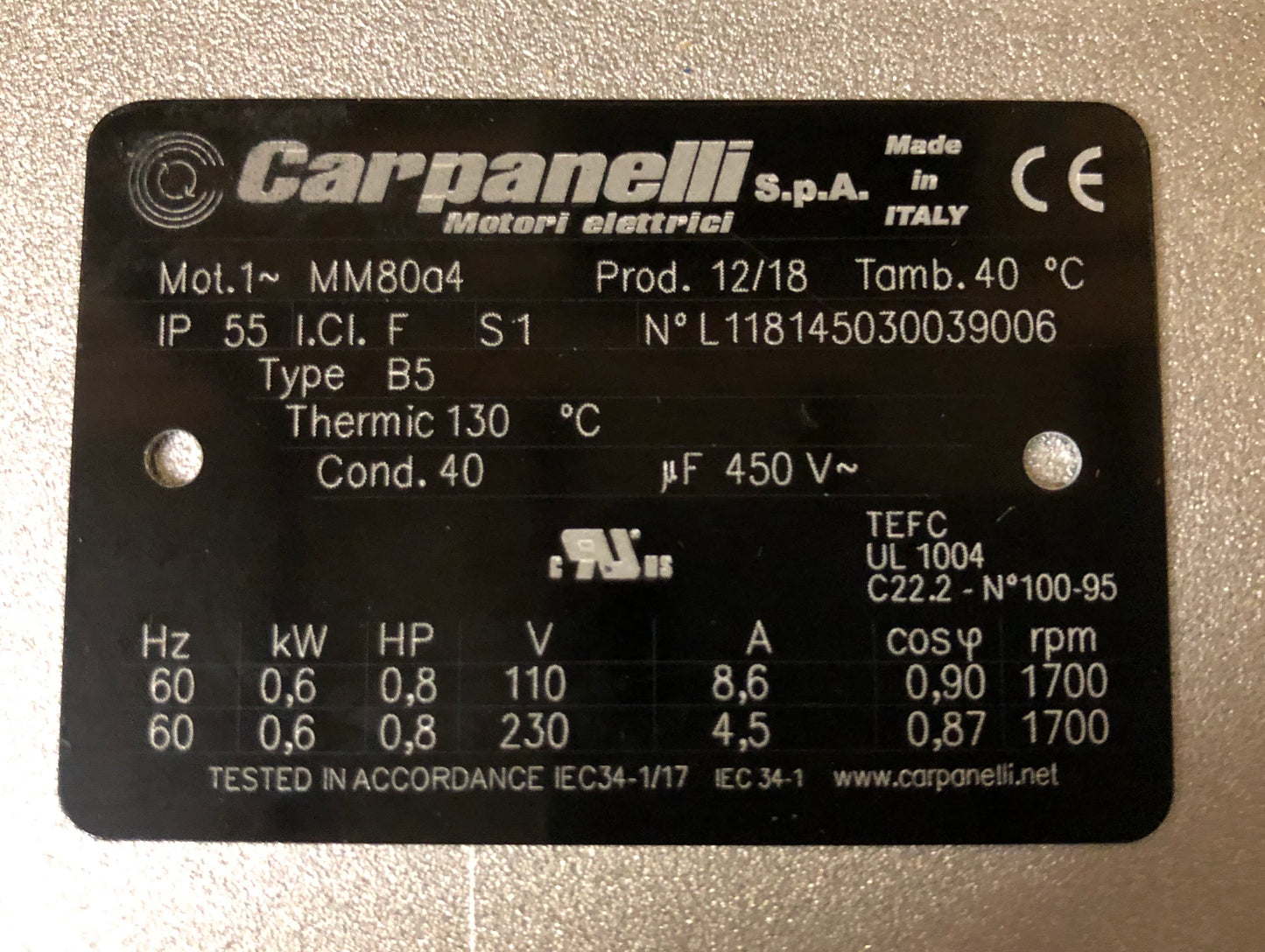

Carpanelli MM80a4 0.6Kw/0.8 Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor
Carpanelli MM80a4 0.6Kw/0.8 Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor
Regular price
$302.86 USD
Regular price
$841.00 USD
Sale price
$302.86 USD
Unit price
/
per
- L118145030039006
- Carpanelli 1ph AC IEC (metric) motor
- Model: MM80a4 110/230V/60Hz
- 0.6Kw / 0.8Hp
- 1700 rpm 110V or 230V
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
- Optional Spring Applied Safety Brake 104Vdc (110/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
- USA Production time 2-4 days <5pcs (standard) 5≥ contact TVT for quote.
- Urgent Production Same Day (contact TVT sales@tvtamerica.com) OPTION
- WIRING DIAGRAM
Kw | Hp | J Kgm2 | Eff % |
Power Factor |
Amp@ 110V |
Amp@ 230V |
0.6 | 0.8 | .000218 | 66 |
.90/0.87 |
8.6 |
4.5 |
Nom. Torq Nm. |
MAX Torq Nm |
Max Amp |
RPM |
Cap. µF |
Weight* Kg |
Weight* Lbs |
3.9 | 11 | x2 | 1700 | 40 | 10.8 | 24 |
* Weight for standard motor, no brake or starting cap option.
Dimensions B3
A | B | C | D | E | F | G | G1 | H |
125 | 100 | 50 | 19 | 40 | 30 | 221 | 157 | 80 |
K | I | L | L1 | L2 | M | N | O | P |
9.5 | 218 | 275 | 235 | 75 | 110 | 110 | 168 | M5 |
Q | R | U | U1 | V | X | Y | Z | |
50 | 60 | 125 | 154 | 11 | 17.5 | 141 | 156 |
Dimensions B5 (see illustration)
A | B | C | D | E | F | G | I | L1 |
130 | 165 | 200 | 19 | 40 | 30 | 12 | 241 | 235 |
L2 | M | N | P | Q | R | S | Y | Z |
75 | 110 | 110 | 3.5 | 50 | 60 | 10 | 141 | 156 |
Dimensions B14 (see illustration)
A | B | C | D | E | F | G | I | L1 |
80 |
100 | 120 | 19 | 40 | 30 | M6 | 218 | 235 |
L2 | M | N | P | Q | R | S | Y | Z |
75 | 110 | 110 | 3 | 50 | 60 | 12 | 141 | 156 |
Dimensions Shaft (see illustration)
a | b | c | d | e | f | g | h | t |
19 |
40 | M6 | 16 | 22 | 30 | 6 | 6 | 21.5 |
