Carpanelli

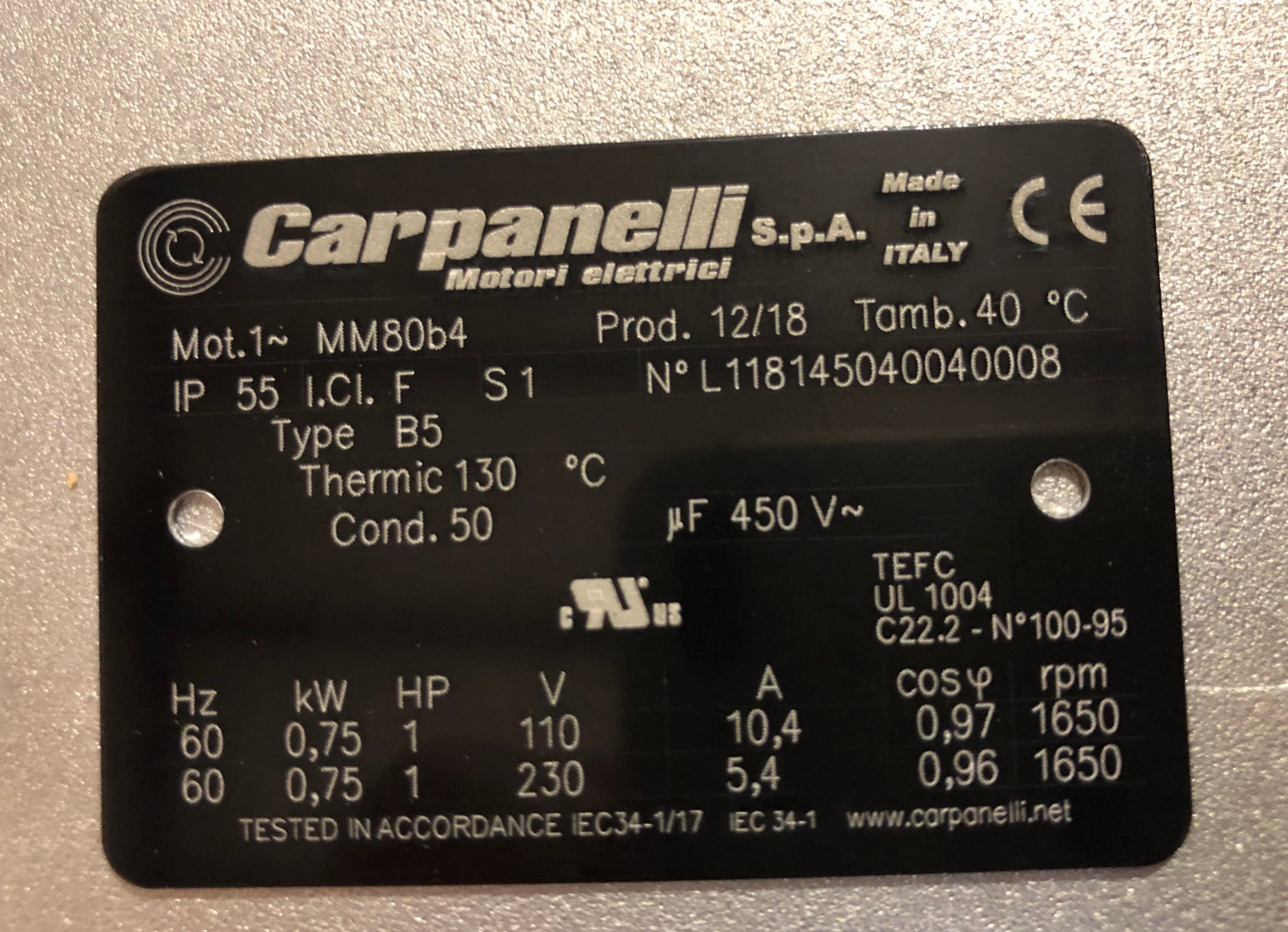

Carpanelli MM80b4 0.75Kw/1 Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor

Carpanelli MM80b4 0.75Kw/1 Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor

Regular price $312.91 USD
Regular price $869.00 USD Sale price $312.91 USD
Sale Sold out
Shipping calculated at checkout.
Mounting
Brake
Start Capacitor
  • L118145040040008
  • Carpanelli 1ph AC IEC (metric) motor
  • Model: MM80b4 110/230V/60Hz
  • 0.75Kw / 1.0Hp
  • 1650 rpm 110V or 230V
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor
  • Optional Spring Applied Safety Brake 104Vdc (110/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in USA
  • USA Production time 2-4 days <5pcs (standard) 5≥ contact TVT for quote.
  • Urgent Production Same Day (contact TVT sales@tvtamerica.com) OPTION
  • WIRING DIAGRAM
Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V

0.75 1.0 .000209 67

.97/0.96

10.4

5.4

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp

 RPM

Cap.

µF

Weight*

Kg

Weight*

Lbs

5.2 10.4 x2.8 1650 50 10.3 23

 * Weight for standard motor, no brake or starting cap option.

Dimensions B3

 A B C D E F G G1 H
125 100 50 19 40 30 221 157 80
K I L L1 L2 M N O P
9.5 218 275 235 75 110 110 168 M5
Q R U U1 V X Z
50 60 125 154 11 17.5 141 156

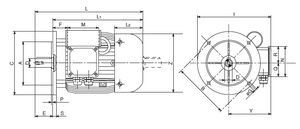

Dimensions B5 (see illustration)

 A B C D E F G I L1
130 165 200 19 40 30 12 241 235
L2 M N P Q R S Y Z
75 110 110 3.5 50 60 10 141 156



Dimensions B14 (see illustration)

 A B C D E F G I L1

80

100 120 19 40 30 M6 218 235
L2 M N P Q R S Y Z
75 110 110 3 50 60 12 141 156



Dimensions Shaft (see illustration)

a b c d e f g h t

19

40 M6 16 22 30 6 6 21.5
