Carpanelli MM90s6 0.56Kw/0.77Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor

Carpanelli MM90s6 0.56Kw/0.77Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor

$417.00 USD
$1,158.00 USD $417.00 USD
Sale Sold out
Shipping calculated at checkout.
Mounting
Brake
Start Capacitor
  • L
  • Carpanelli 1ph AC IEC (metric) motor
  • Model: MM90s6 110/230V/60Hz
  • 0.56Kw/0.77Hp
  • 1130 rpm 110V , 1140 rpm 230V
  • Ingress Protection Rating - IP55
  • Insulation Class F
  • Sealed ABEC 5 Motor Bearings (2RS)
  • Service S1 (1.15 SF)
  • Thermostatic Winding Protection Circuit - NC set to 130ºC.
  • Select mounting on order B3, B14, B5, B35, B34.
  • Features HeavyDuty Metal Capacitor Pack.
  • UL/CSA/CE Listed & Approved
  • Totally Enclosed Fan Cooled - TEFC
  • Standard or with Solid State Start Capacitor
  • Optional Spring Applied Safety Brake 104Vdc (110/230Vac) or 24Vdc.
  • 100% Designed & Manufactured of Italian Components, Assembled in USA
  • USA Production time 2-4 days <5pcs (standard) 5≥ contact TVT for quote.
  • Urgent Production Same Day (contact TVT sales@tvtamerica.com) OPTION
  • WIRING DIAGRAM
Kw Hp J Kgm2 Eff %

Power

Factor

Amp@

110V

Amp@

230V
0.56 0.77 .000172 68

.98

10.6

5.3

Nom.

Torq Nm.

MAX

Torq Nm

Max

Amp

 RPM

Cap.

µF

Weight*

Kg

Weight*

Lbs
6 12 x2.8 1140 40 11.9 26.2

 * Weight for standard motor, no brake or starting cap option.

Dimensions B3

 A B C D E F G G1 H
140 100 56 24 50 33 236 177 90
K I L L1 L2 M N O P
9.5 233 300 250 85 108 110 168 M5
Q R U U1 V X Y  Z
57 57 130 174 14 17.5 146 176

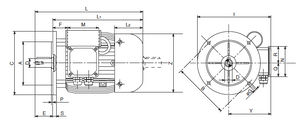

Dimensions B5 (see illustration)

 A B C D E F G I L1
130 165 200 27 50 33 12 246 250
L2 M N P Q R S Y Z
85 110 110 3.5 57 57 10 146 176



Dimensions B14 (see illustration)

 A B C D E F G I L1
95 115 140 24 50 33 M8 233 250
L2 M N P Q R S Y Z
85 110 110 3 57 57 15 146 176



Dimensions Shaft (see illustration)

a b c d e f g h t
24 50 M8 20 28 35 8 7 27
