Carpanelli MM90Sb2 1.5Kw/2Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor
Carpanelli MM90Sb2 1.5Kw/2Hp 110/230V/60Hz 1ph AC Metric Motor or Brake motor
Regular price
$382.00 USD
Regular price
$1,061.00 USD
Sale price
$382.00 USD
Unit price
/
per
- L
- Carpanelli 1ph AC IEC (metric) motor
- Model: MM90sb2 110/230V/60Hz
- 1.5Kw/2Hp
- 3360 rpm 110V , 3360 rpm 230V
- Ingress Protection Rating - IP55
- Insulation Class F
- Sealed ABEC 5 Motor Bearings (2RS)
- Service S1 (1.15 SF)
- Thermostatic Winding Protection Circuit - NC set to 130ºC.
- Select mounting on order B3, B14, B5, B35, B34.
- Features HeavyDuty Metal Capacitor Pack.
- UL/CSA/CE Listed & Approved
- Totally Enclosed Fan Cooled - TEFC
- Standard or with Solid State Start Capacitor
- Optional Spring Applied Safety Brake 104Vdc (110/230Vac) or 24Vdc.
- 100% Designed & Manufactured of Italian Components, Assembled in USA
- USA Production time 2-4 days <5pcs (standard) 5≥ contact TVT for quote.
- Urgent Production Same Day (contact TVT sales@tvtamerica.com) OPTION
- WIRING DIAGRAM
Kw | Hp | J Kgm2 | Eff % |
Power Factor |
Amp@ 110V |
Amp@ 230V |
1.5 | 2.0 | .000107 | 68 |
.98 |
17.2 |
8.6 |
Nom. Torq Nm. |
MAX Torq Nm |
Max Amp |
RPM |
Cap. µF |
Weight* Kg |
Weight* Lbs |
3.9 | 7.8 | x2.8 | 3360 | 40 | 13.4 | 29.5 |
* Weight for standard motor, no brake or starting cap option.
Dimensions B3
A | B | C | D | E | F | G | G1 | H |
140 | 100 | 56 | 24 | 50 | 33 | 236 | 177 | 90 |
K | I | L | L1 | L2 | M | N | O | P |
9.5 | 233 | 300 | 250 | 85 | 108 | 110 | 168 | M5 |
Q | R | U | U1 | V | X | Y | Z | |
57 | 57 | 130 | 174 | 14 | 17.5 | 146 | 176 |

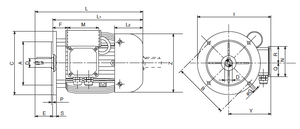

Dimensions B5 (see illustration)
A | B | C | D | E | F | G | I | L1 |
130 | 165 | 200 | 27 | 50 | 33 | 12 | 246 | 250 |
L2 | M | N | P | Q | R | S | Y | Z |
85 | 110 | 110 | 3.5 | 57 | 57 | 10 | 146 | 176 |
Dimensions B14 (see illustration)
A | B | C | D | E | F | G | I | L1 |
95 | 115 | 140 | 24 | 50 | 33 | M8 | 233 | 250 |
L2 | M | N | P | Q | R | S | Y | Z |
85 | 110 | 110 | 3 | 57 | 57 | 15 | 146 | 176 |
Dimensions Shaft (see illustration)
a | b | c | d | e | f | g | h | t |
24 | 50 | M8 | 20 | 28 | 35 | 8 | 7 | 27 |
