Poggi Spa

Poggi 4040 Taperbush

Poggi 4040 Taperbush

Regular price $137.00 USD
Regular price $274.00 USD Sale price $137.00 USD
Sale Sold out
Shipping calculated at checkout.
Bore

Poggi# 464040...

Poggi® Poggilock taperbushing size 4040

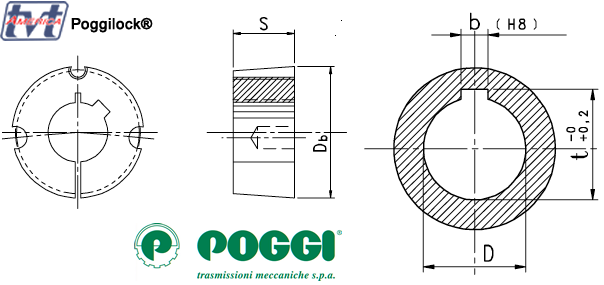

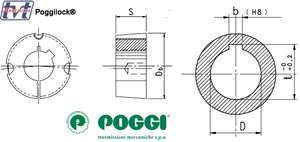

S = 101.6mm      Db= 146.0mm   Screw = 5/8"x1-3/4"  Torque= 170.0 Nm

Part#  Bore "D" mm Keyway "b" mm Over-key "t" mm
Spec sheet: 464040040 40 12 43.3
Spec sheet: 464040042 42 12 45.3
Spec sheet:
464040045
45 14 48.8
Spec sheet:
464040048
48 14 51.8
Spec sheet:
464040050
50 14 53.8
Spec sheet:
464040055
55 16 59.3
Spec sheet:
464040060
60 18 64.4
Spec sheet:
464040065
65 18 69.4
Spec sheet: 464040070 70 20 74.9
Spec sheet: 464040075 75 20 79.9
Spec sheet: 464040080 80 22 85.4
Spec sheet: 464040085 85 22 90.4
Spec sheet: 464040090 90 25 95.4
Spec sheet: 464040095 95 25 100.4
Spec sheet: 464040100 100 28 106.4


* Consider a Delivery time of 5-7 days ARO + Preferred shipping time selected at checkout.

Metric Bored keyways to UNI 6604-69 DIN 6885 Standards.
