Poggi System-P Taper Bushing R9560
Poggi System-P Taper Bushing R9560
Couldn't load pickup availability

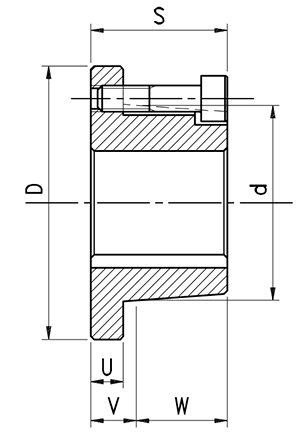

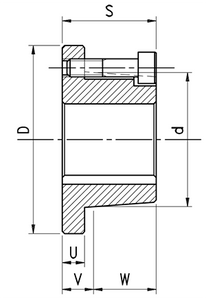

Designation | Torque | Dimensions | Weight | ||||||
Screw | Torque | d | D | S | U | V | W | ||
mm | Nm | mm | mm | mm | mm | mm | mm | kg | |
R 9560 | M14 x 65 | 110 | 123 | 165 | 80 | 15 | 20 | 60 | 6.40 |

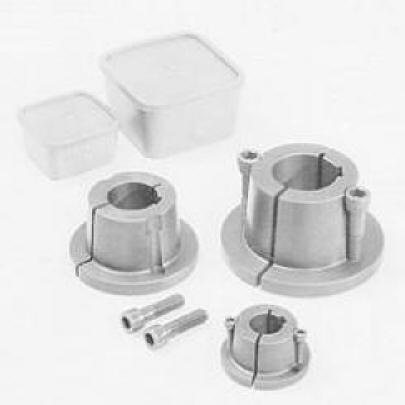

Poggi System-P Taper Bushings are a radial wedge, offering a mechanical advantage to easily create a secure shaft to bore interference fit, yet allow ease of removal and repositioning if desired with no shaft or bushing damage. Poggi System-P allows a wide range of standard transmission components (Pulleys, Sprockets, Hubs, Etceteras) to be mounted to a wide range of inch and metric shaft diameters and finishes without any special machining. Used of Poggi System-P bushings is easy and requires only the use of a standard Allen Wrench (hexagonal drive wrench). Internationally recognized System-P design has been compared to the American QD bushing, while they are simular...they are not interchangeable in dimension or performance.
- 18 Standard Sizes
- Inch & Metric Bores
- 11mm to 200mm Metric
- 3/8" to 5-1/4" Inch
- 0 to 350Nm torque capacity.
- 0 to 3150 in-lbs torque capacity.
- Easy Installation & Removal.
- Corrosion Resistant
- Complete Range of Poggi Transmission Elements for System-P.
