TVT America
TFP80A/4
TFP80A/4
Regular price
$708.03 USD
Regular price
$1,416.00 USD
Sale price
$708.03 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
MT TFP Series High Performance 3phase AC Brake motor | |||
IEC 80a 4pole 0.55Kw 230∆/400Y Volts/50hz, 277∆/480Y Volts 60Hz 1.2 Service factor | |||
Ingress Protection 5 Dust, 4 Solids, Class F Insulation, S1 Continuous Duty | |||
PTC Thermistor thermal protectors in stator windings. 3ph AC brake Standard 230∆/400Y-Volts 50Hz, 277∆/480 Volts 60Hz. 24Vdc & 103Vdc brakes optional. |
|||
Die-cast Aluminum Housing Polyester Epoxy Painted RAL 9006 White Aluminum for superior corrosion protection. | |||
Pressed Steel brake Cover Polyester Epoxy Painted RAL 5010 TVT Blue. | |||
Double Terminal Box, rotatable at 90º intervals, for convenient wiring and Protection IP56 | |||
UL/CSA/CE listed, ATEX Ex 2-22 3G/3D certified. Data Sheet: Download |
|||
"Made in Italy… Loved in America"® |
WIRING DIAGRAM for Motor & Brake type TFP. Opens in new window (.pdf)
Share

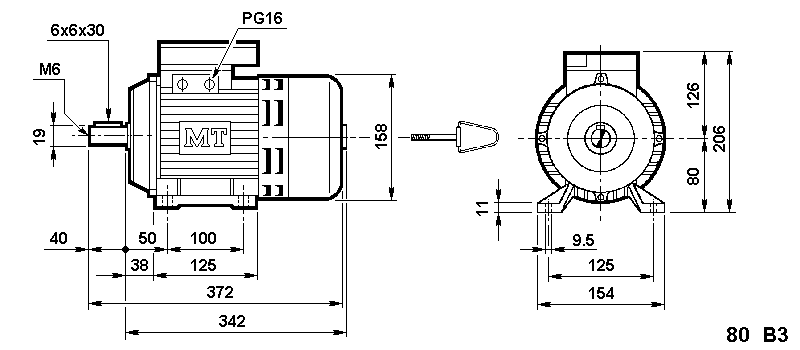

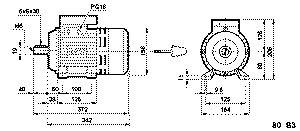

![TFP80A/4](http://www.tvtamerica.net/cdn/shop/products/tfp80B3_3f5150a9-5b41-4269-bdee-b27e8434e9b9.gif?v=1659619832&width=1445)
![TFP80A/4](http://www.tvtamerica.net/cdn/shop/products/IMG_3824_443510c6-1db6-4a2b-a66d-c96ad8ecafee.jpg?v=1659619832&width=1445)
![TFP80A/4](http://www.tvtamerica.net/cdn/shop/products/IMG_3825_d0cffd37-652d-43ad-9b5d-76d454e678b3.jpg?v=1659619832&width=1445)

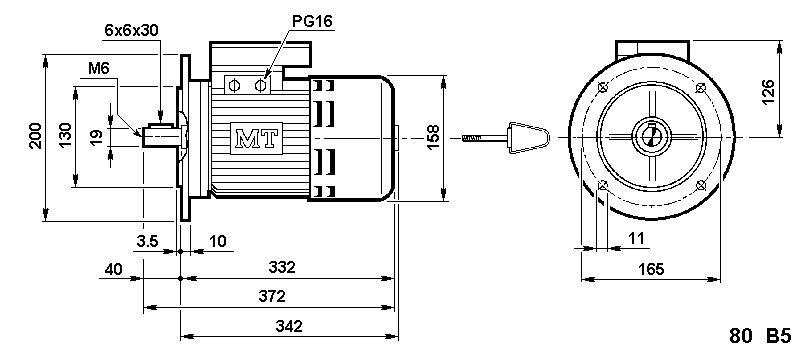

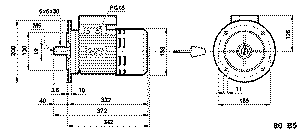

![TFP80A/4](http://www.tvtamerica.net/cdn/shop/products/tfp80B5_109050b2-b695-4f4e-8d90-8d6ea2ab88a7.gif?v=1659619832&width=1445)

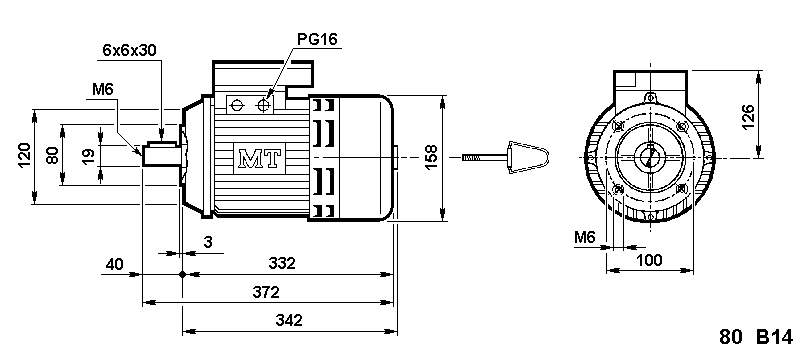

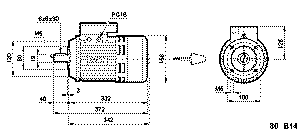

![TFP80A/4](http://www.tvtamerica.net/cdn/shop/products/tfp80B14_00258aec-e6e7-4419-ab26-ebed245e2c3b.gif?v=1659619832&width=1445)
