DRIVE1 D1-230

TVT Drive1

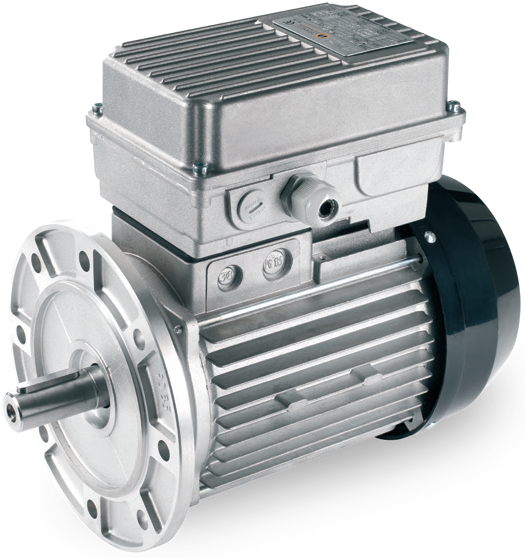

• Motor mounted or baseplate mounted single-board VFD fit in IP56 aluminum housing.
• Simple program and operation.
• compact size - 195mm x 125mm x 95mm case for 0.4 to 1.1Kw. 230V.
• Available 115 or 230Vac 1ph input.  3ph 0-230V 0 to 200Hz output.
• EMC Filter Class A Catagory 3
• High Resolution synchronous PWM control.
• 200% surge for 1 second, 150% for 10-60 sec programable.
• Remote keyboard, Integrated HMI, Serial TTL, or Analog input w/potentiometer.
• 3 digital multifuction optoisolated inputs.
• -5 to 45ºC ambient operation.  20 to 80% Humidity
• Service S1 continuious duty.
• Convection cooling.

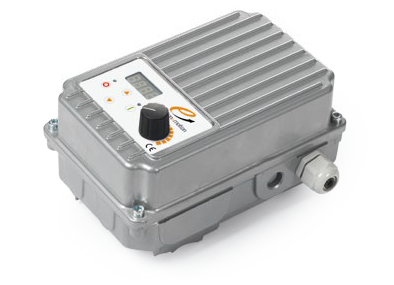

• Standard with Integrated HMI, Potentiometer, as shown.

Optional Base Bate for wall mounting.
