HTD 8M 50

*PLEASE ALLOW 2-3 WEEK SHIP TIME*

Poggi Monoblock HTD® timing pulleys.  Machined Steel and Cast Iron construction for the 6F, Just Cat Iron for 10WF and 10A , pilot bore.

For use with HTD 8M pitch 50mm wide HTD Belt.   Description is tooth count, HTD size, width in mm, and finally form of pulley.

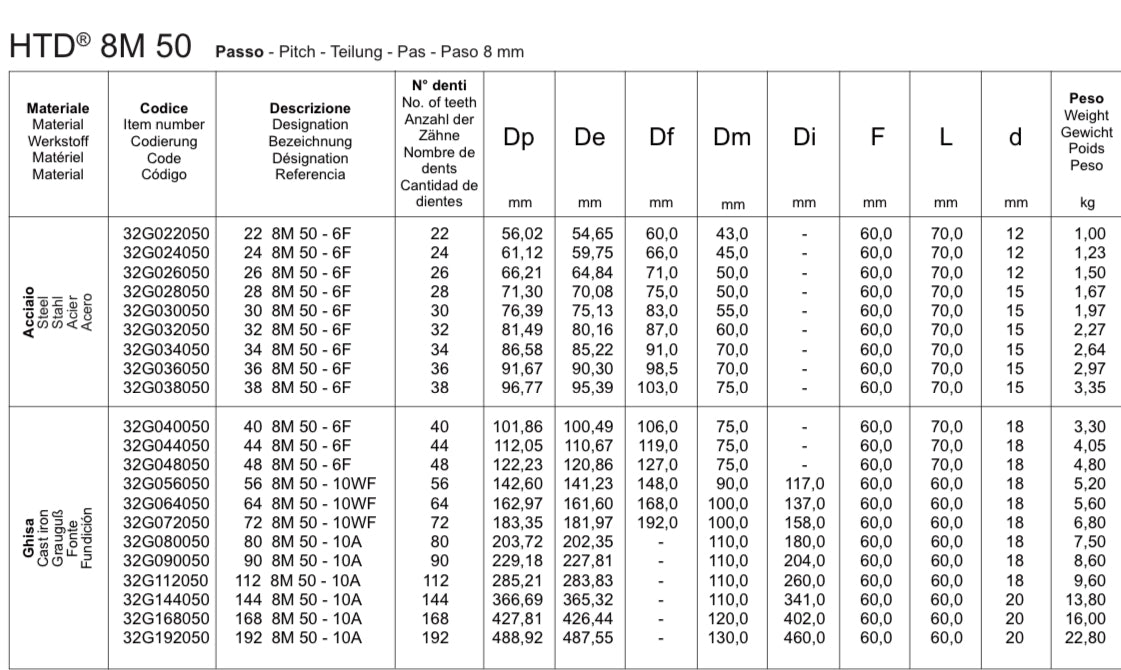

Part#                Description

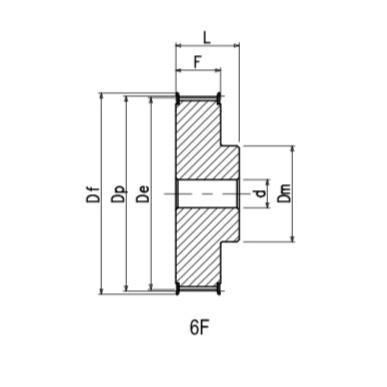

32G022050    22 8M 50 - 6F

32G024050    24 8M 50 - 6F

32G026050    26 8M 50 - 6F

32G028050    28 8M 50 - 6F

32G030050    30 8M 50 - 6F

32G032050    32 8M 50 - 6F

32G034050    34 8M 50 - 6F

32G036050   36 8M 50 - 6F

32G038050   38 8M 50 - 6F

32G040050   40 8M 50 - 6F

32G044050   44 8M 50 - 6F

32G048050   48 8M 50 - 6F

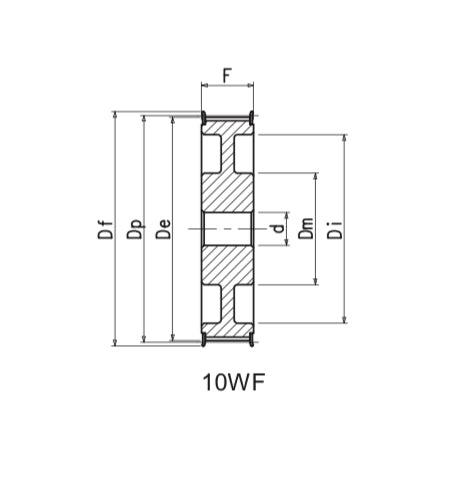

32G056050   56 8M 50 - 10WF

32G064050   64 8M 50 - 10WF

32G072050    72 8M 50 - 10WF

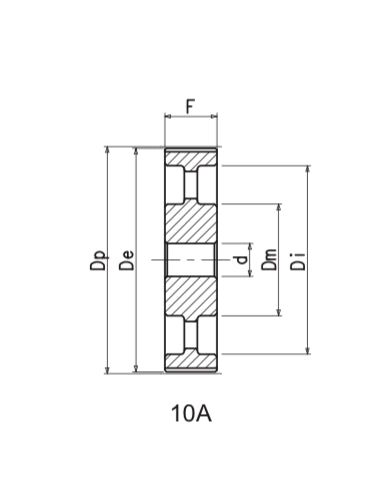

32G080050    80 8M 50 - 10A

32G090050    90 8M 50 - 10A

32G112050     112 8M 50 - 10A

32G144050     144 8M 50 - 10A

32G168050    168 8M 50 - 10A

32G192050    192 8M 50 - 10A
