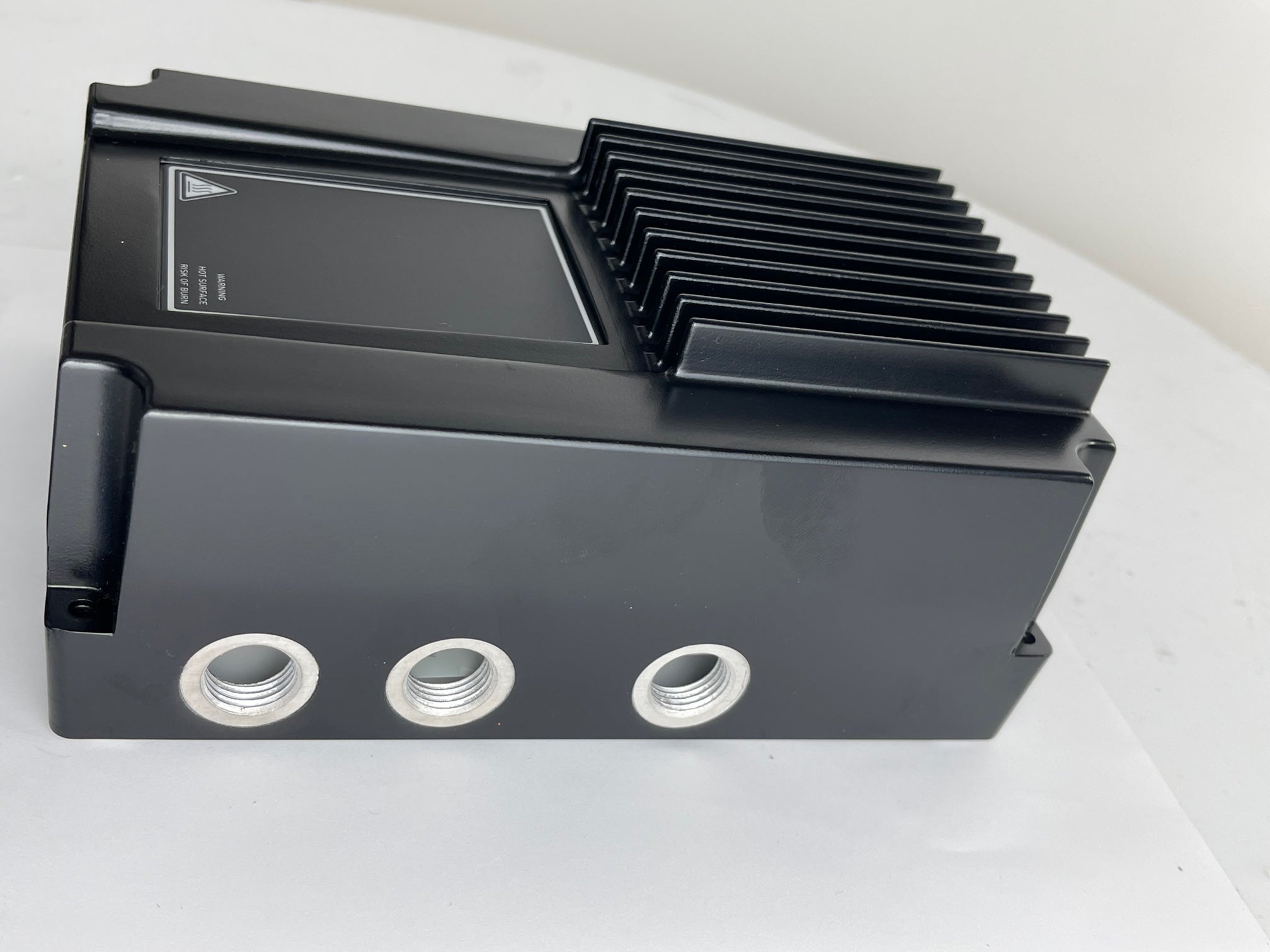

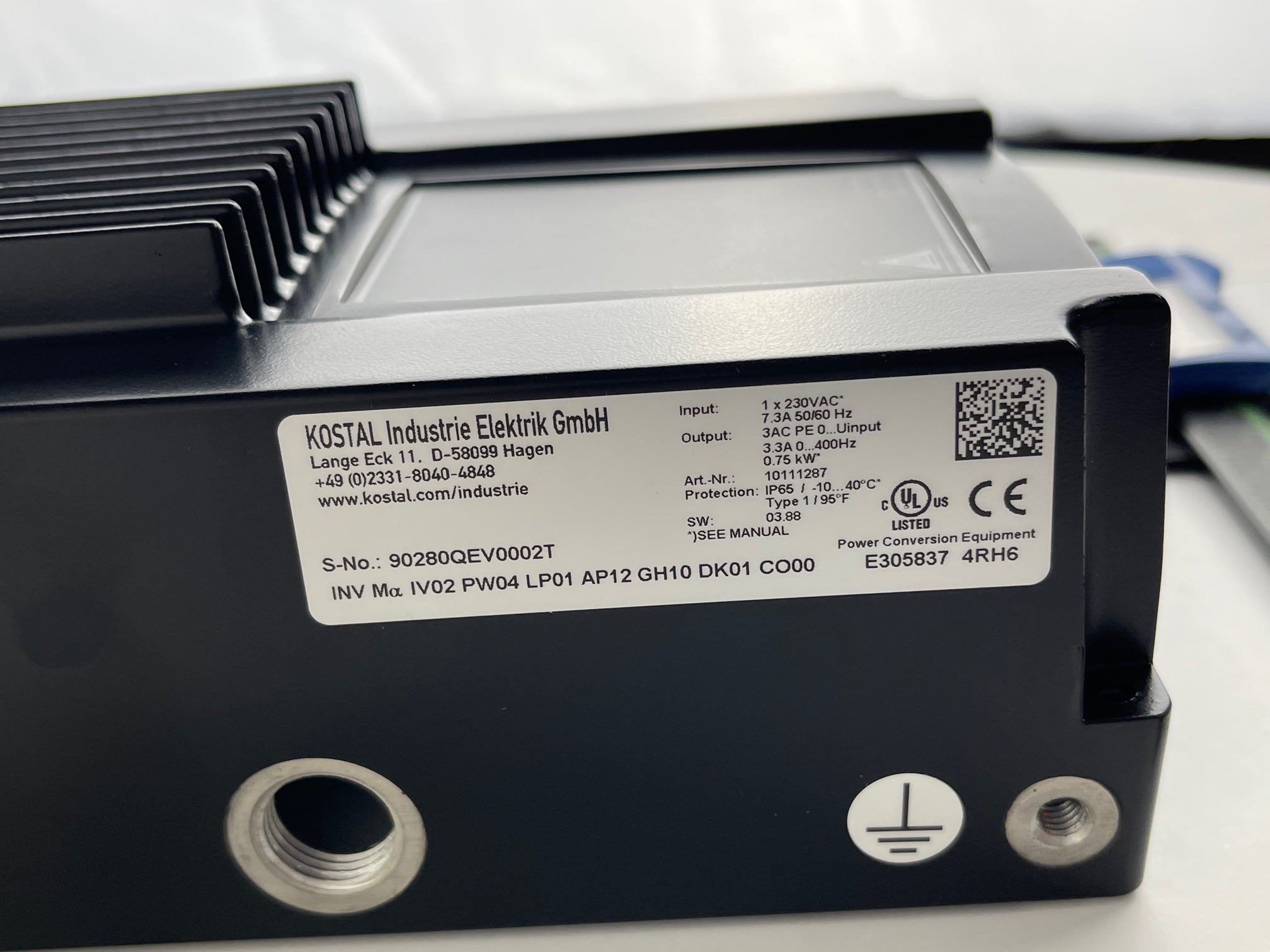

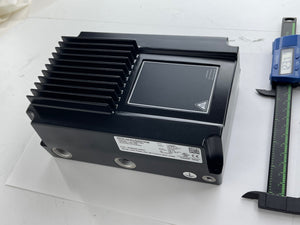

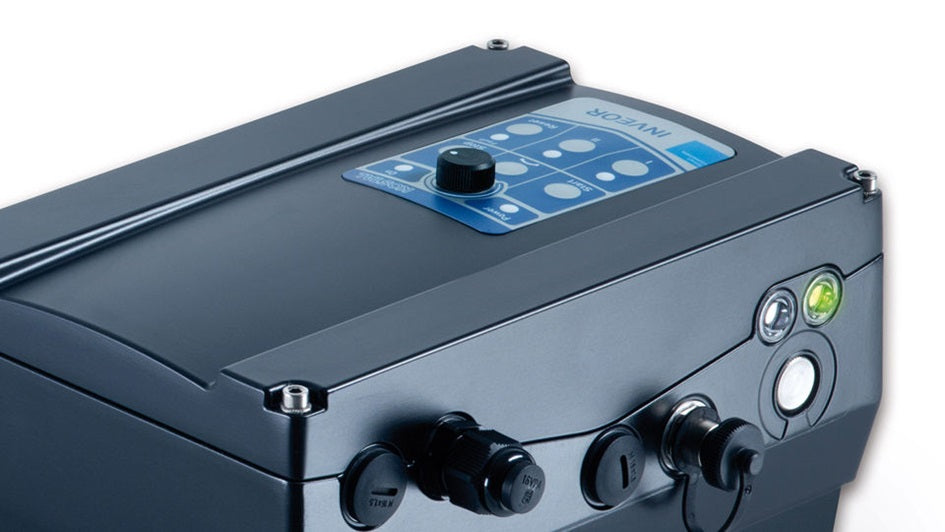

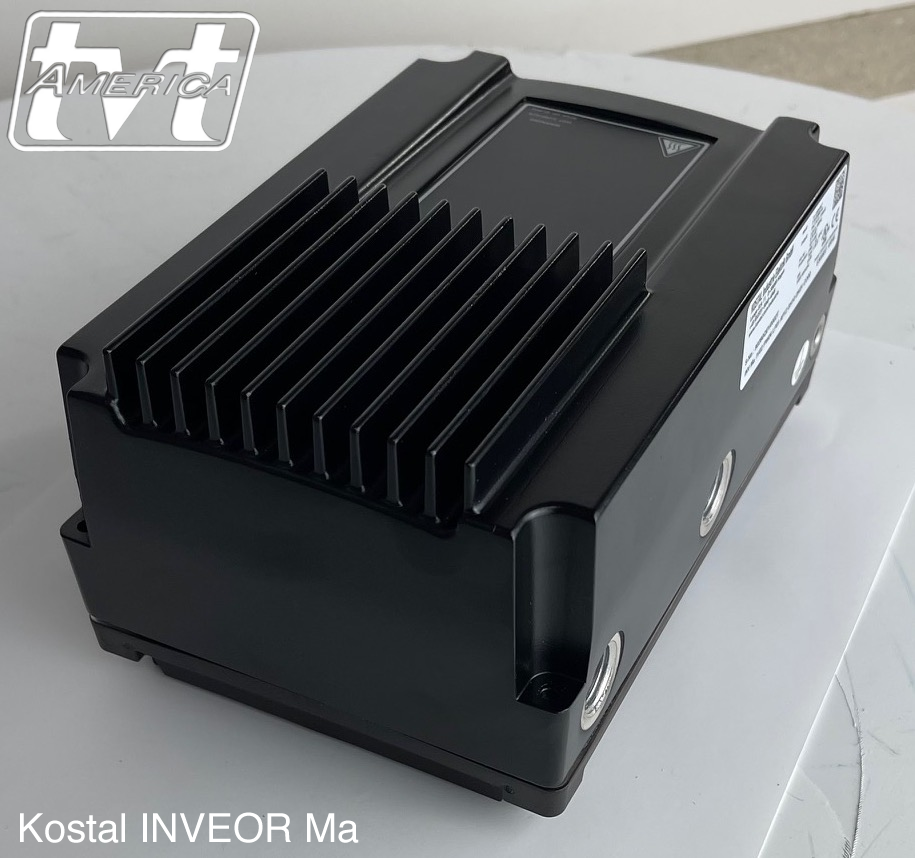

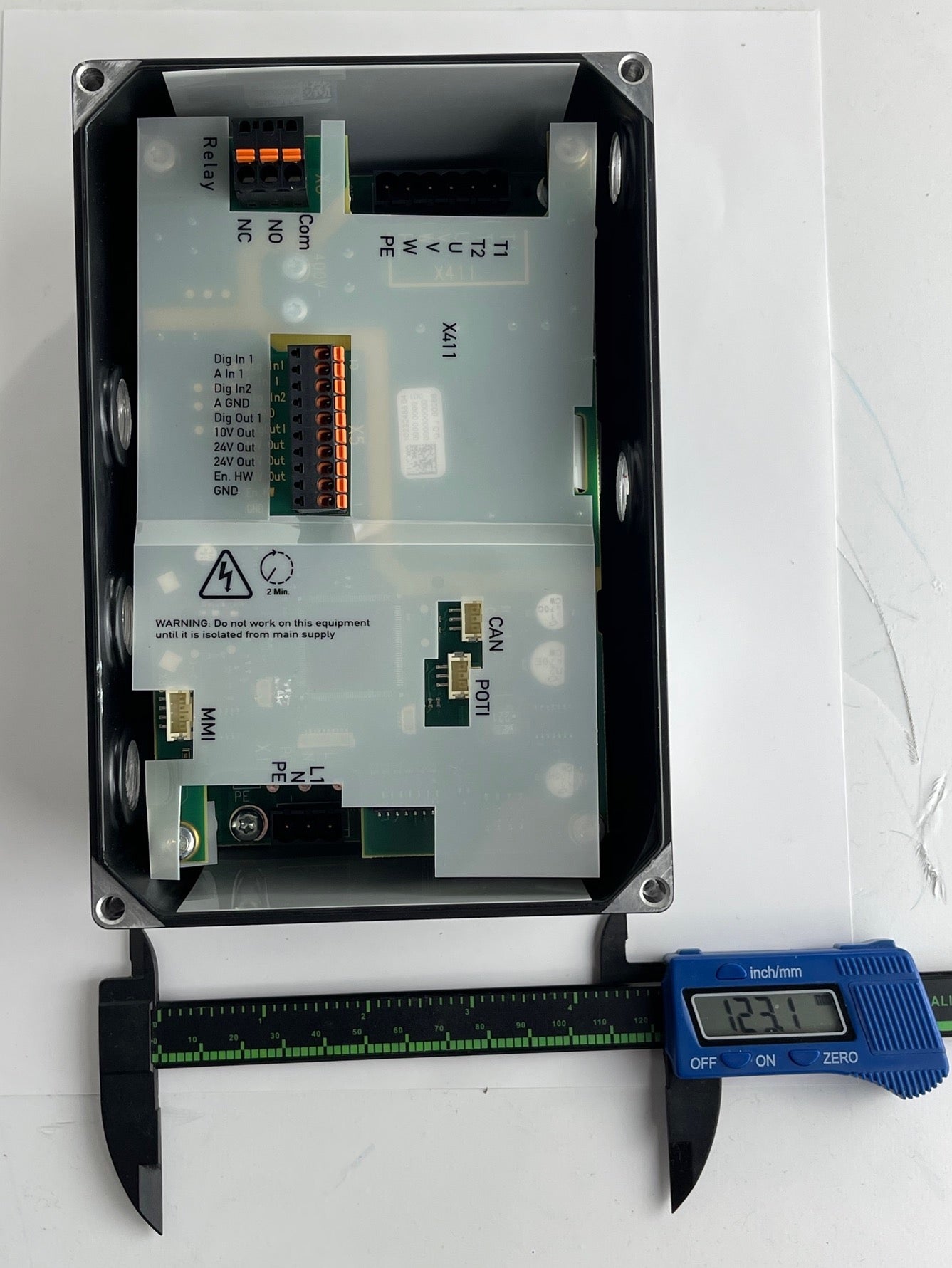

Kostal Inveor Ma Series VFD.

• Wall or Motor Mounted options

• 1 phase AC Input Power 100Vac -15% to 230Vac +10%

• 50-60Hz +/- 6% input frequency

• 4 Sizes - 4.5 to 7.3Amp.

• 150% Overload for 60 seconds

• Adjustable Carrier Frequency - 4kHZ, 8kHz, 16kHz

• Output Frequency - 0 to 400Hz.

• Main Power out cycle restart capacity - 2 minutes.

• Protections -  Overvoltage, Undervoltage, I2T restrictions, short-circuit, ground lead, motor & drive controller temp, stall prevention, blocking detection, PID run dry protection.
• Software Functions - PID, Fixed Frequencies, Data Record Changeover, flying start, motor current limit.
• Soft PLC - IEC 61131-3, FBD, ST, AWL
• IP65 Protection Standard
• Modbus RTU - Standard
• Passive Cooling - no fans to fail
• -10ºC to 40ºC ambient operating temperatures. 50ºC with derating.
• High Humidity Capable to ≤96%
• Vibration resistance to 50m/s2, 5 to 200Hz.
• Integrated EMC Filter - Class C2
• ROHS, CE, and UL/CSA Listed & Compliant
• Optional - CANopen, ITnetwork
• 100% Made in Germany

Program, Monitor, & Control using:

FREE PC software - (requires the purchase of USB to M12-4 cable & Ma Adapter)

MMI Handheld Programmer - (requires M12-4 to Ma Adapter).

Serial Comm - CANopen, ITnetwork, Modbus RTU.

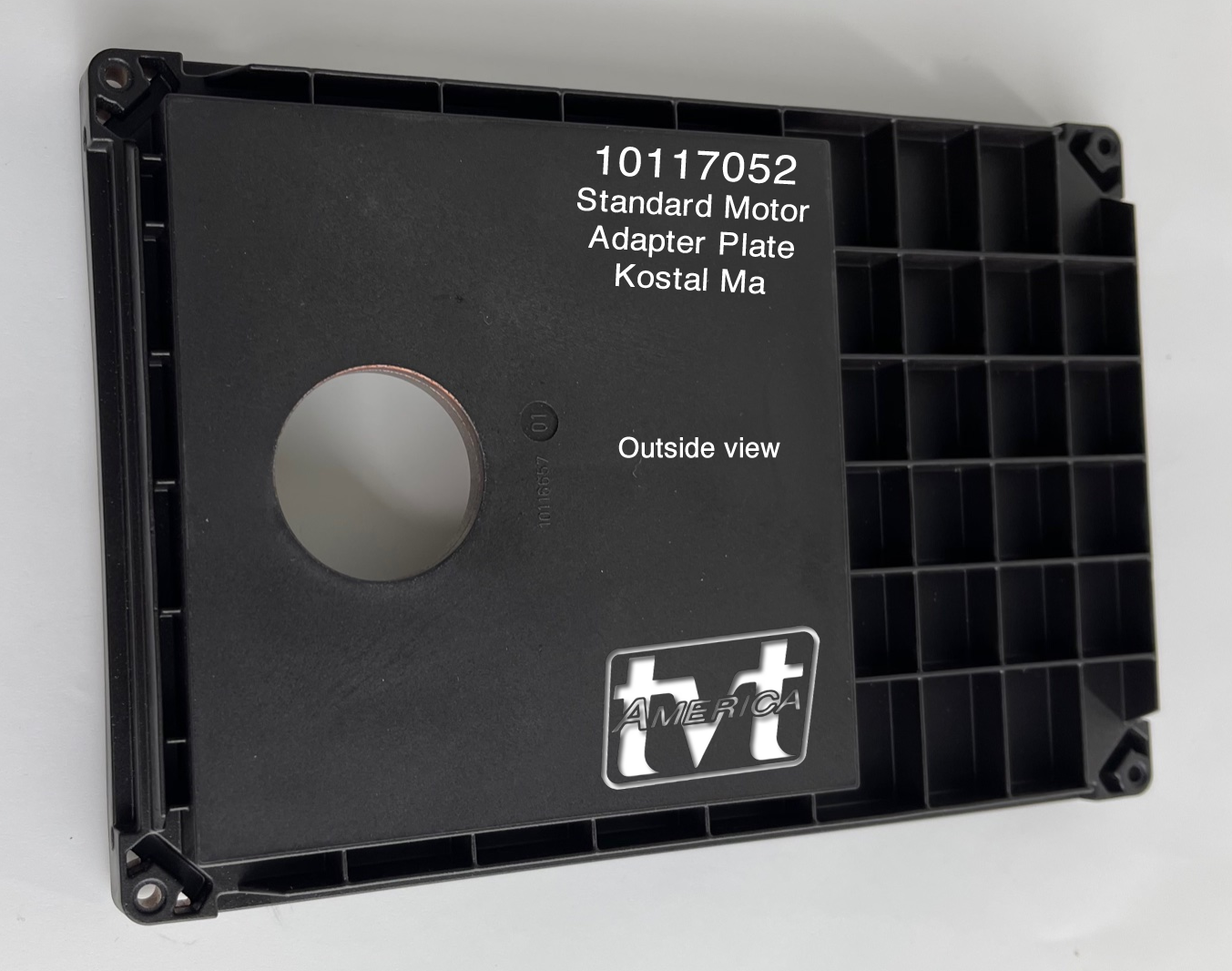

Requires Wall or Motor Mounting Plate adapter.
