Motori Elettrici MT® 3ph AC IEC Metric Motor

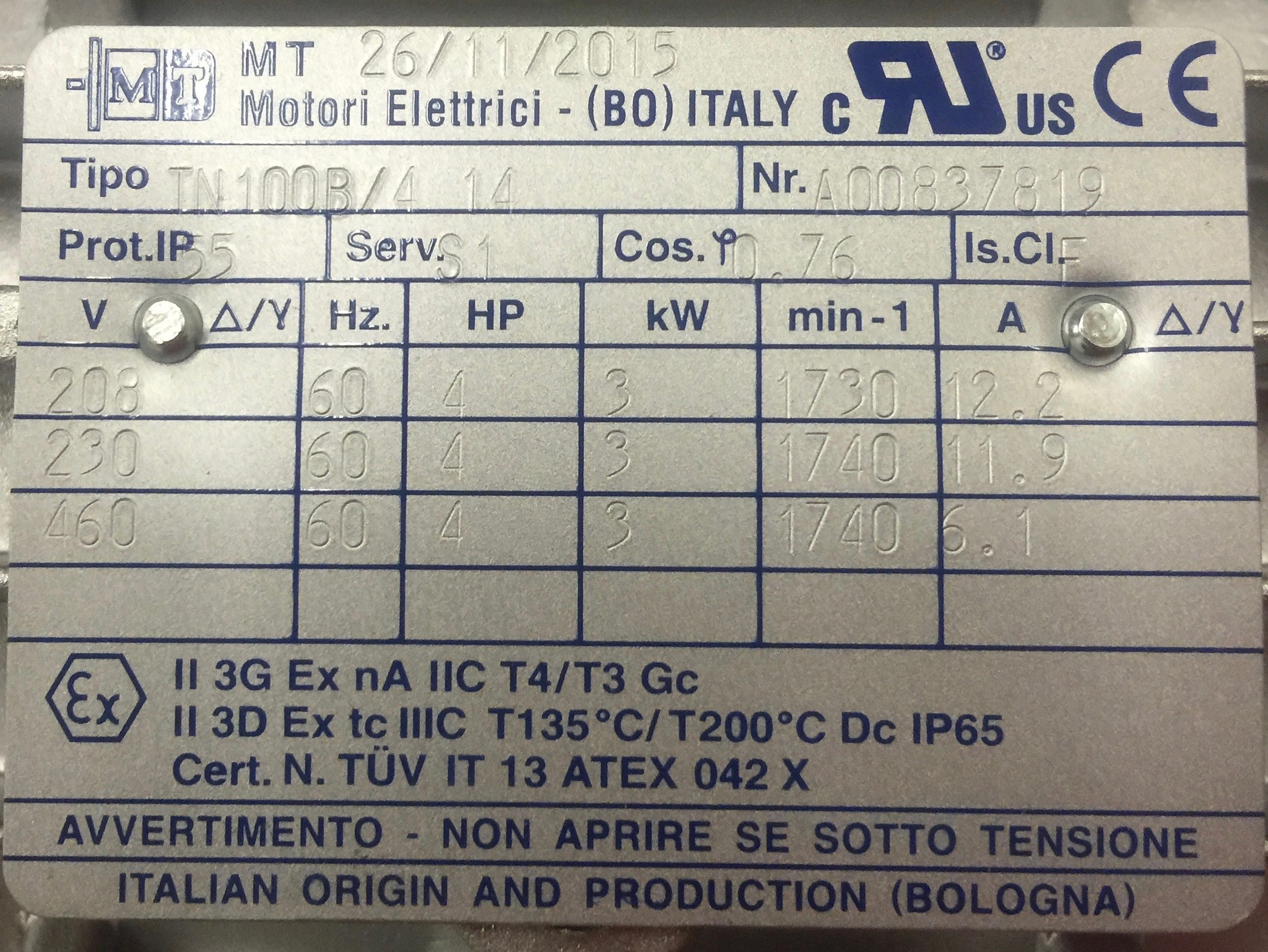

Series TN, Size 100B, 4 pole, 3Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service. Typo: TN100B/4
To select & download Cad Files for this motor, (click here) new window will open.
Click Here to open .pdf spec sheet for this motor in new window.

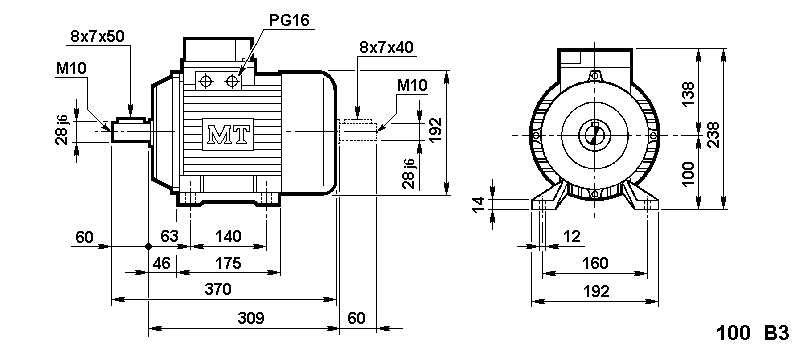

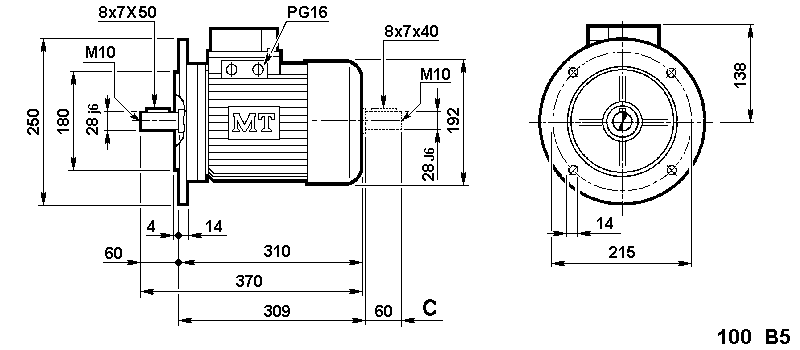

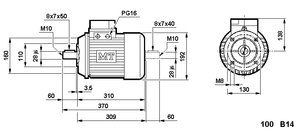

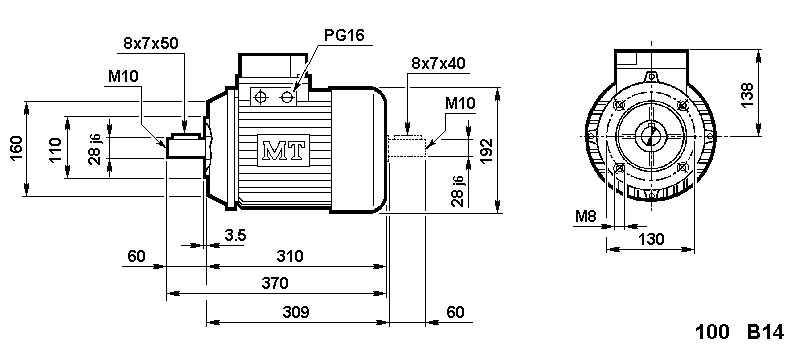

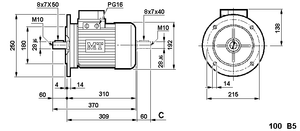

B34 and B35 mounting forms include either B14 or B5 flange & re-positionable B3 feet.
