Motori Elettrici MT® 3ph AC IEC Metric Motor

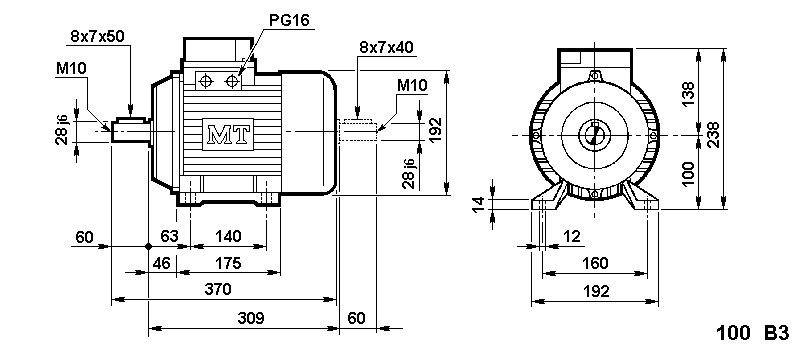

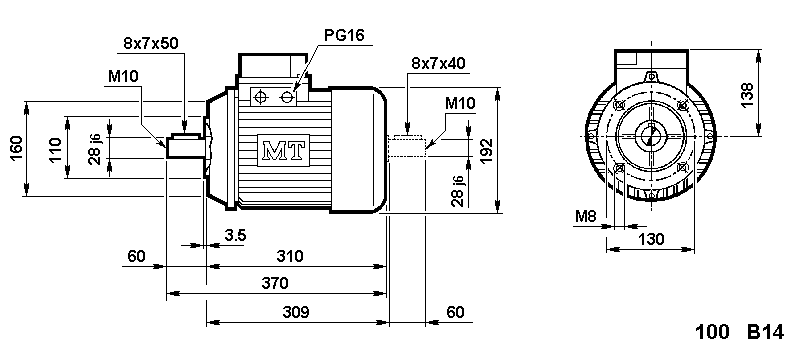

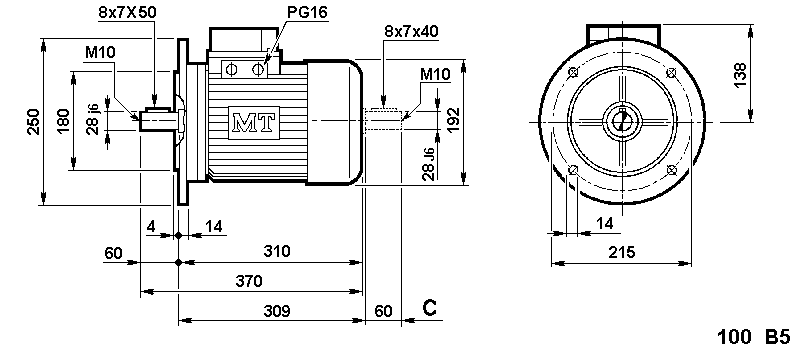

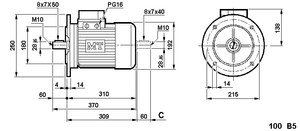

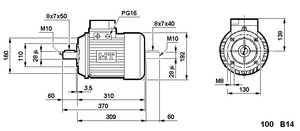

Series TN, Size 100B, 6 pole, 2.2Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN100B/6

To select & download Cad Files for this motor, (click here) new window will open.
