TVT America

MT® TN56B4 EU

MT® TN56B4 EU

Regular price $259.00 USD
Regular price $518.00 USD Sale price $259.00 USD
Sale Sold out
Shipping calculated at checkout.
MOUNTING

Motori Elettrici MT® 3ph AC IEC Metric Motor

Series TN, Size 56B, 4 pole, 0.09Kw 230/400V/50hz, 280/480V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN56B/4 EU ...

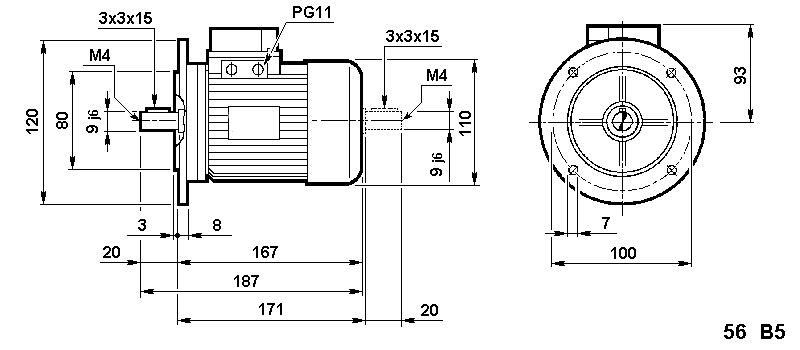

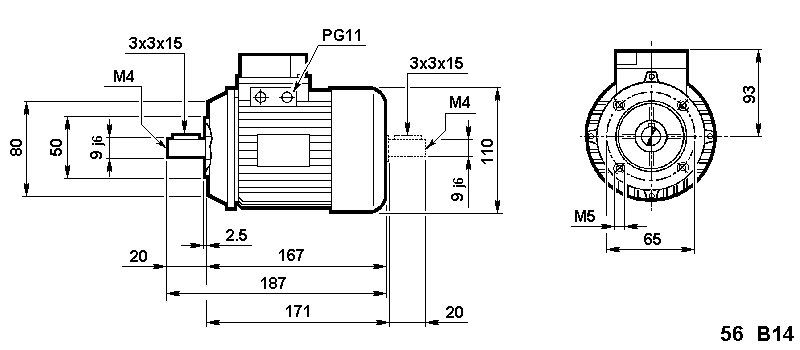

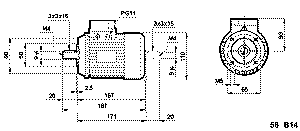

For foot & flange mount, consider illustration of both B3 and B5 or B3 and B14.

Shown are stock, ready to ship today motors.  Made to order specials can also be produced, with thermostats, thermistors, special painting, encapsulated, and more just inquire sales@tvtamerica.com

To select & download Cad Files for this motor (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in a new window.
