MT® TN63B4 EU
MT® TN63B4 EU
MT® TN63B4 EU

MT® TN63B4 EU

Regular price
$466.00
Sale price
$163.00
Shipping calculated at checkout.
Quantity must be 1 or more

Motori Elettrici MT® 3ph AC IEC Metric Motor

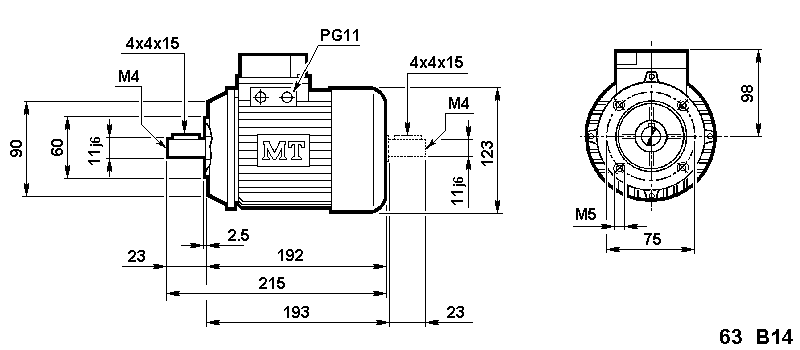

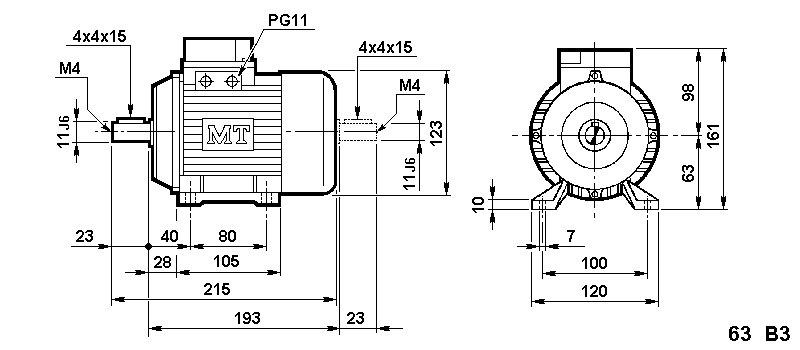

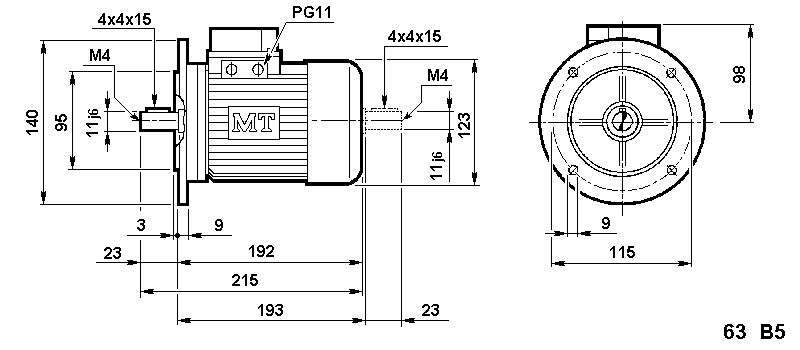

Series TN, Size 63B, 4 pole, 0.18Kw Standard European Voltages: 230∆/400Y V/50hz, acceptable to North American power 440-480V/60Hz when wired Y, Ingress Protection 55, Class F insulation,  UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN63B/4 EU

* For 208-230V/60hz 440-480V/60Hz TN63b4, please visit the TN63B4 NA which physically the same but electrically wired YY/Y for North American voltages at 60Hz.

To select & download Cad Files for this motor, (click here) new window will open.

Click Here for a .pdf spec sheet for this motor to open in a new window.
