Motori Elettrici MT® 3ph AC IEC Metric Motor

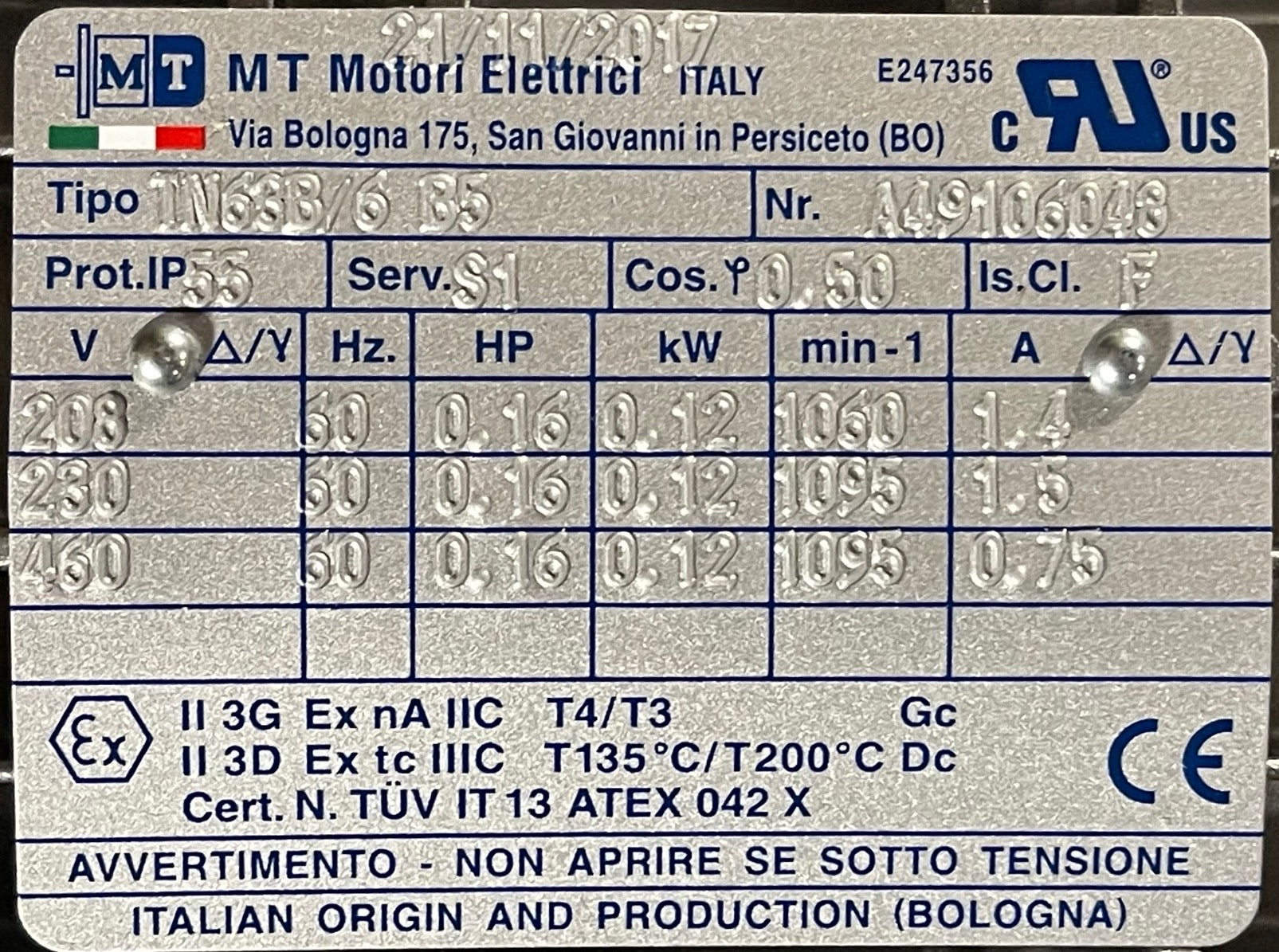

Series TN, Size 63B, 6 pole, 0.12Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service. Typo: TN63B/6
To select & download Cad Files for this motor, (click here) new window will open.
Click Here to open a .pdf spec sheet for this motor in a new window.

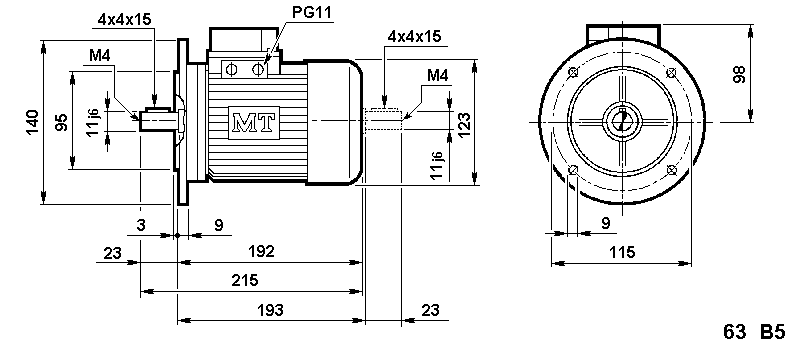

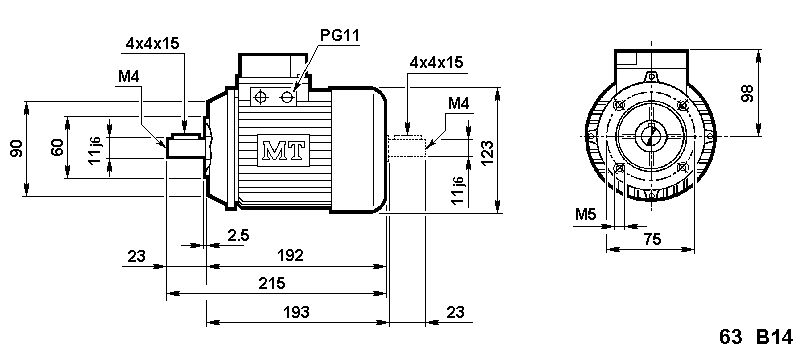

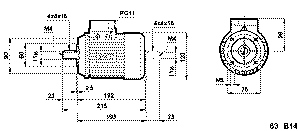

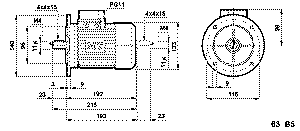

* B34 and B35 mounting forms will be B14 (B34) or B5 (B35) flange with re-positionable foot kit included.
