Motori Elettrici MT® 3ph AC IEC Metric Motor

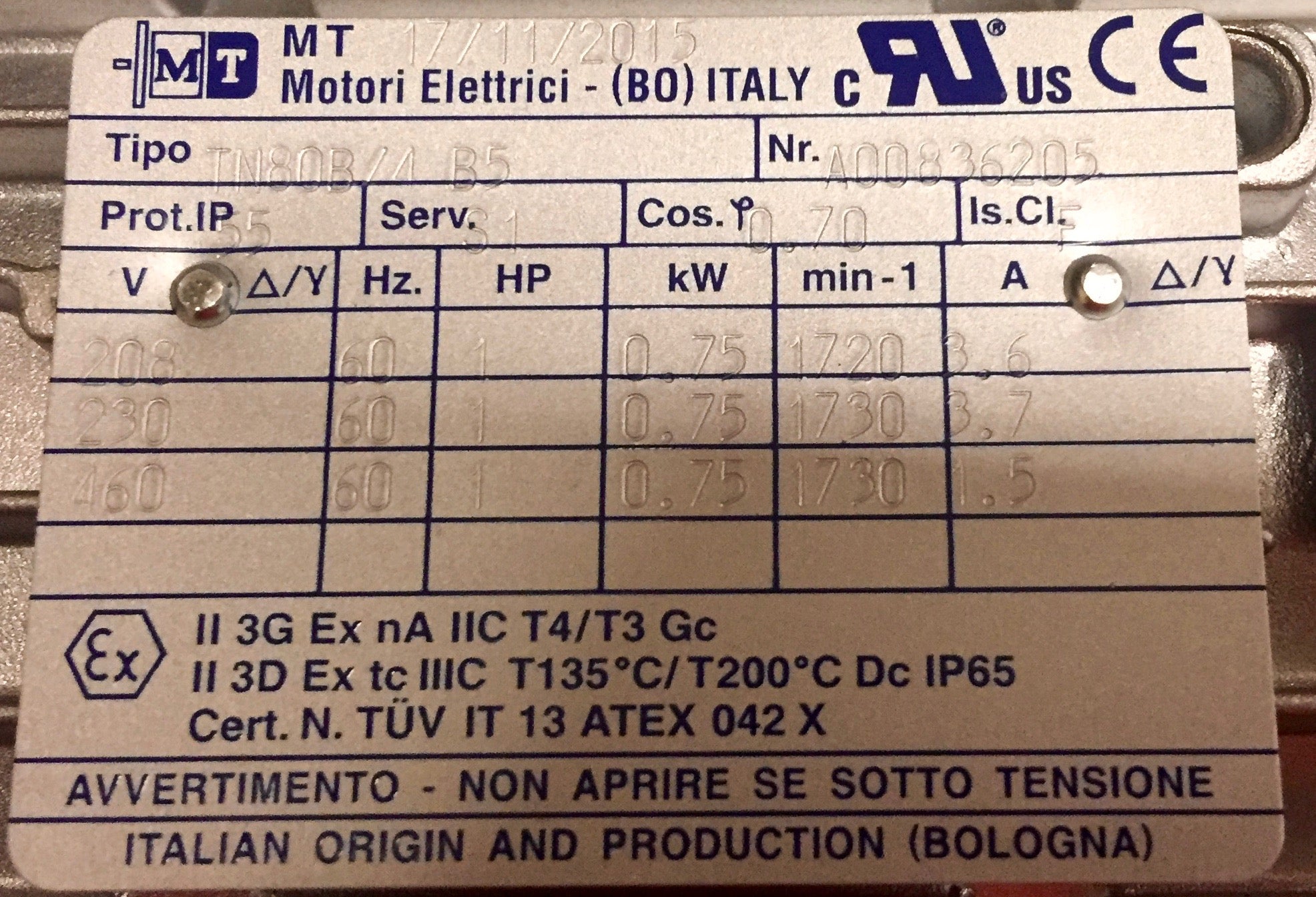

Series TN, Size 80B, 4 pole, 0.75Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN80B/4

To select & download Cad Files for this motor (click here) new window will open.

Click Here to open .pdf spec sheet for this motor in a new window.

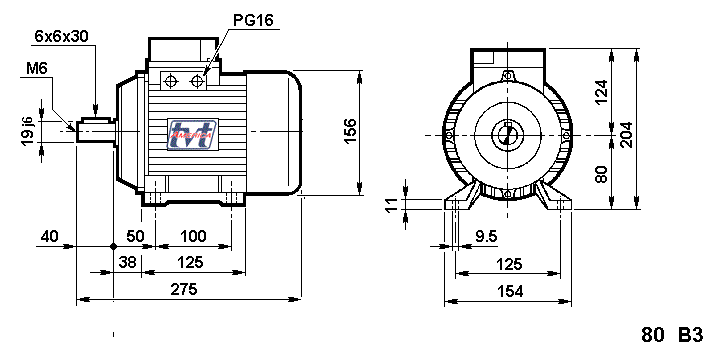

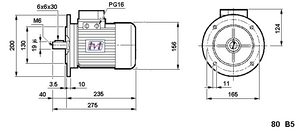

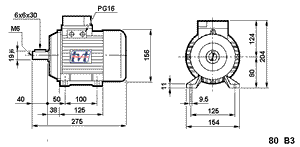

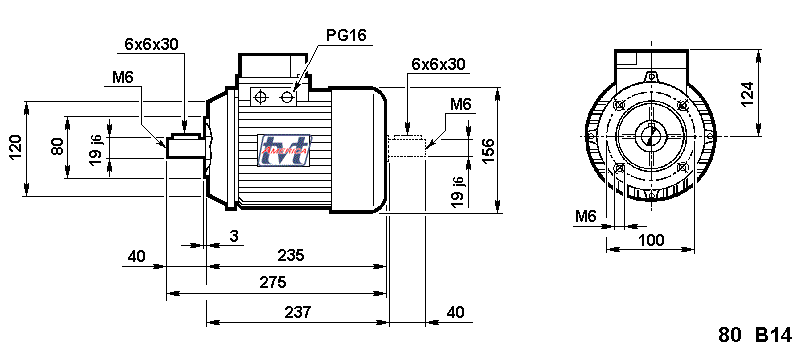

B34 & B35 include bolt on feet along with B14 or B5 flange.
