Motori Elettrici MT® 3ph AC IEC Metric Motor

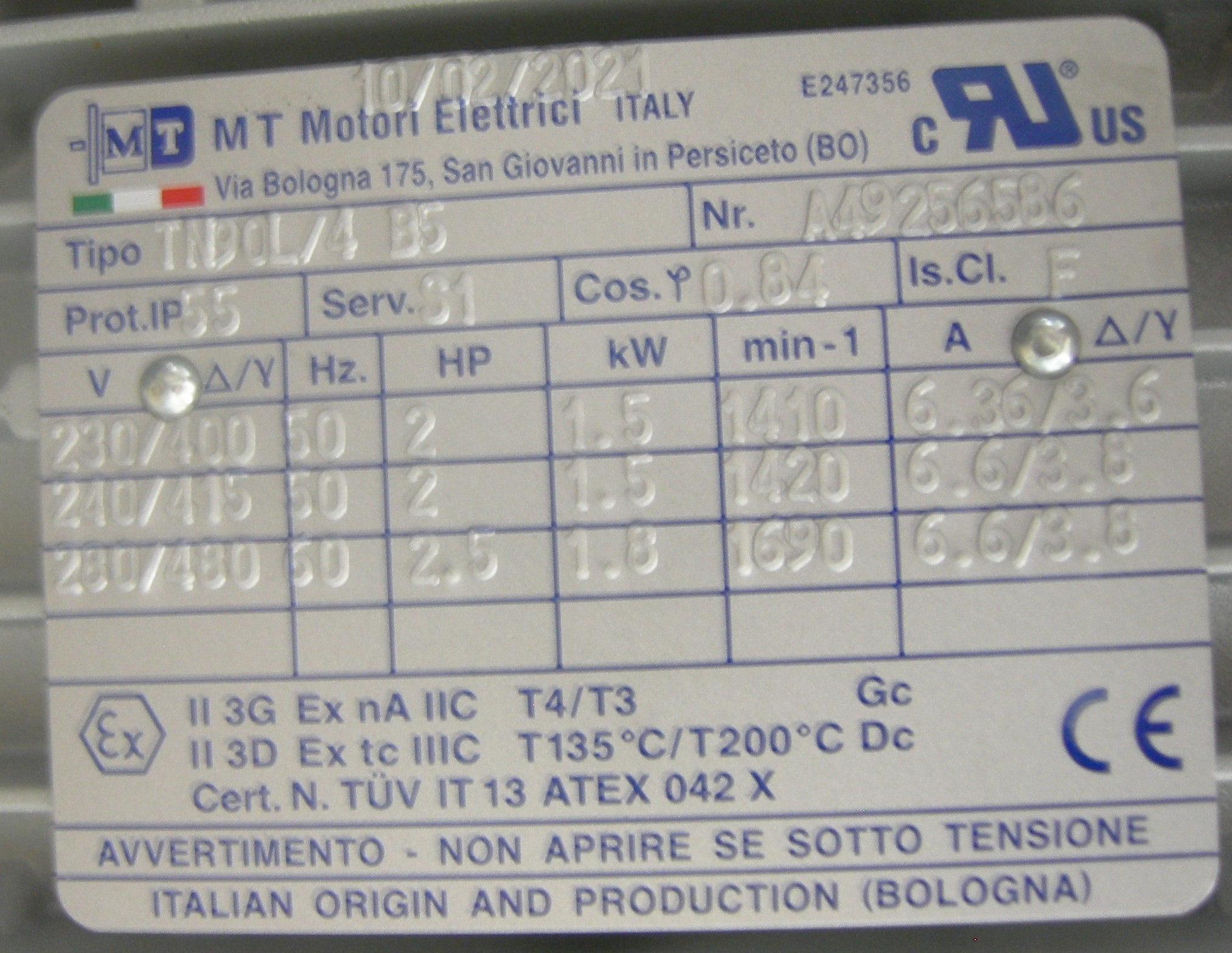

Series TN, Size 90L, 4 pole, 1.5Kw 230/400V/50hz, 280/480V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN90L/4 IE1 Standard Effiency

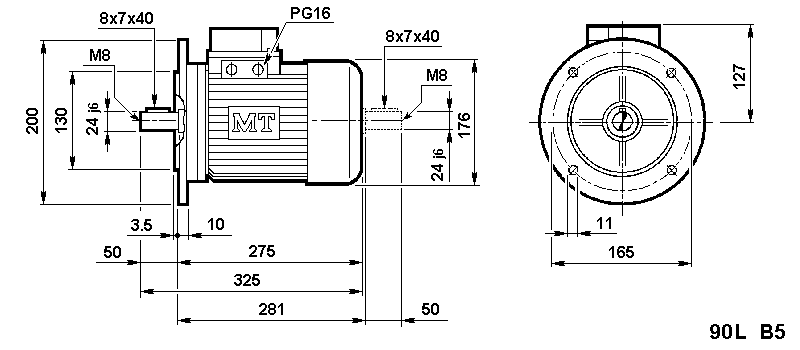

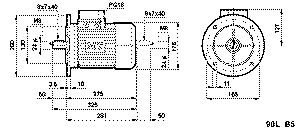

To select & download Cad Files for this motor, (click here) new window will open.

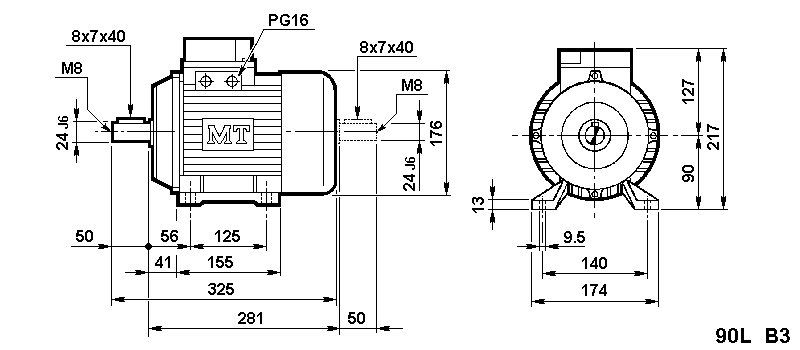

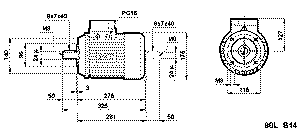

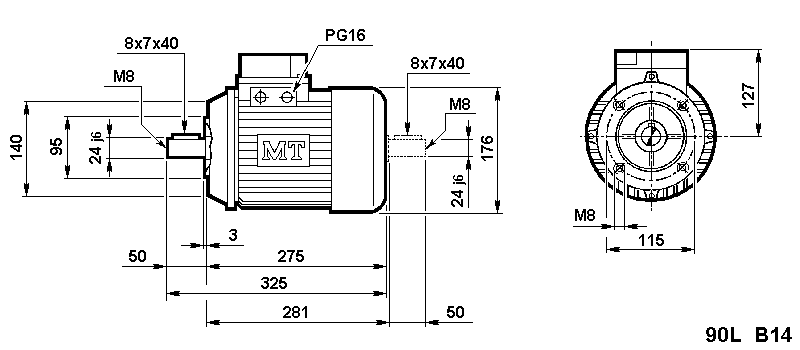

B34 and B35 mounting forms will ship with repositinable B3 feet (and B14 or B5 flange).
