Motori Elettrici MT® 3ph AC IEC Metric Motor

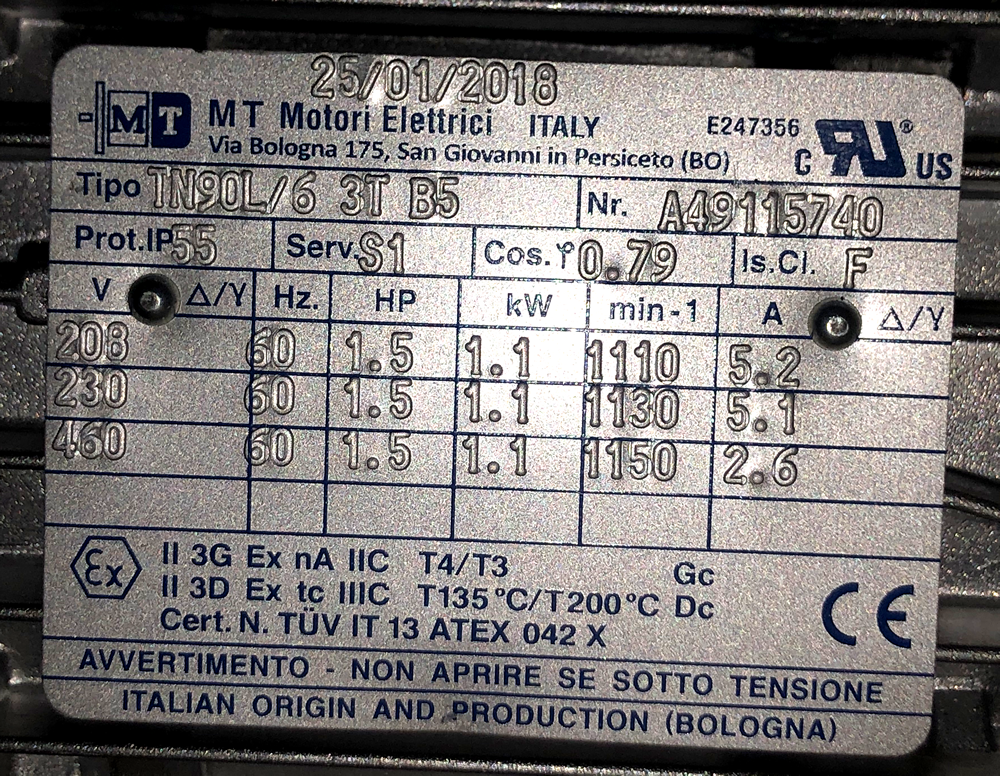

Series TN, Size 90L, 6 pole, 1.1Kw 200/400V/50hz, 230/460V/60Hz, Ingress Protection 55, Class F insulation, UL/CSA/CE Listed, ATEX II-22 Group 3GD, S1 service.  Typo: TN90L/6

To select & download Cad Files for this motor, (click here) new window will open.

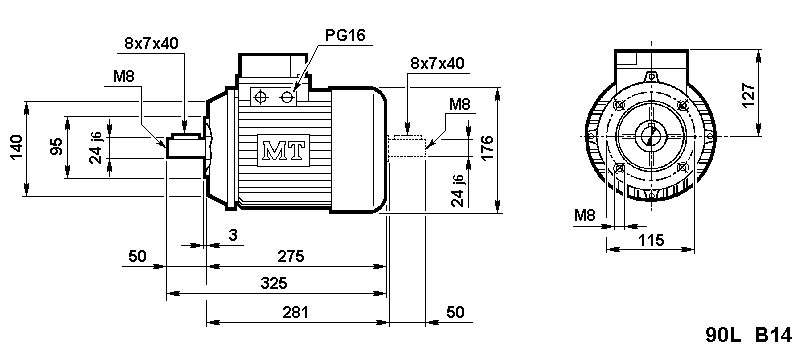

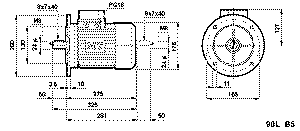

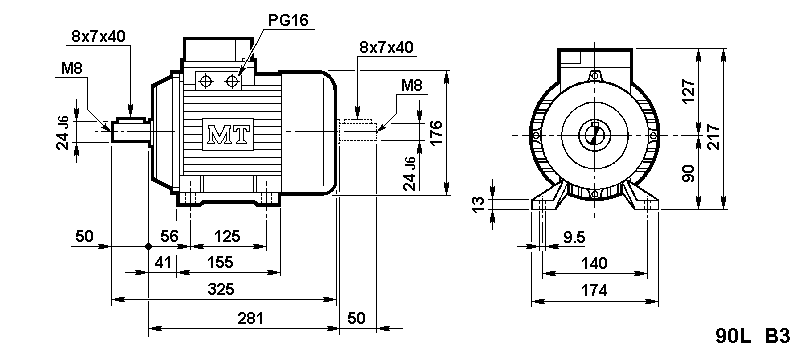

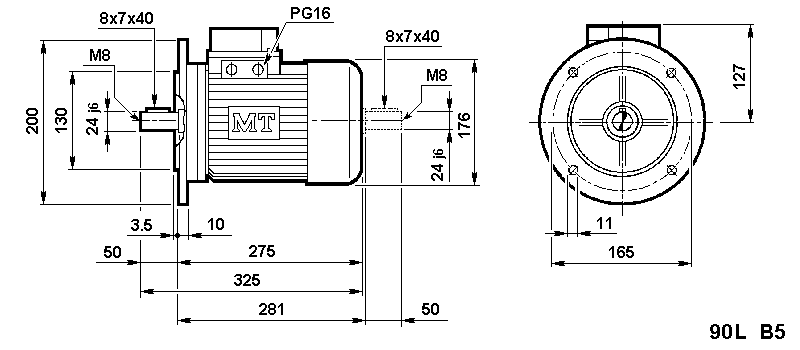

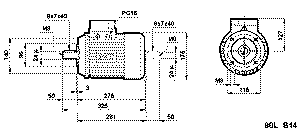

B34 and B35 mounting forms will ship with B14 or B5 flange and repositionable feet.
