TVT America
Nerimotori® T56B4 EU
Nerimotori® T56B4 EU
Regular price
$222.00 USD
Regular price
$444.00 USD
Sale price
$222.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
NERIMOTORI® 3ph AC IEC Metric Motor
Series T, Size 56B, 4 pole, 0.09Kw 230/400V/50hz, 280/460V/60Hz, Ingress Protection 55, Class F insulation, CE Listed, S1 service. Typo: T56B/4 EU

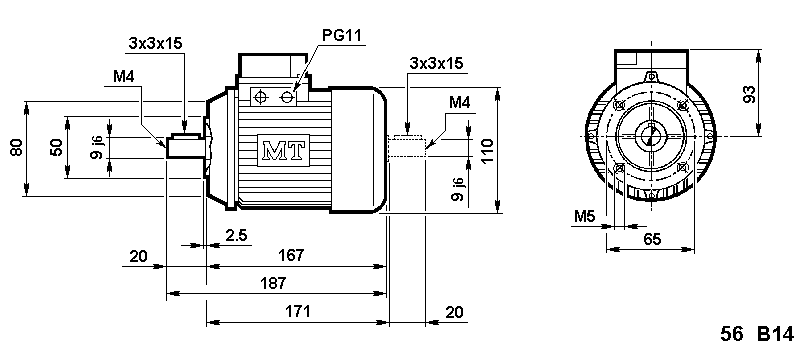

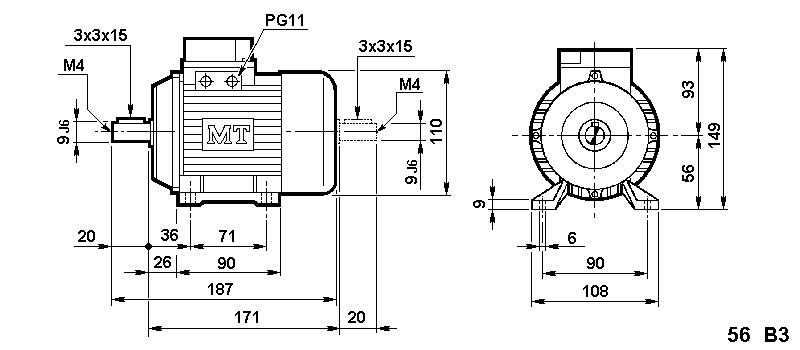

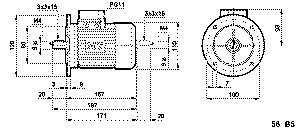

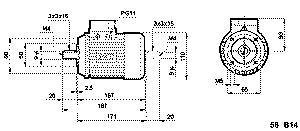

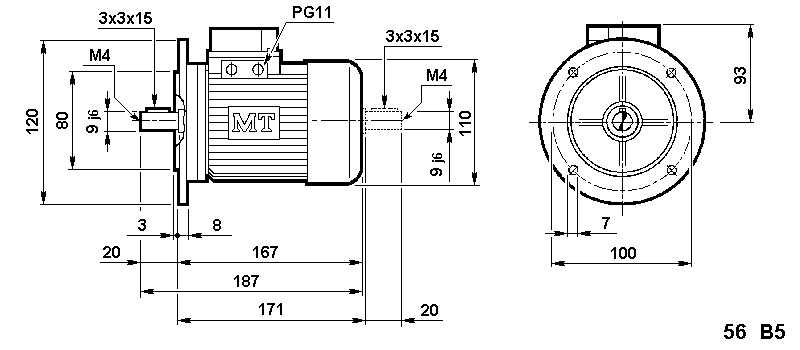

Select mounting form when ordering. B3 foot, B14 compact flange, B5 standard flange.
To select & download Cad Files for this motor, Click Here and new window will open.
Click Here to open the specification page in a new window for the Nerimotori® T series.
