Regular price
$118.00
Sale price
$59.00
Shipping calculated at checkout.
Quantity must be 1 or more

O.E.G.
Brake Rectifiers

Select size & type to view ratings on rectifier image shown.

Also available through your preferred local TVT Distributors:  Applied, BDI, Motion, Industrial Electrical, KAMAN, Weimer Bearing, and more.

Model Bridge Color Max Vac Amps Efficiency Features Quick Braking Terminal

 NBRCE 440-1

1/2 BLUE 440 1A 44.5% Filter EMC 2004/104/CE Yes

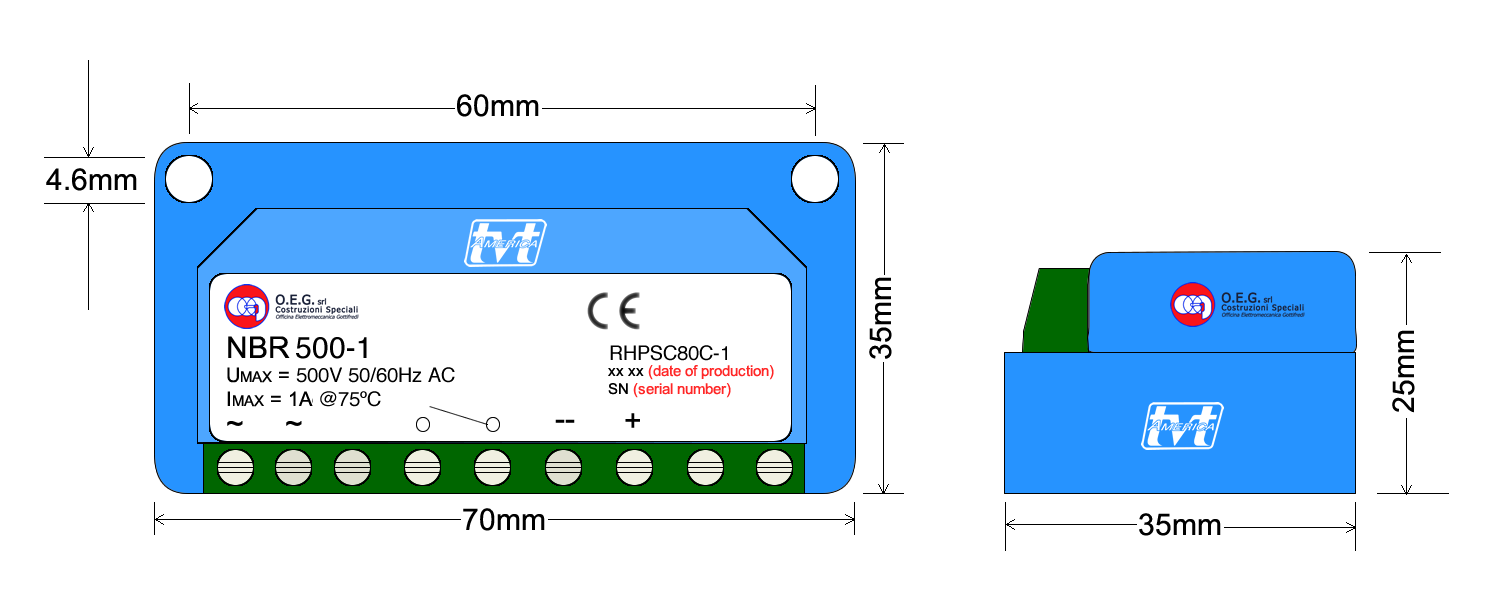

NBR 500-1 1/2  Blue 500 1A 44.5% 3 Auxiliary terminals Yes

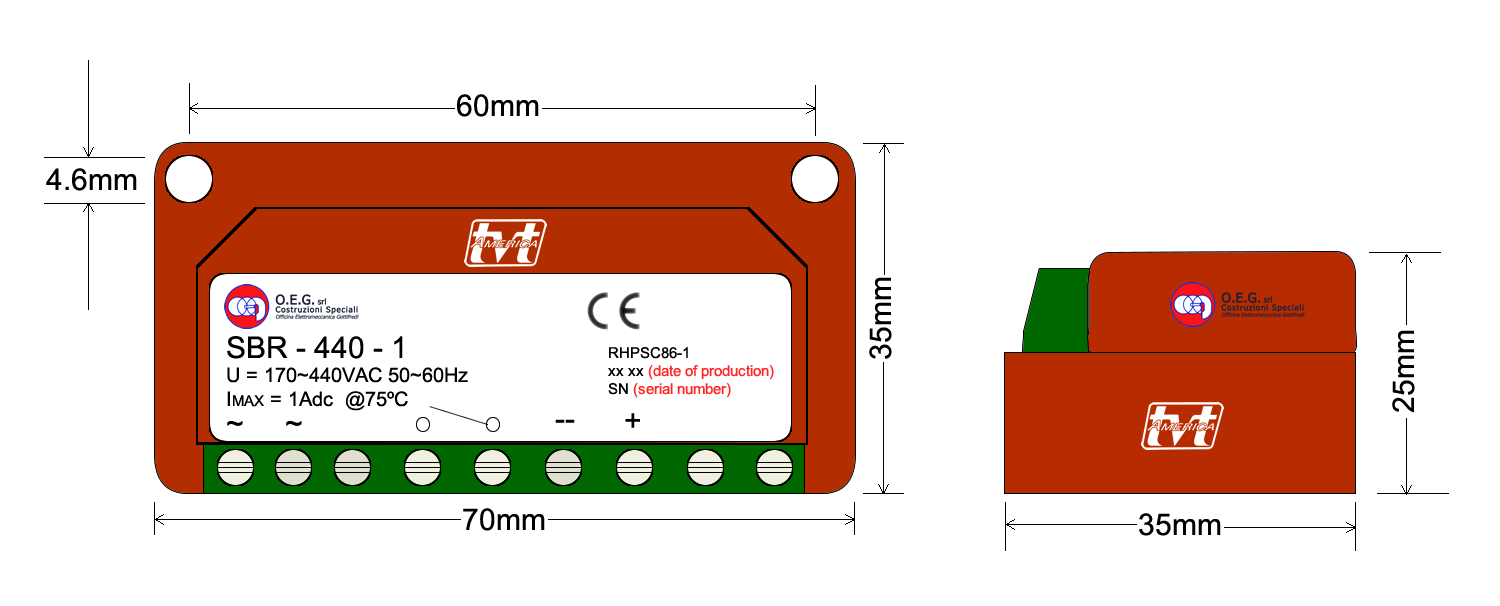

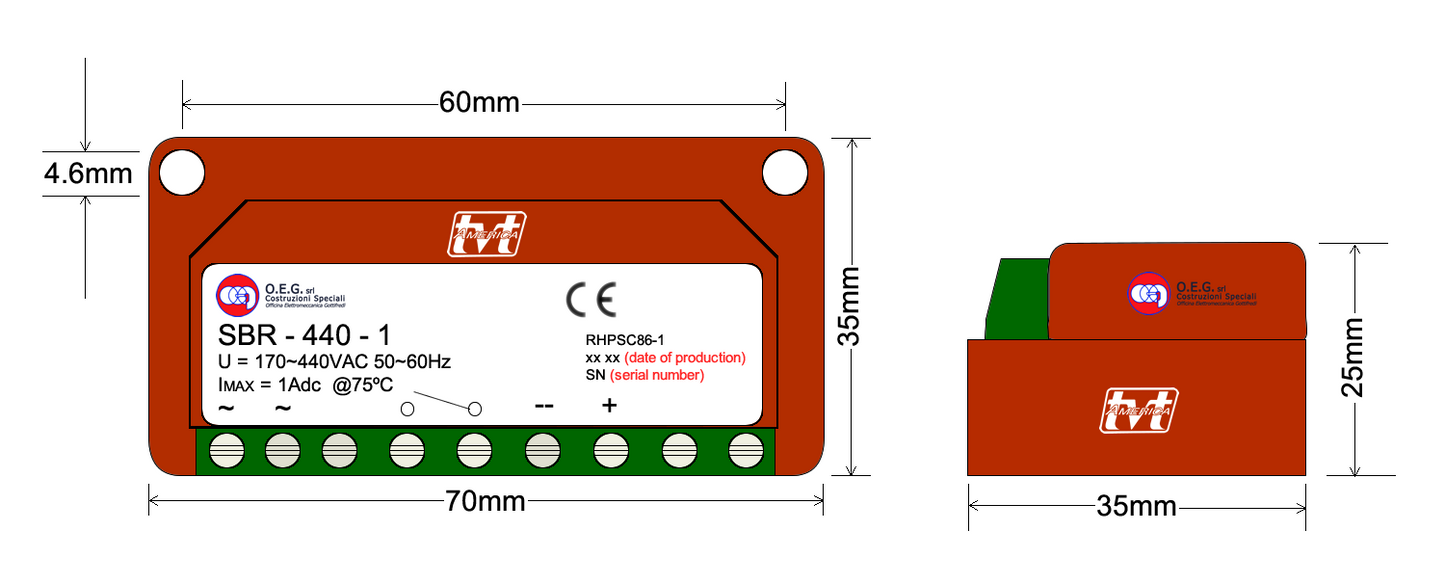

SBR 440-1 1/2 Red 440 1A 44.5% 3 Auxiliary terminals Yes

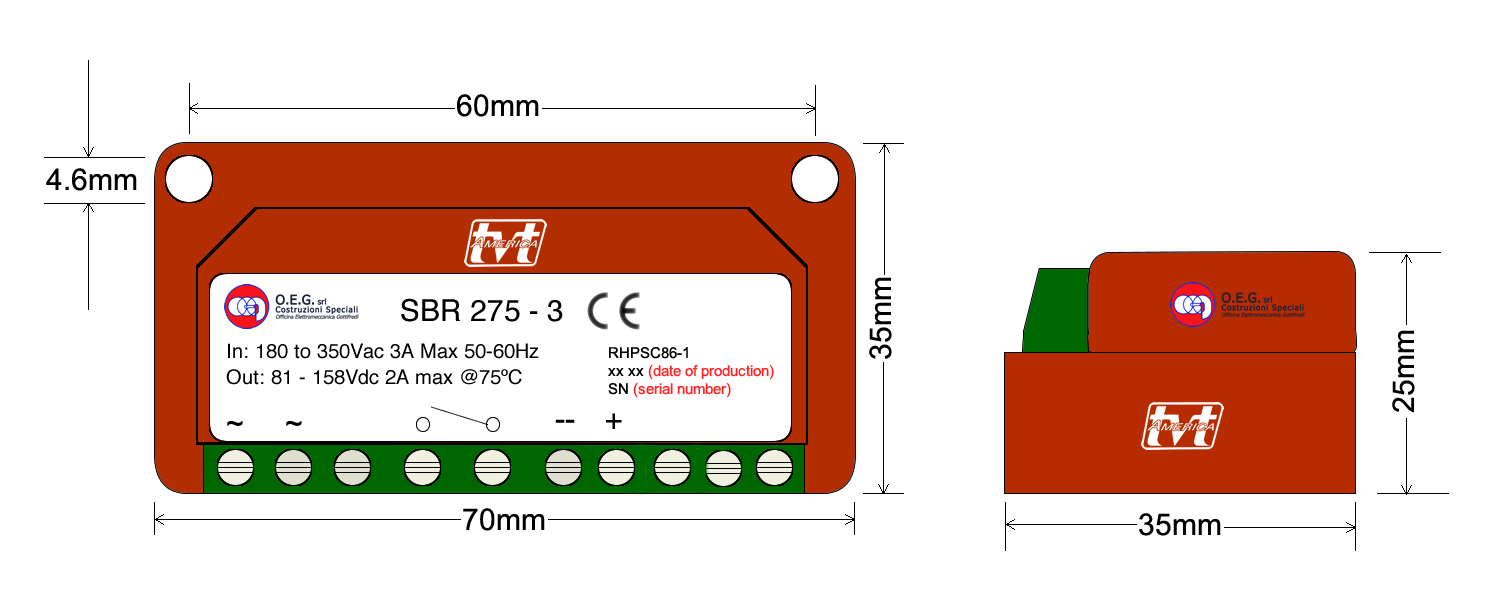

SBR 275-3 1/2 Red 350 3A 44.5% 3 Auxiliary Yes
SBR 140-3 1/2 Red 140 3A 44.5% 3 Auxiliary Yes

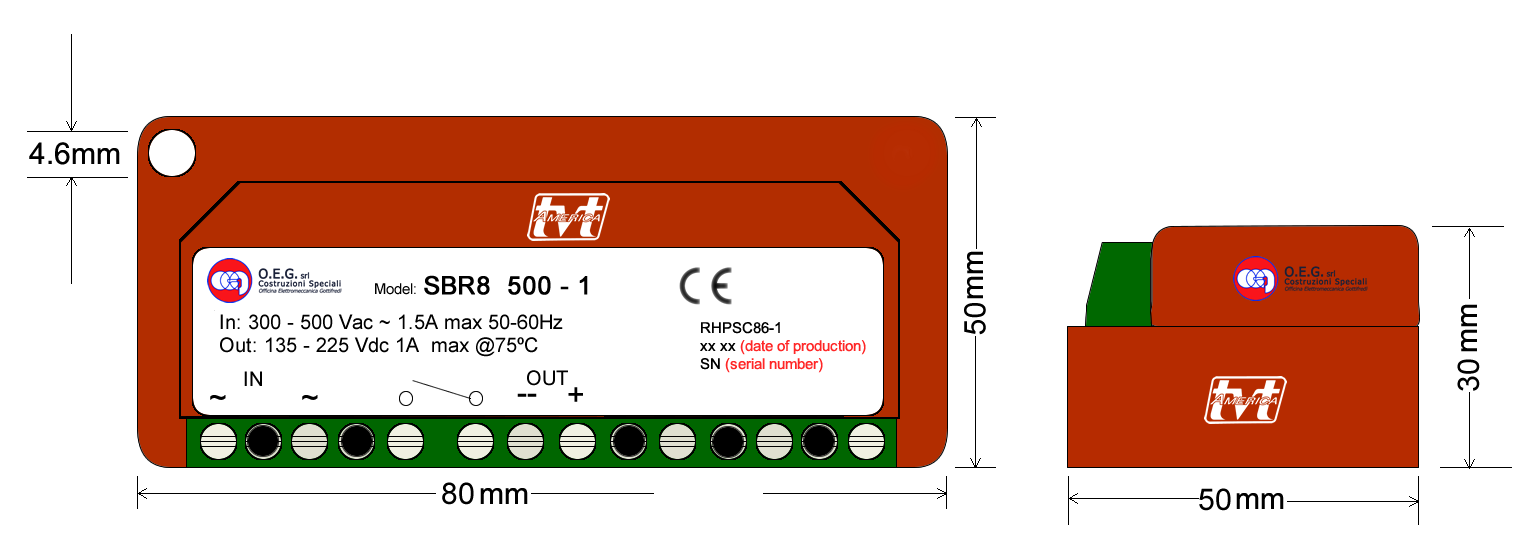

SBR8-500-1 1/2 RED 500 1A 89% 3 Auxiliary Yes

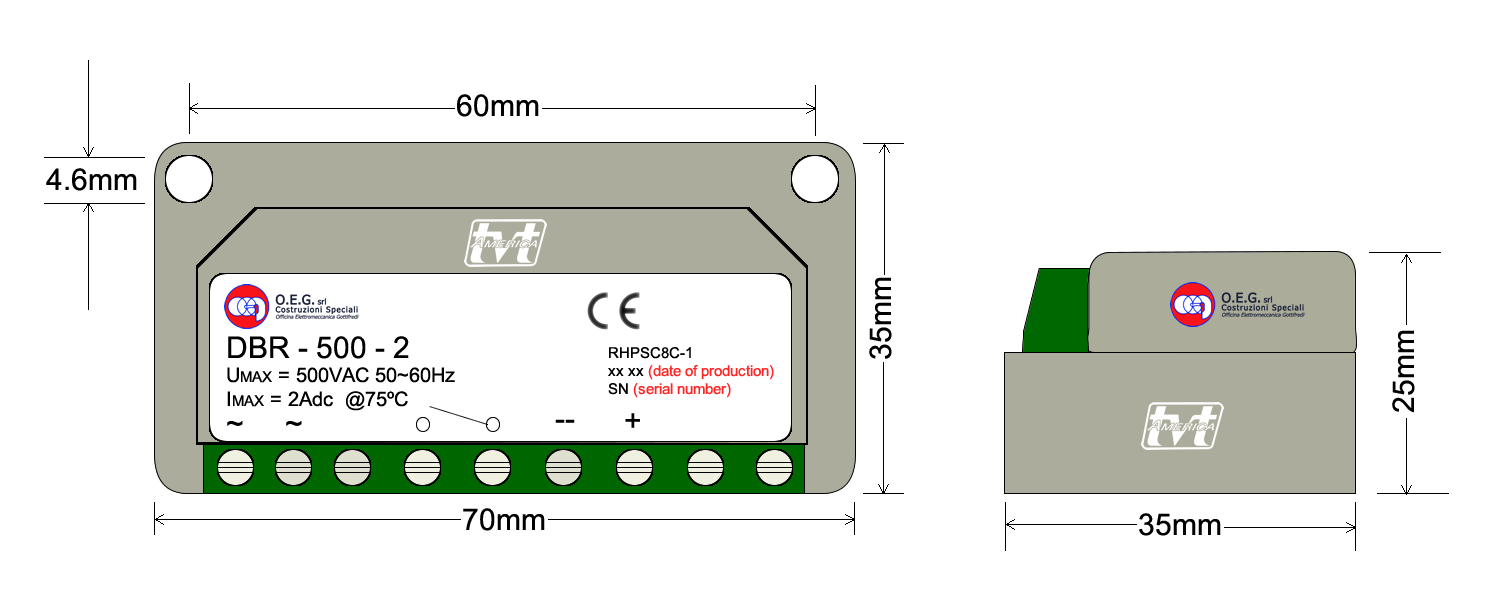

DBR 500-2 full GREY 500 2A 89% 3 Auxillary Yes

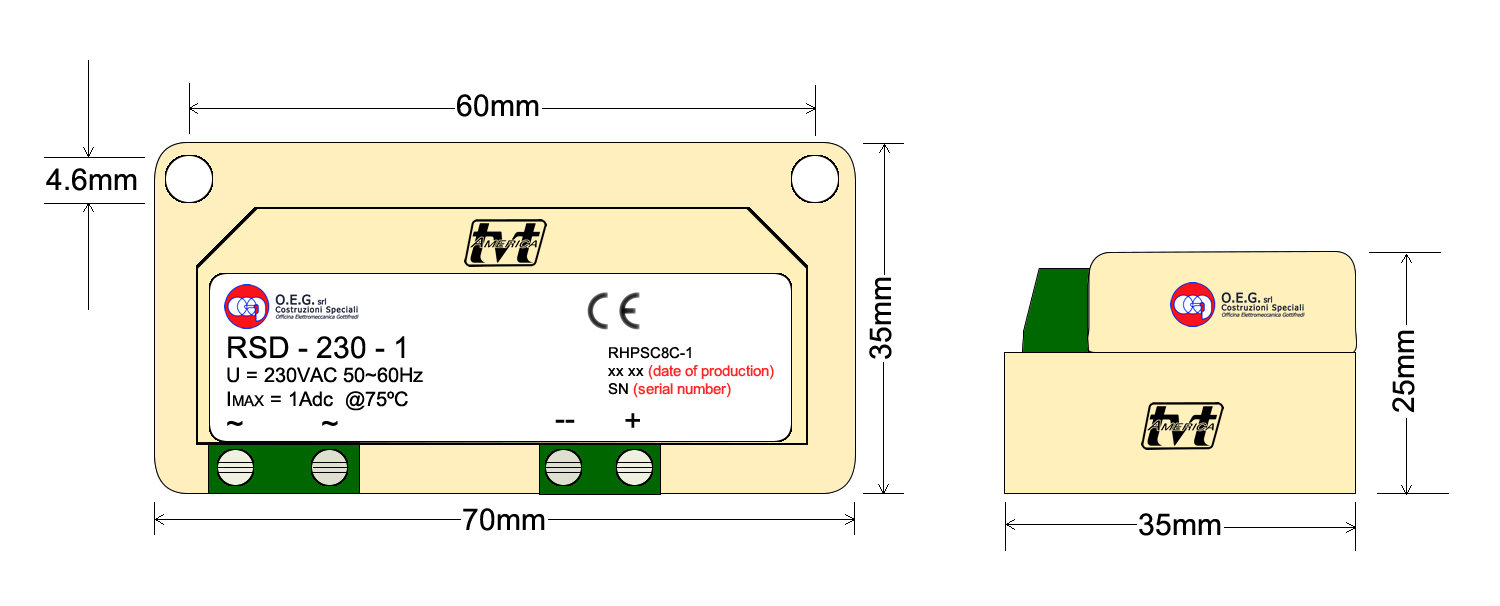

RSD 230-1 1/2 Blue 230 1A 44.5% fast drop off Yes
RSD 400-1 1/2 Blue 400 1A 44.5% fast drop off Yes

SBR type are for fast action higher performance applications.


For use with brake motors motors made by:
Motori Electricci MT, Nerimotori, Lafert, Ber-Mar, C.M.E., and more. 100% Made in Italy
