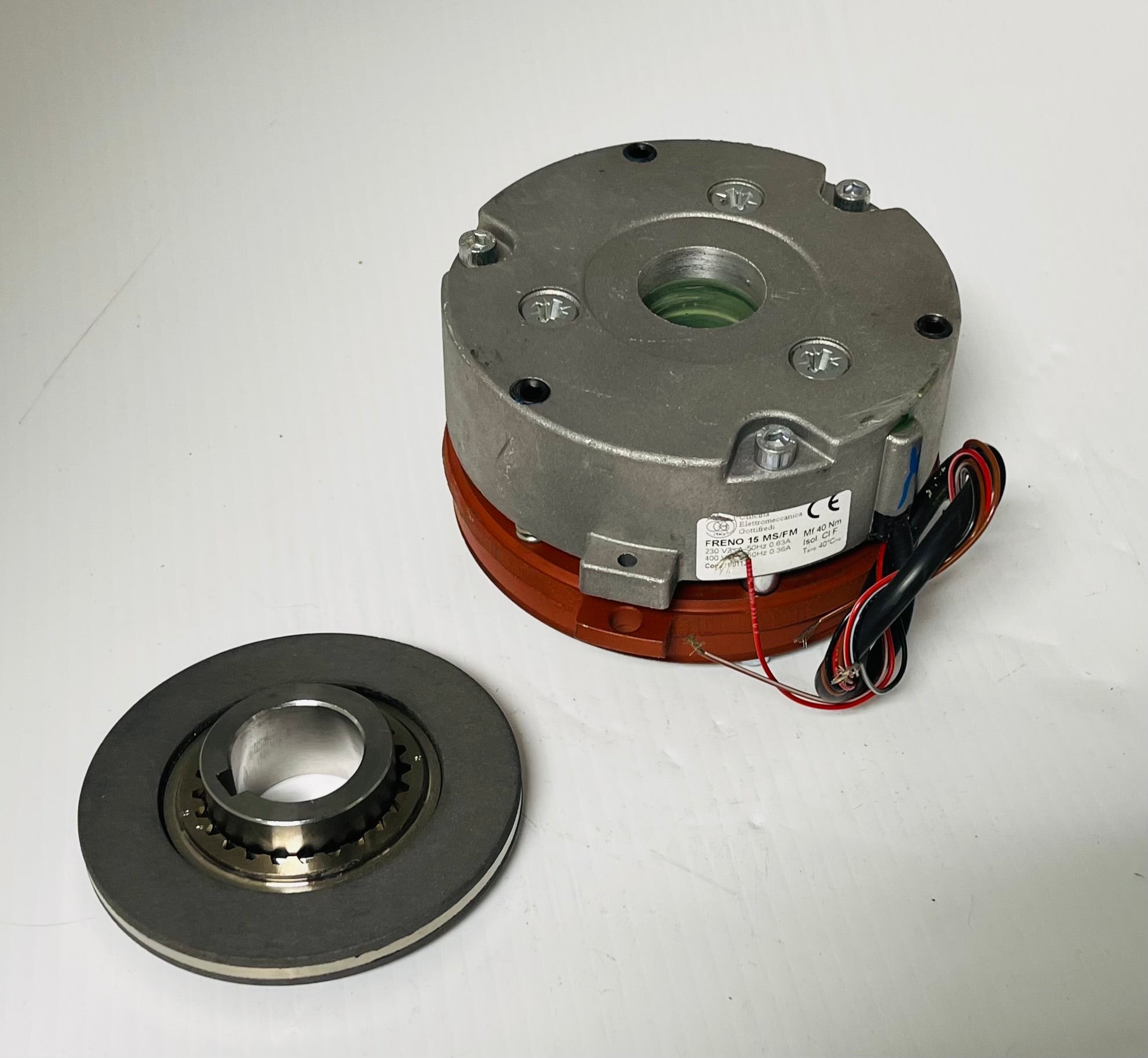

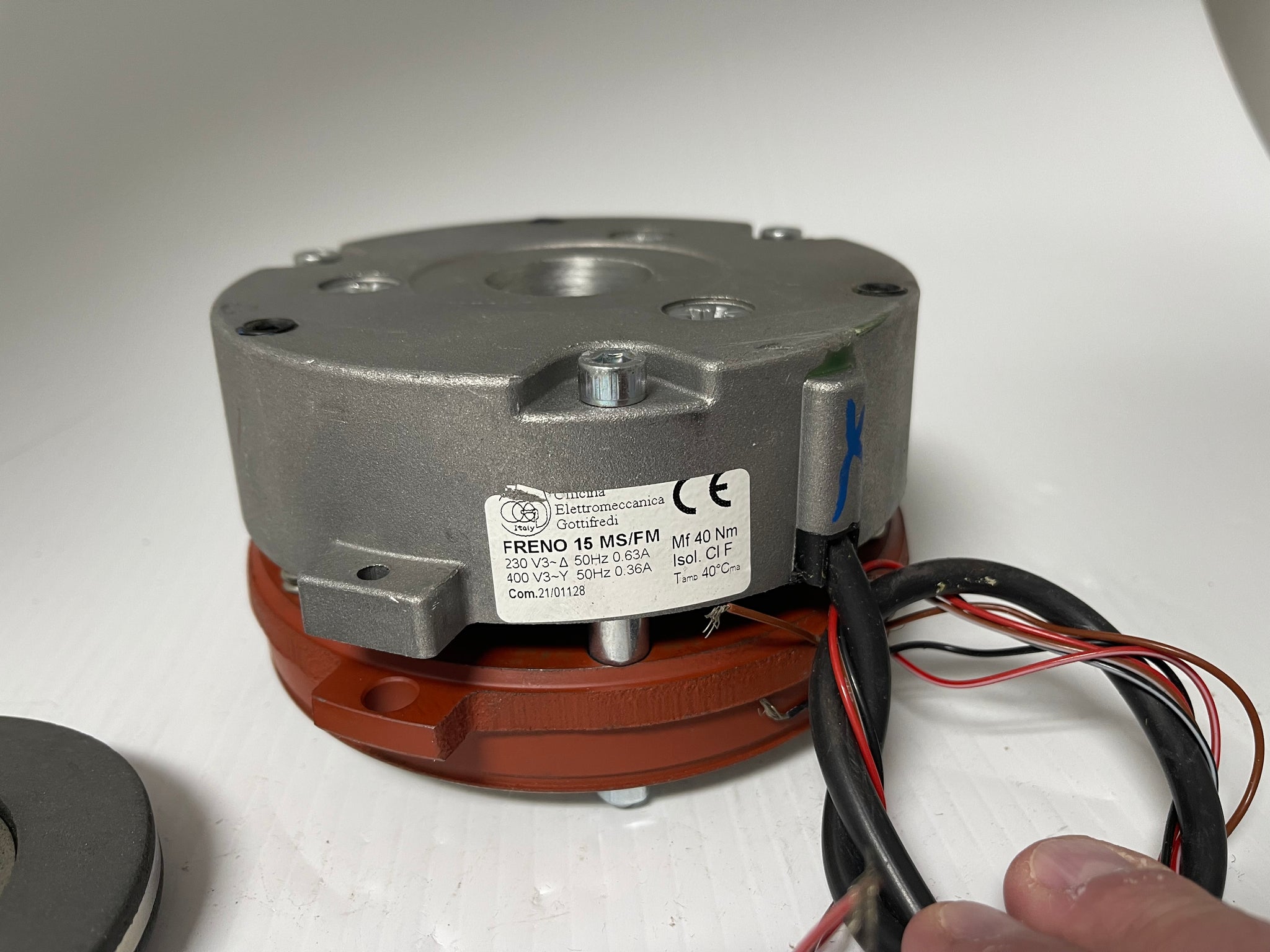

O.E.G. FRENO MS/FM SAB Brakes

OEG (Officina Elettromeccanica Gottifredi) is the leading manufacturer of electric motor brakes in Italy.  Starting in 1959 with the production of what has become the MS/FM 3ph AC brake, with continual innovation and improvements this has become the standard and most copied Italian Master of brakes in the world.

• Input Volts 230/400V50Hz and 230/460V/60hz 3ph (other voltages by request).
• Braking force of 5 to 250 Nm (44 to 2219 in-lbs).
• Eight standard sizes - 02, 03, 04, 05, 06S, 06, 07, 08.
• S1 Service, CLF Insulation, Class B temp rise, IP54 protection standard (IP55 kit available).
• Steel machined spline brake hub (stainless steel available at option).
• Safe asbestos-free silent friction material.
• Physically interchangeable with FM Series.
• Distributer Program Available, OEM Pricing on Request.

Technical Sheet PDF

Installation & Maintenance PDF

MSFM Brochure PDF

Specifications:

• Constructive Version UL 600V or 850V certified
• All AC Volts to 600Vac are available on request.
• Brake torque adjustable from 35% to 100% of rated.
• No axial load is applied to motor shaft from braking.
• Microswitch for brake release is available as an option.
• Microswitch for wear control is available as an option.
• Anti-stick friction lining.
• Steel brake disc is standard, Stainless steel available optionally.
• O-Ring anti vibration devise is available.
• IP55 dust/water kit is available (boot for brake and flinger seal for shaft).
• Stainless Steel motor fiction plate (motor side) available at option.
• Stainless Steel ring on anchor side (optional).
• Replaces ES AC (prior version).
• 100% Designed & Manufactured in ITALY, andLoved in America.
