PA100/45B O P1 Shaft Mount Reducer
PA100/45B O P1 Shaft Mount Reducer

PA100/45B O P1 Shaft Mount Reducer

Regular price
$3,411.00
Sale price
$1,705.50
Shipping calculated at checkout.
Quantity must be 1 or more

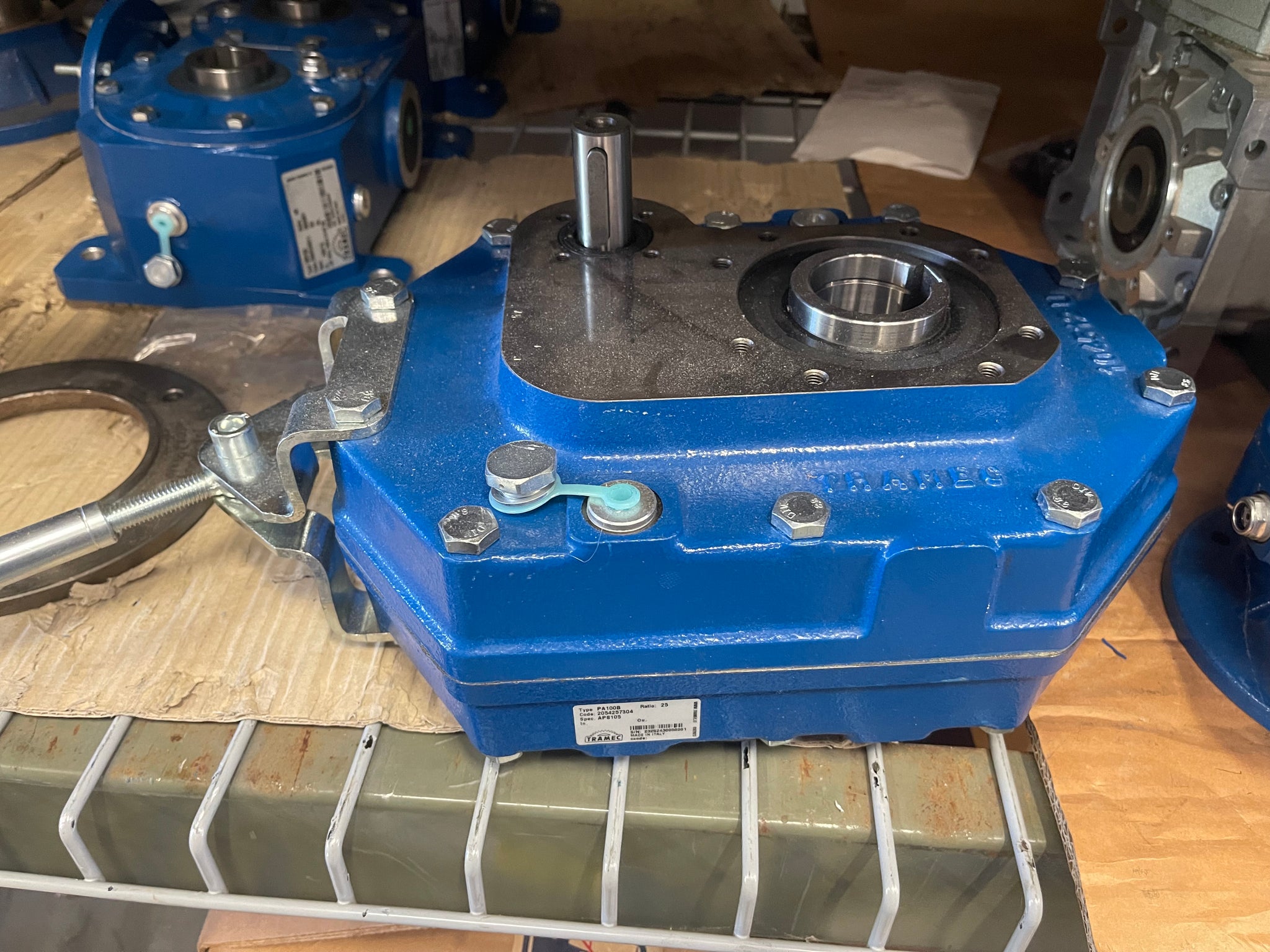

TVT® Parallel Helical Gearbox - Tramec Riduttori

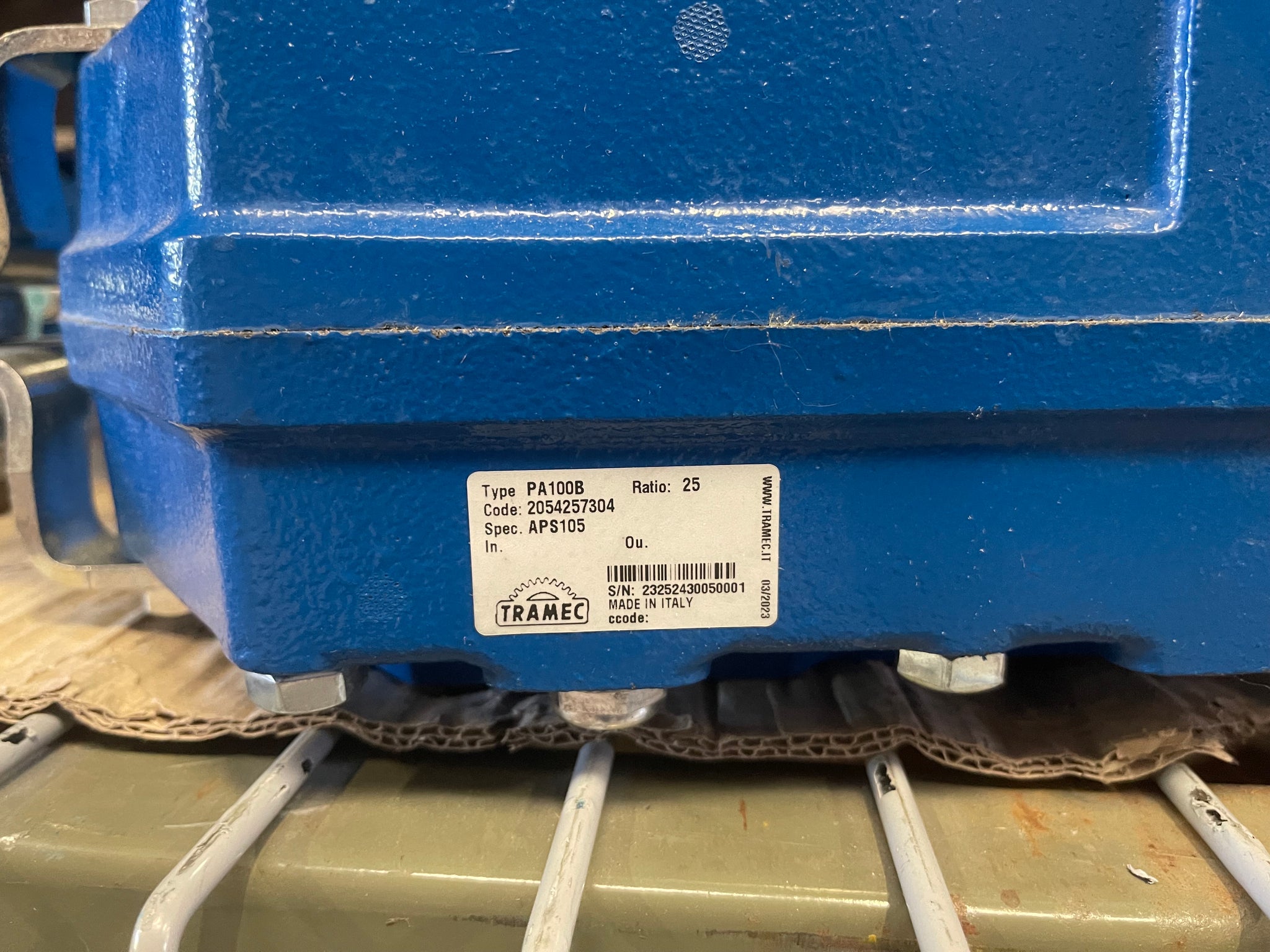

Code: 2054257304 APS105

Ratio: 1/25

Input: Solid Shaft 24mm diameter w/feather key. Drilled & Tapped End M8

Output: Hollow Bore 45mm, H7 tolerance, with 14mm key slot.

Gearcase: Engineering Cast Iron, Poleyster Epoxy Painted inside/out RAL 5010 TVT Blue before machining & assembly.

Lubrication: Shell Omala S4 WE 320 high performance synthetic, maintenance free for life.

Complete with torque arm tensioner & vent plug.  Shipped with shipping plug in place.

100% Made in Italy

Shipping weight 85lbs

Service parts kit: https://www.tvtamerica.net/products/2054257304-service-parts?_pos=1&_sid=0697598ce&_ss=r
