Poggi# 464030...

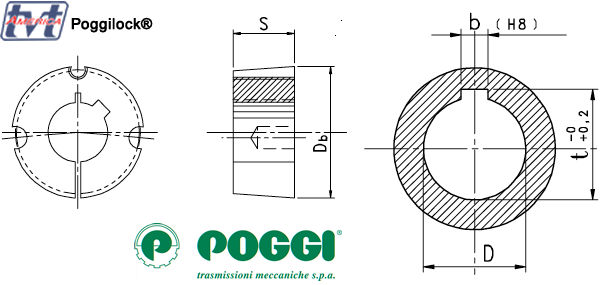

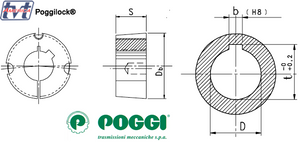

Poggi® Poggilock taperbushing size 4030
S = 76.2mm Db= 146.0mm Screw = 5/8"x 1.3/4" Torque= 170.0 Nm
| Part# | Bore "D" mm | Keyway "b" mm | Over-key "t" mm |
| Spec sheet: 464030040 | 40 | 12 | 43.3 |
| Spec sheet: 464030042 | 42 | 12 | 45.3 |
|
Spec sheet:
464030045
|
45 | 14 | 48.8 |
|
Spec sheet:
464030048
|
48 | 14 | 51.8 |
|
Spec sheet:
464030050
|
50 | 14 | 53.8 |
|
Spec sheet:
464030055
|
55 | 16 | 59.3 |
|
Spec sheet:
464030060
|
60 | 18 | 64.4 |
|
Spec sheet:
464030065
|
65 | 18 | 69.4 |
| Spec sheet: 464030070 | 70 | 20 | 74.9 |
| Spec sheet: 464030075 | 75 | 20 | 79.9 |
| Spec sheet: 464030080 | 80 | 22 | 85.4 |
| Spec sheet: 464030085 | 85 | 22 | 90.4 |
| Spec sheet: 464030090 | 90 | 25 | 95.4 |
| 464040100 | 100 | 28 | 106.4 |
* Consider a Delivery time of 5-7 days ARO + Preferred shipping time selected at checkout.
Metric Bored keyways to UNI 6604-69 DIN 6885 Standards.
