Poggi# 464535...

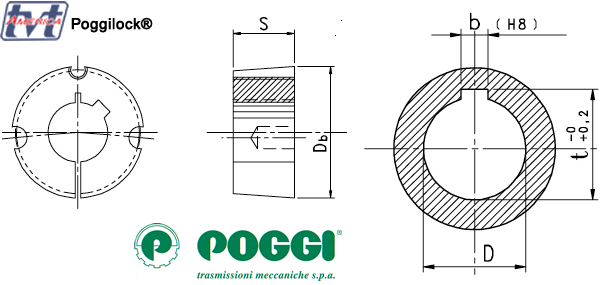

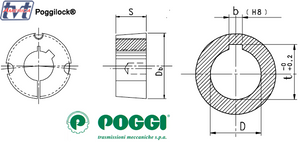

Poggi® Poggilock taperbushing size 4535
S = 88.9mm Db= 162.0mm Screw = 3/4"x2" Torque= 190.0 Nm
| Part# | Bore "D" mm | Keyway "b" mm | Over-key "t" mm |
| Spec sheet: 464535055 | 55 | 16 | 59.3 |
| Spec sheet: 464535060 | 60 | 18 | 64.4 |
|
Spec sheet:
464535065
|
65 | 18 | 69.4 |
|
Spec sheet:
464535070
|
70 | 20 | 74.9 |
|
Spec sheet:
464535075
|
75 | 20 | 79.9 |
|
Spec sheet:
464535080
|
80 | 22 | 85.4 |
|
Spec sheet:
464535085
|
85 | 22 | 90.4 |
|
Spec sheet:
464535090
|
90 | 25 | 95.4 |
|
Spec sheet: 464535095 |
95 | 25 | 100.4 |
|
Spec sheet: 464535100 |
100 | 28 | 106.4 |
|
Spec sheet: 464535105 |
105 | 28 | 111.4 |
| Spec sheet: 464535110 | 110 | 28 | 116.4 |
| Spec sheet: 464535115 | 115 | 32 | 122.4 |
| Spec sheet: 464535120 | 120 | 32 | 127.4 |
| Spec sheet: 464535125 | 125 | 32 | 132.4 |
* Consider a Delivery time of 5-7 days ARO + Preferred shipping time selected at checkout.
Metric Bored keyways to UNI 6604-69 DIN 6885 Standards.
