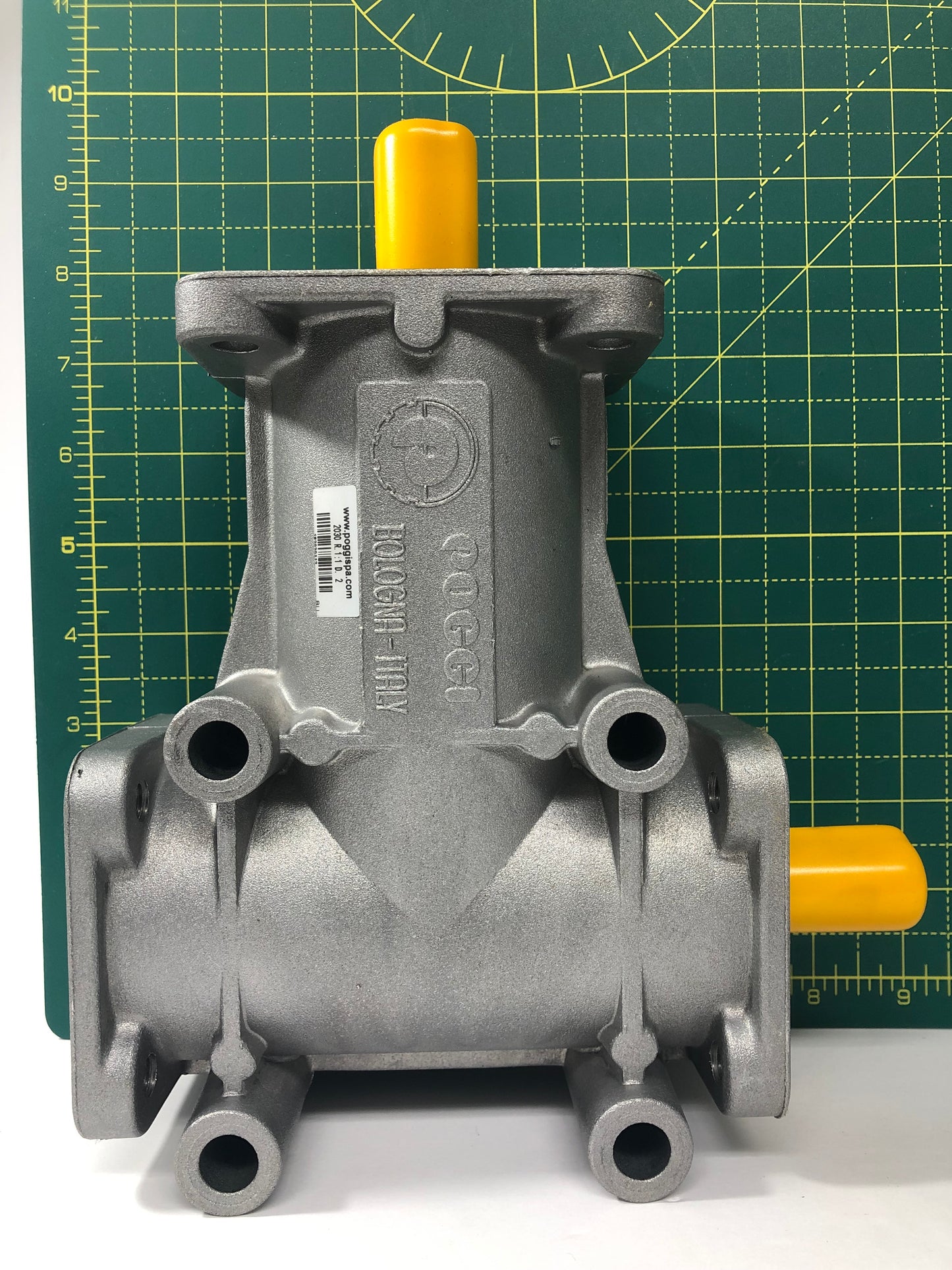

Poggi Bevel Gearbox 2030

Poggi® Right angle gearbox 2030 Series. Aluminum alloy housing featuring fully machined flanges with threaded holes.  Hardened, tempered and ground alloy steel shafts supported by electric motor grade deep groove ball bearings, Gleason spiral bevel gears made of hardened, tempered and ground alloy steel for silent and efficient operation in either direction. Synthetic lubricated and maintenance free for life fit with spring lip oil seals for clean leak free operation, High Temperature Viton® seals available on request.  Designed for minimal and repeatable backlash, 15 to 30 arc minutes standard, reduced backlash available on request.  Operational temperature of 0º to 170ºF (-18º to 80ªC).

* Prices are 1 piece User Pricing.  For OEM Production or Stocking Distributor discounts please inquire with sales@tvtamerica.com.

Spec sheet: 182030111

Spec sheet: 182030112

Spec sheet: 182030121

Spec sheet: 182030122

Spec sheet: 182030131

Spec sheet: 182030132

Poggi 182030111 compare to Atlanta Drives 52 03 191 LH/RH rotation

Poggi 182030112 compare to Atlanta Drives 52 03 191 RH/RH rotation

Poggi 182030121 compare to Atlanta Drives 52 05 191 LH/RH rotation

Poggi 182030122 compare to Atlanta Drives 52 05 191 RH/RH rotation

Poggi 182030131 compare to Atlanta Drives 52 07 191 LH/RH Rotation

Poggi 182030132 compare to Atlanta Drives 52 07 191 RH/RH Rotation
